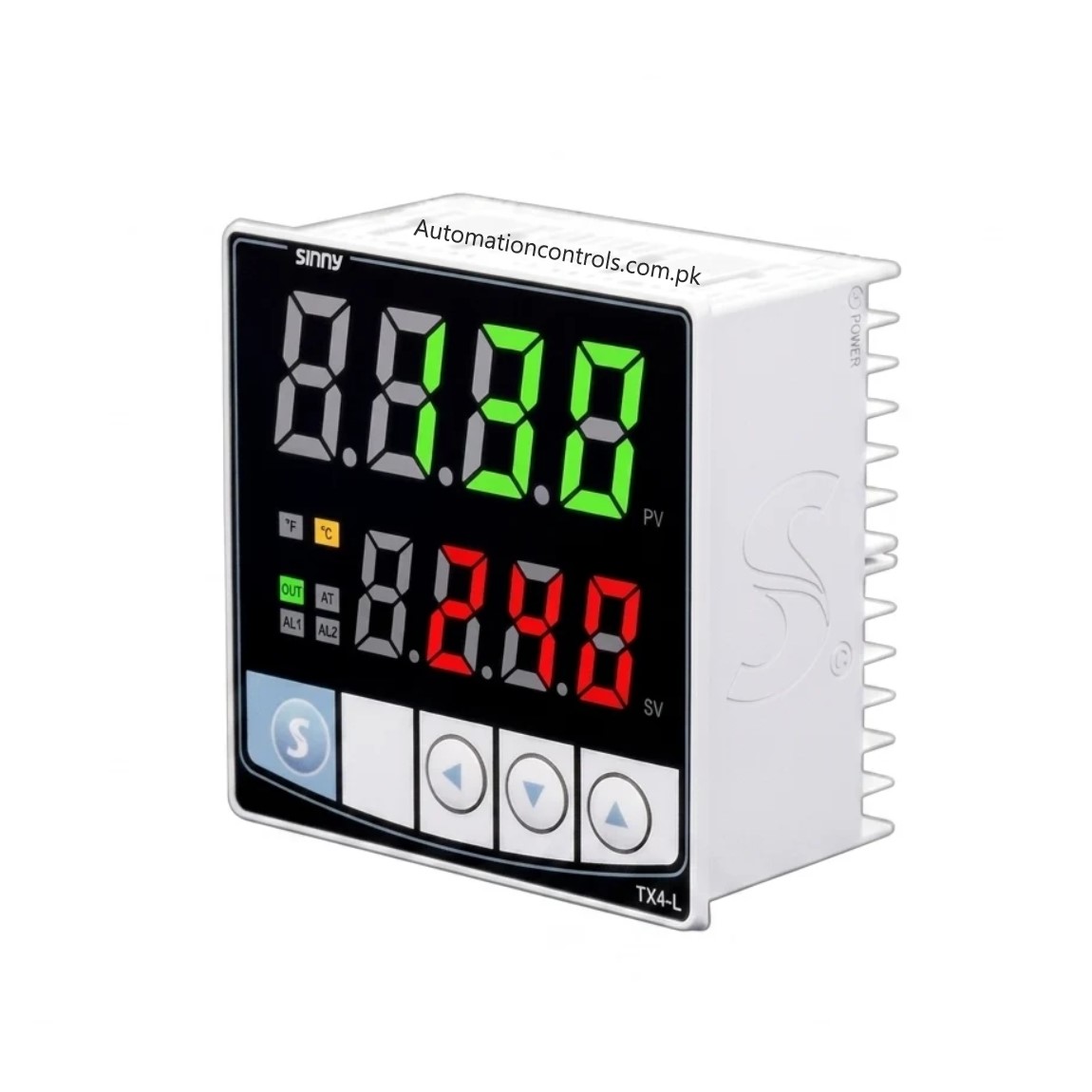

Sinny TX4-L Temperature Controller (96x96mm)
₨4,500.00
Sinny TX4-L Temperature Controller (96x96mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
Description
Sinny TX4-L Temperature Controller (96x96mm)
- TX4 Temperature Controller, economical 4-digit dual-display PID temperature controller with 100ms high-speed sampling period and ±0.5% display accuracy. 50mm depth, exquisite design supports more installation environments and ideal temperature control in various applications.
- These High Precision temperature controllers are engineered to deliver unparalleled precision, ensuring that your equipment operates within the precise temperature range required for optimal performance.
- If you require smart controllers with dual-stage functionality, industry-leading PID controllers, or versatile models for specific applications, our range of temperature controllers offers a variety of options to suit your unique needs across different industries and processes.
- It has high efficiency with fast and precise temperature control capabilities, our temperature controllers optimize process efficiency, contributing to enhanced productivity and performance across various applications.
- Large character LED display
- Diameter depth 75mm
- DIN Multiple standard sizes (W 48 x H 48, W 48 x H 96, W 72 x H 72, W 96 x H 48, W 96 x H 96 mm)
- 100-240V worldwide working power supply
- Support a variety of Thermocouple/RTD input switching
- Support ℉ / ℃ temperature unit switch
- Support Relay /SSR output switching
- Support one key to restore factory settings
- Enhanced PID+ control algorithm
- Automatic calculation function
- Display error correction function
- Heating/cooling mode selectable
- 12 alarm modes selectable
