MC4 Y-type Connector for Solar Panel 1000vDC
MC4 Y-type Connector for Solar Panel 1000vDC
| Rated Voltage | 1000VDC |
| Rated Current | 30A |
| Test Voltage | 6kV (50Hz, 1min) |
| Ambient Temperature Range | -40°C~+90°C (IEC) |
| -40°C~+75°C (UL) | |
| Upper Limiting Temperature | +105°C (IEC) |
| Protection Degree | IP67 |
| Touch Protection Level, Unmated | IP2X |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Contact Material | Messing, Alloy, tin plated |
| Insulation Material | PC/PA |
| Locking System | Snap-in |
| Flame Class | UL-94-V0 |
PS-400S Photronic Edge Sensor
PS-400S Photronic Edge Sensor
| checking method | edge tracking |
| power input | DC10-30V |
| output signal | two way analogue0-5V two way NPN on-off signal |
| detecting range | 8mm(±4mm) |
| detecting precisiion | ±0.02mm |
| output mode | digital type/ analog type |
| detecting method | photoelectric opposite beam |
| carrier frequency | 100KHz/1KHz |
| enclosure rating | IP54 |
| environment temperature | -10°-80°C below RH90% |
| shell material | aluminum alloy |
US-400S Ultrasonic Edge Sensor
Sick GTB6-N1212 Photo-electric Sensor
Sick GTB6-N1212 Photo-electric Sensor
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm - 250 mm |
| Sensing range | 35 mm - 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC - 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage NPN HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Circuit protection | A 8) B 9) D 10) |
| Protection class | III |
| Weight | 60 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
Finder (60.12) Series 8pin 24VDC Relay
Finder (60.12) Series 8pin 12VDC Relay
Schneider 2P 1000VDC SPD Surge Protection Device
₨3,500.00
Product : Schneider 2P 1000VDC SPD Surge Protection Device
Model : G2040PV/1000
Number of pole : 2pole
Related Operating Voltage Un : 1000V DC
Nominal Discharge Current In : 20kA
Max. Discharge Current Imax : 40kA
Response Time (ns) : Ë, 25
Operating Environment : -40°C to 85°C
Maximum Connection Line : 35 mm² hard wire or 35 mm² strand wire
Recommended Connection Line : 16 mm² hard wire or 25 mm² strand wire
Installation : DIN rail Standard Rail 35mm

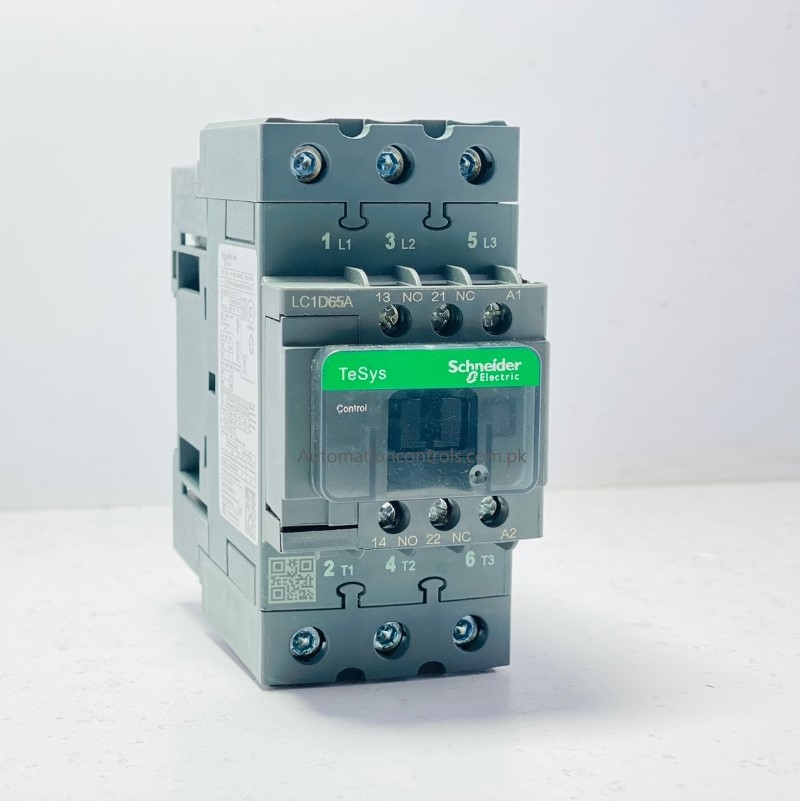

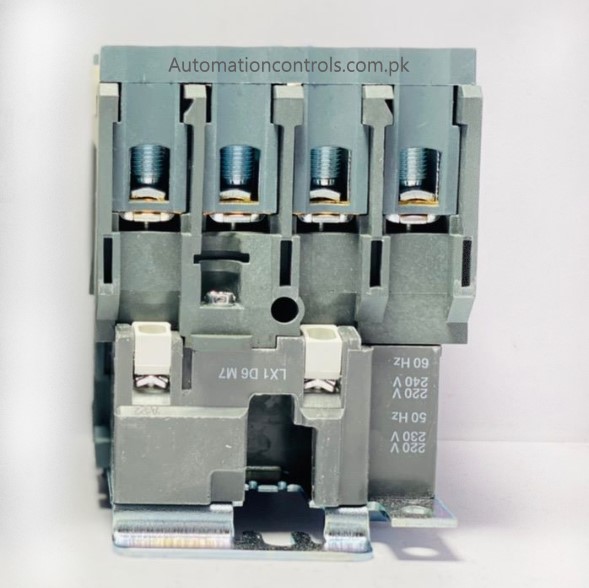

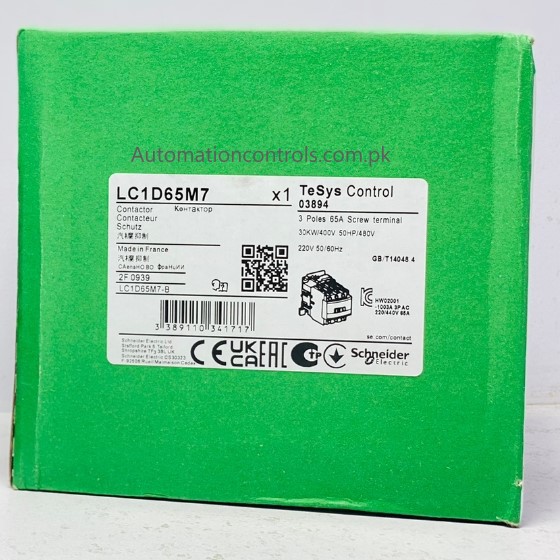

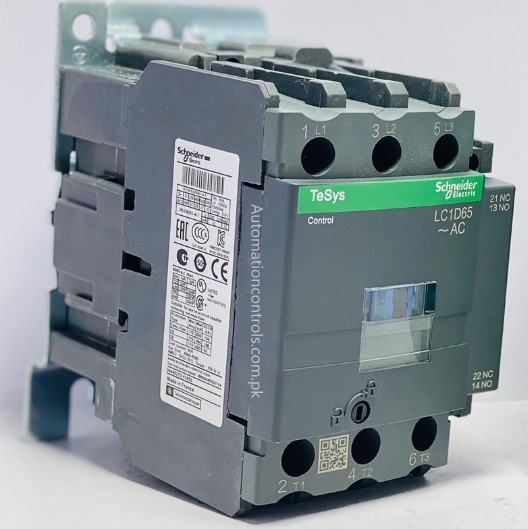

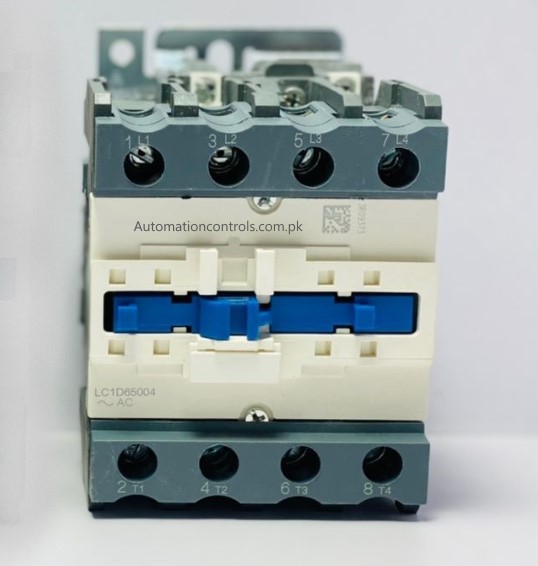

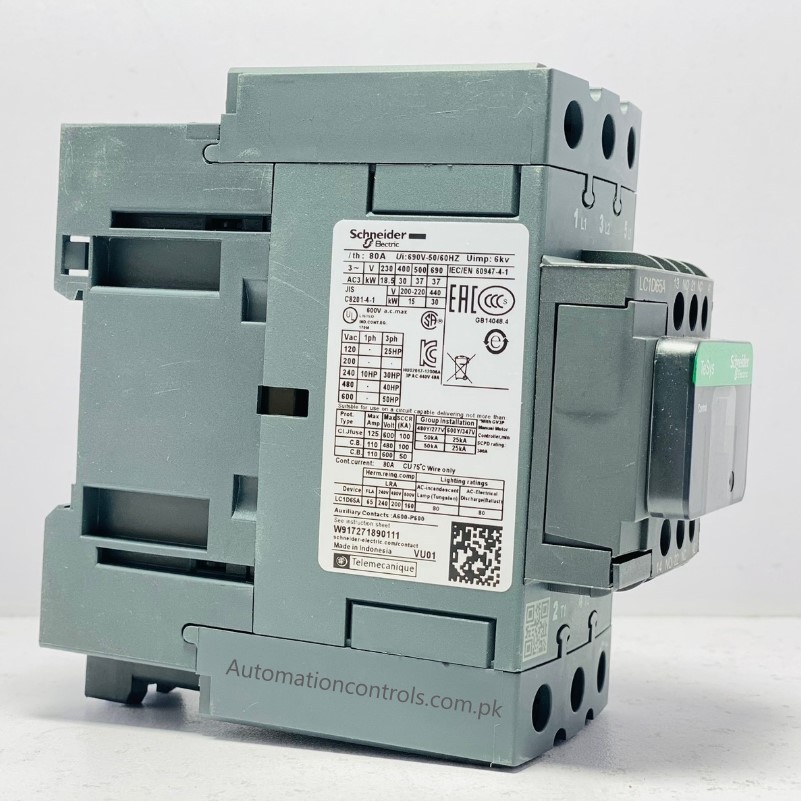

Schneider LC1D65A Slim Body Magnetic Contactor 65A 220VAC pole
₨9,800.00
Product : Magnetic contactor
Model : LC1D65A
Number of pole : 4p
Coil voltage : 220VAC
Mounting : DIN rail
Operational current : 65A
Ith : 80A
Frequency : 50-60 Hz
Operating temperature : -5 to 60 C
Auxiliary Contact : 1NO/1NC
Delivery available all over Pakistan
MOST POPULAR
Discover our best-selling and trending products.
FOR SAFETY
MC4 Y-type Connector for Solar Panel 1000vDC
MC4 Y-type Connector for Solar Panel 1000vDC
| Rated Voltage | 1000VDC |
| Rated Current | 30A |
| Test Voltage | 6kV (50Hz, 1min) |
| Ambient Temperature Range | -40°C~+90°C (IEC) |
| -40°C~+75°C (UL) | |
| Upper Limiting Temperature | +105°C (IEC) |
| Protection Degree | IP67 |
| Touch Protection Level, Unmated | IP2X |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Contact Material | Messing, Alloy, tin plated |
| Insulation Material | PC/PA |
| Locking System | Snap-in |
| Flame Class | UL-94-V0 |
PS-400S Photronic Edge Sensor
PS-400S Photronic Edge Sensor
| checking method | edge tracking |
| power input | DC10-30V |
| output signal | two way analogue0-5V two way NPN on-off signal |
| detecting range | 8mm(±4mm) |
| detecting precisiion | ±0.02mm |
| output mode | digital type/ analog type |
| detecting method | photoelectric opposite beam |
| carrier frequency | 100KHz/1KHz |
| enclosure rating | IP54 |
| environment temperature | -10°-80°C below RH90% |
| shell material | aluminum alloy |
US-400S Ultrasonic Edge Sensor
Sick GTB6-N1212 Photo-electric Sensor
Sick GTB6-N1212 Photo-electric Sensor
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm - 250 mm |
| Sensing range | 35 mm - 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC - 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage NPN HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Circuit protection | A 8) B 9) D 10) |
| Protection class | III |
| Weight | 60 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
Finder (60.12) Series 8pin 24VDC Relay
Finder (60.12) Series 8pin 12VDC Relay
SALE PRODUCTS
UNI-T UT-207a Digital Clamp Meter
Product : UNI-T UT-207a Digital Clamp Meter
| Function | Range(s) | Basic Accuracy |
|---|---|---|
| AC Current (A) | 40A / 400A / 1000A | ±(2.5% + 8) to ±(2.0% + 2) |
| DC Current (A) | 40A / 400A / 1000A | ±(2.0% + 5) to ±(1.5% + 5) |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8% + 1) to ±(1.0% + 3) |
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2% + 3) to ±(1.2% + 20) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0% + 2) to ±(1.5% + 2) |
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/1MHz/10MHz | ±(0.1% + 3) |
| Duty Cycle | 0.1% ~ 99.9% | For reference only |
| Display Type | Backlit LCD, 47mm × 30mm |
| Display Count | 3999 (3¾ digits) |
| Jaw Opening | 55mm (maximum conductor size: 45mm diameter) |
| Sampling Rate | 3 times/second |
| Auto Ranging | Yes |
| Continuity Threshold | Buzzer beeps at <10Ω |
| Diode Test | Yes (open circuit voltage ~1.5V) |
| ZERO Button | Yes (for offset calibration) |
| Auto Power Off | 15 minutes |
| Low Battery Indication | Yes |
| Power Supply | 9V battery (6LF22) ×1 |
| Product Dimensions | 286mm × 105mm × 45mm |
| Product Net Weight | ~533g (including battery) |
| Safety Rating | CAT II 600V / CAT III 300V, Pollution Degree 2 |
Schneider EOCR-SS Electronic Over Load Relay 0.5-6.5A
Product : Schneider EOCR-SS Electronic Over Load Relay 0.5-6.5A
Adjustable current range : 0.5-6.5 (built‑in CT)
Protects against overload, phase loss, unbalance
Adjustable trip time & start delay; auto/manual reset
Relay C/O output to trip contactor; status LEDs
DIN‑rail/panel mount; quick pass‑through wiring
Measurement : 3‑phase pass‑through up to 6.5A
Supply : 110/220 VAC, 50/60 Hz
Output Contact : 1 C/O, up to 5A @ 250 VAC
Settings : current 0.5-6.5A
trip delay ~0.5–30 s; start delay adjustable
Indication/Reset: RUN/TRIP LEDs; manual/auto reset selectable

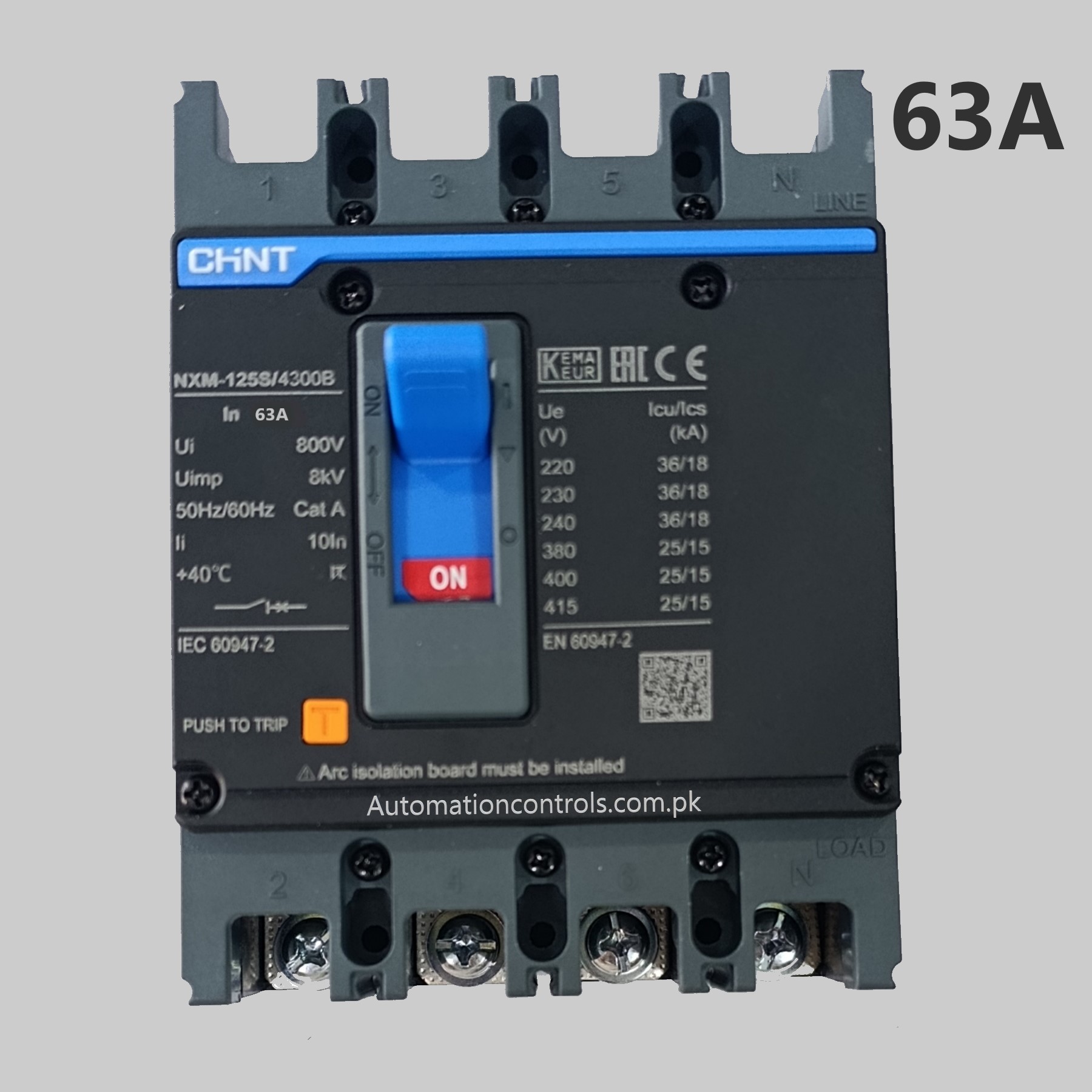

Chint NXM-125S 4P 63A MCCB in Pakistan
- Model : NXM-125S
- Product : Chint NXM-125S 4P 63A MCCB
- Rated Current: 63A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

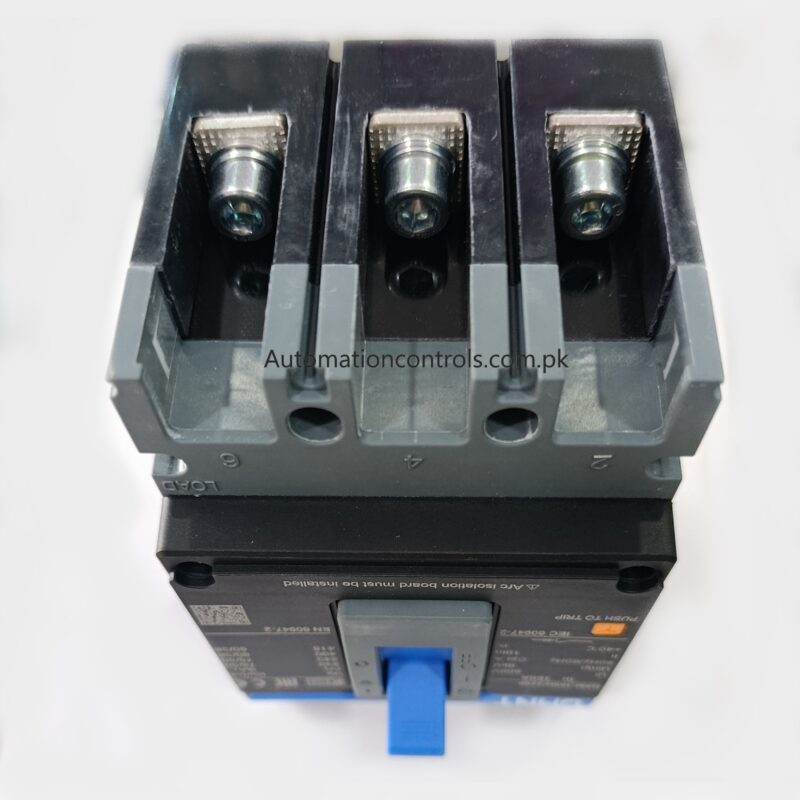

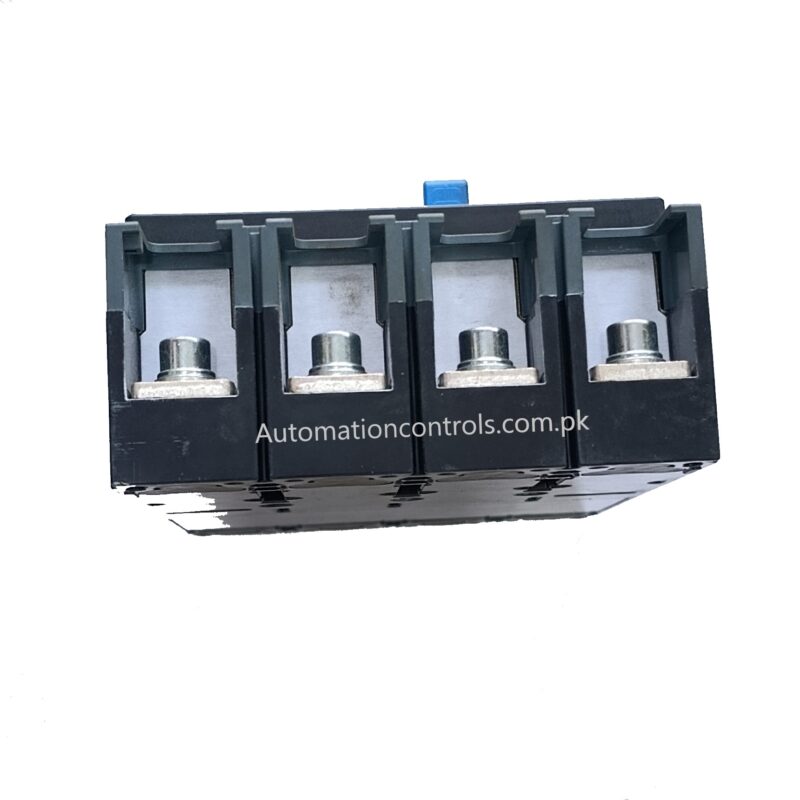

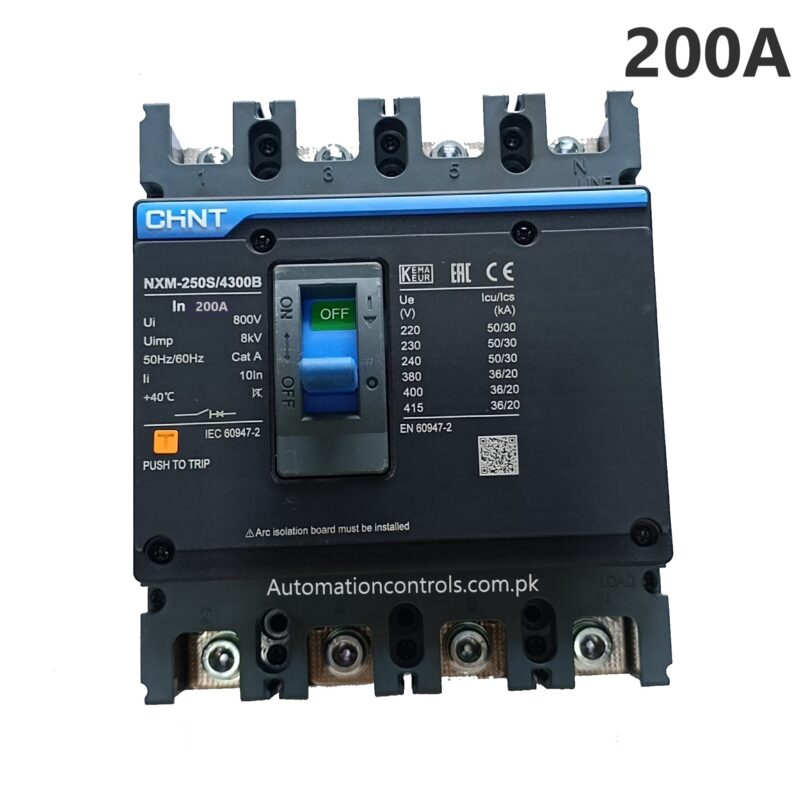

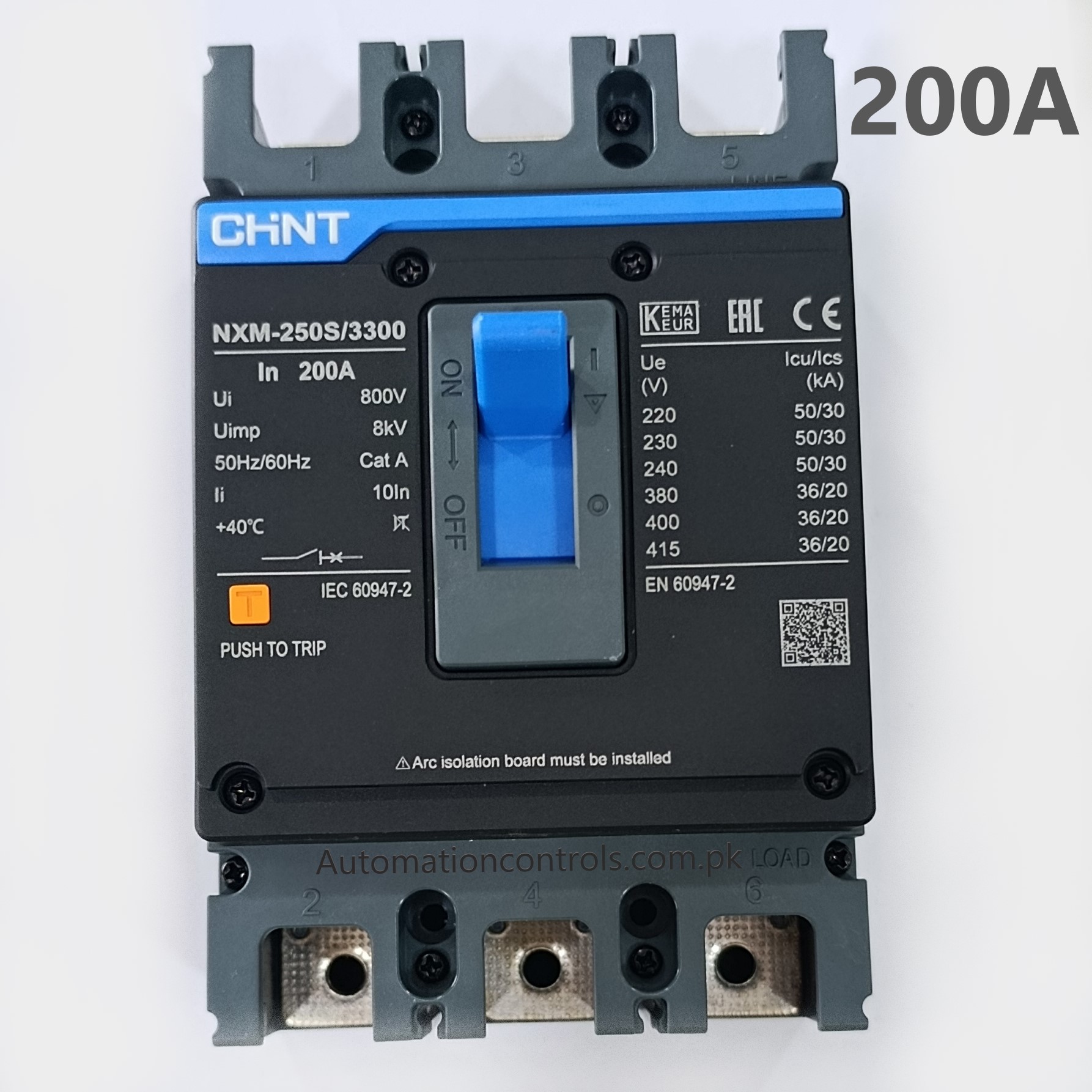

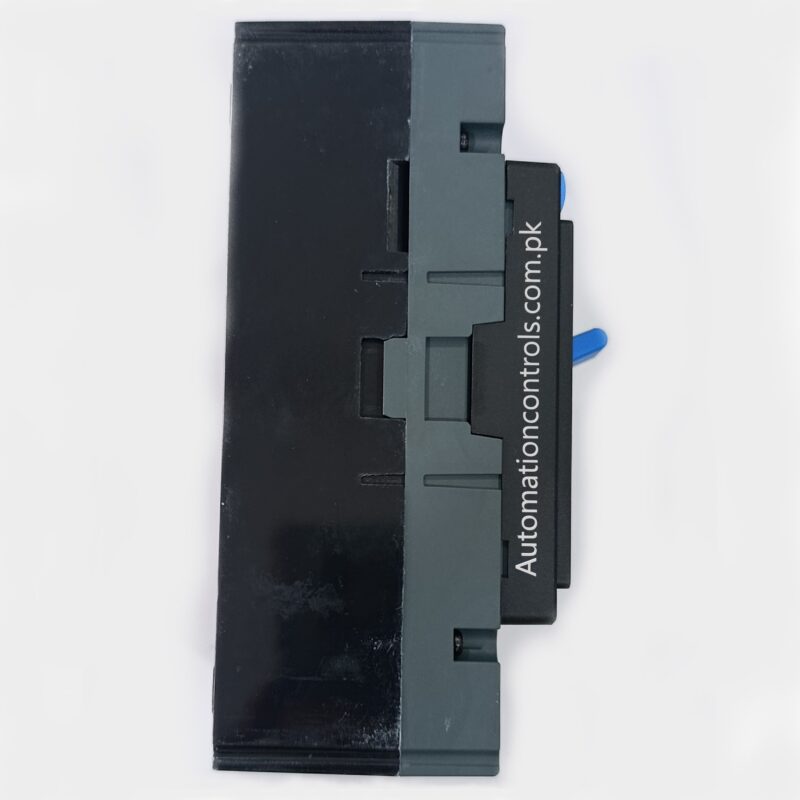

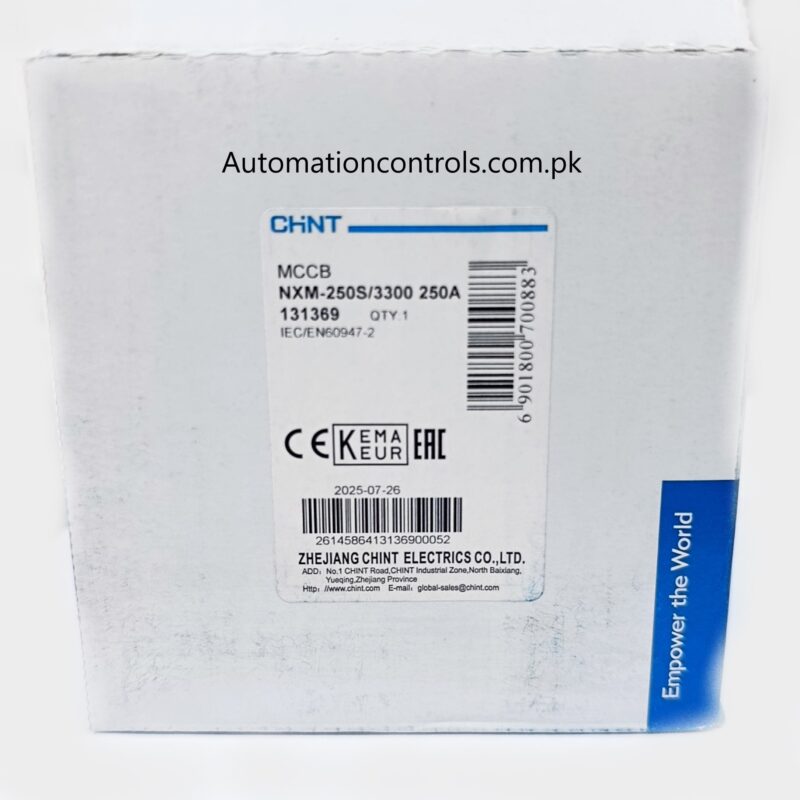

Chint NXM-250S 4P 200A MCCB in Pakistan
- Model : NXM-250S
- Product : MCCB moulded case circuit breaker
- Rated Current: 200A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
FAVOURITE COLLECTION
SAFETY DEVICES minimizes the risk of workplace accidents and safeguards the well-being of every employee.
Chuka 4V210-08 Solenoid Valve 1/4′′ 5way
₨1,850.00
Chuka 4V210-08 Solenoid Valve 1/4′′ 5way
Model : 4V210-08
Valve Type : 5/2-Way (5 Port, 2 Position)
Control Type : Single Solenoid / Spring Return
Working Medium : Filtered Compressed Air
Inlet / Outlet Port Size : 1/4″ PT / NPT
Exhaust Port Size : 1/8″
Operating Pressure Range : 0.15 to 0.8MPa, 1.5 to 8bar
Max Pressure Resistance : 1.2 MPa
Operating Temperature : -20 to +70
Voltage : AC220V standard
Write other voltage in order notes if you want AC110V, DC24V, DC12V, AC24V
Protection Rating : IP65 (Dust & Water Jet Resistant)
STC-100 Refrigerating and Heating Temperature Controller
₨2,500.00
- Product: STC-100 Refrigerating and Heating Temperature Controller
- Model : STC-100A
- Relay capacity : 10A (0.5HP) / 220VAC
- Temperature measuring range : -40 ~ 99 ° C
- Temperature control range : -40 ~ 99 ° C
- Resolution : 1 ° C
- Accuracy : ± 1 ° c ± 0.5 digits
- Ambient requirements : temperature: 0-60 ° c humidity: 20% -85% (no condensate)
- Consumption : ≤ 3W
- Input: 1 NTC sensor
- Sensor length : 2M (include the probe)
- Delay time in case of sensor error : 1 min
- Front panel security level : IP54
- Storage temperature : -30 ° c-75 ° c
- Front panel size : 77 (L) x34.5 (W) mm / 3x1.35in
- Installation hole size : 71 (L) x29 (W) mm
- Item size : 77 (L) x34.5 (W) x62mm (D) /3x1.35x2.42in
NT6-0302 Color Code Sensor BZJ-312
₨24,500.00
Type : sensor
Output : standard
Model : NT6-0302
Mounting Type : connect
Description : NT6-0302 Color Code Sensor BZJ-312
Working Voltage : 10-30VDC
Output : NPN PNP
SASETY & COMFERT

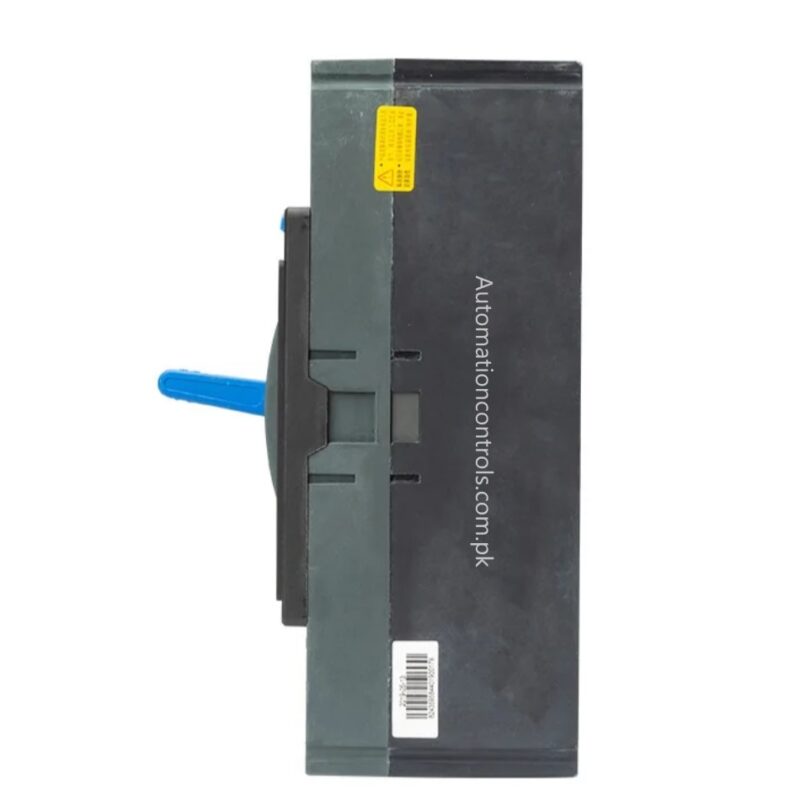

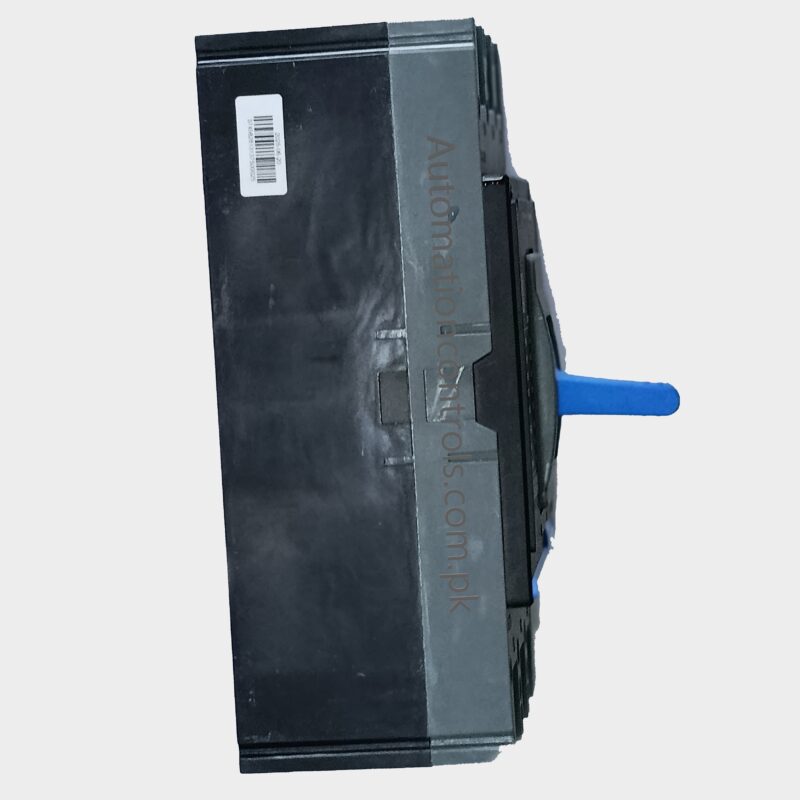

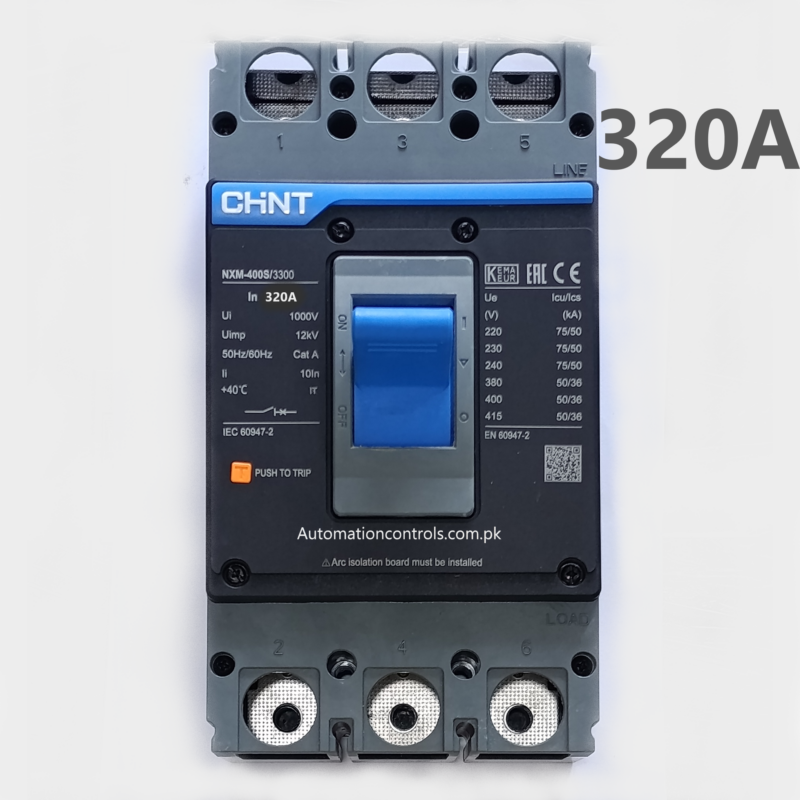

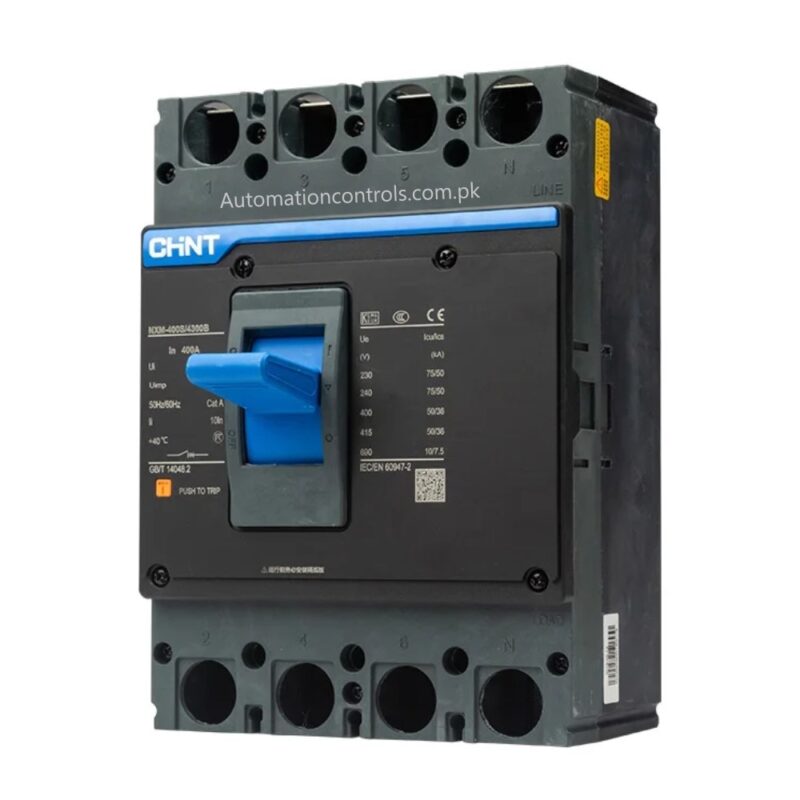

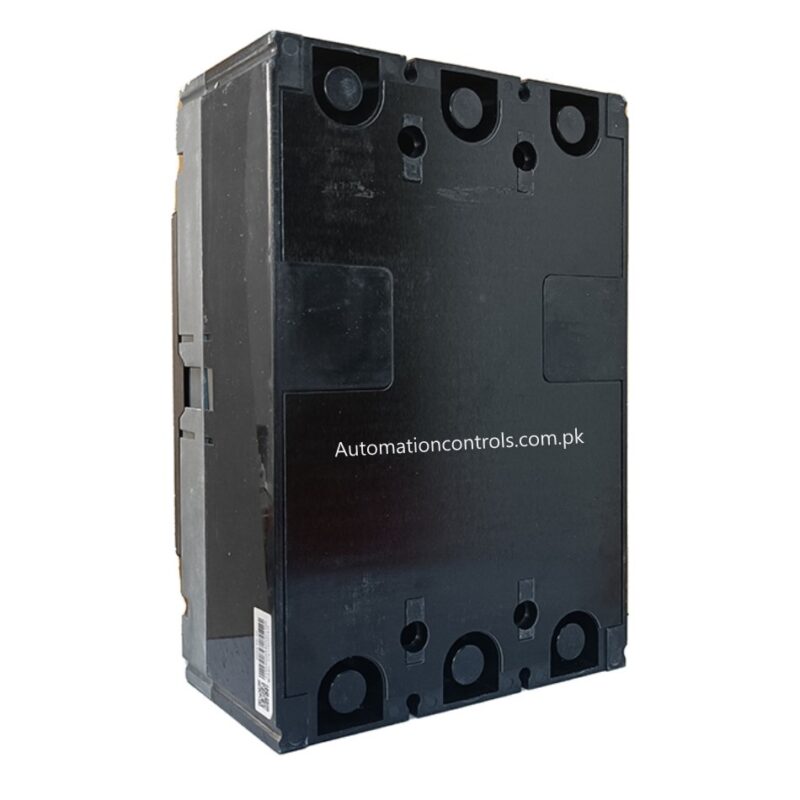

Chint 3P 320A MCCB Moulded Case Circuit Breaker NXM-400S
- Model : NXM-400S
- Product : MCCB moulded case circuit breaker
- Rated Current: 320A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 3P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
UNI-T UT205E Digital Clamp Meter
UNI-T UT205E Digital Clamp Meter
| AC current (A) | 1000A | ±(2%+5) | |||
| AC current frequency response | 50Hz~60Hz | ||||
| AC voltage (V) | 1000V | ±(1.2%+3) | |||
| DC voltage (V) | 1000V | ±(0.5%+5) | |||
| AC voltage frequency response | 40Hz~400Hz | ||||
| Resistance (Ω) | 60MΩ | ±(1%+2) | |||
| Capacitance (F) | 60mF | ±(4%+5) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | |||
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | |||
| Display count | 6000 | ||||
| Jaw opening | 42mm | ||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT205E 465g | ||||
| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
HS-30J Crimping tool Ratchet Crimp Plier 0.5-6mm²
Product: HS-30J Crimping tool Ratchet Crimp Plier 0.5-6mm²
Crimping range: 0.5-6mm²
Product material: high carbon steel
Handle material: PVC
Structure: Ratchet crimping pliers
Delivery available all over Pakistan
Buy the HS-30J Ratchet Crimping Tool (0.5-6mm²). Ergonomic, high-carbon steel wire crimper with 50% energy-saving design for insulated electrical terminals.
Chint NXM-125S 4P 50A MCCB in Pakistan
- Model : NXM-125S
- Product : Chint NXM-125S 4P 50A MCCB Molded Case Circuit Breaker
- Rated Current: 50A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
SPECIAL OFFER
Schneider GV2ME Motor Protection Circuit Breaker 9-14A
HS-30J Crimping tool Ratchet Crimp Plier 0.5-6mm²
Product: HS-30J Crimping tool Ratchet Crimp Plier 0.5-6mm²
Crimping range: 0.5-6mm²
Product material: high carbon steel
Handle material: PVC
Structure: Ratchet crimping pliers
Delivery available all over Pakistan
Buy the HS-30J Ratchet Crimping Tool (0.5-6mm²). Ergonomic, high-carbon steel wire crimper with 50% energy-saving design for insulated electrical terminals.
Chint NXM-400S 4P 320A MCCB in Pakistan
- Model : NXM-400S
- Product : MCCB moulded case circuit breaker
- Rated Current: 320A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Schneider EOCRSS-05S Electronic Over Load Relay 0.5-6A
Schneider EOCRSS-05S Electronic Over Load Relay 0.5-6A
Relays / Phase Monitoring Relays
Power Source : AC
Theory : Electronic Relay
Protect Feature : Sealed
Model Number : EOCRSS
Voltage : 220VAC
Operating Voltage(Un) : 24-260VAC
Current Range(A) : 0.5-6A
Main Circuit Wiring : Through Core
Relay Output : 1a1b
Protected Object : motor

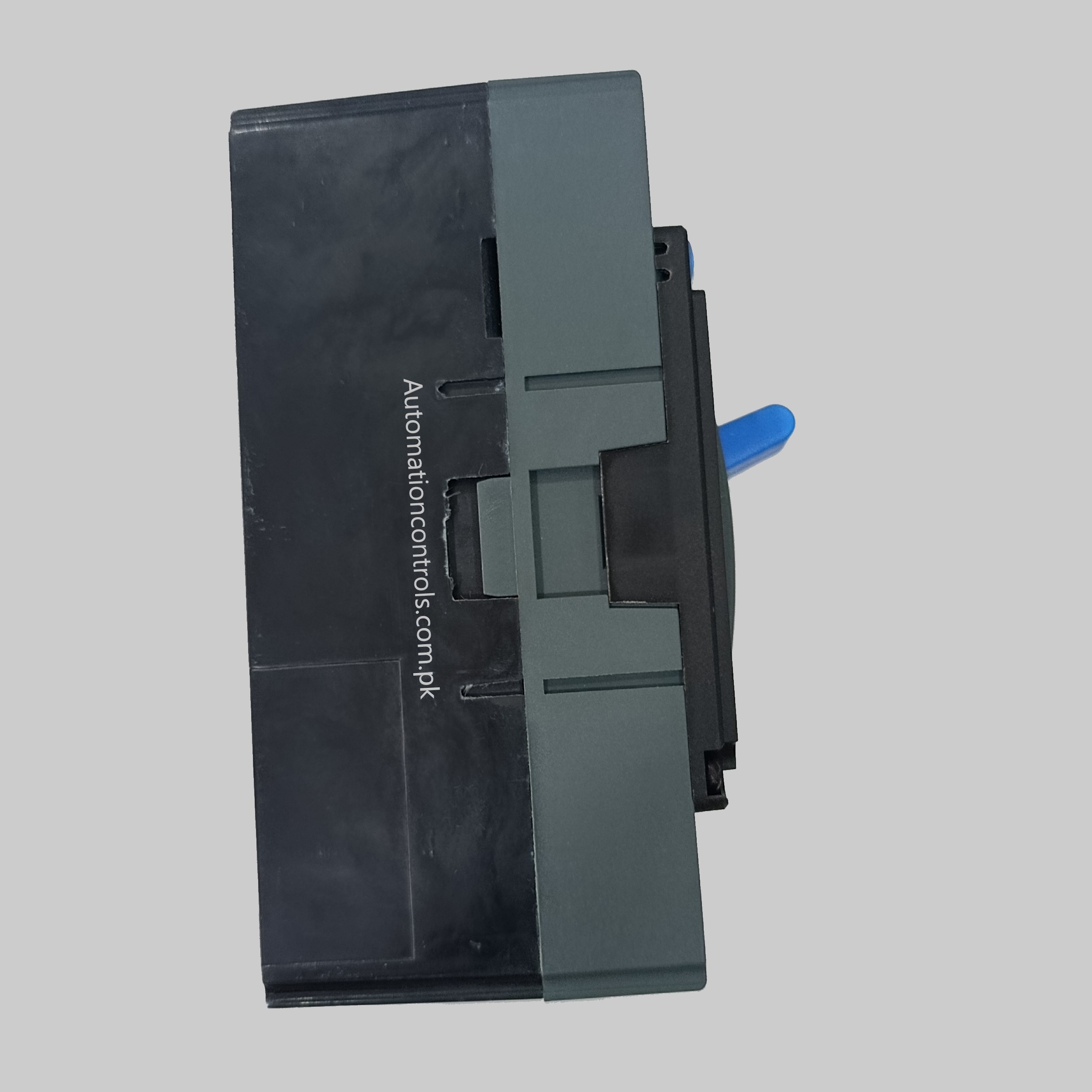

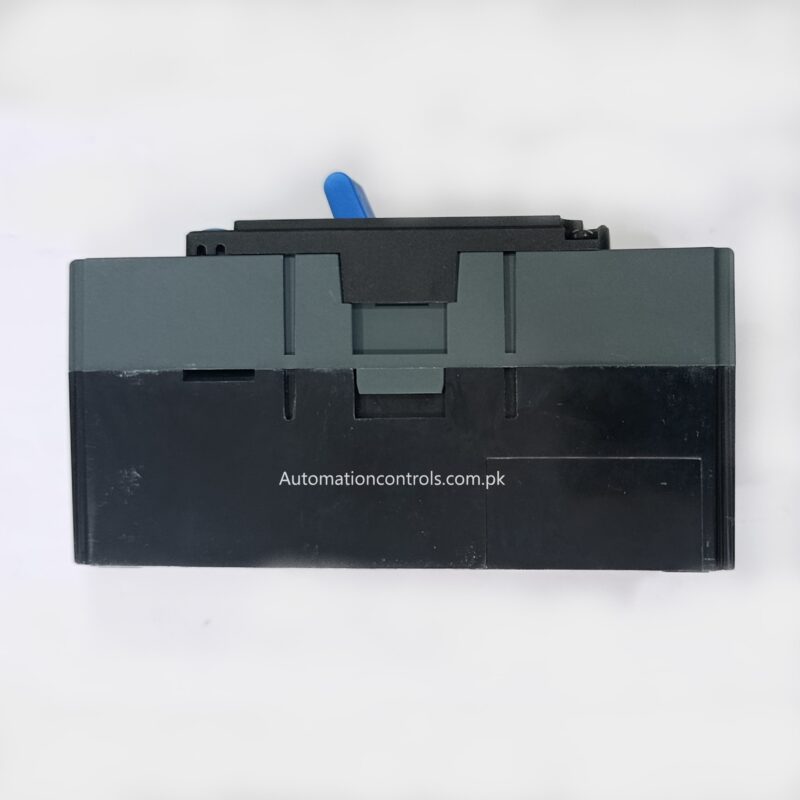

Chint NXM-250S 4P 200A MCCB in Pakistan
- Model : NXM-250S
- Product : MCCB moulded case circuit breaker
- Rated Current: 200A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

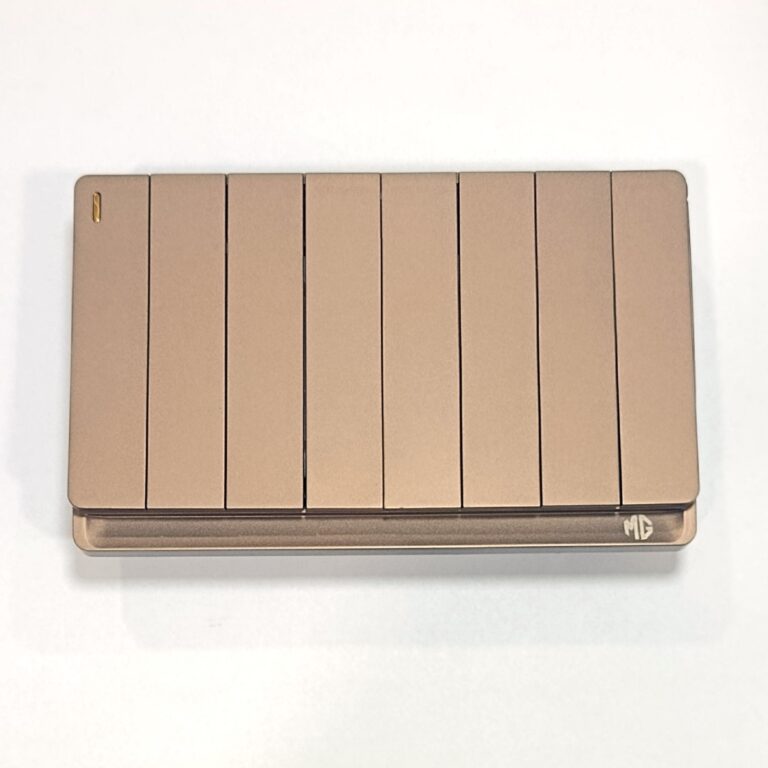

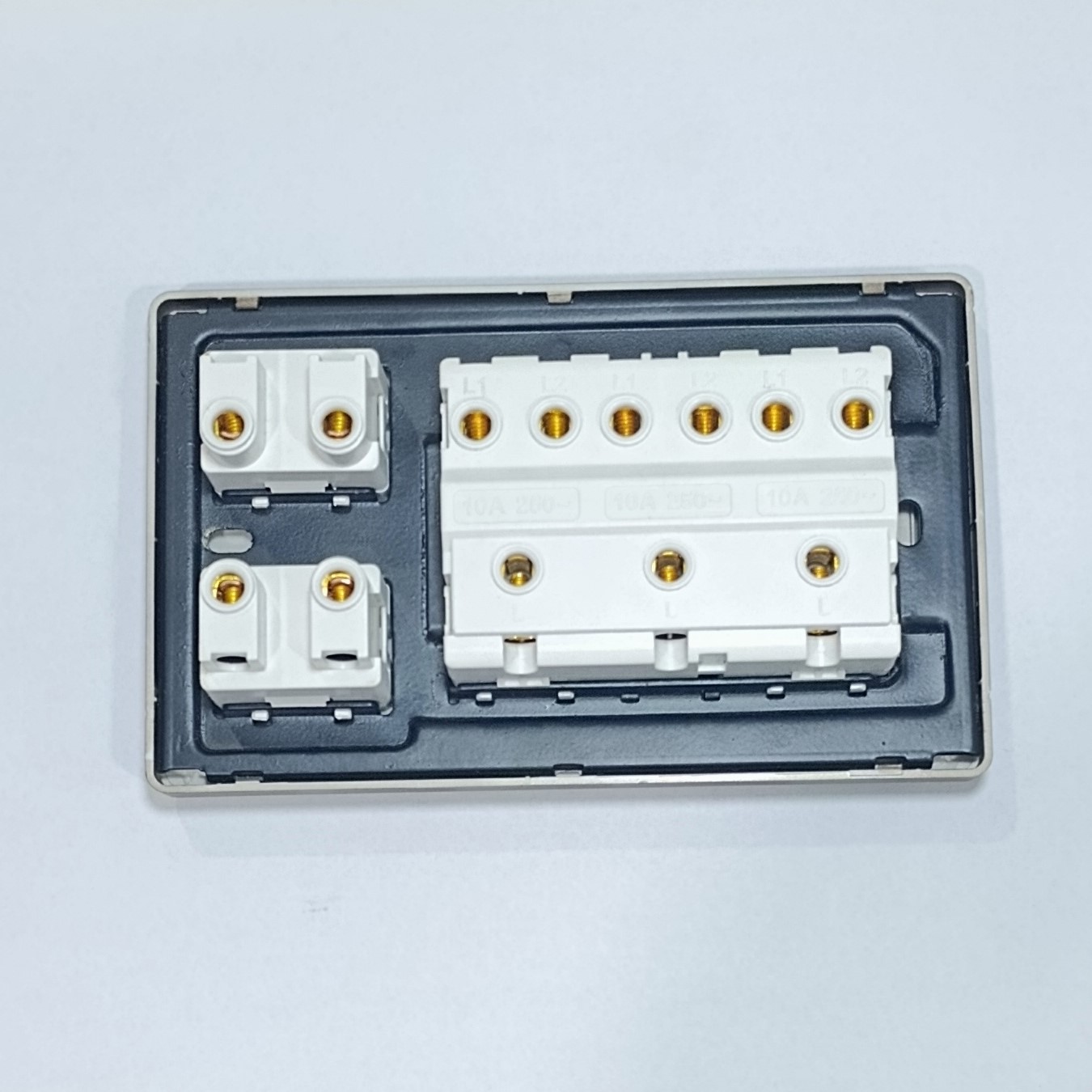

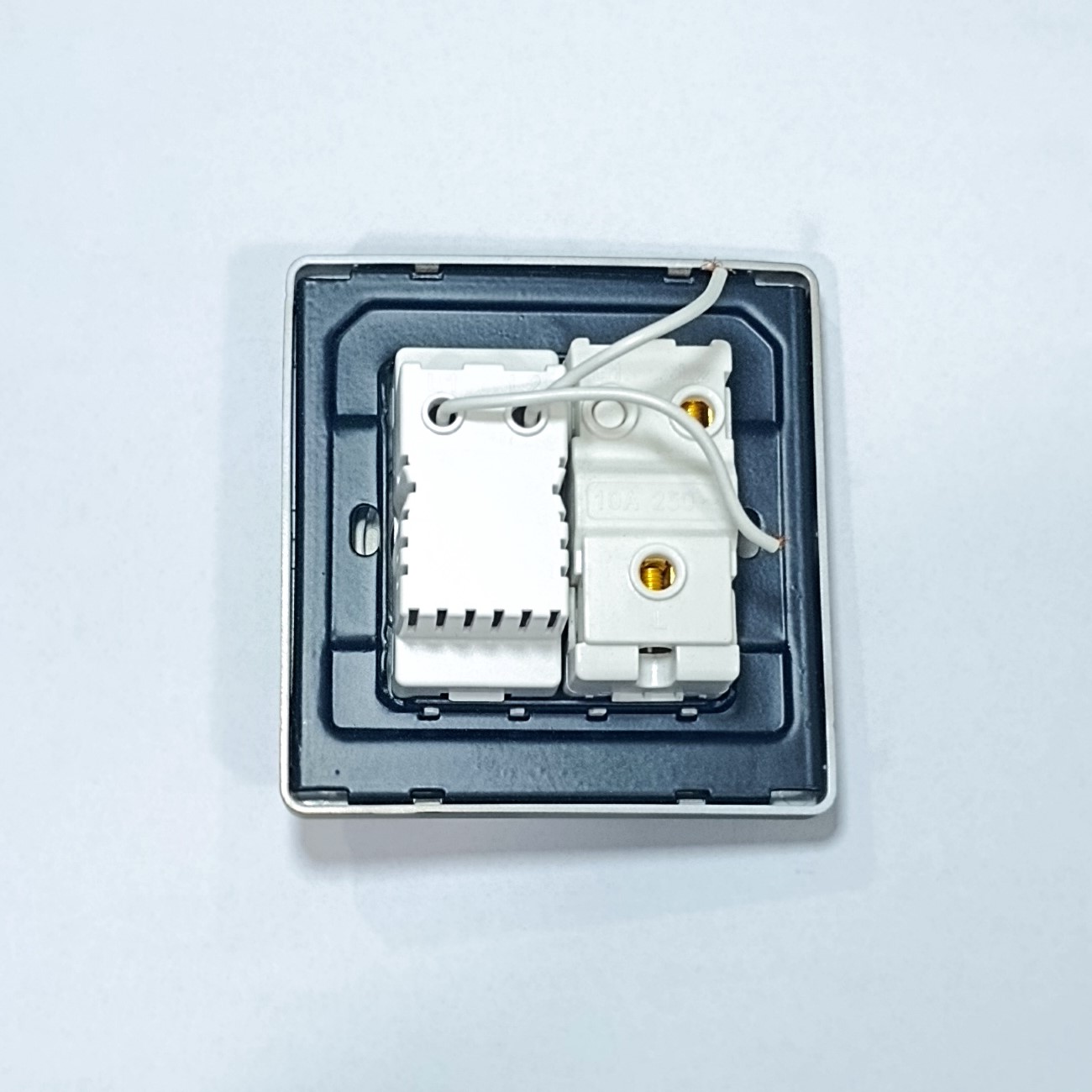

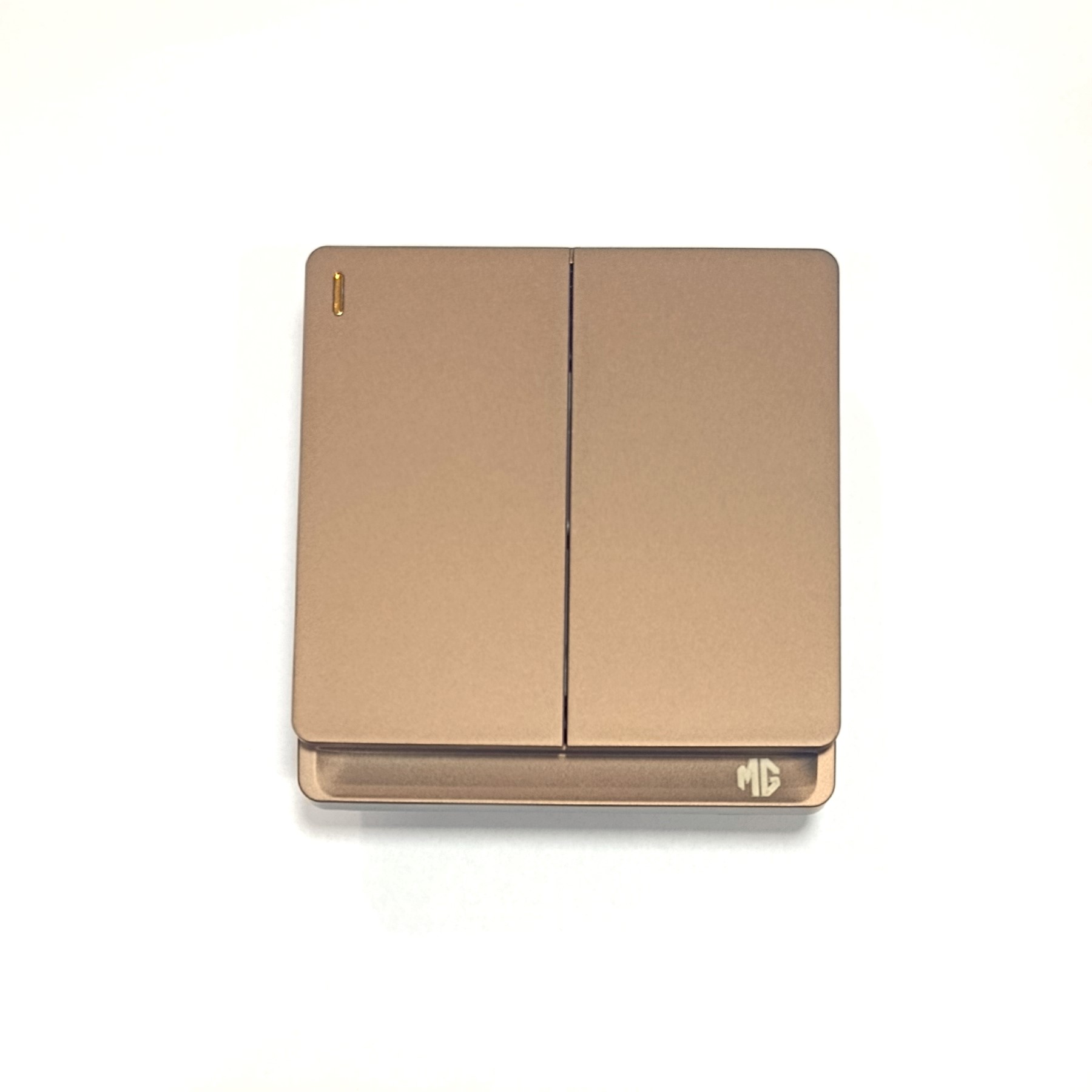

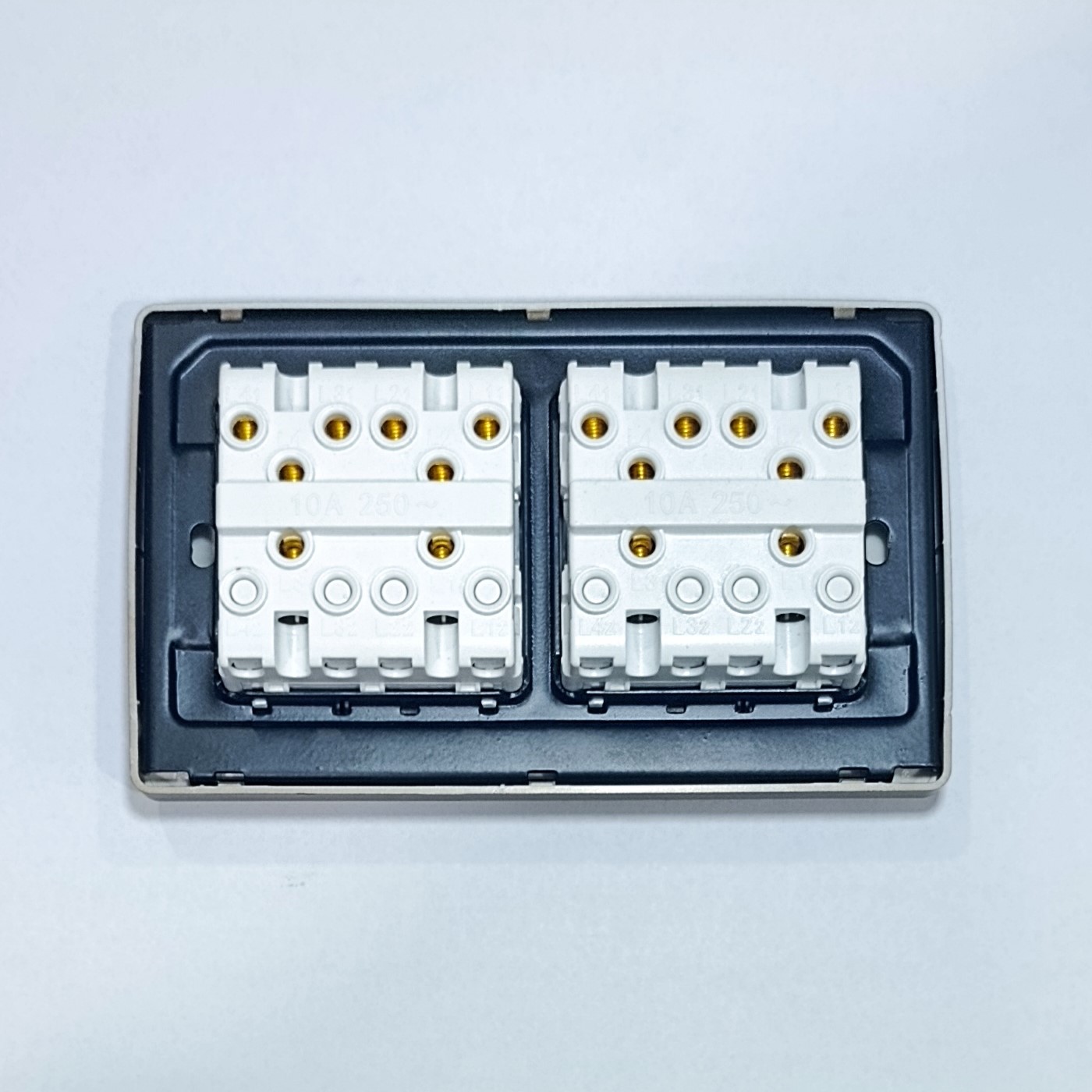

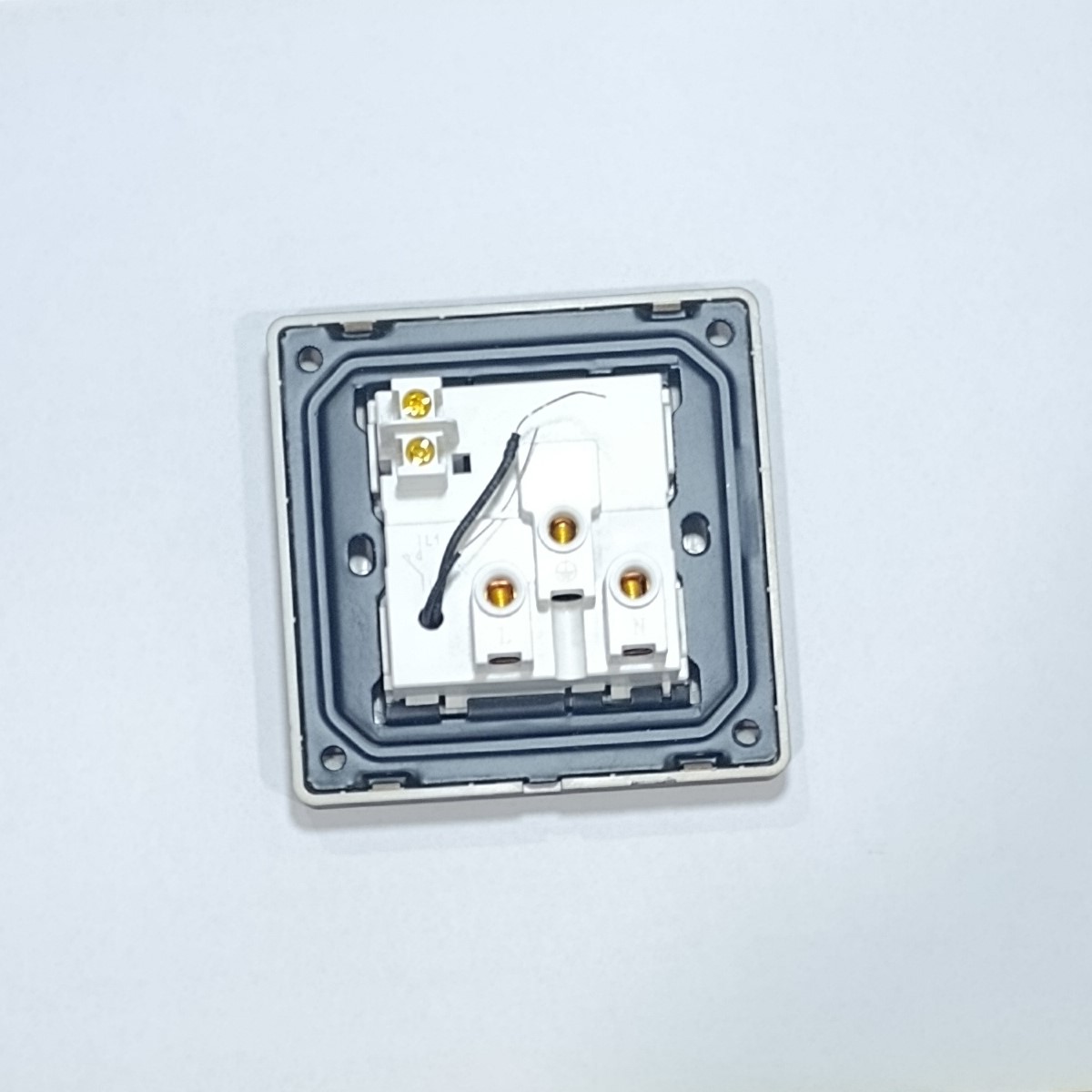

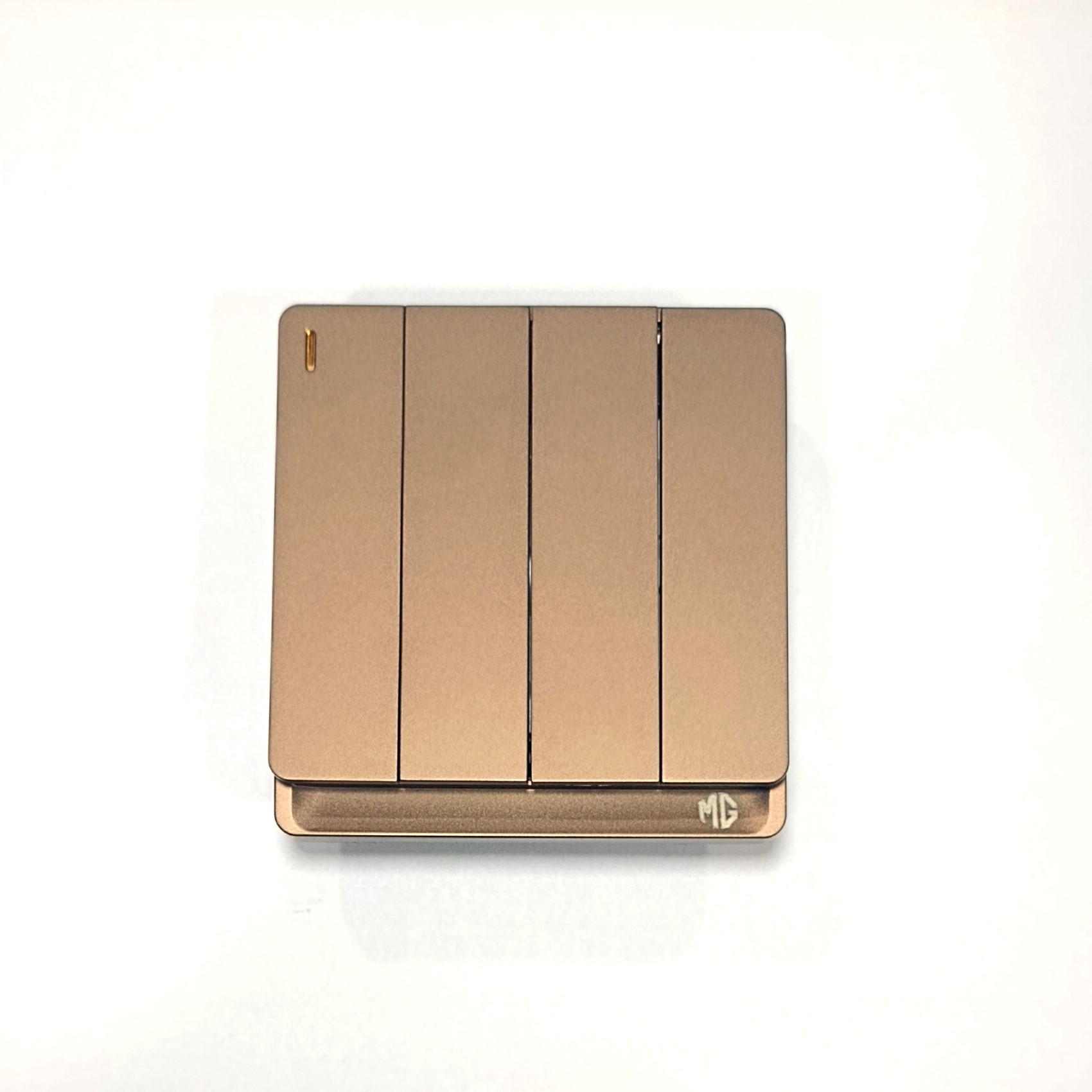

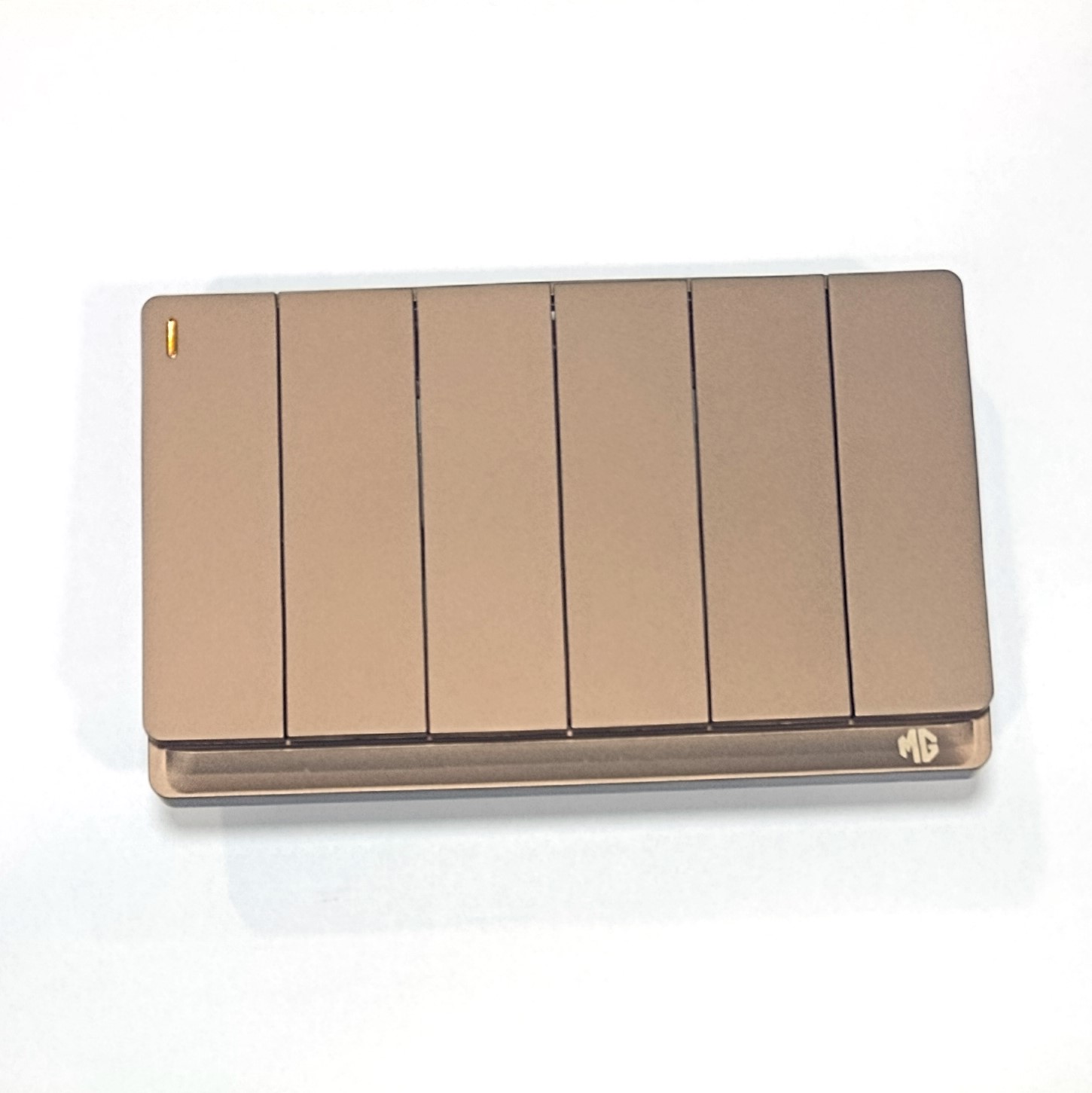

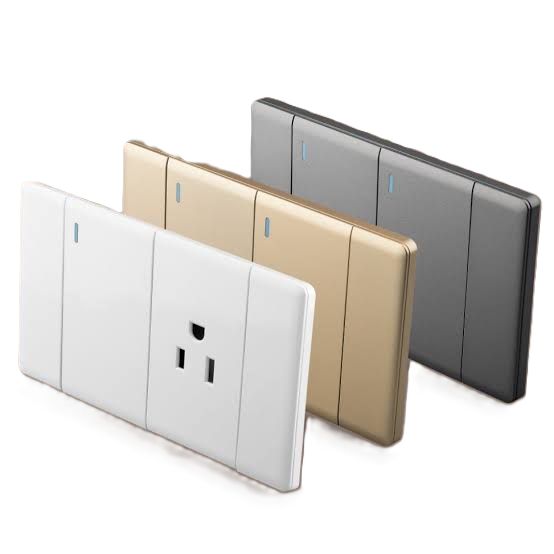

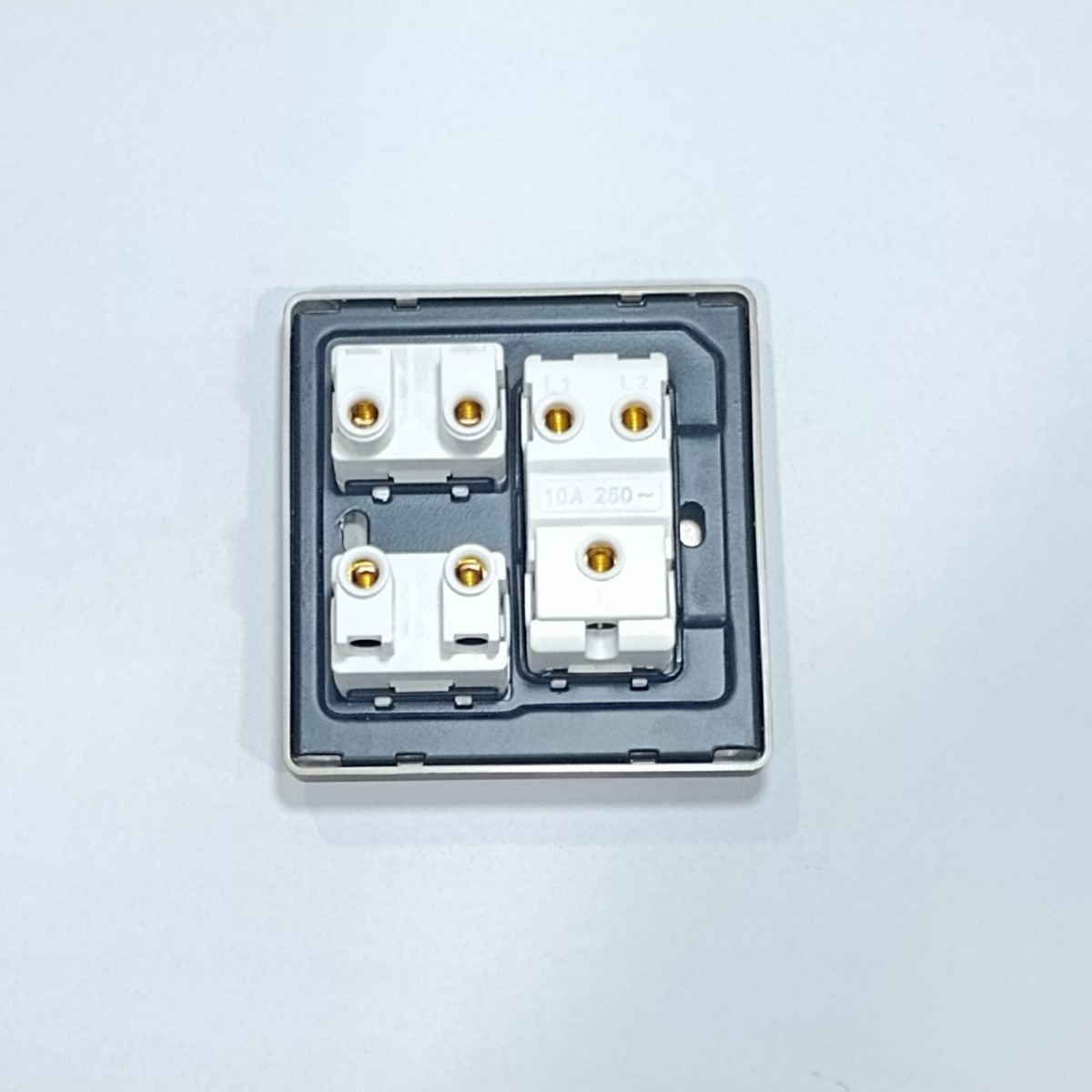

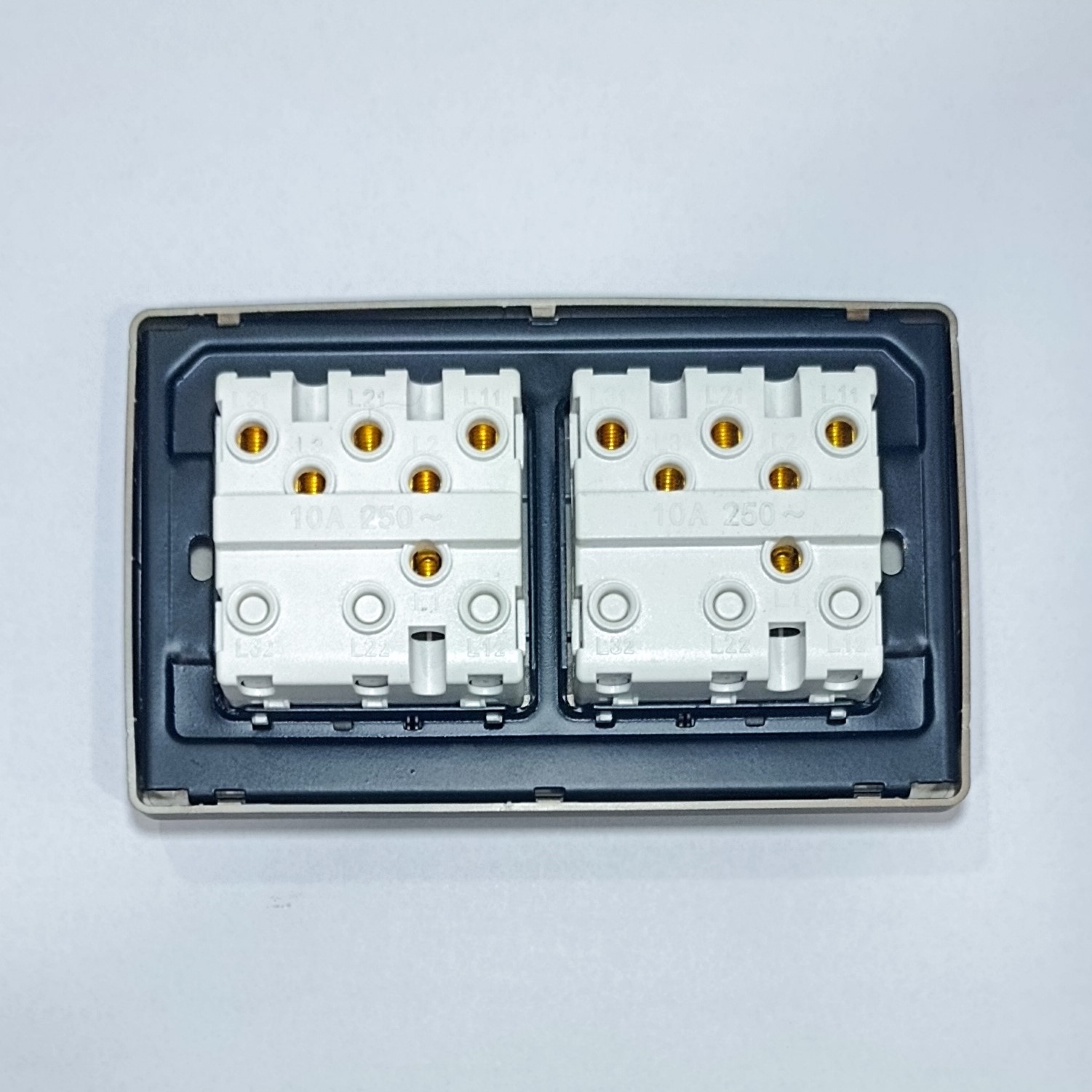

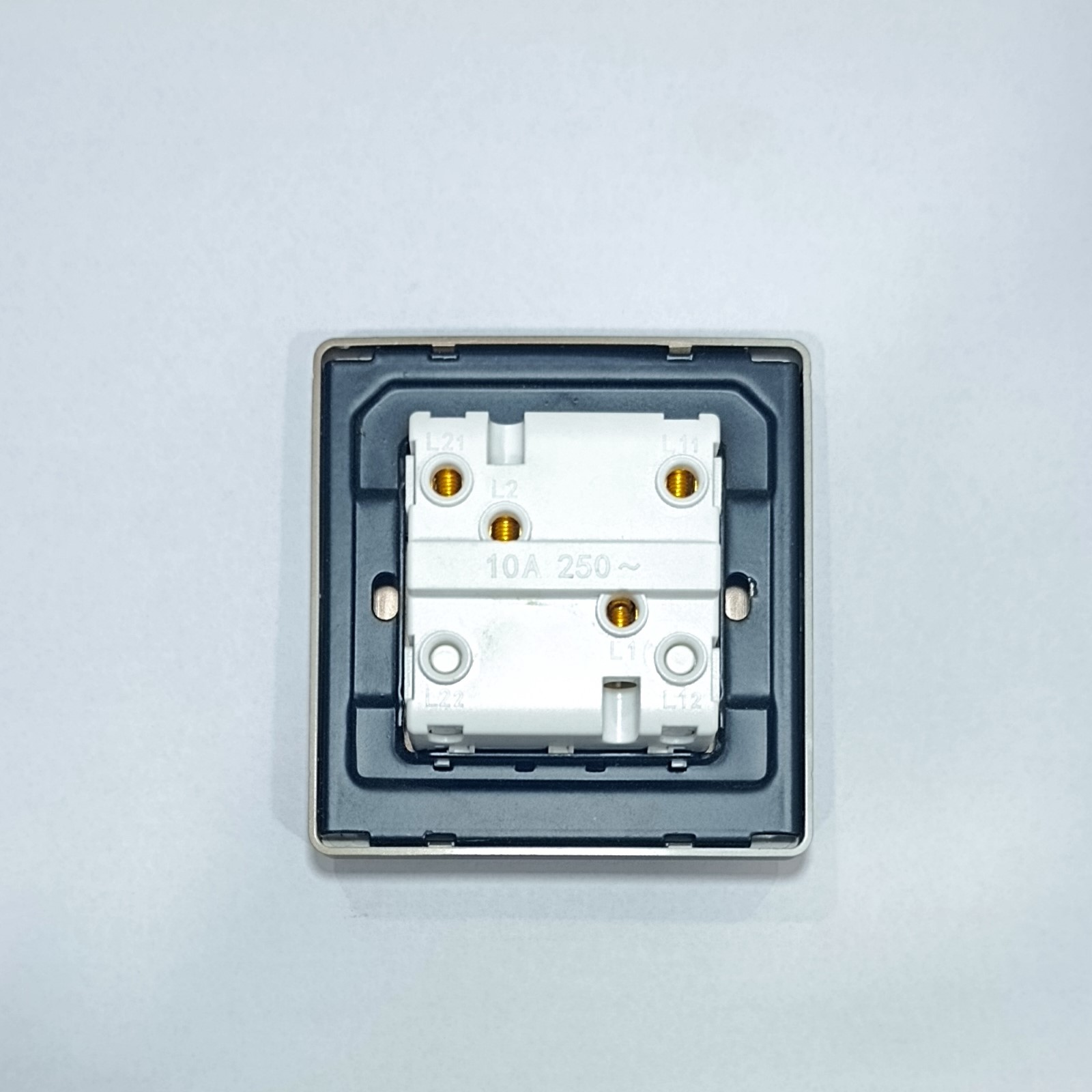

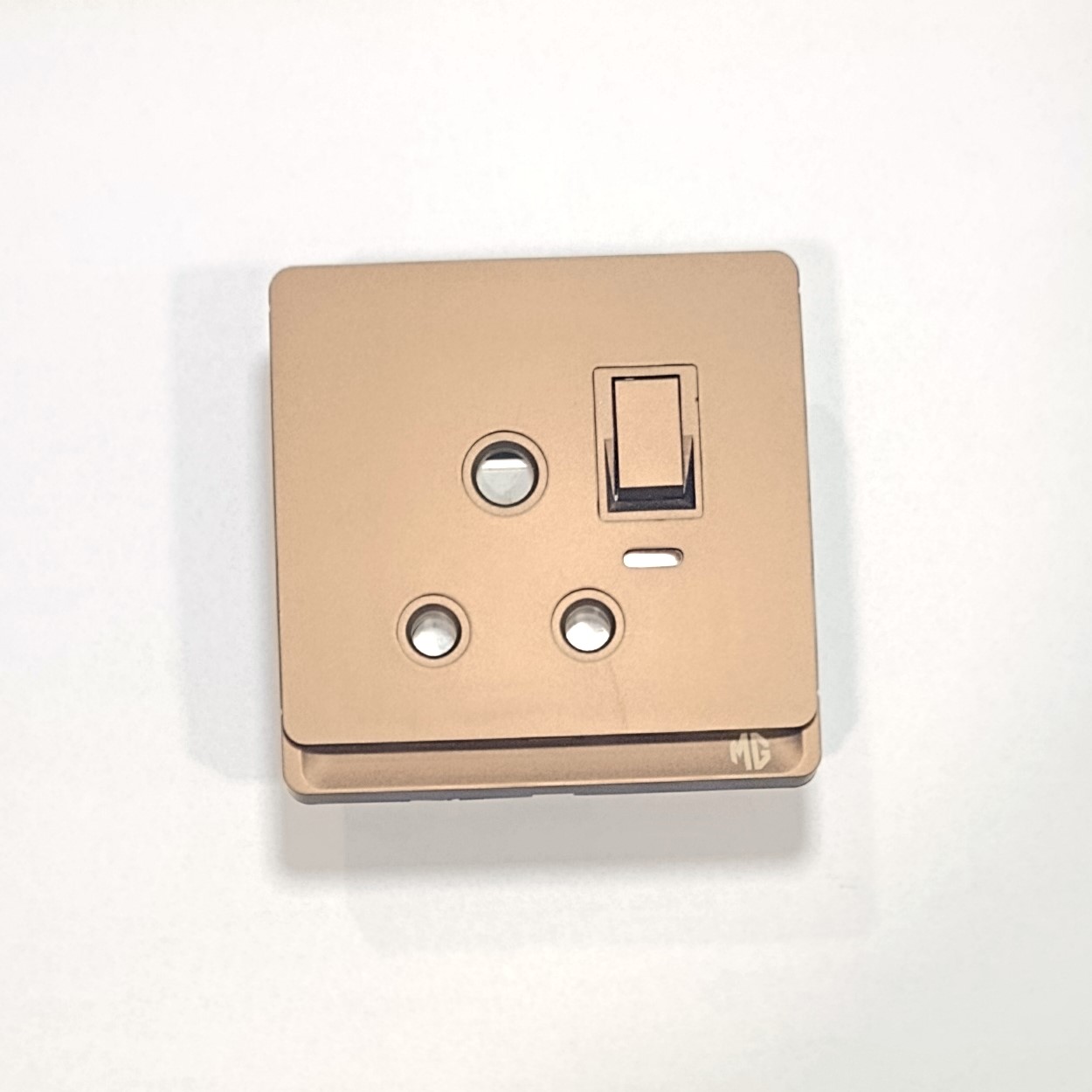

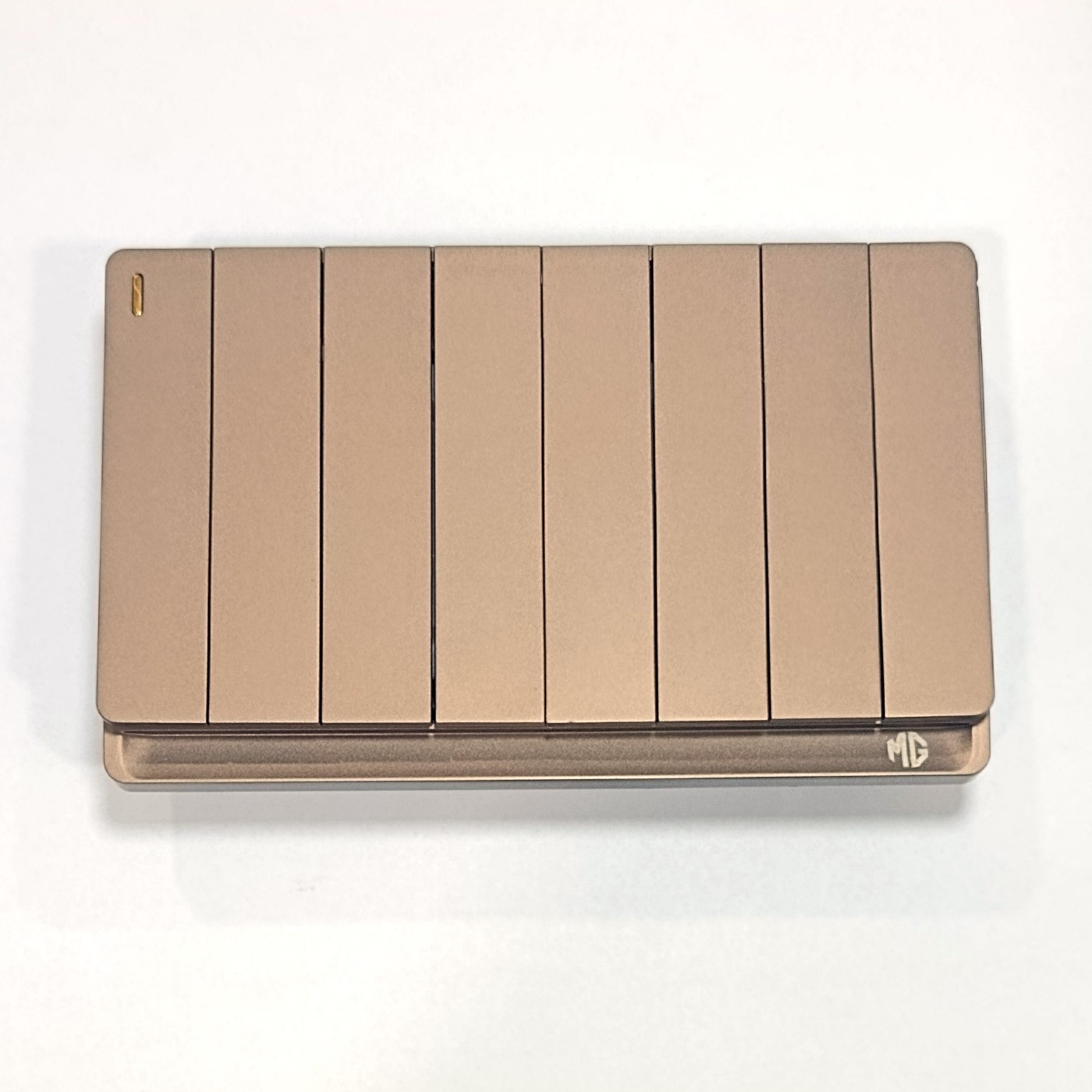

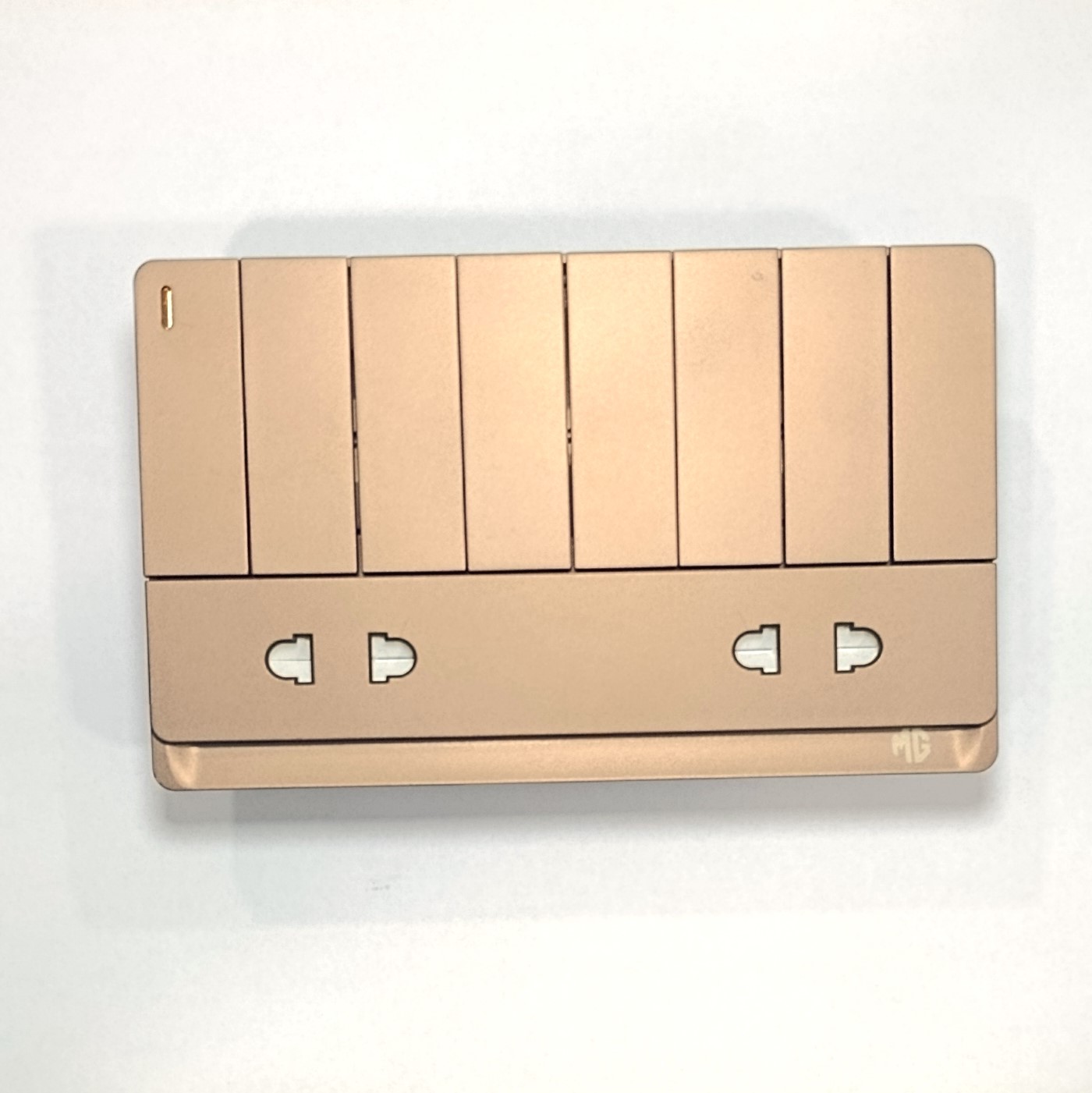

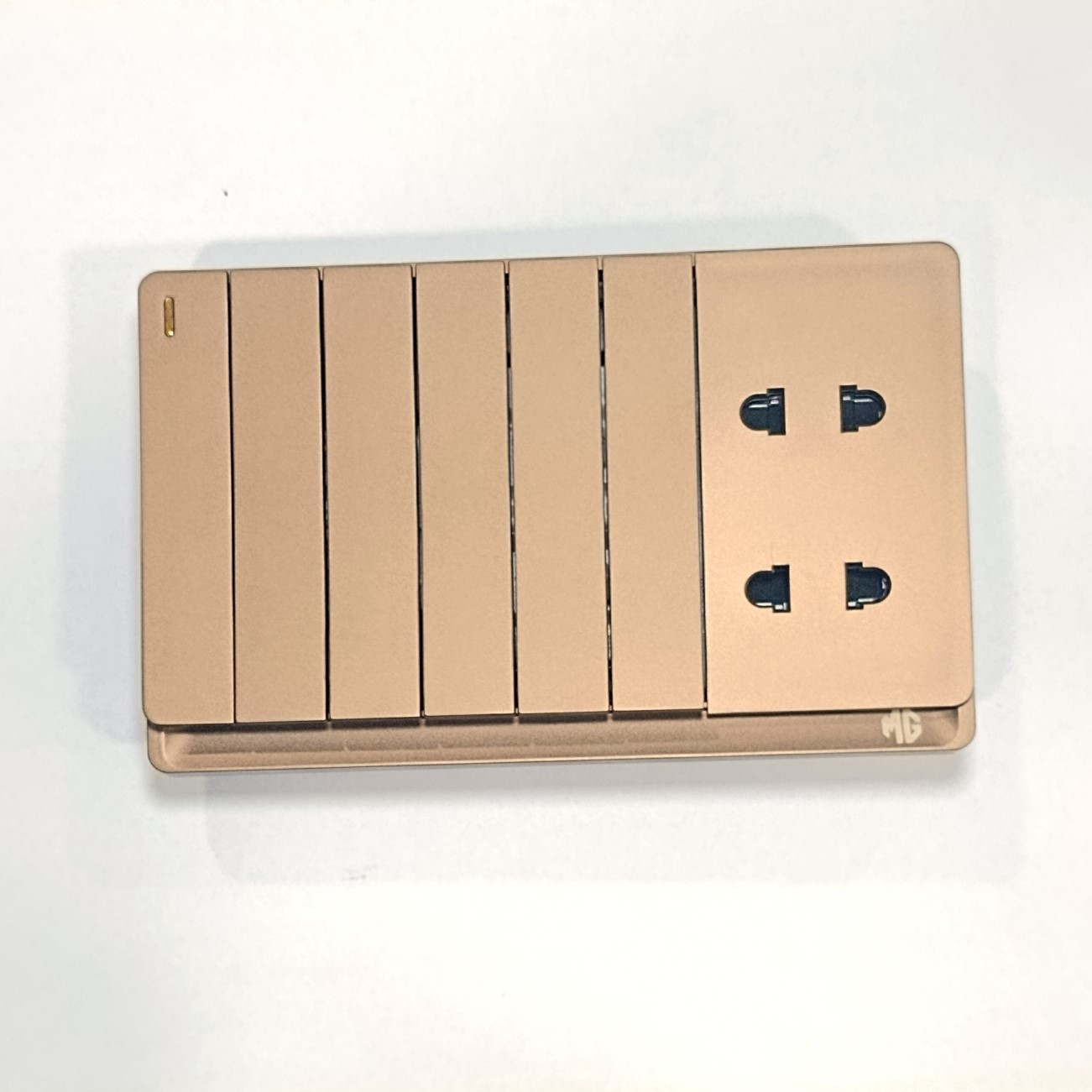

8Switch+2Socket China Fitting Sheet Board V8 series (Coffee Color)
COB-64 Push Button Switch Rain Proof
COB-64 Push Button Switch Rain Proof
Model : COB-64
Material : plastic
Waterproof : yes
Colour : Orange.
Ambient operating temperature : -20 ~ + 131 F.
Contact structure : composite button.
Contact resistance : 50 (Ω)
Insulation resistance : 50 (MΩ).
Push buttons : 8 ways, up, down, east, west, north, south, quick, slow
Type of contact : momentary.
Easy to use and easy to install.
Small size and easy to carry.
