STC-9200 Refrigerator Incubator Defrost Temperature Controller
₨4,000.00
- Product: STC-9200 Refrigerator Incubator Defrost Temperature Controller
- Model : STC-9200
- Power supply : 220VAC+10%-15%, 50/60Hz
- Power consumption : 3W
- Temperature measuring range : -50~+99oC
- Temperature controlling range : -40~+50oC
- Resolution : 1oC
- Accuracy : ±1oC when temperature -40~+50oC, ±2oC at others
- Relay capacity of compressor : 7A/2240VAC
- Sensor error relay time : 1 minutes
- Sensor type : NTC sensor
STC-9200 Refrigerator & Incubator Defrost Temperature Controller
The STC-9200 Temperature Controller is an advanced, high-precision dual-sensor digital thermostat designed specifically for commercial refrigeration, cold storage, incubators, and freezers. Engineerd for reliable temperature management, the STC-9200 integrates cooling, automatic defrosting, and fan control functions into a compact, durable unit.
Equipped with dual NTC thermistor sensors—one dedicated to cabinet temperature control and the other for defrost termination management—this controller prevents frost buildup while maintaining accurate thermal stability.
Key Features & Benefits
-
Dual NTC Sensor System: Provides precise temperature regulation and intelligent defrost termination management to optimize system efficiency.
-
Multi-Function Output: Features separate relay outputs for compressor cooling, electrical or gas defrosting, and fan management.
-
Flexible Operating Modes: Easily customizable temperature setpoints, differential values, and alarm delay options to suit various industrial and agricultural applications.
-
Smart Alarm Notifications: Built-in buzzer and visual indicator warn users against temperature over-limits or sensor error failures, protecting high-value stored items.
-

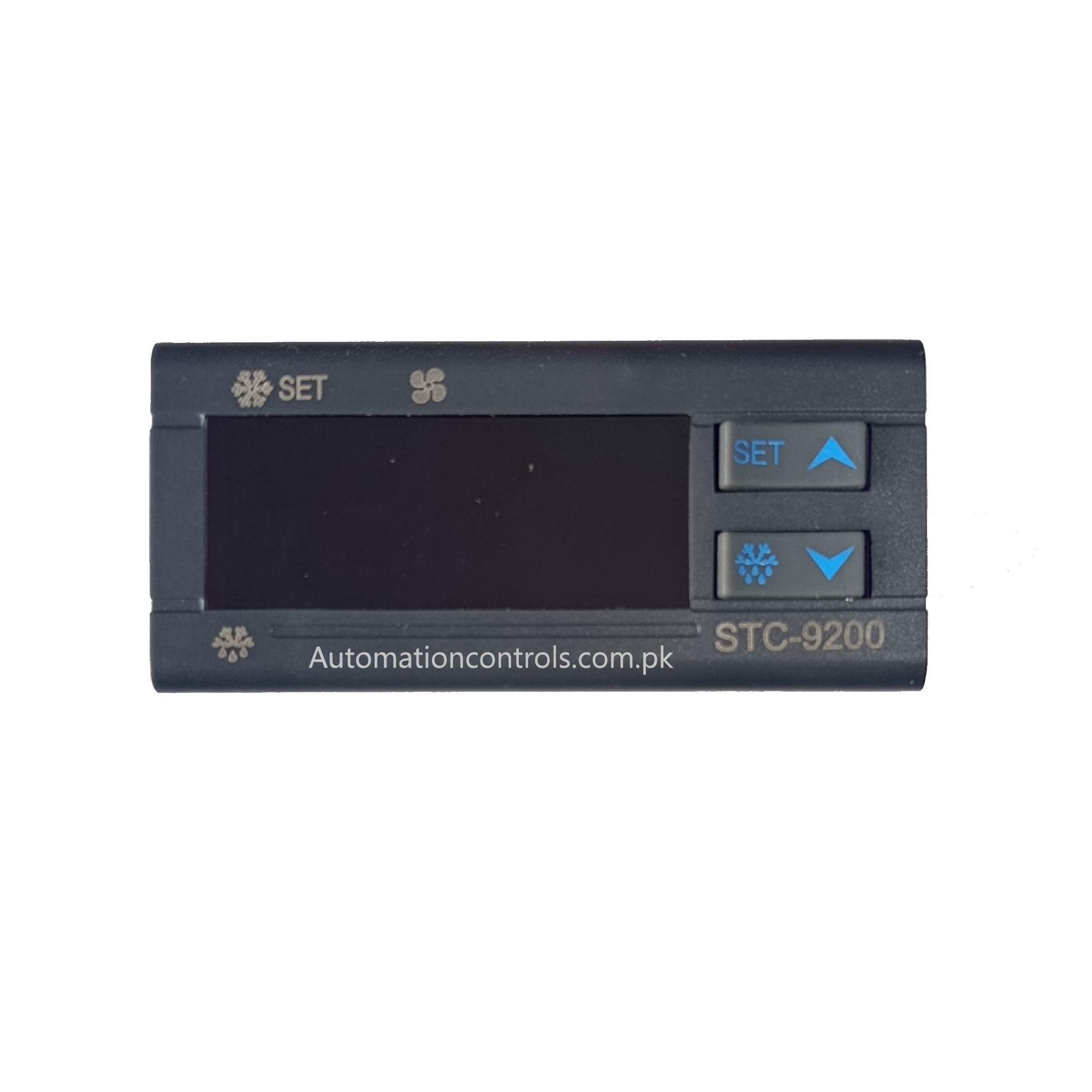

User-Friendly LED Display: Bright digital readout displays real-time temperature values and operational modes at a glance.
- Product: STC-9200 Refrigerator Incubator Defrost Temperature Controller
- Discounts for bulk orders
- Delivery available all over Pakistan
