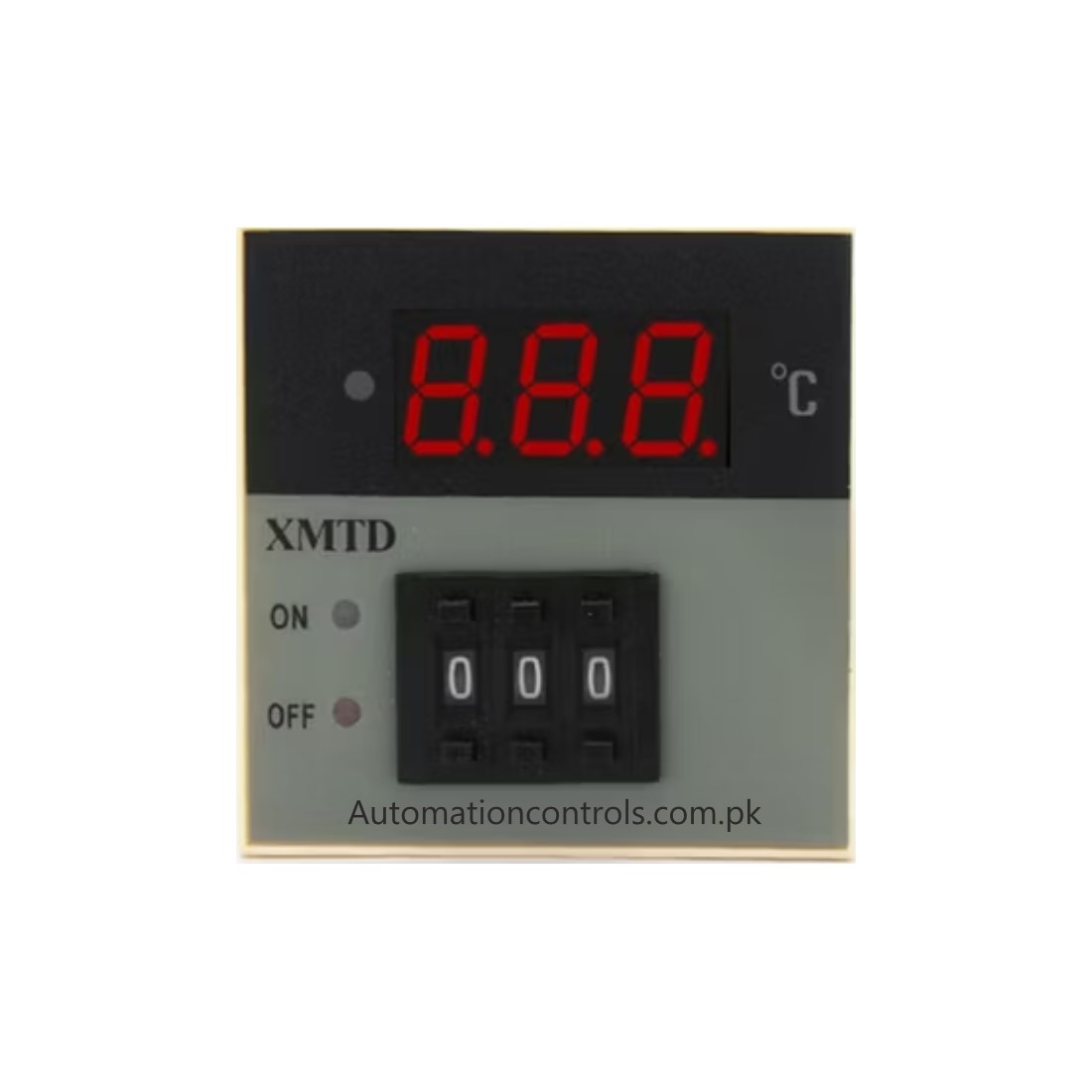

XMTD-2001 Temperature Controller (72x72mm)
₨2,400.00
XMTD-2001 Temperature Controller (72x72mm)
Model : XMTD-2001
Size : 72mmx72mm
voltage/frequency : 220v ac/50-60Hz
input : k-type
range : 0-399c
Delivery available all over Pakistan
Description
XMTD-2001 Temperature Controller (72x72mm)
- High Precision Control: Basic error less than 1.0%F.S with high reliability and strong cushioning.
- Wide Application Range: Suitable for metallurgy, chemical, electronic, machinery, textile, and medical industries.
- Easy Installation: Simple ON/OFF control with clear LED display and intuitive dial button settings.
- Professional OEM Service: Custom function, printing, sticker, manual, and box based on your requirements.
- Versatile Power Supply: Supports AC242V power supply for broad compatibility.
- XMTD-2001 series temperature controller applies special technique to resist interference and adopts ON/OFF control.
- It has high precision, good reliability, strong cushioning, easy installation and so on.
- This controller is widely used as temperature measurement and control automatically in light and heavy industry, such as metallurgy, chemical, electronic, machinery, textile, plastic, refrigeration, medical treatment, electric oven, and etc.
