Chint NJYB3-11 Voltage Monitoring Phase Failure Phase Sequence Relay
Chint NJYB3-11 Voltage Monitoring Phase Failure Phase Sequence Relay
Function : Overvoltage and under-voltage protection
Rated control supply voltage : AC: 220V / 380V (selectable)
Operating frequency : 50 / 60 Hz
Voltage measurement range : For 220V type: 150–270V
For 380V type: 260–480V
Setting accuracy : ±1.5%
Action delay time : Adjustable 0.1–10 s
Reset delay time : Adjustable 0.1–10 s
Hysteresis (reset differential) : 1–10% adjustable
Contact configuration : 1 changeover (SPDT)
Contact capacity : AC 250V / 5A (resistive load)
Electrical life : ≥ 100,000 operations
Mechanical life : ≥ 1,000,000 operations
Mounting type : DIN rail
Indication : LED for power, overvoltage, and undervoltage status
Insulation resistance : ≥ 100 MΩ (at 500V DC)
Dielectric strength : 2.5kV between coil and contact
Operating temperature : −5 °C to +40 °C
Storage temperature : −25 °C to +70 °C
Protection degree : IP20 (terminals) / IP40 (housing)
Delivery available all over Pakistan
Chint XJ3-D Phase Failure Over and Under Voltage Phase Sequence Relay
Chint XJ3-D Phase Failure Over and Under Voltage Phase Sequence Relay
Model : XJ3-D
Over voltage protection : 380V~460V 1.5s~4s (adjustable)
Under voltage protection : 300V~380V 2s~9s(adjustable)
Voltage : AC 380V 50/60Hz
Relay Type : Voltage Relay
Contact Form : DPDT
Coil Type : Latching
Delivery available all over Pakistan
Entes GKRC-02 Voltage Monitoring Phase Failure Phase Sequence Relay
Entes GKRC-02 Voltage Monitoring Phase Failure Phase Sequence Relay
Product : Voltage Relay
Model Number : GKRC-02F
Power supply : 3-phase
Power Source : AC
Max. switching current : 8 A
Size : Miniature
Protect Feature : Sealed
Feature : Protective
Product Name : Phase Sequence Protection Relay
Frequency : 50-60Hz
Protection level : IP20
Installation method : rail installation
Delivery available all over Pakistan
Schneider 2P 1000VDC SPD Surge Protection Device
Product : Schneider 2P 1000VDC SPD Surge Protection Device
Model : G2040PV/1000
Number of pole : 2pole
Related Operating Voltage Un : 1000V DC
Nominal Discharge Current In : 20kA
Max. Discharge Current Imax : 40kA
Response Time (ns) : Ë, 25
Operating Environment : -40°C to 85°C
Maximum Connection Line : 35 mm² hard wire or 35 mm² strand wire
Recommended Connection Line : 16 mm² hard wire or 25 mm² strand wire
Installation : DIN rail Standard Rail 35mm
Schneider 2P 340VAC SPD Surge Protection Device
Product : Schneider 2P 340VAC SPD Surge Protection Device
Model : IPR 40
Number of pole : 2pole
Related Operating Voltage Un : 340V AC
Nominal Discharge Current In : 20kA
Max. Discharge Current Imax : 40kA
Response Time (ns) : Ë, 25
Operating Environment : -40°C to 85°C
Maximum Connection Line : 35 mm² hard wire or 35 mm² strand wire
Recommended Connection Line : 16 mm² hard wire or 25 mm² strand wire
Installation : DIN rail Standard Rail 35mm

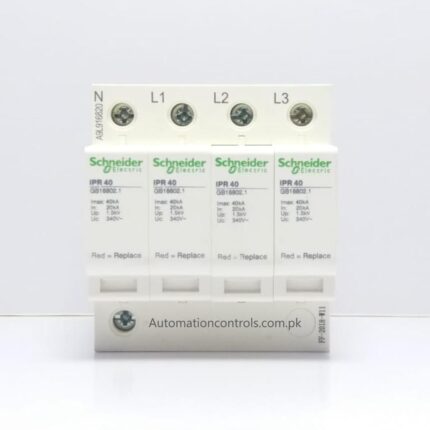

Schneider 4P 340VAC SPD Surge Protection Device 40kA
Product : Surge protection device
Model : iPR 40
Number of pole : 4pole
Related Operating Voltage Un : 340V AC
Nominal Discharge Current In : 20kA
Max. Discharge Current Imax : 40kA
Response Time (ns) : Ë, 25
Operating Environment : -40°C to 85°C
Maximum Connection Line : 35 mm² hard wire or 35 mm² strand wire
Recommended Connection Line : 16 mm² hard wire or 25 mm² strand wire
Installation : DIN rail Standard Rail 35mm
Schneider EOCR-SS Electronic Over Load Relay 0.5-6.5A
Product : Schneider EOCR-SS Electronic Over Load Relay 0.5-6.5A
Adjustable current range : 0.5-6.5 (built‑in CT)
Protects against overload, phase loss, unbalance
Adjustable trip time & start delay; auto/manual reset
Relay C/O output to trip contactor; status LEDs
DIN‑rail/panel mount; quick pass‑through wiring
Measurement : 3‑phase pass‑through up to 6.5A
Supply : 110/220 VAC, 50/60 Hz
Output Contact : 1 C/O, up to 5A @ 250 VAC
Settings : current 0.5-6.5A
trip delay ~0.5–30 s; start delay adjustable
Indication/Reset: RUN/TRIP LEDs; manual/auto reset selectable
Schneider EOCR-SS Electronic Over Load Relay 5-70A
Product : Schneider EOCR-SS Electronic Over Load Relay 5-70A
Adjustable current range : 5-70A (built‑in CT)
Protects against overload, phase loss, unbalance
Adjustable trip time & start delay; auto/manual reset
Relay C/O output to trip contactor; status LEDs
DIN‑rail/panel mount; quick pass‑through wiring
Measurement : 3‑phase pass‑through up to 70A
Supply : 110/220 VAC, 50/60 Hz
Output Contact : 1 C/O, up to 5A @ 250 VAC
Settings : current 5-70A
trip delay ~0.5–30 s; start delay adjustable
Indication/Reset: RUN/TRIP LEDs; manual/auto reset selectable
Schneider EOCRSS-05S Electronic Over Load Relay 0.5-6A
Schneider EOCRSS-05S Electronic Over Load Relay 0.5-6A
Relays / Phase Monitoring Relays
Power Source : AC
Theory : Electronic Relay
Protect Feature : Sealed
Model Number : EOCRSS
Voltage : 220VAC
Operating Voltage(Un) : 24-260VAC
Current Range(A) : 0.5-6A
Main Circuit Wiring : Through Core
Relay Output : 1a1b
Protected Object : motor
Schneider EOCRSS-60S Electronic Over Load Relay 5-60A
Product : Schneider EOCRSS-60S Electronic Over Load Relay 5-60A
Relays / Phase Monitoring Relays
Power Source : AC
Theory : Electronic Relay
Protect Feature : Sealed
Model Number : EOCRSS
Voltage : 220VAC
Operating Voltage(Un) : 24-260VAC
Current Range(A) : 5-60A
Main Circuit Wiring : Through Core
Relay Output : 1a1b
Protected Object : motor
