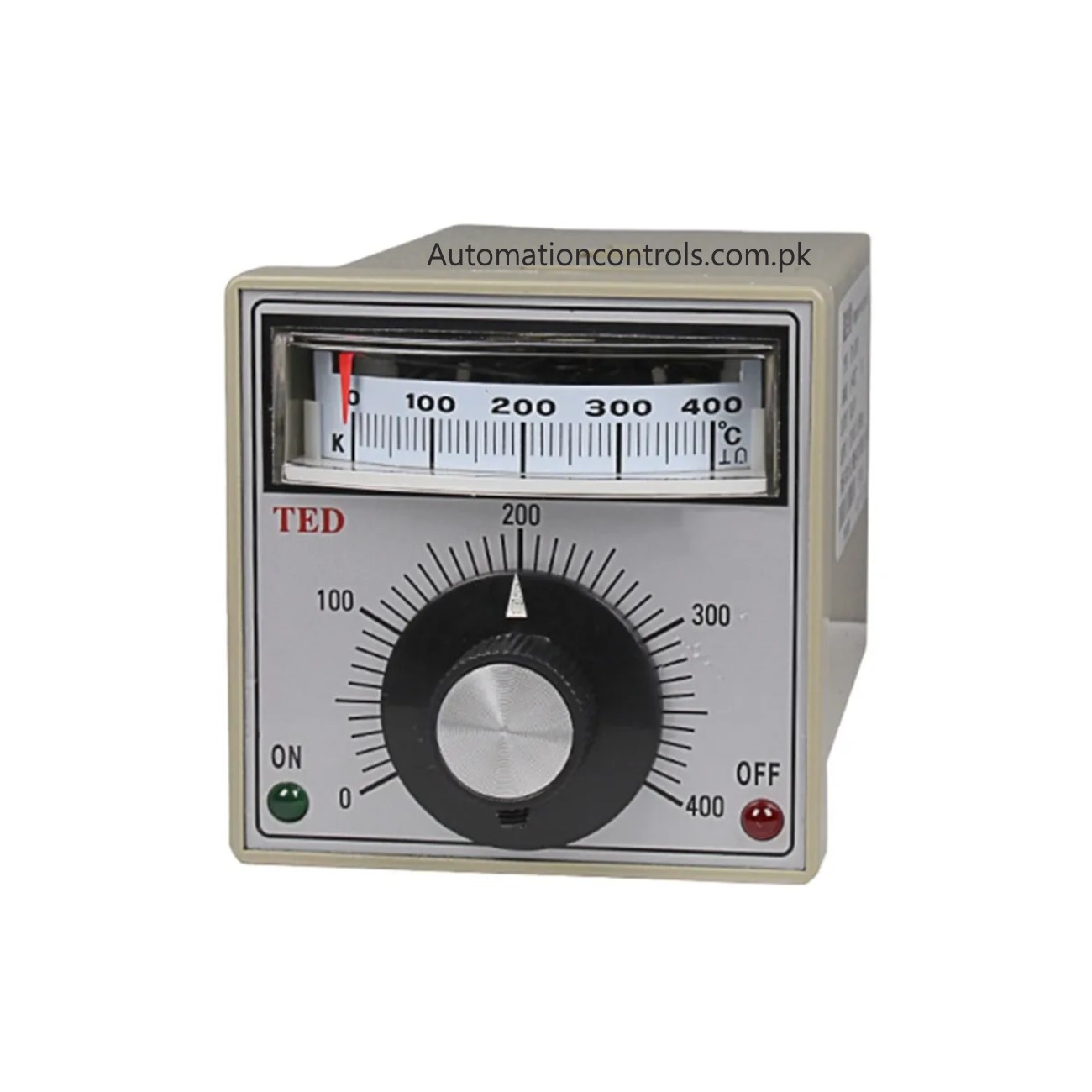

TED-2001 Temperature Controller (72x72mm)
₨2,400.00
TED-2001 Temperature Controller (72x72mm)
| Product Name | Temperature Controller |
| Model | TED-2001 |
| Input Type | K Thermocouple |
| Working Voltage | 220V AC, 50Hz |
| Display Range | 0 – 400C |
| Relay Contact Capacity | AC 220V, 3A(resistance) or 1A(Sensitive ) |
| Output | Relay type |
| Installing Hole Size | 67 x 67mm |

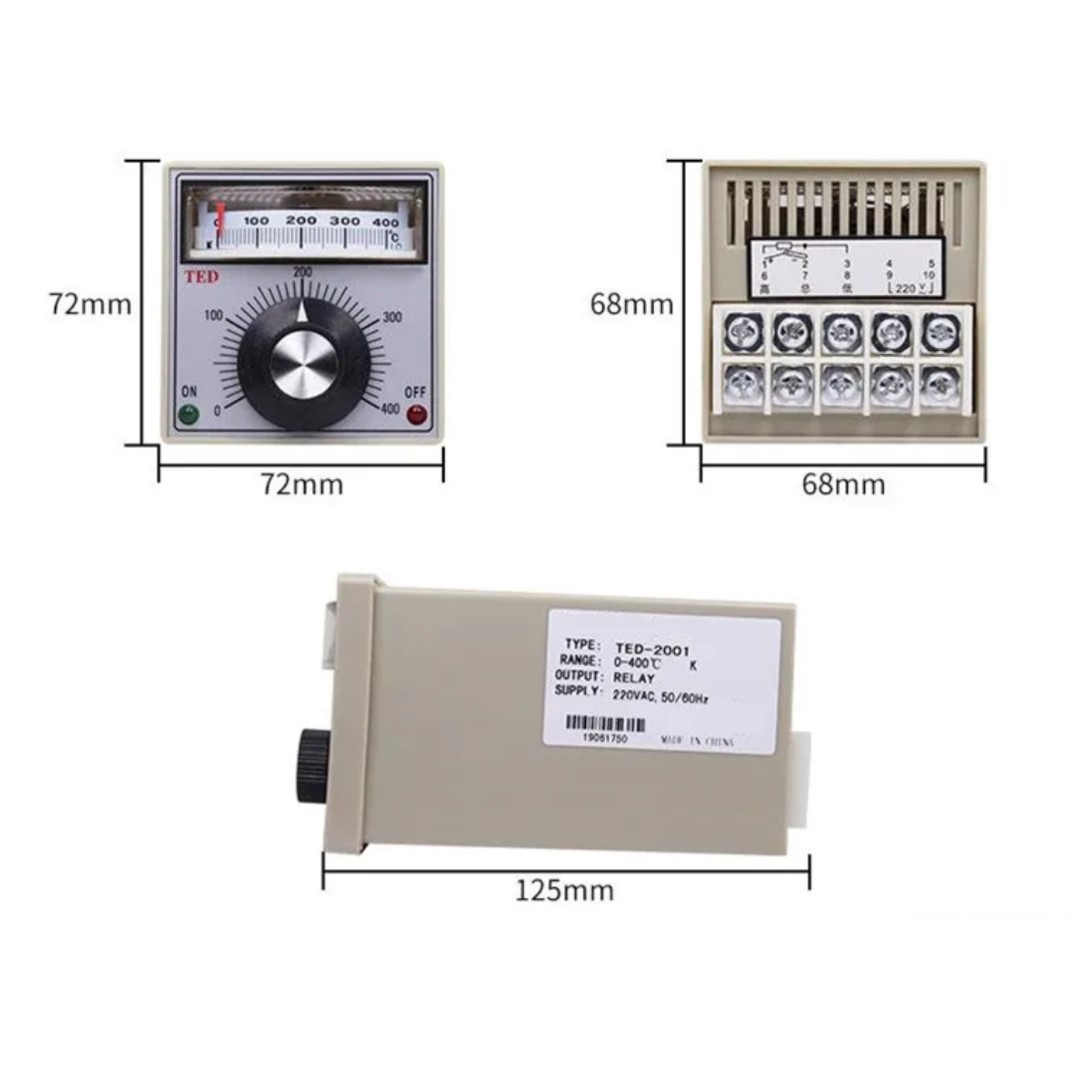

| Overall Size | 72 x 72 x 115mm |
Delivery available all over Pakistan
Description
TED-2001 Temperature Controller (72x72mm)
- 0-400 ℃ wide temperature control range, clear and intuitive digital pointer display field.
- Use with a type K thermocouple for temperature detection and automatic control.
- High quality ABS case, shockproof, not easy to deform.
- High precision, intelligent and stable.
- Widely used for temperature testing and automatic setting of machines, packaging machines, ovens, greenhouses, costumes, food, etc.
- High quality ABS case, anti-shock, not easy to deform.
