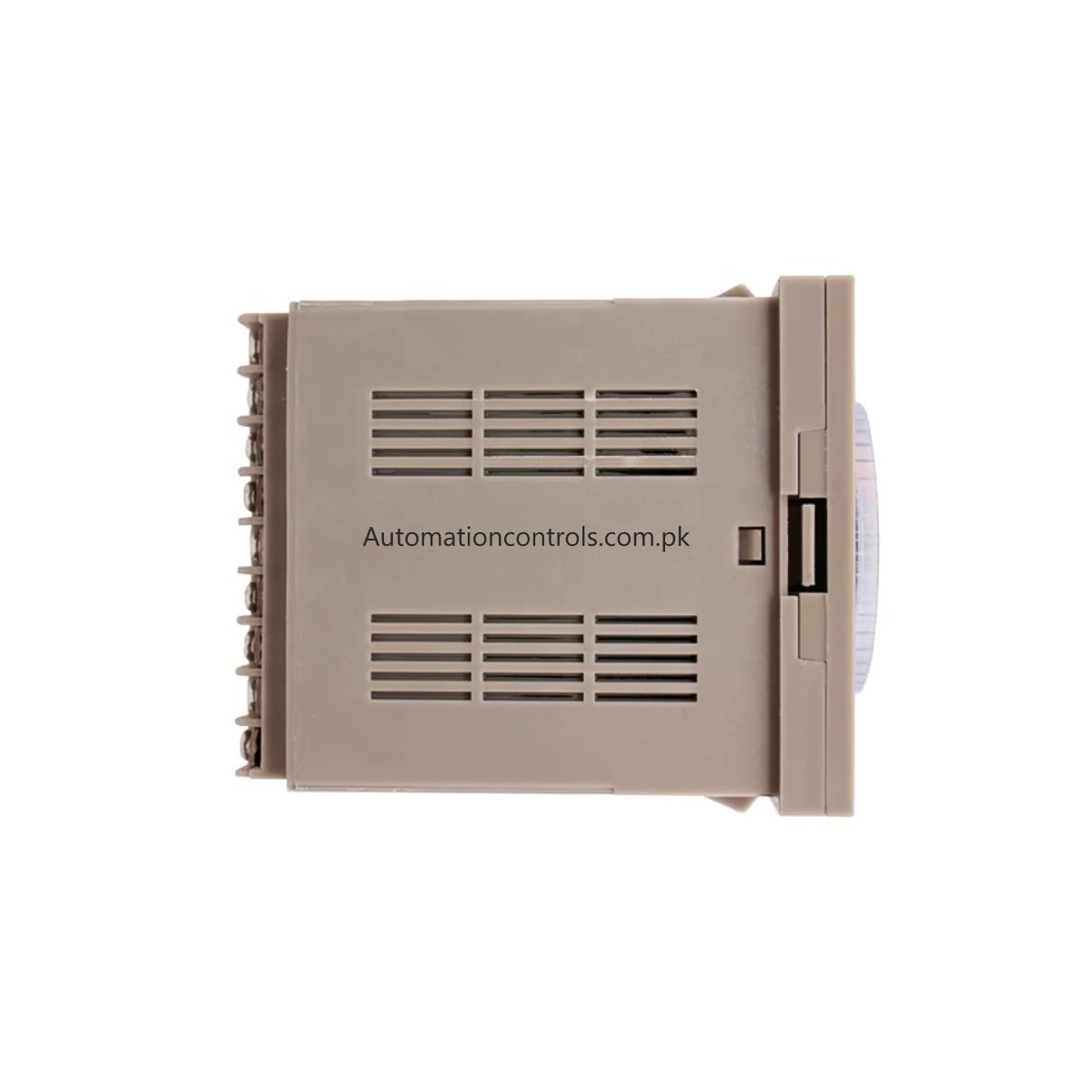

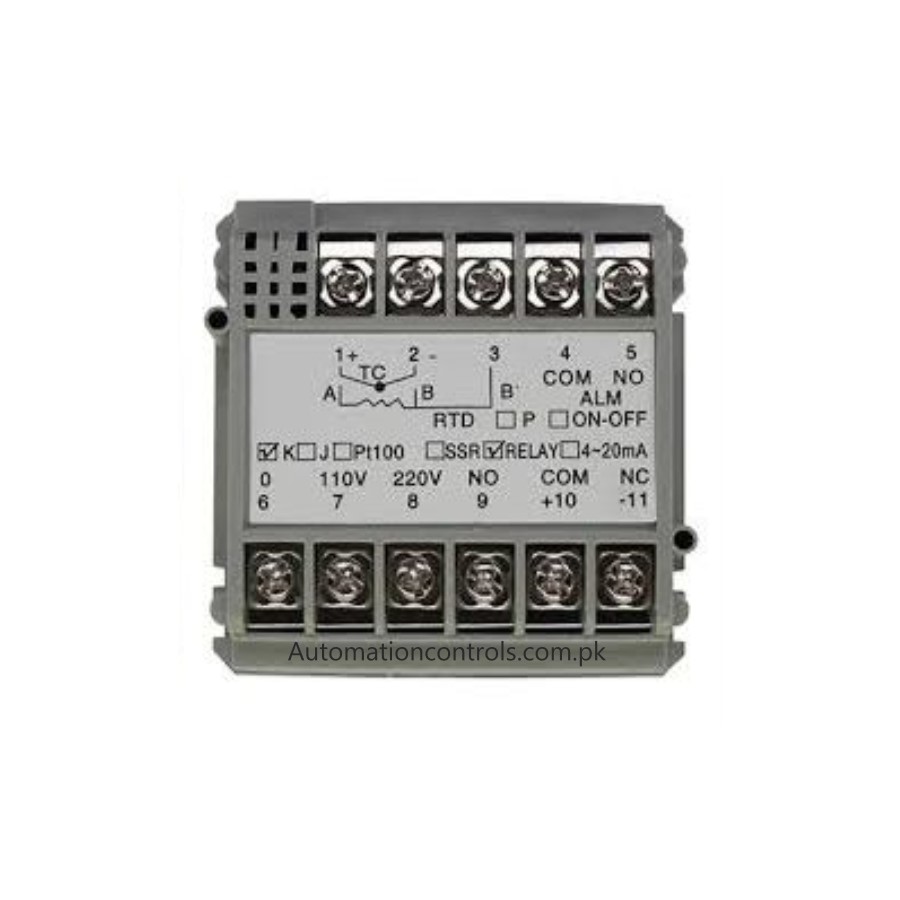

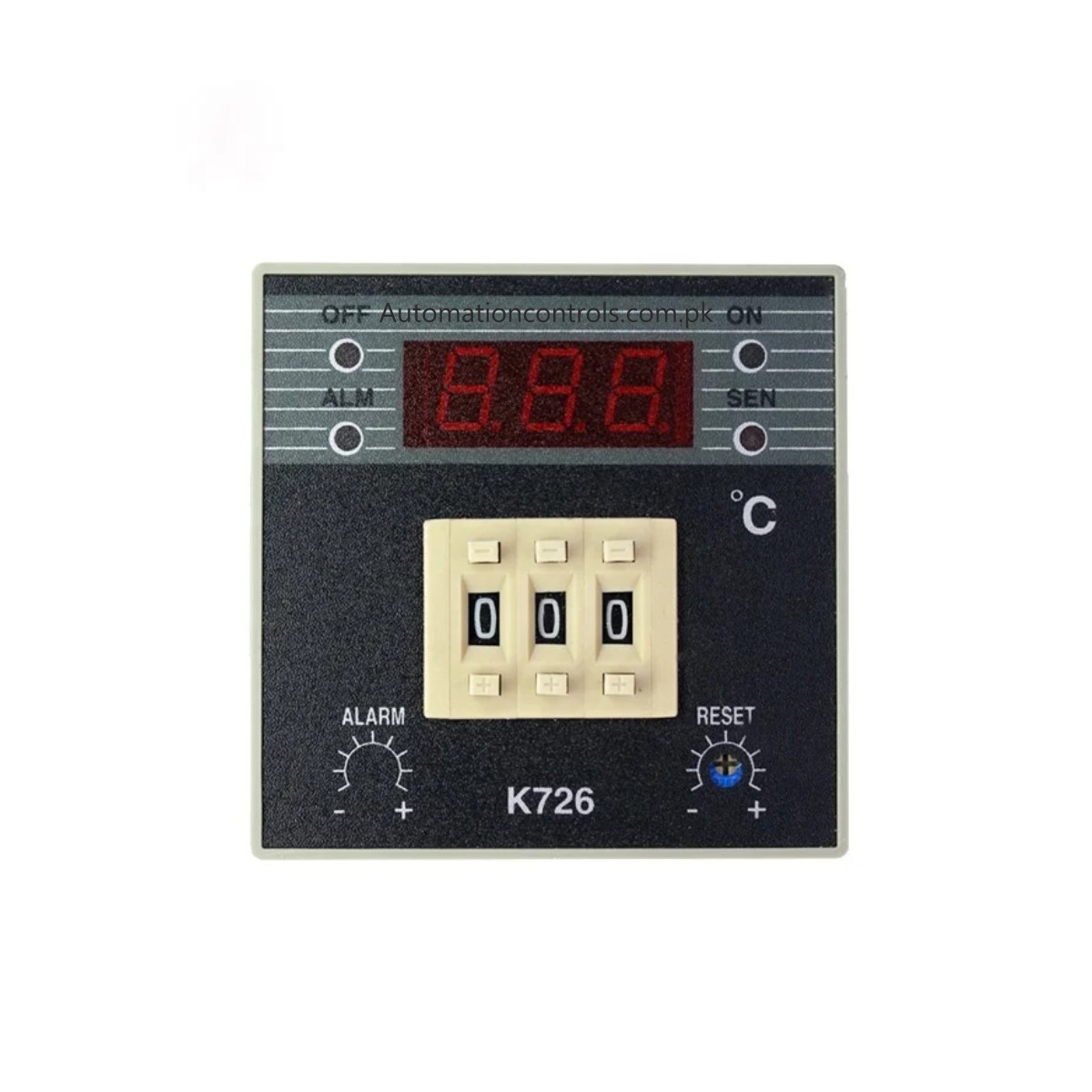

JKN K-726 Temperature Controller (72x72mm)
₨2,800.00
JKN K-726 Temperature Controller (72x72mm)
Model : k-726
Size : 72mmx72mm
Voltage : 110-220v AC
Frequency : 50/60Hz
temperature : 0-400c
Input : K-type
Description
JKN K-726 Temperature Controller (72x72mm)
- This is a reliable device designed to monitor and control temperature in various electrical and industrial systems.
- Offers precise temperature regulation with digital display for easy reading.
- The controller is compact, easy to install, and highly efficient for maintaining stable temperatures.
- It supports automatic control of heating and cooling devices.
- Also suitable for industrial, laboratory, and home applications, it ensures accurate and safe temperature management.
- Digital display for clear and easy temperature reading.
- Precise temperature control with high accuracy.
- Compact and easy-to-install design.
- Supports automatic heating and cooling control.
- Durable and reliable for long-term use.
Applications:
- Controlling temperature in industrial ovens and furnaces.
- Regulating heating and cooling in aquariums or incubators.
- Temperature management in laboratories and test equipment.
- Maintaining safe temperature in electrical or electronic systems.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
DHC-100 + Humidity Controller
Product: DHC-100 + Humidity Controller
| Model number | DHC-100+ |
| Supply voltage | 220Vac |
| Humidity measuring range | 0%-99%RH |
| Humidity control range | 10%-99%RH |
| Resolution | 1%RH |
| Humidity accuracy | 25℃: ±(5%RH+0.5digit) 10-40℃ 0%-59%RH: ±(6%RH+0.5digit) 10-40℃ 59%-99%RH: ±(8%RH+0.5digit) |
| Input types | HTG3515CH temperature humidity sensor, length is 2m (include the probe) |
| Sensor Stability | ±0.5%RH/year |
| Output types | One SPDT electromagnetic relay |
| Relay contact rating | 10A at 250VAC, Max.single phase load is 0.5HP/220VAC |
| Power consumption | Less than 3W |
| Front panel IP rating | IP54 |
| Insulation resistance | 500M ohm min |
| Withstand voltage | 2KV 50Hz for 1min, no breakdown and flashover phenomenon |
| Vibration resistance | (10-5-10) Hz, 2G, 3min vibration, work normal |
| Operating temperature | 0 to 60 ℃ |
| Operating humidity | 20-85% RH max, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Product features | 1. Humidification, dehumidification mode optional. 2. Adopt integrated circuit humidity sensor, with high sensitivity, fast response, good consistency and so on. 3. Keypad lock function. 4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time. |
RKC REX C100 Temperature Controller 48x48mm
- Product: RKC REX C100 Temperature Controller 48x48mm
- Model : REX-C100
- Dimensions : 48mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 400 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
RKC REX C700 Temperature Controller 72x72mm
- Product: RKC REX C700 Temperature Controller 72x72mm
- Model : REX-C700
- Dimensions : 72mm x 72mm x 110mm
- Measuring accuracy : 0.5%
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH

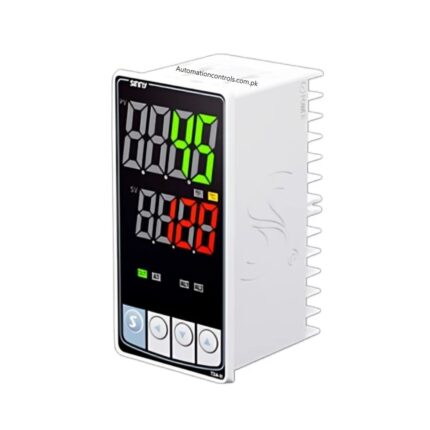

Sinny TX4-H Temperature Controller (48x96mm)
Sinny TX4-H Temperature Controller (48x96mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
Sinny TX4-M Temperature Controller (72x72mm)
Sinny TX4-M Temperature Controller (72x72mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |

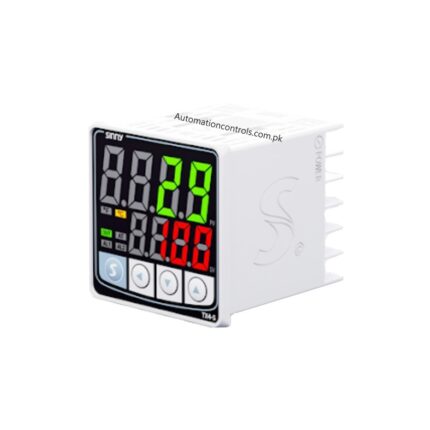

Sinny TX4-S Temperature Controller (48x48mm)
