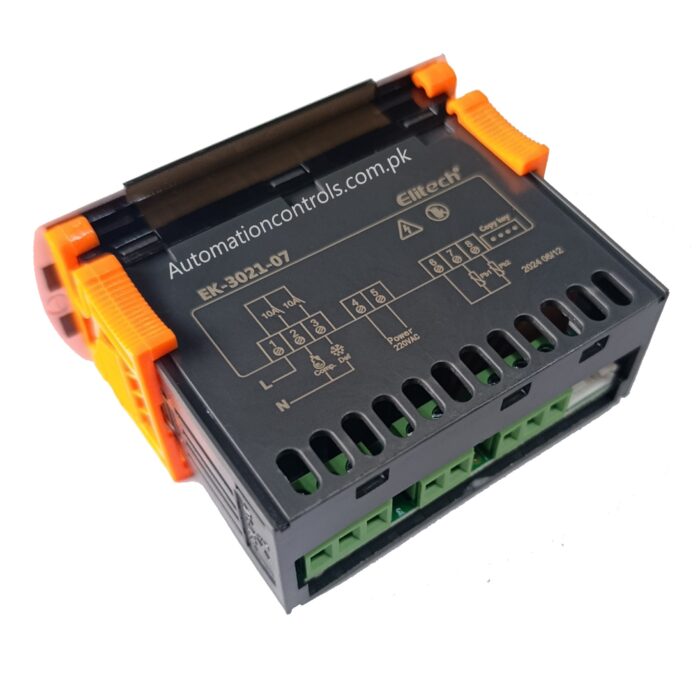

EK-3021 Refrigeration with Defrost Temperature Controller
₨5,000.00
- Model : EK‑3021 digital temperature controller
- Power supply : Standard AC mains (e.g., 220 V)
- Temperature range : Wide adjustable range for refrigeration needs
- Display : Digital LED or LCD screen
- Outputs : Relay control for cooling and defrost devices
Description
- temperature controller with touch screen buttons. It is suitable for temperature control of cooling and defrosting output. With temperature measurement, temperature display, temperature control, temperature correction, forced defrosting, temperature overrun alarm and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.
- It has the function of defrosting cycle power-off memory, even if the equipment is unexpectedly powered off, the defrosting can still be started in time to ensure the normal operation and cooling efficiency of the unit.
- Due to its touch buttons, Elitech equipped the EK series temperature controller with a key lock function to avoid accidental touches that may cause the parameters to change.
- Discounts for bulk orders
- Delivery available all over Pakistan
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
DHC-100+ Humidity Controller
| Model number | DHC-100+ |
| Supply voltage | 220Vac |
| Humidity measuring range | 0%-99%RH |
| Humidity control range | 10%-99%RH |
| Resolution | 1%RH |
| Humidity accuracy | 25℃: ±(5%RH+0.5digit) 10-40℃ 0%-59%RH: ±(6%RH+0.5digit) 10-40℃ 59%-99%RH: ±(8%RH+0.5digit) |
| Input types | HTG3515CH temperature humidity sensor, length is 2m (include the probe) |
| Sensor Stability | ±0.5%RH/year |
| Output types | One SPDT electromagnetic relay |
| Relay contact rating | 10A at 250VAC, Max.single phase load is 0.5HP/220VAC |
| Power consumption | Less than 3W |
| Front panel IP rating | IP54 |
| Insulation resistance | 500M ohm min |
| Withstand voltage | 2KV 50Hz for 1min, no breakdown and flashover phenomenon |
| Vibration resistance | (10-5-10) Hz, 2G, 3min vibration, work normal |
| Operating temperature | 0 to 60 ℃ |
| Operating humidity | 20-85% RH max, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Product features | 1. Humidification, dehumidification mode optional. 2. Adopt integrated circuit humidity sensor, with high sensitivity, fast response, good consistency and so on. 3. Keypad lock function. 4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time. |
EK-3010 Refrigerator and Freezer Temperature Controller
- Model : EK-3010
- Measuring range ：-40℃～99℃
- Controlling range ：-40℃～85℃
- Accuracy ：-30℃～50℃，±1℃±0.5dig; others, ±2℃±0.5dig
- Resolution ：0.1℃ / 1℃
- Mounting size : 71mm*29mm
- Power supply : 220±10%(VAC), 50/60Hz
- Power consumption ：5W
- Output capacity:
- Refrigeration：10A/220VAC or 16A/220VAC, directly drive a single-phase compressor 1HP
- One way buzzer alarm output
- Work ambient temperature ： -5℃～60℃； work ambient
- humidity ：10%～90% non condensing
- Storage temperature ：-25℃～75℃
- Sensor type : NTC（10KΩ/25℃，B value 3435K）
- Sensor length : 2M
EK-3030 Refrigerator Cooling and Heating Temperature Controller
Model : EK-3030
Measuring temperature : -40°C~99°C
Controlling range : -40°C~85°C;
Accuracy : -30°C~50°C, ±1°C±0.5dig; others, ±2°C±0.5dig
Resolution : 0.1°C / 1°C
Mounting size : 71mm*29mm
Power supply : 220±10%(VAC), 50/60Hz
Power consumption : <5W
Refrigeration : 10A/220VAC or 16A/220VAC, directlydrive a singlephase compressor 1HP
Defrost : 10A/220VAC
One way buzzer alarm output
Work ambient temperature : -5°C~55°C;work ambient
humidity : 10%~90% non condensing
Storage temperature :-25°C~85°C
Senor type : NTC(10KΩ/25°C,B value 3435K)
Sensor length : 2M
- Dual Heating & Cooling Mode
- User-Friendly Interface : Large, clear LED display and simple programming menu.
- High/Low Temperature Alarms
- Wide Control Range : Capable of controlling a broad spectrum of temperatures.
- Password Protection : Lock your settings to prevent accidental changes.
RKC REX-C100 Temperature Controller 48x48mm
- Model : REX-C100
- Dimensions : 48mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 400 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
STC-3028 Temperature and Humidity Controller
- Model : STC-3028
- Function : temperature and humidity controller
- Supply voltage : AC 110-220V,50/60Hz
- Measurement temperature range : -20 ° C ~ +80 ° C
- Measuring humidity range : 00%RH～+100%RH
- Accuracy : ±1°C 0.1%RH
- Relay output contact capacity : 10A
- Integrated sensor : included length 1 meter
- Shell material : gray ABS flame retardant plastic shell
STC-8080HX Microcomputer Temperature Controller
- Model : STC-8080HX
- Power supply : 220vac + 10% / - 15%, 50 / 60hz.
- Power consumption : < 3w
- Temperature measuring range : - 50c ~ + 99c
- Temperature control range : ~ 40c ~ + 50c
- Resolution : 1c
- Relay capacity of defroster : 10a / 277vac
- 1 minute relay time sensor error
- Type sensor: Ntc sensor
- Operating temperature : 0c ~ 60c
- Temperature storage : - 30c ~ + 75c
- Relative humidity : 20% ~ 85% (no condensate)
STC-9200 Refrigerator Incubator Defrost Temperature Controller
- Model : STC-9200
- Power supply : 220VAC+10%-15%, 50/60Hz
- Power consumption : 3W
- Temperature measuring range : -50~+99oC
- Temperature controlling range : -40~+50oC
- Resolution : 1oC
- Accuracy : ±1oC when temperature -40~+50oC, ±2oC at others
- Relay capacity of compressor : 7A/2240VAC
- Sensor error relay time : 1 minutes
- Sensor type : NTC sensor
