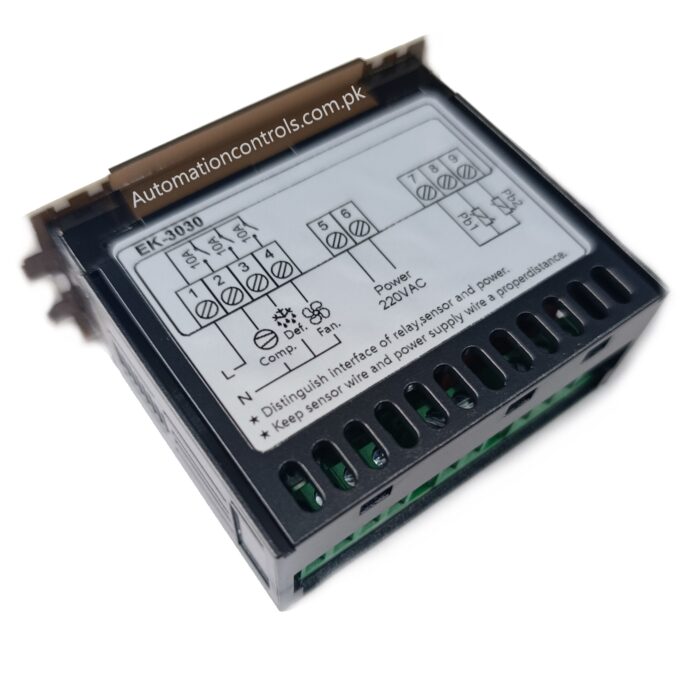

EK-3030 Refrigerator Cooling and Heating Temperature Controller
₨5,000.00
Product: EK-3030 Refrigerator Cooling and Heating Temperature Controller
Model : EK-3030
Measuring temperature : -40°C~99°C
Controlling range : -40°C~85°C;
Accuracy : -30°C~50°C, ±1°C±0.5dig; others, ±2°C±0.5dig
Resolution : 0.1°C / 1°C
Mounting size : 71mm*29mm
Power supply : 220±10%(VAC), 50/60Hz
Power consumption : <5W
Refrigeration : 10A/220VAC or 16A/220VAC, directly drive a single phase compressor 1HP
Defrost : 10A/220VAC
One way buzzer alarm output
Work ambient temperature : -5°C~55°C;work ambient
humidity : 10%~90% non condensing
Storage temperature :-25°C~85°C
Senor type : NTC(10KΩ/25°C,B value 3435K)
Sensor length : 2M
- Dual Heating & Cooling Mode
- User-Friendly Interface : Large, clear LED display and simple programming menu.
- High/Low Temperature Alarms
- Wide Control Range : Capable of controlling a broad spectrum of temperatures.
- Password Protection : Lock your settings to prevent accidental changes.
Description
- Product: EK-3030 Refrigerator Cooling and Heating Temperature Controller
- Discounts for bulk orders
- Delivery available all over Pakistan
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
RKC REX-C900 Temperature Controller 96x96mm
- Specification: RKC REX-C900 Temperature Controller 96x96mm
- Model : REX-C900
- Dimensions : 96mm96mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
Sinny TX4-H Temperature Controller (48x96mm)
Sinny TX4-H Temperature Controller (48x96mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
Sinny TX4-M Temperature Controller (72x72mm)
Sinny TX4-M Temperature Controller (72x72mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
Sinny TX4-S Temperature Controller (48x48mm)
Sinny TX4-S Temperature Controller (48x48mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
STC-100 Refrigerating and Heating Temperature Controller
- Product: STC-100 Refrigerating and Heating Temperature Controller
- Model : STC-100A
- Relay capacity : 10A (0.5HP) / 220VAC
- Temperature measuring range : -40 ~ 99 ° C
- Temperature control range : -40 ~ 99 ° C
- Resolution : 1 ° C
- Accuracy : ± 1 ° c ± 0.5 digits
- Ambient requirements : temperature: 0-60 ° c humidity: 20% -85% (no condensate)
- Consumption : ≤ 3W
- Input: 1 NTC sensor
- Sensor length : 2M (include the probe)
- Delay time in case of sensor error : 1 min
- Front panel security level : IP54
- Storage temperature : -30 ° c-75 ° c
- Front panel size : 77 (L) x34.5 (W) mm / 3x1.35in
- Installation hole size : 71 (L) x29 (W) mm
- Item size : 77 (L) x34.5 (W) x62mm (D) /3x1.35x2.42in
STC-3028 Temperature and Humidity Controller
- Description: STC-3028 Temperature and Humidity Controller
- Model : STC-3028
- Function : temperature and humidity controller
- Supply voltage : AC 110-220V,50/60Hz
- Measurement temperature range : -20 ° C ~ +80 ° C
- Measuring humidity range : 00%RH～+100%RH
- Accuracy : ±1°C 0.1%RH
- Relay output contact capacity : 10A
- Integrated sensor : included length 1 meter
- Shell material : gray ABS flame retardant plastic shell
STC-9200 Refrigerator Incubator Defrost Temperature Controller
- Product: STC-9200 Refrigerator Incubator Defrost Temperature Controller
- Model : STC-9200
- Power supply : 220VAC+10%-15%, 50/60Hz
- Power consumption : 3W
- Temperature measuring range : -50~+99oC
- Temperature controlling range : -40~+50oC
- Resolution : 1oC
- Accuracy : ±1oC when temperature -40~+50oC, ±2oC at others
- Relay capacity of compressor : 7A/2240VAC
- Sensor error relay time : 1 minutes
- Sensor type : NTC sensor
