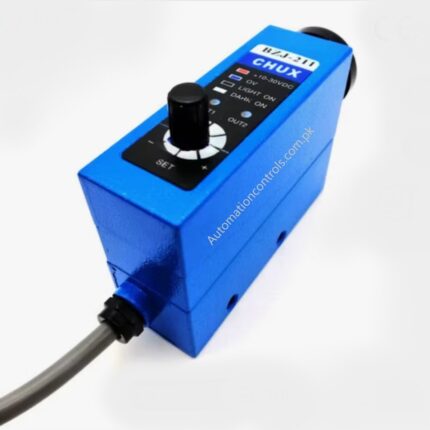

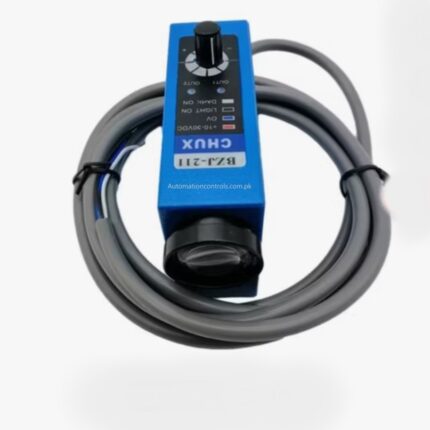

BZJ-211 Color Mark Eye Sensor
KS-C2 Color Mark Photoelectric Sensor
|
Detection |
coaxial reflective type |
||||
|
Detection distance |
10mm±2mm |
||||
|
Cast bare point |
1.0mm |
||||
|
supply voltage |
DC10-30V |
||||
|
Power consumption |
40mA |
||||
|
response time |
1mS following |
||||
|
Output |
NPN type lights moving / dark dynamic dual output |
||||
|
Model |
KS-C2 |
||||
|
Operation instruction |
red LED, bright Activity directions |
||||
|
Operating ambient |
temperature: -5 ° C -50 ° C |
||||
|
Lead |
four-core cable (brown, yellow, white, blue) standard length 2m |
||||
|
Product |
KS-C2 Color Mark Photoelectric Sensor |
||||
NT6-0302 Color Code Sensor BZJ-312
PL-05N Inductive Proximity Sensor
Product : PL-05N Inductive Proximity Sensor
Model : PL-05N
Supply voltage : 10-3ov DC
Wires : 3 DC wire (Brown, Black, Blue)
Output current : 150 mA
Output type : NPN NO(normally open)
Sensing range : 5mm
Response frequency : 800Hz
Working temperature : -20 ~+80C
Humidity : 35%~90%RH
Screw hole : 3.2mm
Wire length : 1 meter
Material : High-impact plastic
Shape : square
PL-05P Inductive Proximity Sensor
Product : PL-05P Inductive Proximity Sensor
Model : PL-05P
Supply voltage : 10-3ov DC
Wires : 3 DC wire (Brown, Black, Blue)
Output current : 150 mA
Output type : PNP NO(normally open)
Sensing range : 5mm
Response frequency : 800Hz
Working temperature : -20 ~+80C
Humidity : 35%~90%RH
Screw hole : 3.2mm
Wire length : 1 meter
Material : High-impact plastic
Shape : square

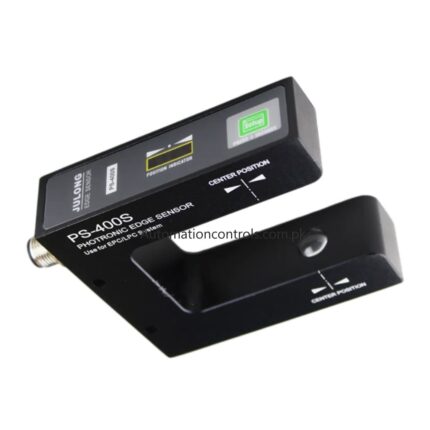

PS-400S Photronic Edge Sensor
PS-400S Photronic Edge Sensor
| checking method | edge tracking |
| power input | DC10-30V |
| output signal | two way analogue0-5V two way NPN on-off signal |
| detecting range | 8mm(±4mm) |
| detecting precisiion | ±0.02mm |
| output mode | digital type/ analog type |
| detecting method | photoelectric opposite beam |
| carrier frequency | 100KHz/1KHz |
| enclosure rating | IP54 |
| environment temperature | -10°-80°C below RH90% |
| shell material | aluminum alloy |
Sick GTB6-N1212 Photo-electric Sensor
Sick GTB6-N1212 Photo-electric Sensor
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm - 250 mm |
| Sensing range | 35 mm - 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC - 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage NPN HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Circuit protection | A 8) B 9) D 10) |
| Protection class | III |
| Weight | 60 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
