Entes EPM-4D 48x96mm Digital Ampere Meter

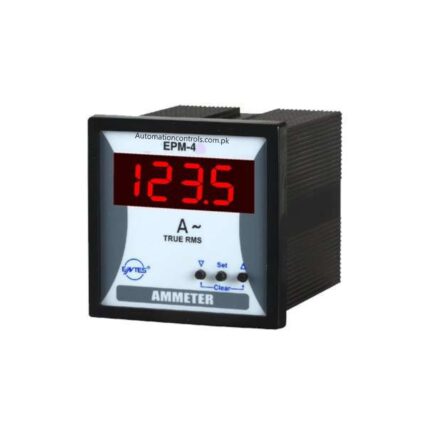

Entes EPM-4D 72x72mm Digital Ampere Meter
Entes EPM-4D 96x96mm Digital Ampere Meter
Entes EVM-3 48x96mm Digital Volt Meter
Entes EVM-3 72x72mm Digital Volt Meter
Entes EVM-3 96x96mm Digital Volt Meter
UNI-T UT-201+ Digital Clamp Meter
Product : UNI-T UT-201+ Digital Clamp Meter
| AC current (A) | 400A | ±(2%+10) | ||||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | ||||
| AC voltage (V) | 600V | ±(0.8%+5) | ||||
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | ||||
| DC voltage (A) | 600V | ±(0.5%+2) | ||||
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | ||||
| Display count | 4000 | |||||
| Auto range | √ | |||||
| Jaw opening | 28mm | |||||
| True RMS | √ | |||||
| NCV | √ | |||||
| Continuity test | √ | |||||
| Diode | √ | |||||
| MAX/MIN | √ | |||||
| Data hold | √ | |||||
| Low battery indication | √ | |||||
| Auto power off | √ | |||||
| General Characteristics | ||||||
| Power | 1.5V battery (R03) x 2 | |||||
| Display | 37mm x 25mm | |||||
| Product color | Red and grey | |||||
| Product net weight | UT201+ ：248g; | |||||
| Product size | 215mm x 63mm x 36mm | |||||
| Standard accessories | Batteries, test leads | |||||
| Standard individual packing | Gift box, Carring bag, English manual | |||||
UNI-T UT-203+ Digital AC/DC Clamp Meter
UNI-T UT-203+ Digital AC/DC Clamp Meter
| Model | Range | UT203+ |
| AC current (A) | 400A | ±(2.5%+5) |
| DC current (A) | 400A | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Power | 1.5V battery | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard individual packing | Gift box, Carring bag, English manual | |
UNI-T UT-204+ Digital Clamp Meter
Product : UNI-T UT-204+ Digital Clamp Meter
| AC current (A) | 600A | ±(2.5%+5) |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard accessories | Batteries, test leads, Themocouple | |
| Standard individual packing | Gift box, Carring bag, English manual | |
UNI-T UT-207a Digital Clamp Meter
Product : UNI-T UT-207a Digital Clamp Meter
| Function | Range(s) | Basic Accuracy |
|---|---|---|
| AC Current (A) | 40A / 400A / 1000A | ±(2.5% + 8) to ±(2.0% + 2) |
| DC Current (A) | 40A / 400A / 1000A | ±(2.0% + 5) to ±(1.5% + 5) |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.8% + 1) to ±(1.0% + 3) |
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1.2% + 3) to ±(1.2% + 20) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0% + 2) to ±(1.5% + 2) |
| Frequency (Hz) | 10Hz/100Hz/1kHz/10kHz/1MHz/10MHz | ±(0.1% + 3) |
| Duty Cycle | 0.1% ~ 99.9% | For reference only |
| Display Type | Backlit LCD, 47mm × 30mm |
| Display Count | 3999 (3¾ digits) |
| Jaw Opening | 55mm (maximum conductor size: 45mm diameter) |
| Sampling Rate | 3 times/second |
| Auto Ranging | Yes |
| Continuity Threshold | Buzzer beeps at <10Ω |
| Diode Test | Yes (open circuit voltage ~1.5V) |
| ZERO Button | Yes (for offset calibration) |
| Auto Power Off | 15 minutes |
| Low Battery Indication | Yes |
| Power Supply | 9V battery (6LF22) ×1 |
| Product Dimensions | 286mm × 105mm × 45mm |
| Product Net Weight | ~533g (including battery) |
| Safety Rating | CAT II 600V / CAT III 300V, Pollution Degree 2 |
UNI-T UT-33a+ Digital Multi Meter
Product : UNI-T UT-33a+ Digital Multi Meter
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) | |||
| AC voltage (V) | 600V | ±(0.7%+3) | |||
| DC current (A) | 10A | ±(1%+2) | |||
| AC current (A) | 10A | ±(1.2%+3) | |||
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ | ±(0.8%+2) | |||
| Capacitance (F) | 2mF | ±(4%+8) | |||
| Display count | 2000 | ||||
| Auto power off/Auto backlight off | √ | ||||
| Diode test/Continuity buzzer | √ | ||||
| 2m drop test/ Test probe holder | √ | ||||
| Range selection | Auto | ||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display | 66mm x 51mm | ||||
| Product net weight | Red and grey | ||||
| Product color | 206g (batteries included) | ||||
| Product size | 134mm x 77mm x 47mm | ||||
| Standard accessories | Batteries, test leads | ||||
| Standard individual packing | Gift box, English manual | ||||
UNI-T UT-33b+ Digital Multi Meter
Product : UNI-T UT-33b+ Digital Multi Meter
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) | |||
| AC voltage (V) | |||||
| 200V/600V | ±(1.2%+3) | ||||
| DC current (A) | |||||
| 200μA/200mA/10A | ±(1%+2) | ||||
| AC current (A) | 10A | ||||
| Resistance (Ω) | |||||
| 200Ω/2kΩ/20kΩ /200kΩ/20MΩ | ±(0.8%+2) | ||||
| Features | |||||
| Display count | 2000 | ||||
| Auto power off/Auto backlight off | √ | ||||
| Diode test/Continuity buzzer | √ | ||||
| 2m drop test/ Test probe holder | √ | ||||
| Range selection | Manual | ||||
| Battery test | 1.5V/9V/12V | ||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display | 66mm x 51mm | ||||
| Product net weight | Red and grey | ||||
| Product color | 206g (batteries included) | ||||
| Product size | 134mm x 77mm x 47mm | ||||
| Standard accessories | Batteries, test leads | ||||
| Standard individual packing | Gift box, English manual | ||||
