Sinny TX4-H Temperature Controller (48x96mm)
₨4,200.00
Sinny TX4-H Temperature Controller (48x96mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |
Description
Sinny TX4-H Temperature Controller (48x96mm)
- TX4 Temperature Controller, economical 4-digit dual-display PID temperature controller with 100ms high-speed sampling period and ±0.5% display accuracy. 50mm depth, exquisite design supports more installation environments and ideal temperature control in various applications.
- These High Precision temperature controllers are engineered to deliver unparalleled precision, ensuring that your equipment operates within the precise temperature range required for optimal performance.
- If you require smart controllers with dual-stage functionality, industry-leading PID controllers, or versatile models for specific applications, our range of temperature controllers offers a variety of options to suit your unique needs across different industries and processes.
- It has high efficiency with fast and precise temperature control capabilities, our temperature controllers optimize process efficiency, contributing to enhanced productivity and performance across various applications.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping and Delivery
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
DHC-100 + Humidity Controller
Product: DHC-100 + Humidity Controller
| Model number | DHC-100+ |
| Supply voltage | 220Vac |
| Humidity measuring range | 0%-99%RH |
| Humidity control range | 10%-99%RH |
| Resolution | 1%RH |
| Humidity accuracy | 25℃: ±(5%RH+0.5digit) 10-40℃ 0%-59%RH: ±(6%RH+0.5digit) 10-40℃ 59%-99%RH: ±(8%RH+0.5digit) |
| Input types | HTG3515CH temperature humidity sensor, length is 2m (include the probe) |
| Sensor Stability | ±0.5%RH/year |
| Output types | One SPDT electromagnetic relay |
| Relay contact rating | 10A at 250VAC, Max.single phase load is 0.5HP/220VAC |
| Power consumption | Less than 3W |
| Front panel IP rating | IP54 |
| Insulation resistance | 500M ohm min |
| Withstand voltage | 2KV 50Hz for 1min, no breakdown and flashover phenomenon |
| Vibration resistance | (10-5-10) Hz, 2G, 3min vibration, work normal |
| Operating temperature | 0 to 60 ℃ |
| Operating humidity | 20-85% RH max, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Product features | 1. Humidification, dehumidification mode optional. 2. Adopt integrated circuit humidity sensor, with high sensitivity, fast response, good consistency and so on. 3. Keypad lock function. 4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time. |
EK-3010 Refrigerator and Freezer Temperature Controller
EK-3010 Refrigerator and Freezer Temperature Controller
- Model : EK-3010
- Measuring range ：-40℃～99℃
- Controlling range ：-40℃～85℃
- Accuracy ：-30℃～50℃，±1℃±0.5dig; others, ±2℃±0.5dig
- Resolution ：0.1℃ / 1℃
- Mounting size : 71mm*29mm
- Power supply : 220±10%(VAC), 50/60Hz
- Power consumption ：5W
- Output capacity:
- Refrigeration：10A/220VAC or 16A/220VAC, directly drive a single-phase compressor 1HP
- One way buzzer alarm output
- Work ambient temperature ： -5℃～60℃； work ambient
- humidity ：10%～90% non condensing
- Storage temperature ：-25℃～75℃
- Sensor type : NTC（10KΩ/25℃，B value 3435K）
- Sensor length : 2M
RKC REX C400 Temperature Controller 48x96mm
- Product: RKC REX C400 Temperature Controller 48x96mm
- Model : REX-C400
- Dimensions : 48mm96mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
RKC REX C410 Temperature Controller 96x48mm
- Product: RKC REX C410 Temperature Controller 96x48mm
- Model : REX-C410
- Dimensions : 96mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH

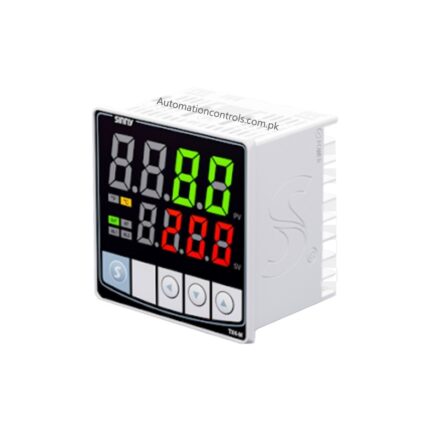

Sinny TX4-M Temperature Controller (72x72mm)
Sinny TX4-M Temperature Controller (72x72mm)
| Power supply | 100-240VAC/DC | |
| Allowable voltage range | 90-110%ofrated voltage | |
| Power consumption | ≤8VA | |
| Input type | TC | KEJN T S R B |
| RTD | Pt100 Cu50 | |
| Display accuracy | ±0.5% | |
| Outputtype | Relay | 250VAC~3A30VDC=3A1NO1NC |
| SSR | 12VDC=±2V,≤20mA | |
| Alarm output | Relay | AL1/2:250VAC~3A1NO |
| Control type | ON/OFF,PID Control | |
| Sampling period | 100ms | |
| Relay life cycle | Mechanical | ≥2,500,000 operations |
| Electrical | ≥100,000 operations (resistance load:250VAC~3A) | |
| Dielectric strength | Between all terminals and case:3000VAC~50/60Hz for 1min | |
| Vibration | 0.75mm amplitude atfrequency5 to 55Hz(for 1 min.)in each X,Y,Z direction for 2 hours | |
| Insulation resistance | ≥100MO(500VDC=megger) | |
| Noise immunity | ±2kw square shaped noise(pulse width lμs)by noise simulator R-phase,S-phase | |
| Memory retention | ≈10 years (non-volatile semiconductormemory type) | |
| Ambient temp. | -10~50ºC storage:-20~60ºC(no freezing orcondensation) | |
| Ambient humi. | 35%~85%RH storage:35%~85%RH(no freezing or condensation) | |

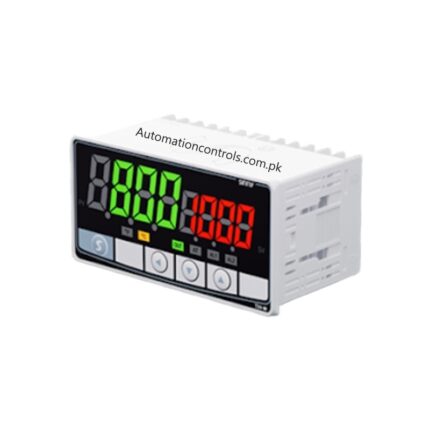

Sinny TX4-W Temperature Controller (96x48mm)
