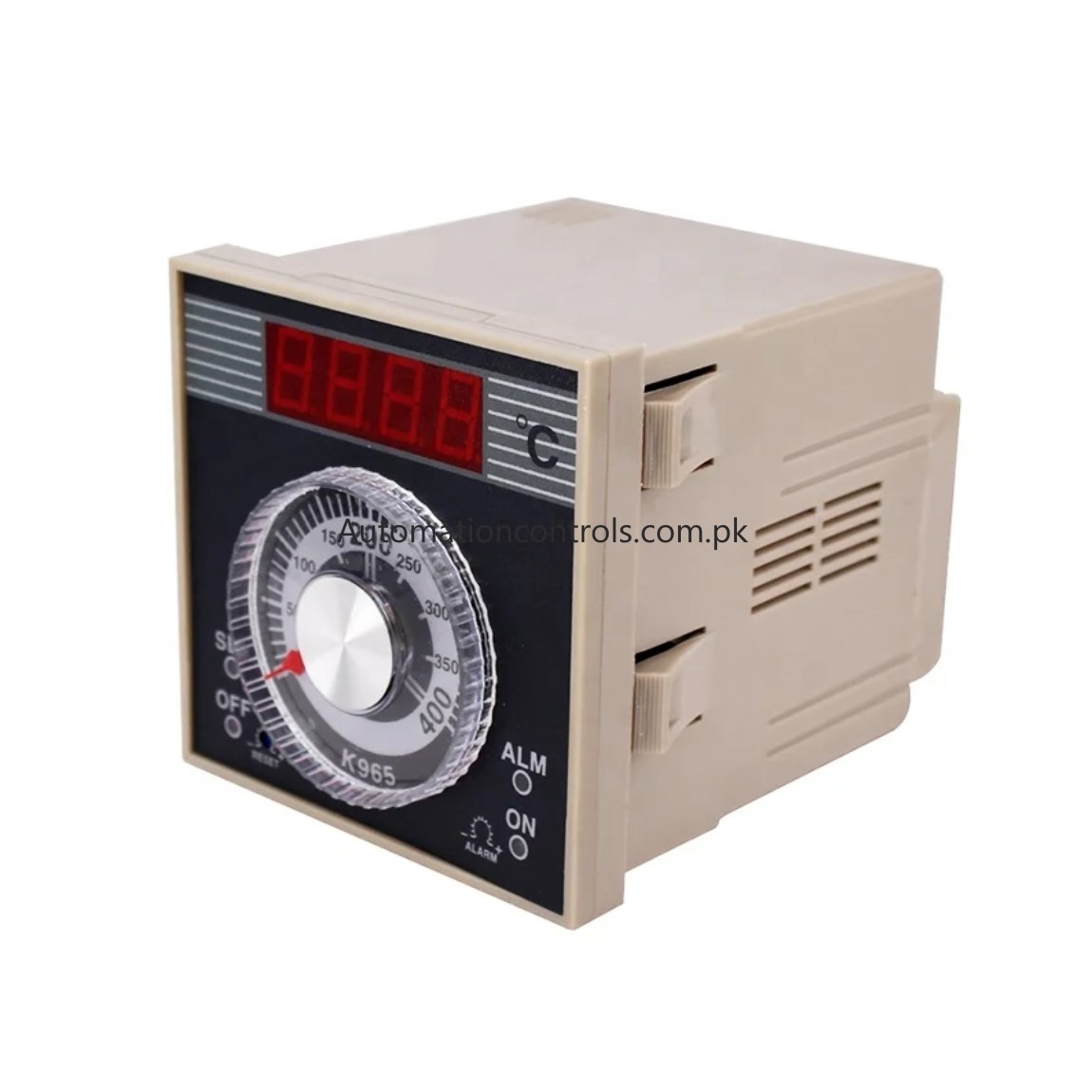

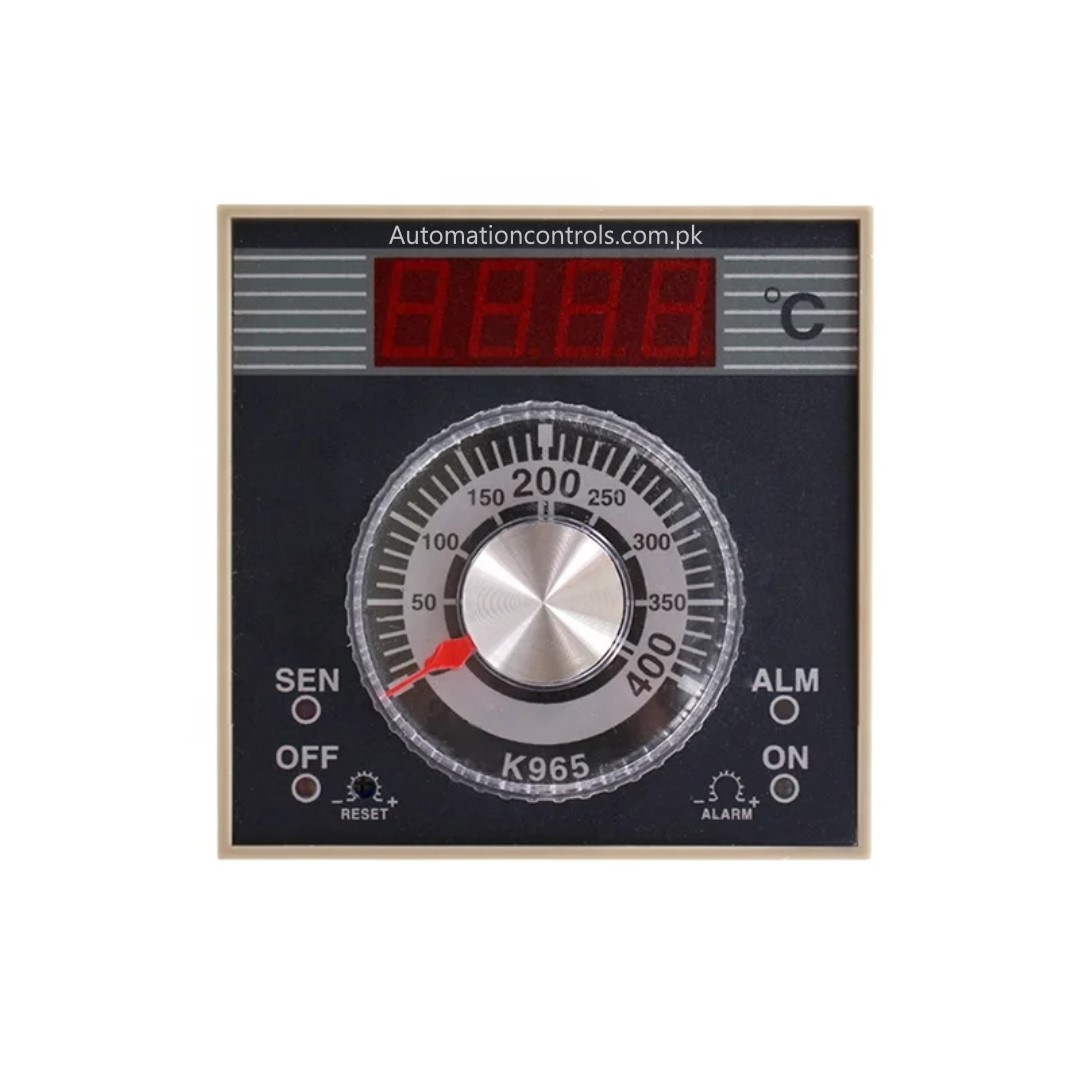

JKN K-965 Temperature Controller (96x96mm)
₨2,800.00
JKN K-965 Temperature Controller (96x96mm)
Model : k-965
Size : 96mmx96mm
Voltage : 110-220v AC
Frequency : 50/60Hz
temperature : 0-400c
Input : K-type
Description
JKN K-965 Temperature Controller (96x96mm)
- This temperature Controller ensures precise, stable, and efficient temperature control for industrial and domestic ovens.
- Also it continuously monitors fluctuations and adjusts automatically for accuracy.
- The controller typically features a digital display that shows the current temperature readings and settings, making it easy to monitor and adjust the temperature.
- JKN K965 controller provides precise temperature control, allowing you to set and maintain the desired temperature within the oven.
- It utilizes PID (Proportional-Integral-Derivative) control algorithm to ensure accurate and stable temperature control by continuously adjusting the output based on the difference between the desired temperature and the measured temperature.
- It supports a specific temperature range suitable for oven applications. The range may vary depending on the model.
- The controller may have built-in alarm functions to alert users in case of temperature deviations or abnormal conditions, ensuring safety and process integrity.
- The High Precision Thermal Regulator operates reliably in varied environments.
- It offers quick response time, high durability, and easy calibration. Similarly, it improves heating efficiency while saving energy.
- Users experience consistent performance, extended equipment life, and optimal safety.
- It has intelligent features simplify operation and reduce maintenance.
- So, the Digital Temperature Controller provides dependable and accurate control for ovens, heaters, and industrial thermal systems.
-
Intelligent digital control with LED display
-
Fast response and precise temperature management
-
Auto-tuning and overload protection system
-
Compatible with multiple sensor types
-
Compact design for easy installation and operation
Uses:
-
Ideal for industrial and commercial ovens
-
Suitable for plastic molding machines and dryers
-
Used in temperature-controlled heating systems
-
Applicable in food processing and laboratories
