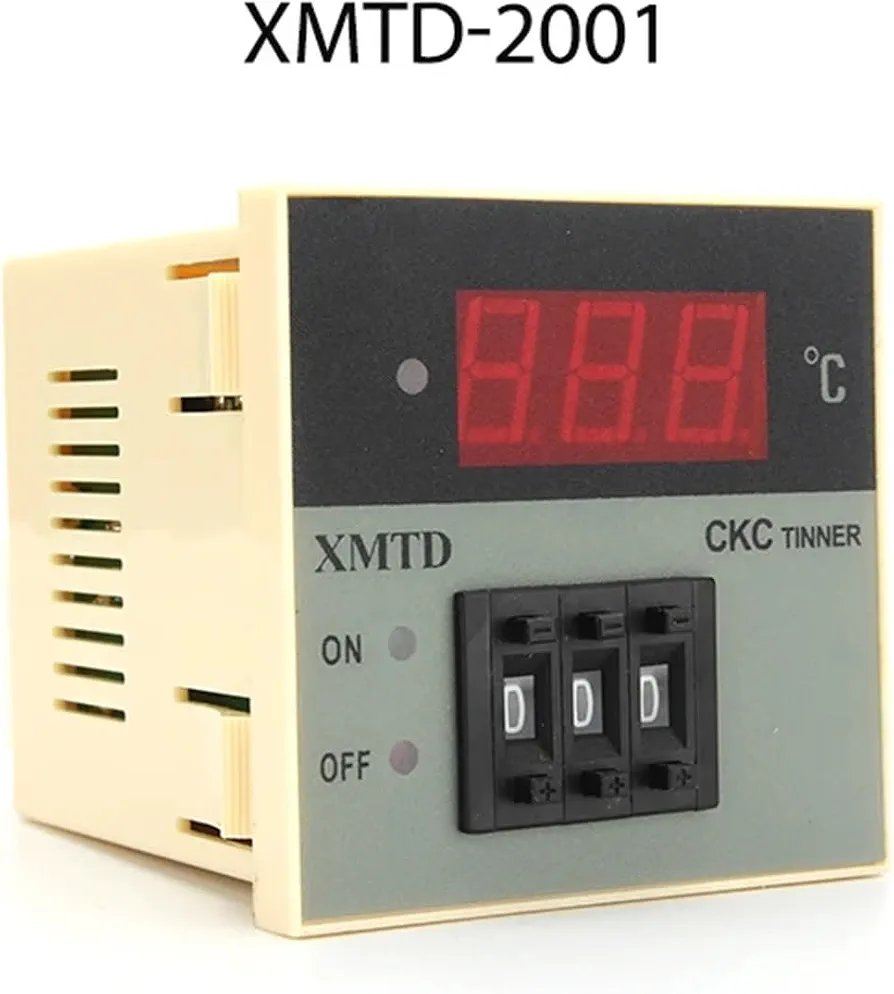

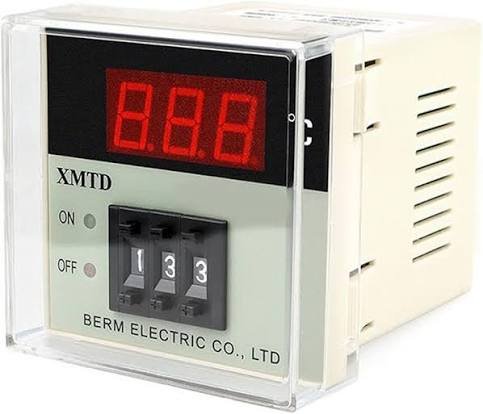

XMTD-2001 Digital Display Temperature Controller
₨3,000.00
Description
- XMTD-2001 PID Digital Display Temperature Controller 0-399℃
Features:
LCD digital display, easy to view the data
Features high accuracy and high stability
Temperature measurement and automatic control in the range of 0-399
Widely used in plastic, rubber, packaging, food machinery, and metallurgy, chemical breeding etc. - Specification:
Model: XMTD – 2001
Type: K
Voltage: 220VAC 50/60hz
Temperature range: 0-399
Weight: Approx.313g/11oz - Package list:
- 1 x Temperature Controller
- 2 x accessories

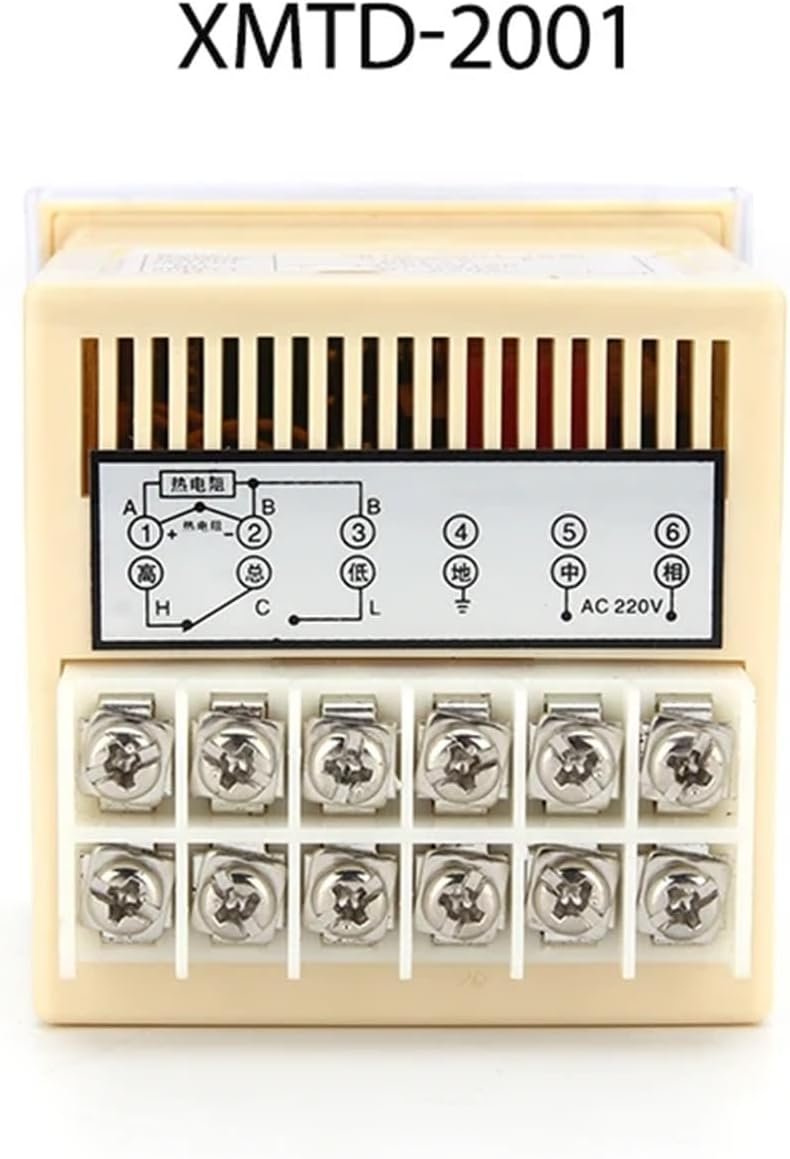

Note: - Follow the wiring diagram
- Keep the temperature sensor in place and be careful not to tie it to the power cord or relay
- After power on, set 90% of the required temperature value, and then set it to the required value after several actions
- Heat up when the green light is on and stop when the red light is on.
