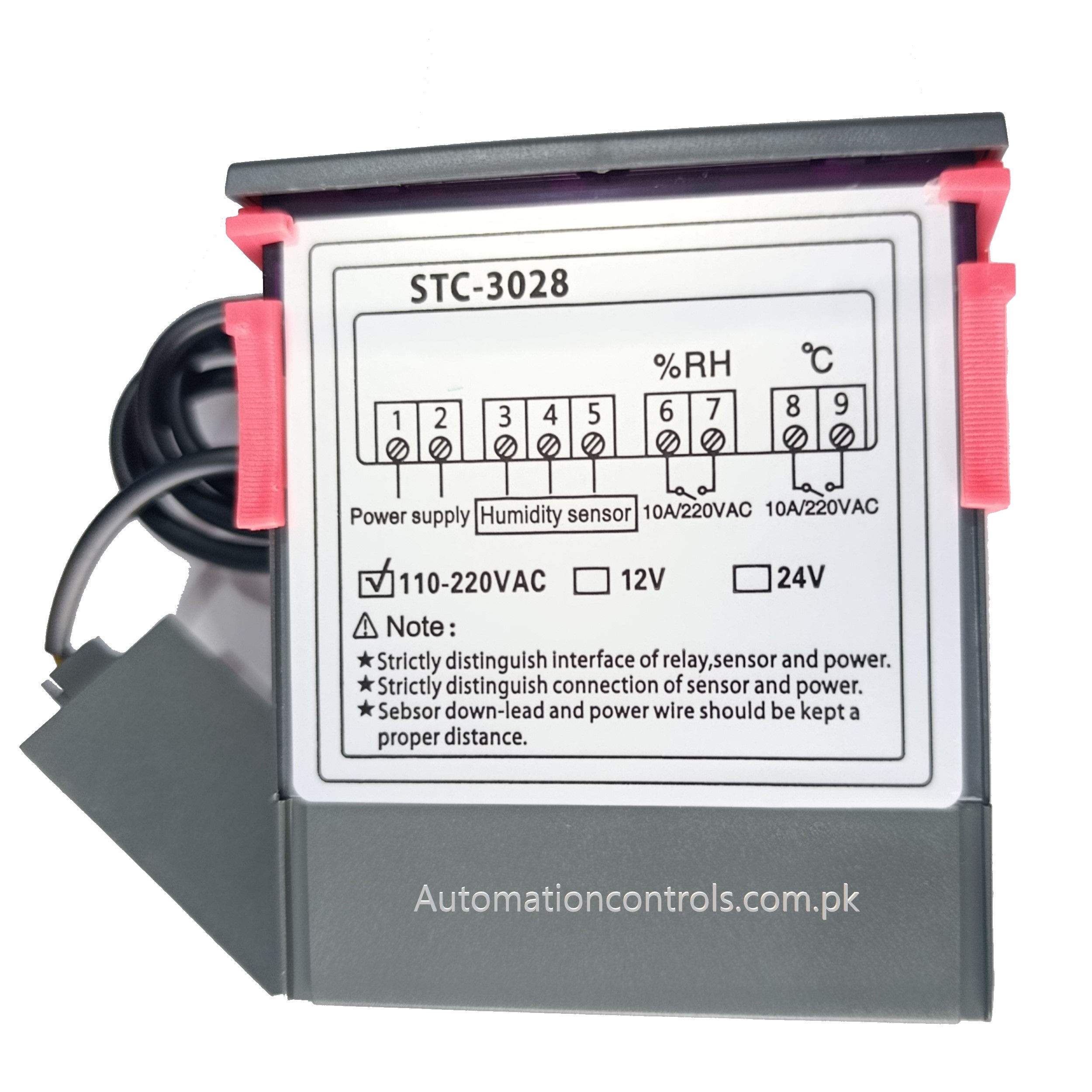

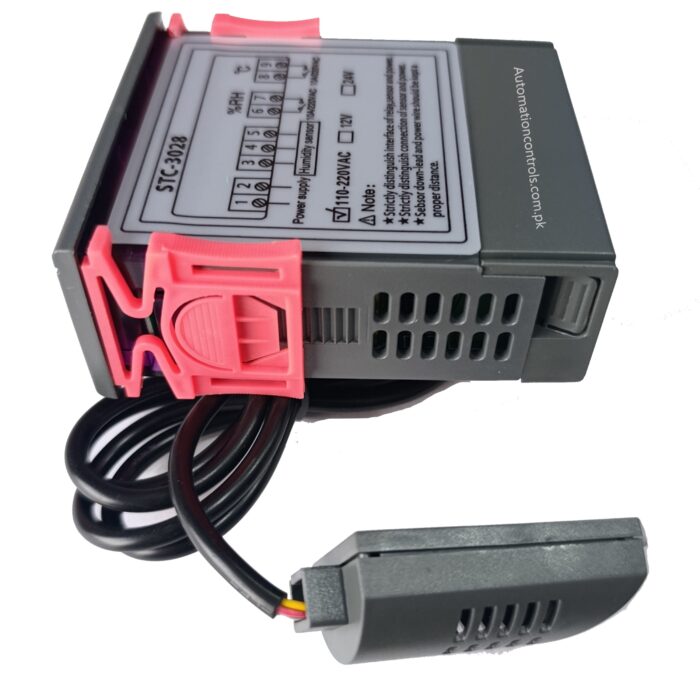

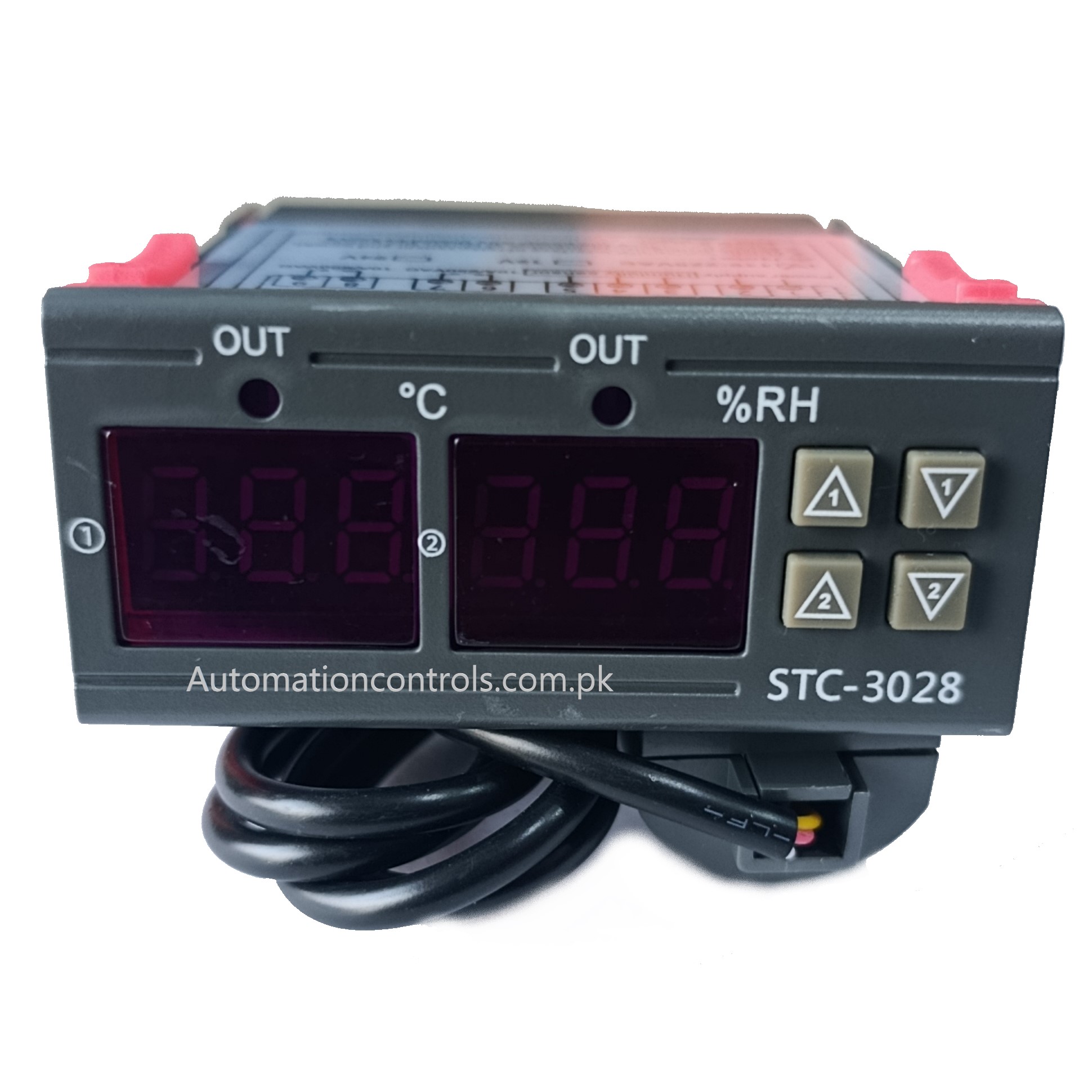

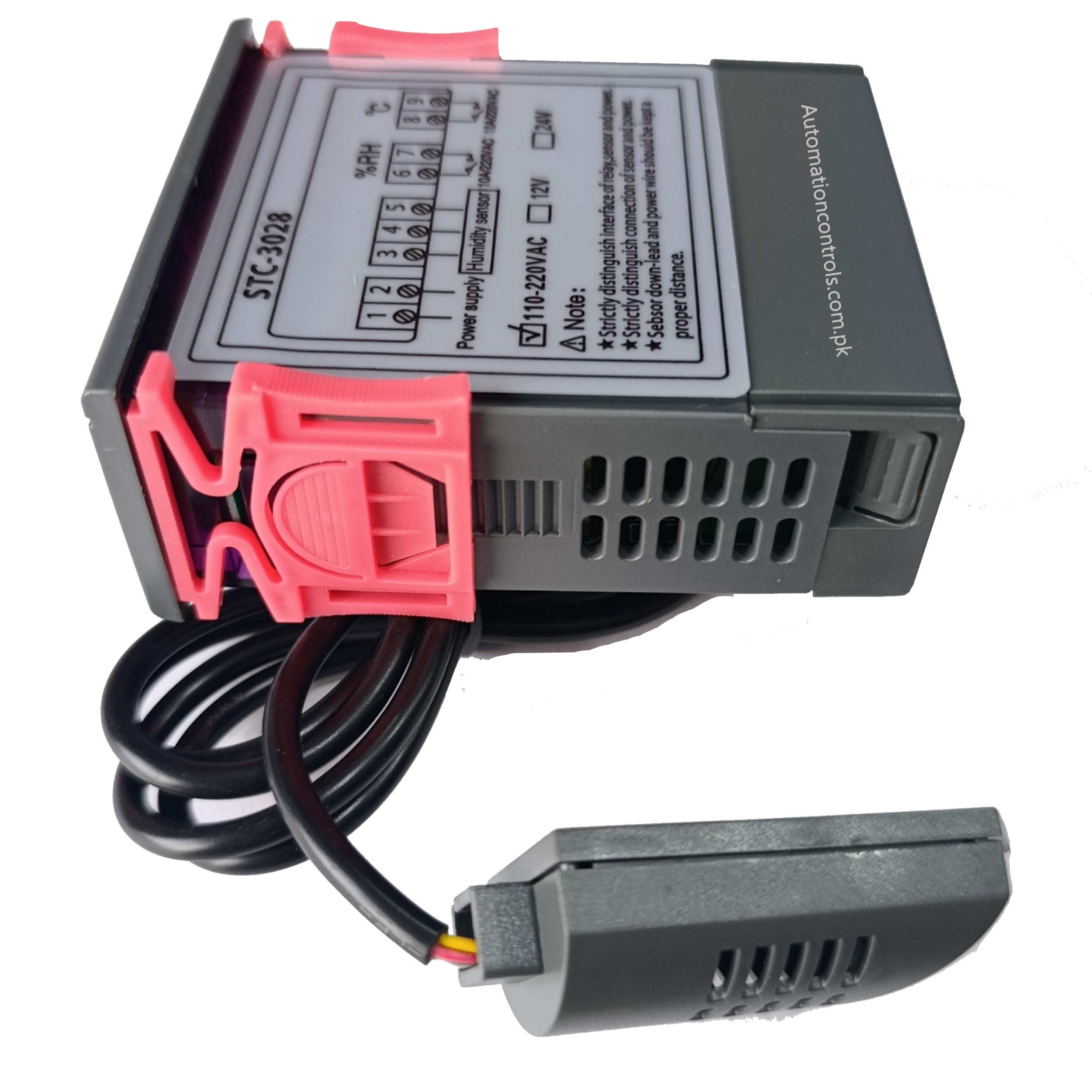

STC-3028 Temperature and Humidity Controller
₨3,500.00
- Description: STC-3028 Temperature and Humidity Controller
- Model : STC-3028
- Function : temperature and humidity controller
- Supply voltage : AC 110-220V,50/60Hz
- Measurement temperature range : -20 ° C ~ +80 ° C
- Measuring humidity range : 00%RH～+100%RH
- Accuracy : ±1°C 0.1%RH
- Relay output contact capacity : 10A
- Integrated sensor : included length 1 meter
- Shell material : gray ABS flame retardant plastic shell
Description
- Product: STC-3028 Temperature and Humidity Controller
- Set startup temperature(humidity):
Press the “up” button once to display the starting temperature(humidity).
Long press the “up” button for about 3 seconds
The required temperature(humidity) can be set by the up and down keys - Set the stop temperature(humidity):
Press the “down” button once to display the stop temperature(humidity).
Long press the button for about 3 seconds and the stop temperature(humidity) number flashes.
The required temperature(humidity) can be set by the up and down keys - temperature ( humidity ) correction:
Press” up” and “down button at the same time. - Discounts for bulk orders
- Delivery available all over Pakistan
