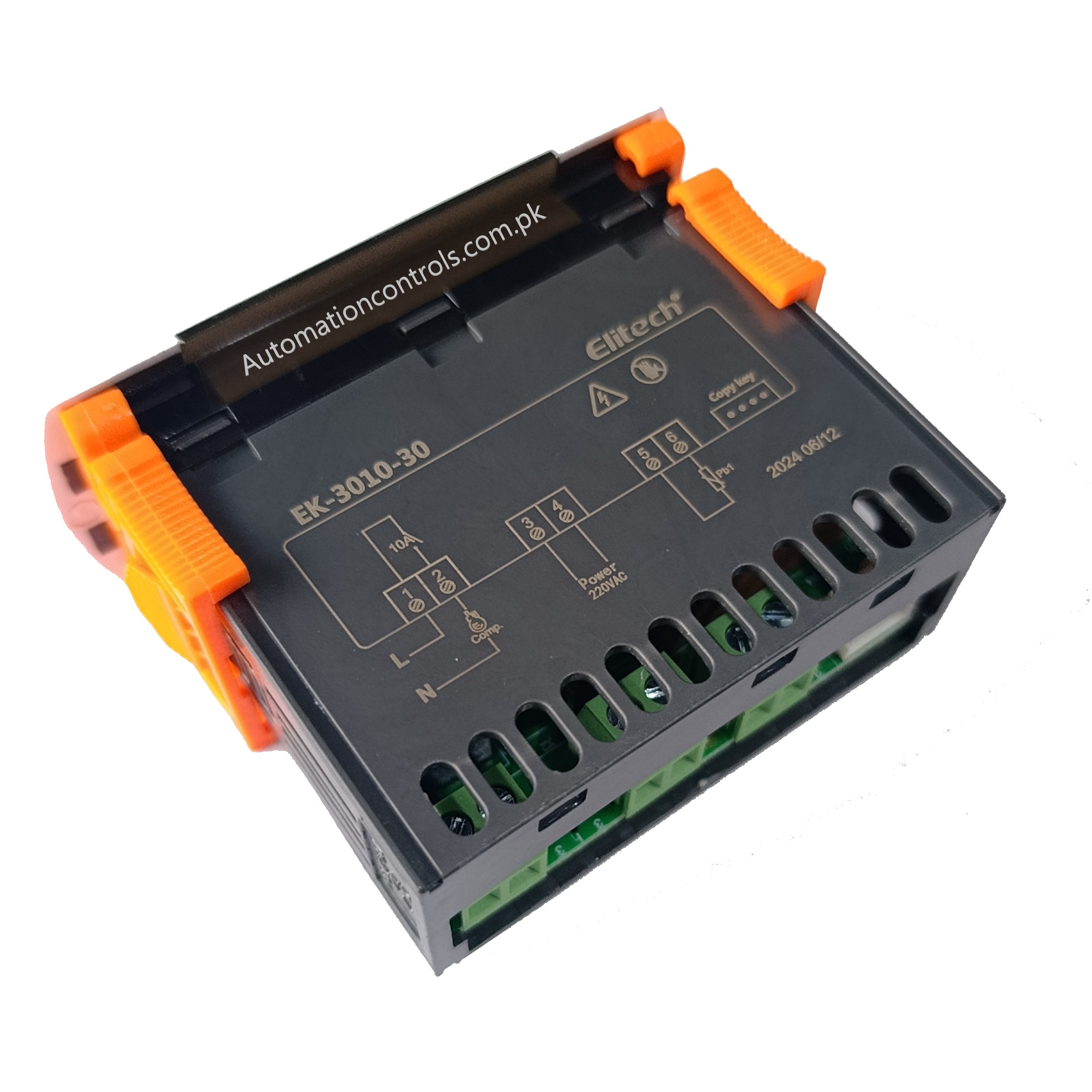

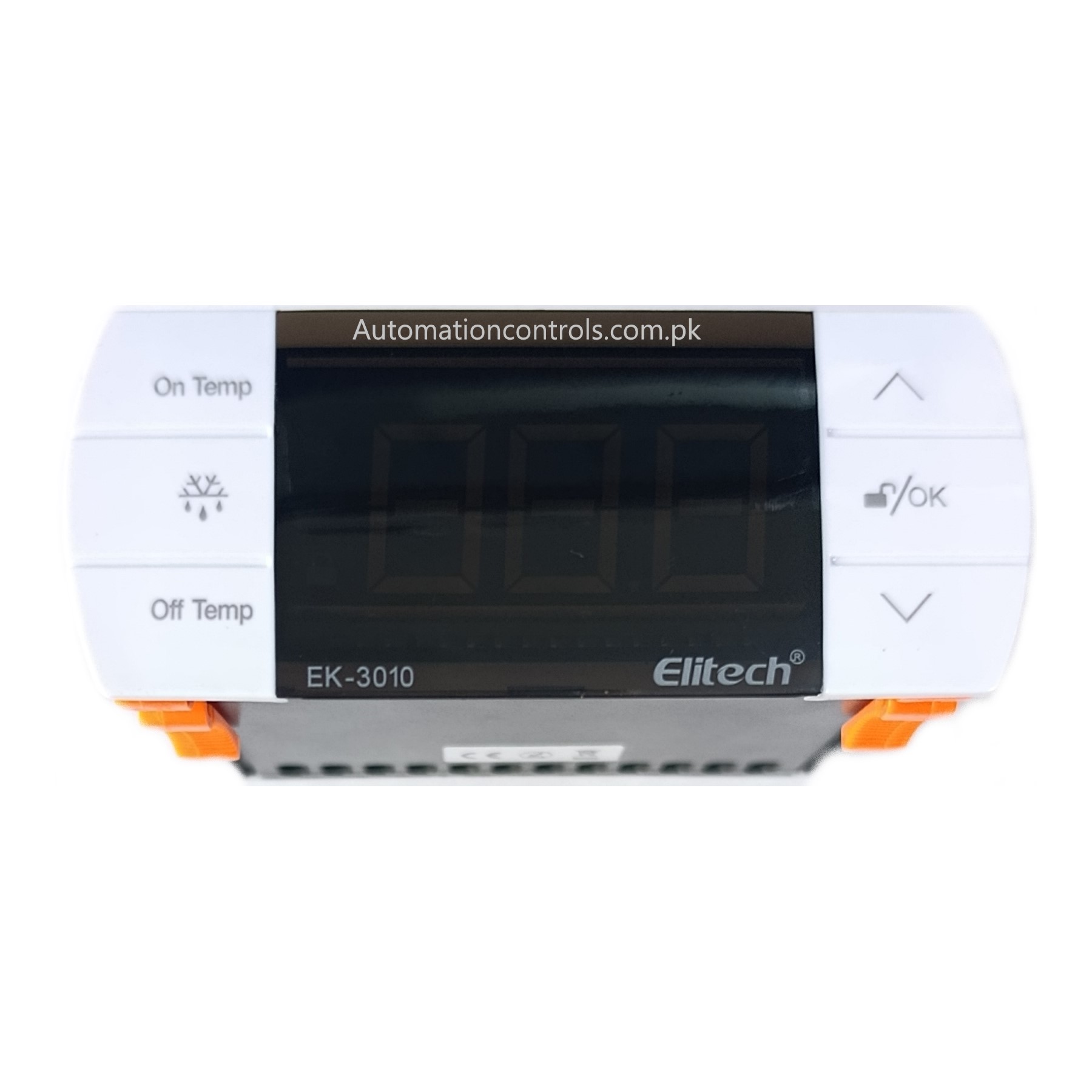

EK-3010 Refrigerator and Freezer Temperature Controller
₨5,000.00
EK-3010 Refrigerator and Freezer Temperature Controller
- Model : EK-3010
- Measuring range ：-40℃～99℃
- Controlling range ：-40℃～85℃
- Accuracy ：-30℃～50℃，±1℃±0.5dig; others, ±2℃±0.5dig
- Resolution ：0.1℃ / 1℃
- Mounting size : 71mm*29mm
- Power supply : 220±10%(VAC), 50/60Hz
- Power consumption ：5W
- Output capacity:
- Refrigeration：10A/220VAC or 16A/220VAC, directly drive a single-phase compressor 1HP
- One way buzzer alarm output
- Work ambient temperature ： -5℃～60℃； work ambient
- humidity ：10%～90% non condensing
- Storage temperature ：-25℃～75℃
- Sensor type : NTC（10KΩ/25℃，B value 3435K）
- Sensor length : 2M
EK-3010 Refrigerator and Freezer Temperature Controller – High-Precision Digital Thermostat
The EK-3010 Digital Temperature Controller is a versatile control unit designed for medium and low-temperature commercial refrigeration, freezers, cold storage rooms, and heating systems. Built with high reliability and accuracy, the EK-3010 offers complete temperature regulation, protecting your valuable inventory and sensitive equipment from thermal fluctuations.
Featuring a sleek touch-key panel, intuitive LED display, and dual operating modes, the EK-3010 allows seamless switching between refrigeration and heating applications. With a robust output relay capable of driving up to a 1HP single-phase compressor directly, it is an essential component for industrial cold chains, display cabinets, and process temperature control.
Key Features & Benefits
-
Dual Mode Flexibility: Configurable for both cooling (refrigeration) and heating applications to meet diverse thermal control needs.
-
Direct Compressor Drive: High-capacity 10A/16A output relay capable of directly driving a single-phase 1HP compressor without needing additional relays.
-
Touch Key Interface & Auto-Lock: Six-touch key design ensures smooth parameter setup, with an automatic key-lock function to prevent unauthorized tampering.
-
Comprehensive Alarm Systems: Features built-in over-temperature and sensor failure alarms accompanied by an integrated buzzer output to safeguard perishable products.
-
One-Key Factory Reset & Parameter Presets: Effortlessly restore factory default settings or load custom preset profiles for fast, error-free setup.
-
High Precision NTC Sensor: Equipped with a 2-meter waterproof NTC probe for consistent and reliable temperature tracking.
Dual Sensor Inputs
Heating/Cooling Control
Defrost Management
High Reliability
Display
Two work modes: Refrigeration mode, heating mode
One sensor input: cabinet temperature sensor
One way control output:
Refrigeration;
Output capacity:
Refrigeration:10A/220VAC (16A/220VAC optional),, directly drive a single phase compressor 1HP.
One way buzzer alarm outpute
- Discounts for bulk orders
- Delivery available all over Pakistan
