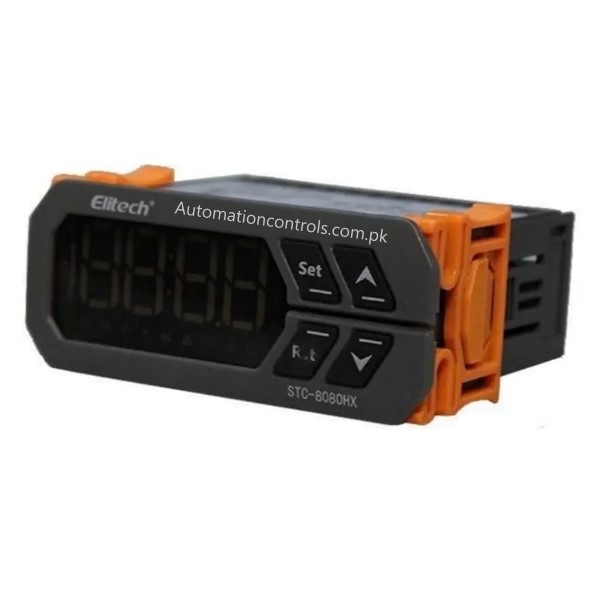

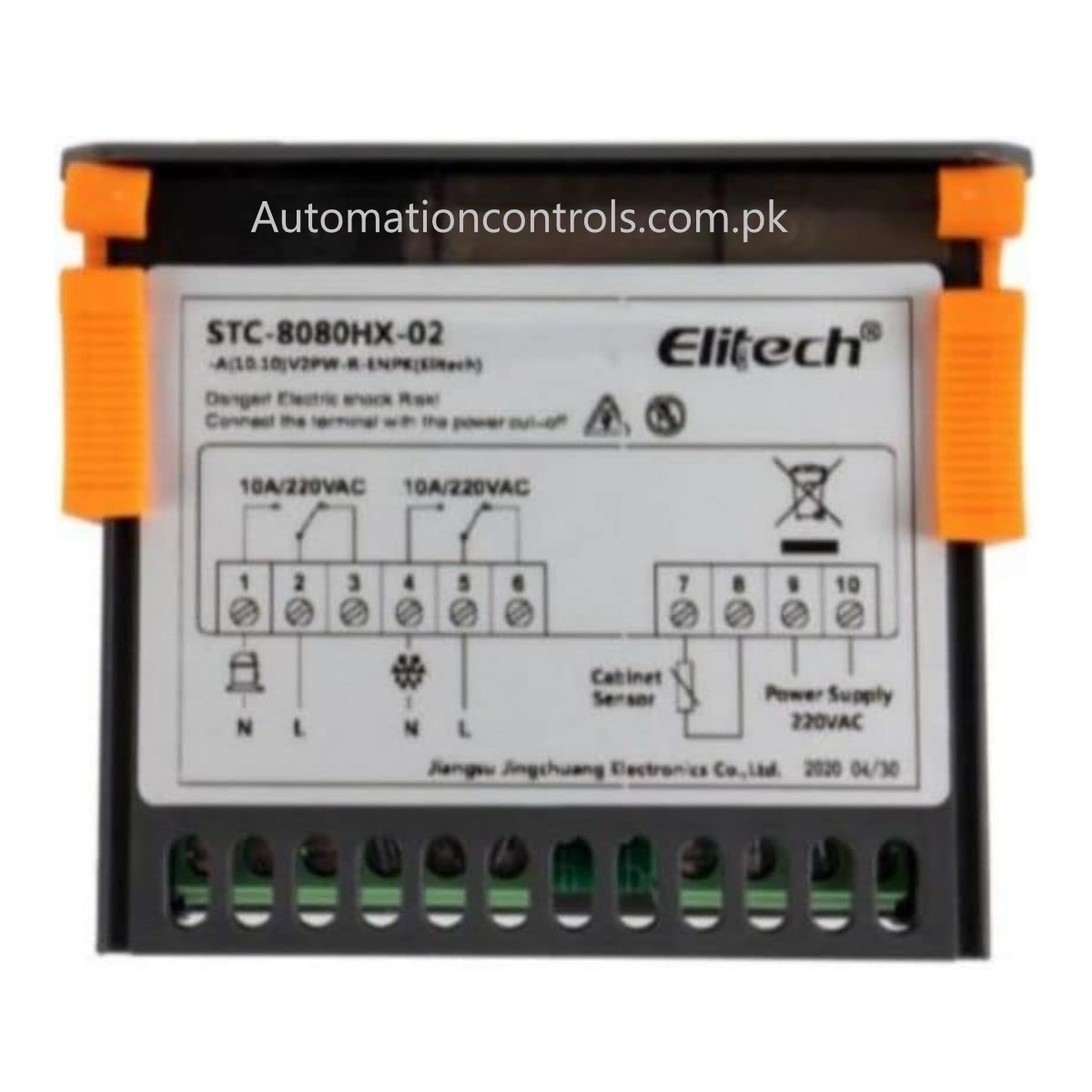

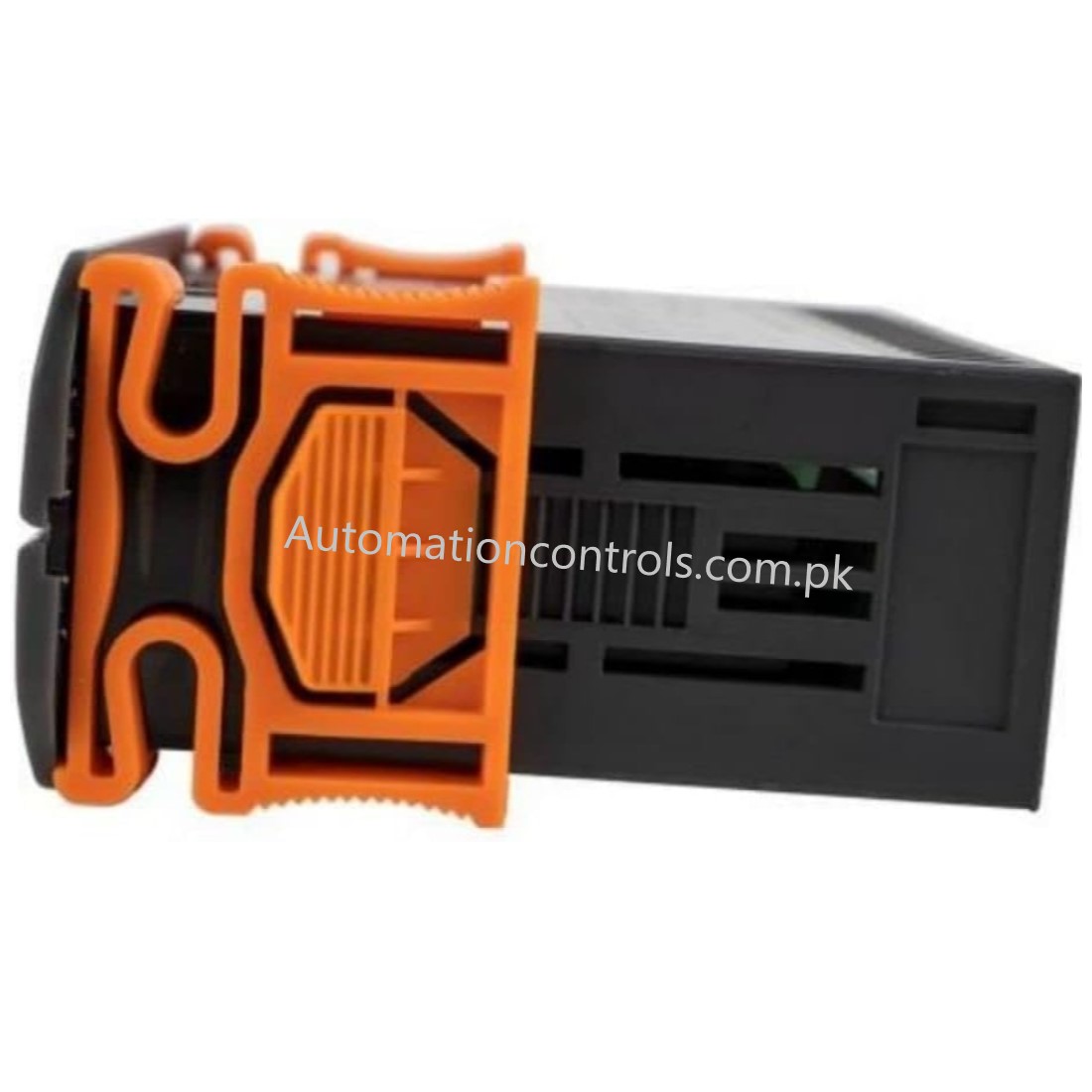

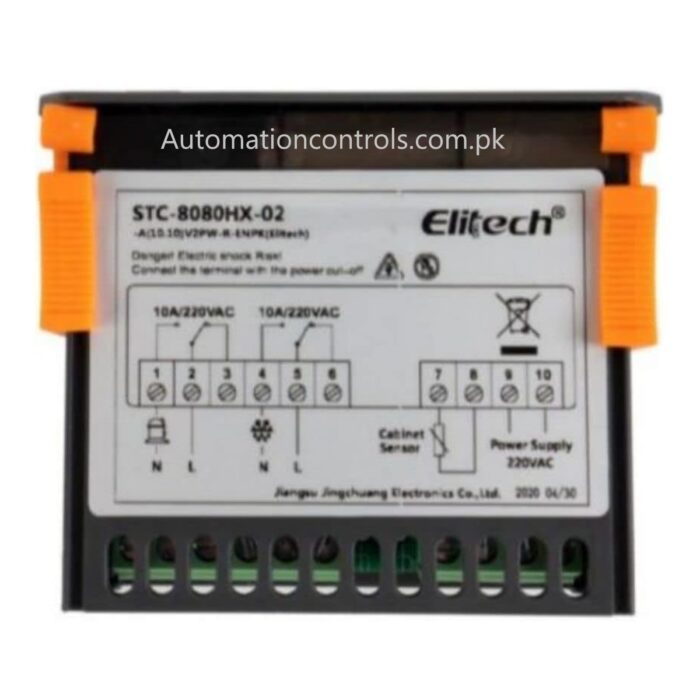

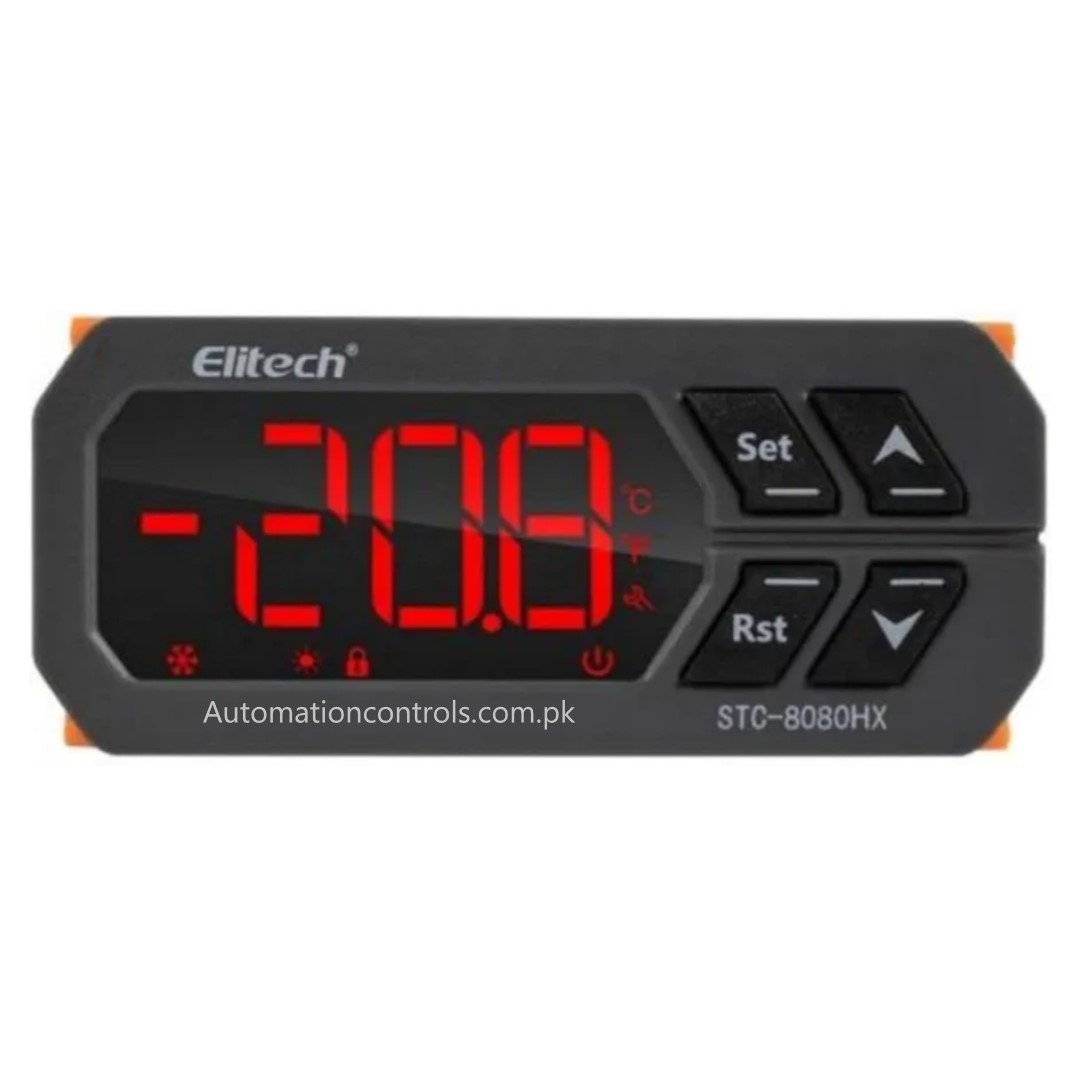

STC-8080HX Microcomputer Temperature Controller
₨4,500.00
- Product: STC-8080HX Microcomputer Temperature Controller
- Model : STC-8080HX
- Power supply : 220vac + 10% / – 15%, 50 / 60hz.
- Power consumption : < 3w
- Temperature measuring range : – 50c ~ + 99c
- Temperature control range : ~ 40c ~ + 50c
- Resolution : 1c
- Relay capacity of defroster : 10a / 277vac
- 1 minute relay time sensor error
- Type sensor: NTC sensor
- Operating temperature : 0c ~ 60c
- Temperature storage : – 30c ~ + 75c
- Relative humidity : 20% ~ 85% (no condensate)
Description
- Description: STC-8080HX Microcomputer Temperature Controller
- Middle-low temperature cold storage, wind cooling cabinet, kitchen cabinet, operating console, refrigerating display cabinet
- Refrigerating, timing defrost modes optionally
- Exceeding temperature alarm
- Temperature upper and lower limit setting
- Compressor delay protection adjustment (STC-8080HX-02)
- Sensor error occurs, the compressor turns on/off with proportional time
- Refrigeration,Defrost,1NTC,Temperature Calibration
- Discounts for bulk orders
- Delivery available all over Pakistan
