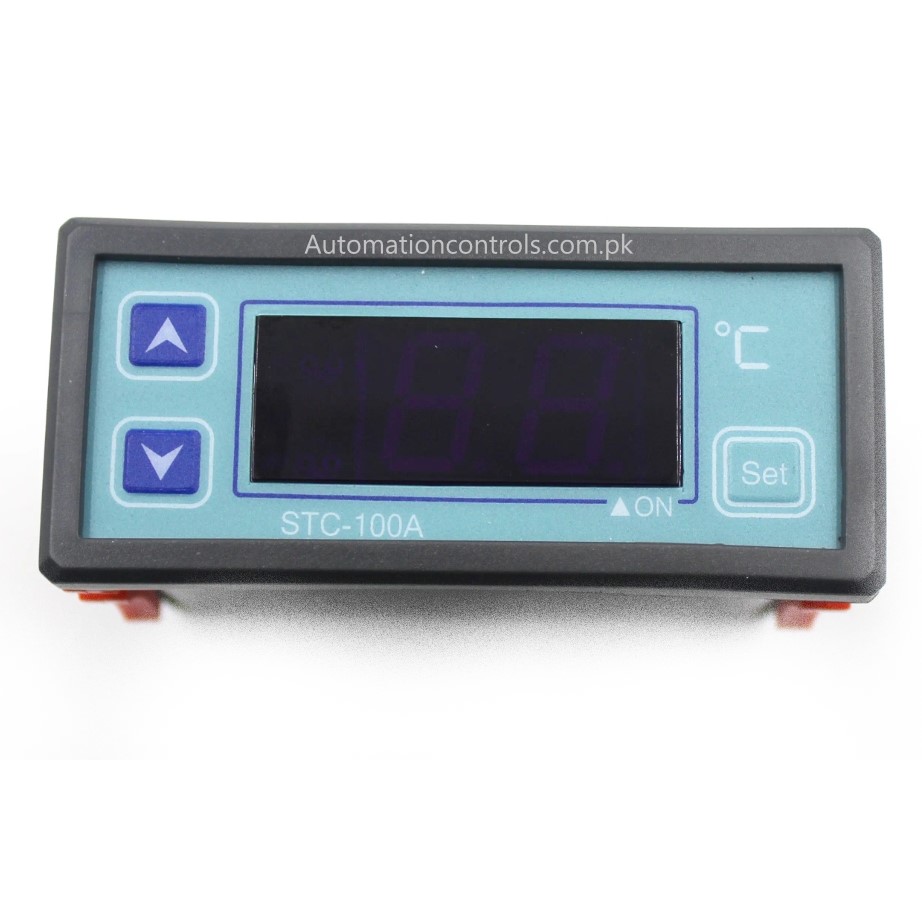

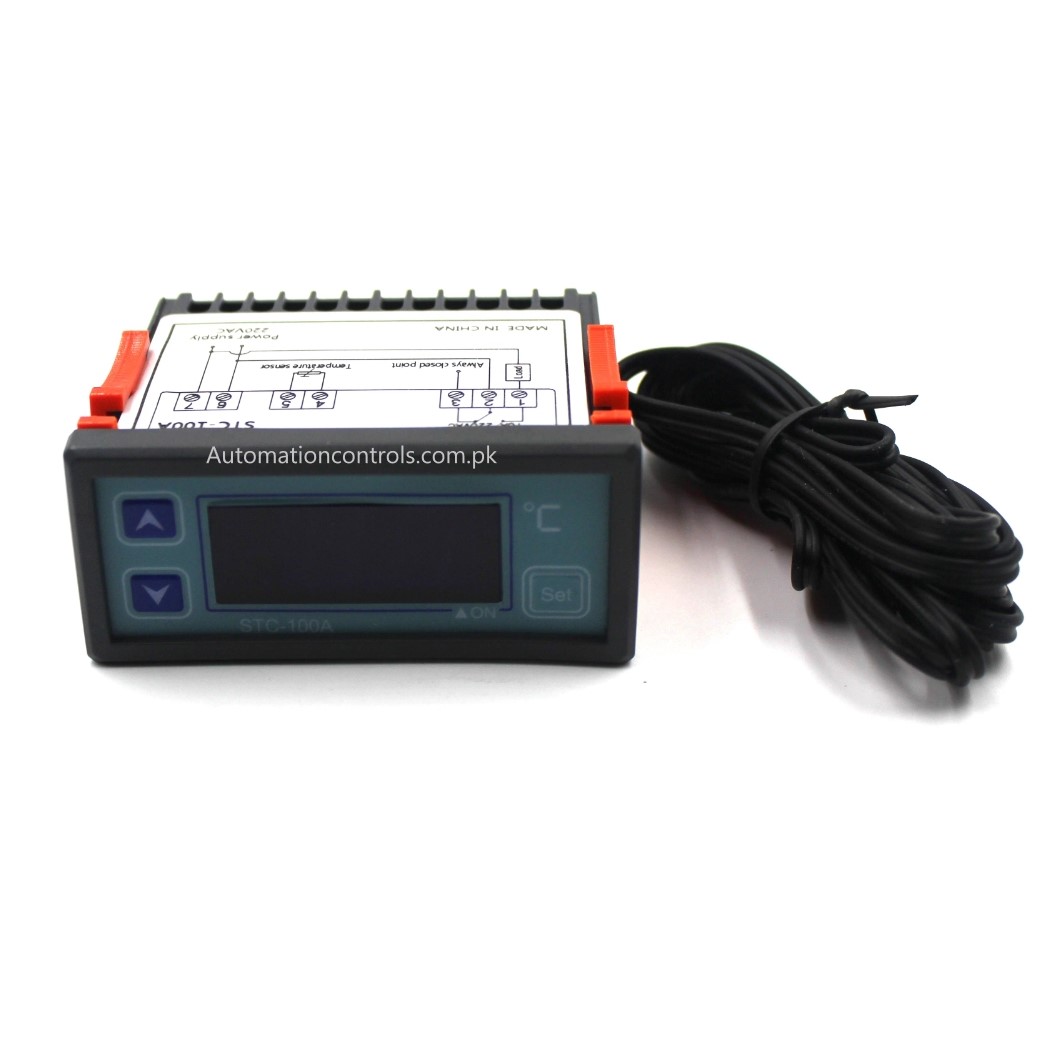

STC-100 Refrigerating and Heating Temperature Controller
₨2,500.00
- Product: STC-100 Refrigerating and Heating Temperature Controller
- Model : STC-100A
- Relay capacity : 10A (0.5HP) / 220VAC
- Temperature measuring range : -40 ~ 99 ° C
- Temperature control range : -40 ~ 99 ° C
- Resolution : 1 ° C
- Accuracy : ± 1 ° c ± 0.5 digits
- Ambient requirements : temperature: 0-60 ° c humidity: 20% -85% (no condensate)
- Consumption : ≤ 3W
- Input: 1 NTC sensor
- Sensor length : 2M (include the probe)
- Delay time in case of sensor error : 1 min
- Front panel security level : IP54
- Storage temperature : -30 ° c-75 ° c
- Front panel size : 77 (L) x34.5 (W) mm / 3×1.35in
- Installation hole size : 71 (L) x29 (W) mm
- Item size : 77 (L) x34.5 (W) x62mm (D) /3×1.35×2.42in
Description
- STC-100 Refrigerating and Heating Temperature Controller
- Discounts for bulk orders
- Delivery available all over Pakistan
