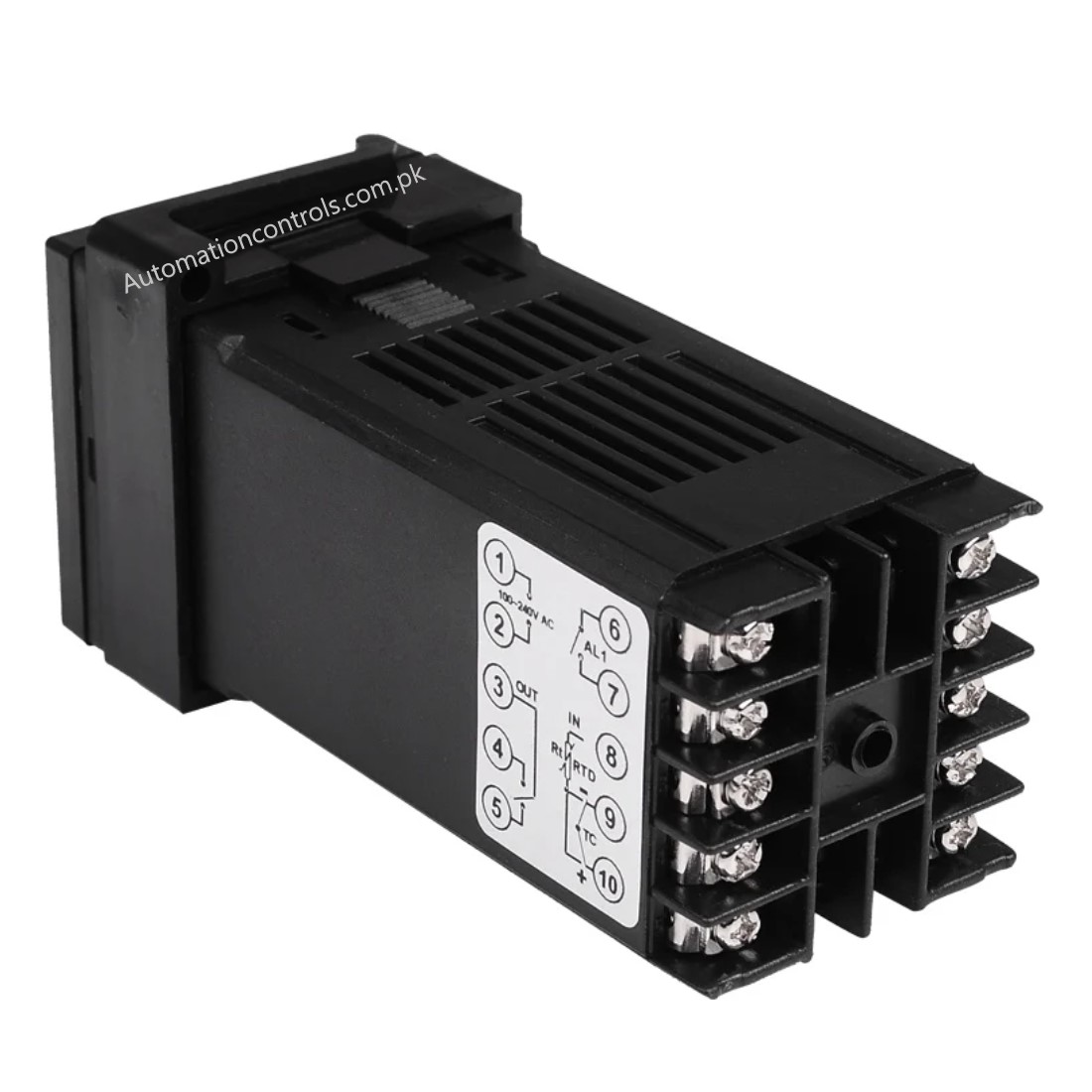

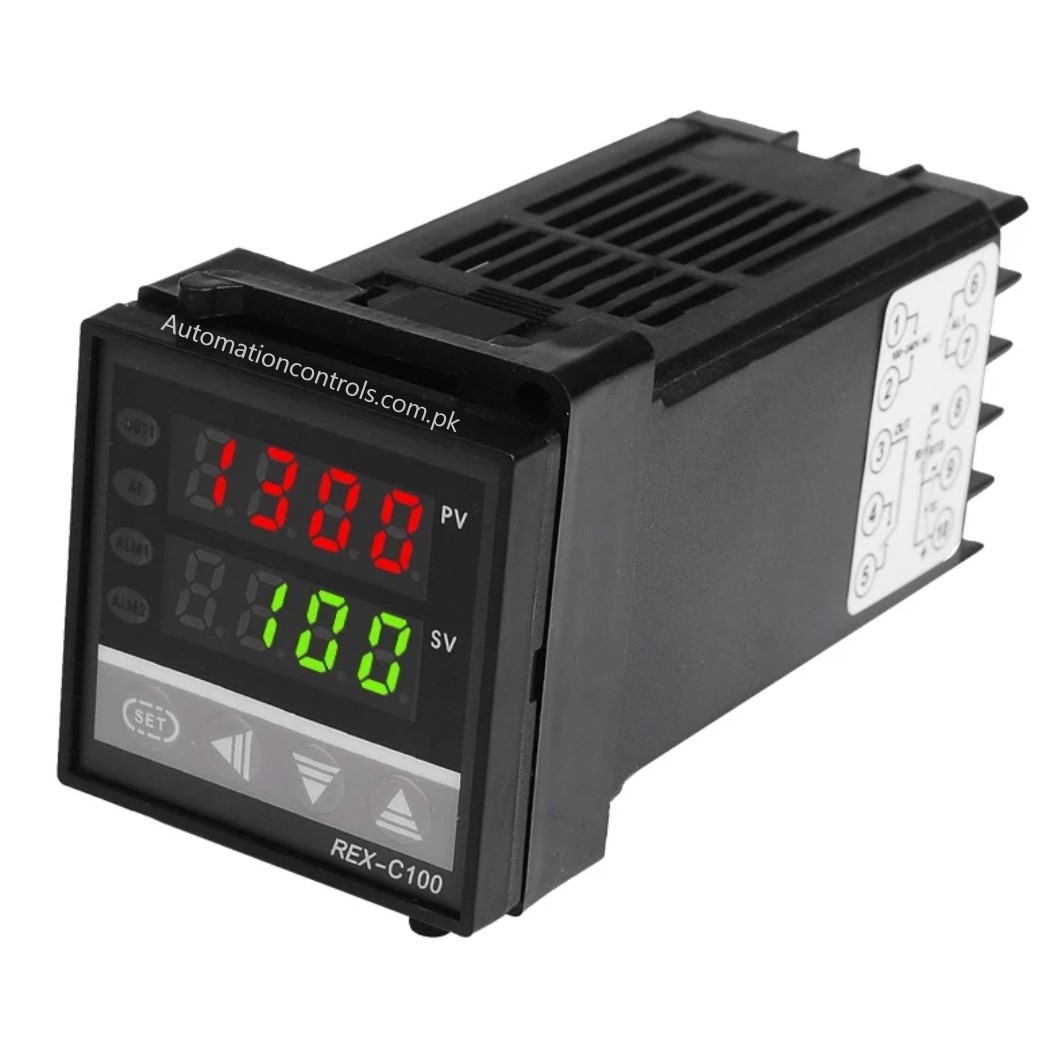

RKC REX-C100 Temperature Controller 48x48mm
₨2,400.00
- Model : REX-C100
- Dimensions : 48mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 400 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
Description
- The heating mechanism is generally carried out in the form of a relay or a solid relay.
- The thermostat reads the actual temperature according to the signal sent back by the thermocouple, and then compares the actual temperature value with the set temperature value to generate a temperature deviation.
- The direction of adjustment is towards The temperature deviation is reduced, and then the RKC thermostat outputs an analog or switch value to drive relays or thyristors and other actuators to achieve heating
- Discounts for bulk orders
- Delivery available all over Pakistan
