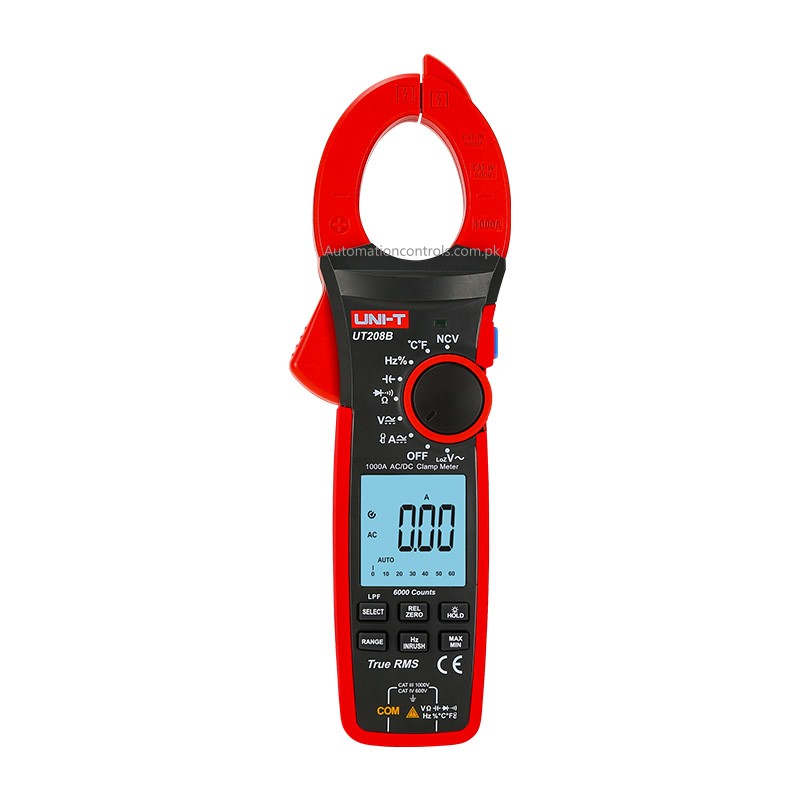

UNI-T UT208B Digital Clamp Meter

₨26,000.00

UNI-T UT208B Digital Clamp Meter

AC current (A) 1000A ±(2%+5)
DC current (A) 1000A ±(2%+5)
AC current frequency response 40Hz~400Hz
Inrush current (A) 1000A ±(10%+10)
AC voltage (V) 1000V ±(1.2%+3)
DC voltage (V) 1000V ±(0.5%+5)
Low pas filter (LPF ACV) 1000V ±(2%+5)
AC voltage frequency response 40Hz~400Hz
LoZ ACV 1000V ±(2%+5)
Resistance (Ω) 60MΩ ±(1%+2)
Capacitance (F) 60mF ±(4%+5)
Temperature  -40℃~1000℃ ±(1%+2)
 -40℉~1832℉ ±(1%+4)
Low voltage frequency (Hz) 10Hz~1MHz ±(0.1%+3)
Duty cycle (%) 10%~90% ±(2.6%+7)
Analog bar 31
Flexible current probe (optional) Extends up to 3000A √
Zero mode √
Display count 6000
Jaw opening 42mm
General Characteristics
Power 1.5V battery (R03) x 3
Display 43mm x 45mm
Product net weight  UT208B: 420g
Product size 272mm x 81mm x 43.5mm
Standard accessories Test leads, batteries, point contact temperature probe, English manual
Standard individual packing Gift box, carrying bag
Compare
Add to wishlist
Category:
Description
  • UNI-T UT208B Digital Clamp Meter
  • UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions.
  • They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL.
  • The UT208B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
  • The UT208B also feature high-precision temperature measurement with 0.1 °C resolution, and can be equipped with a flexible current probe toextend the AC current measurement range to 3000A.
