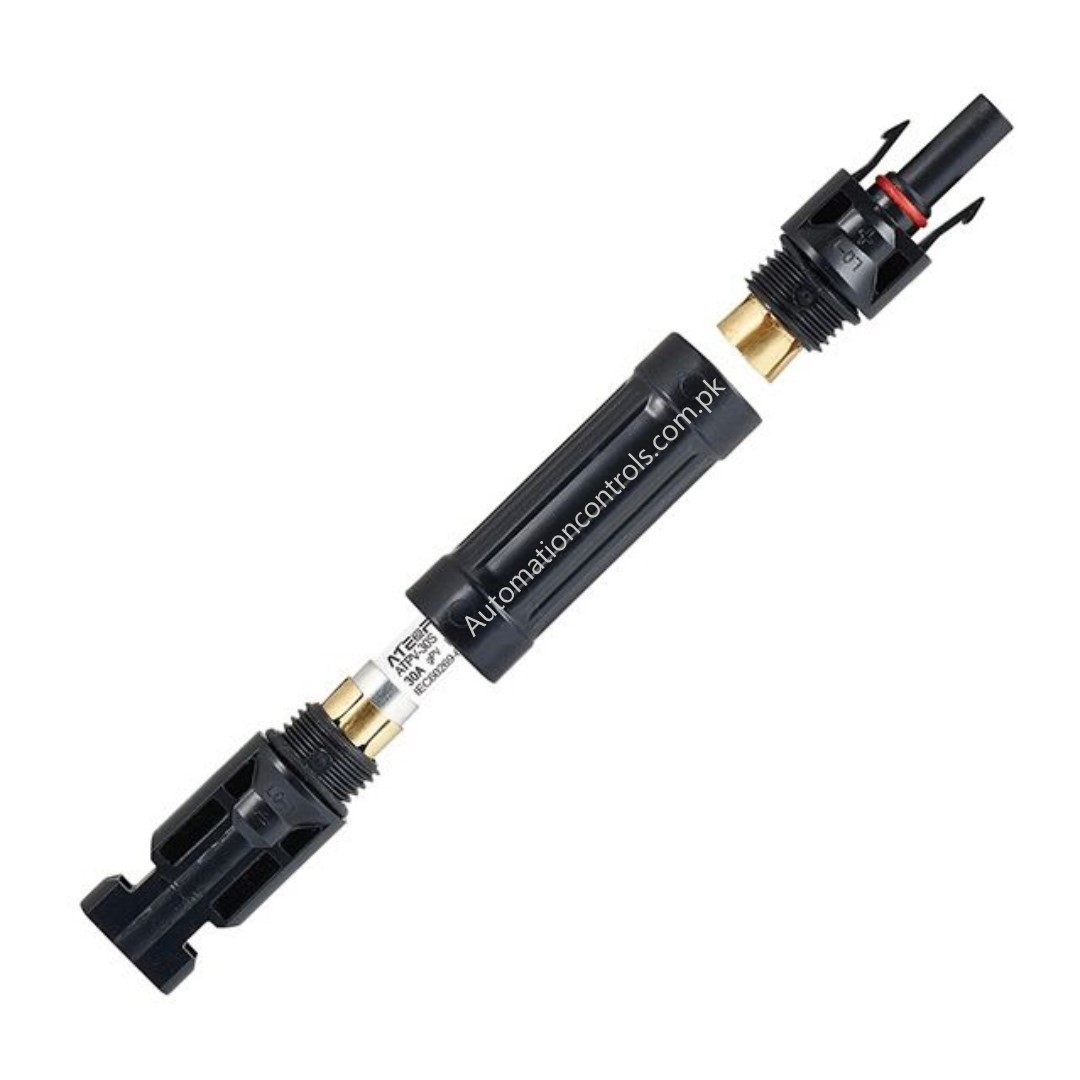

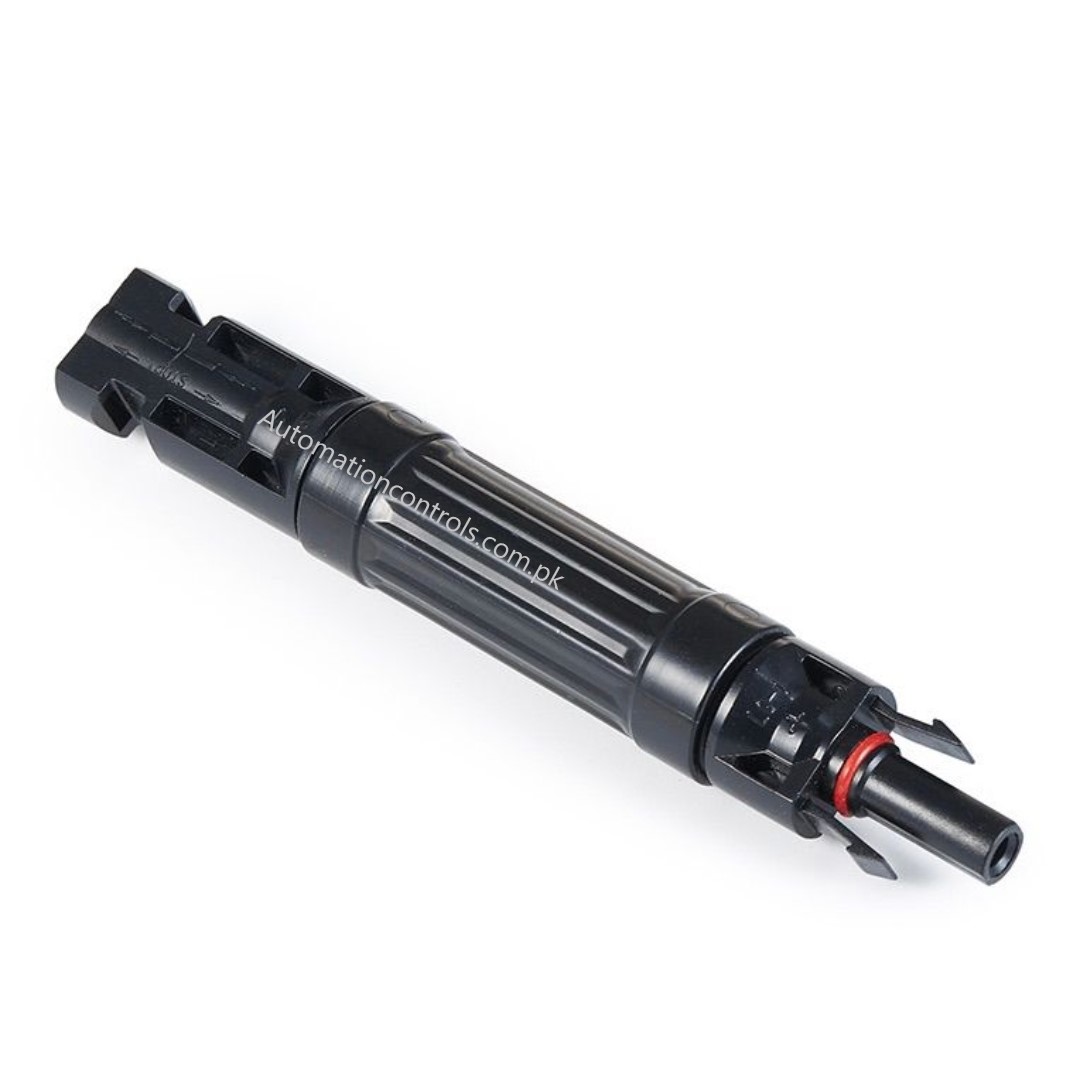

MC4 Connector Fuse type 1000vDC 20A
₨1,350.00
MC4 Connector Fuse type 1000vDC 20A
Mentioned price is of each piece
Type : MC4 inline fuse connector (DC)
Voltage : up to 1000V DC
Current : 20A
Cable range: 2.5–6 mm² (14–10 AWG)
- MC4 Connector Fuse type 1000vDC 20A
- 20A Replaceable Fuse – Built-in protection against overcurrent
- 1000VDC– Handles high-voltage solar systems with ease
- MC4 Compatible – Quick and secure connection to solar cables
- Weatherproof & Durable – Ideal for outdoor solar environments
- Compact Design – Lightweight and easy to install
- Reliable Protection – Helps extend the life of your solar system
- 1000V DC MC4 inline PV fuse
- IP67, UV‑resistant PPO housing
- 10A/15A/20A/30A ratings (variant)
- Fits 2.5–6 mm² PV cable, low resistance
- Secure MC4 lock with anti‑release tabs
- PV string over‑current protection
- Panel branch protection in arrays
- Off‑grid and hybrid inverter inputs
- Rooftop and ground‑mount arrays
- Quick repair/retrofit of DC lines
- Rated Voltage 1000V DC, Rated Current 20A & tested voltage 6KV (50Hz, 1min).
- Auto-lock feature of male and female sides make connections easier.
- With copper alloy tin plated contact material, the connector has high current carrying capacity.

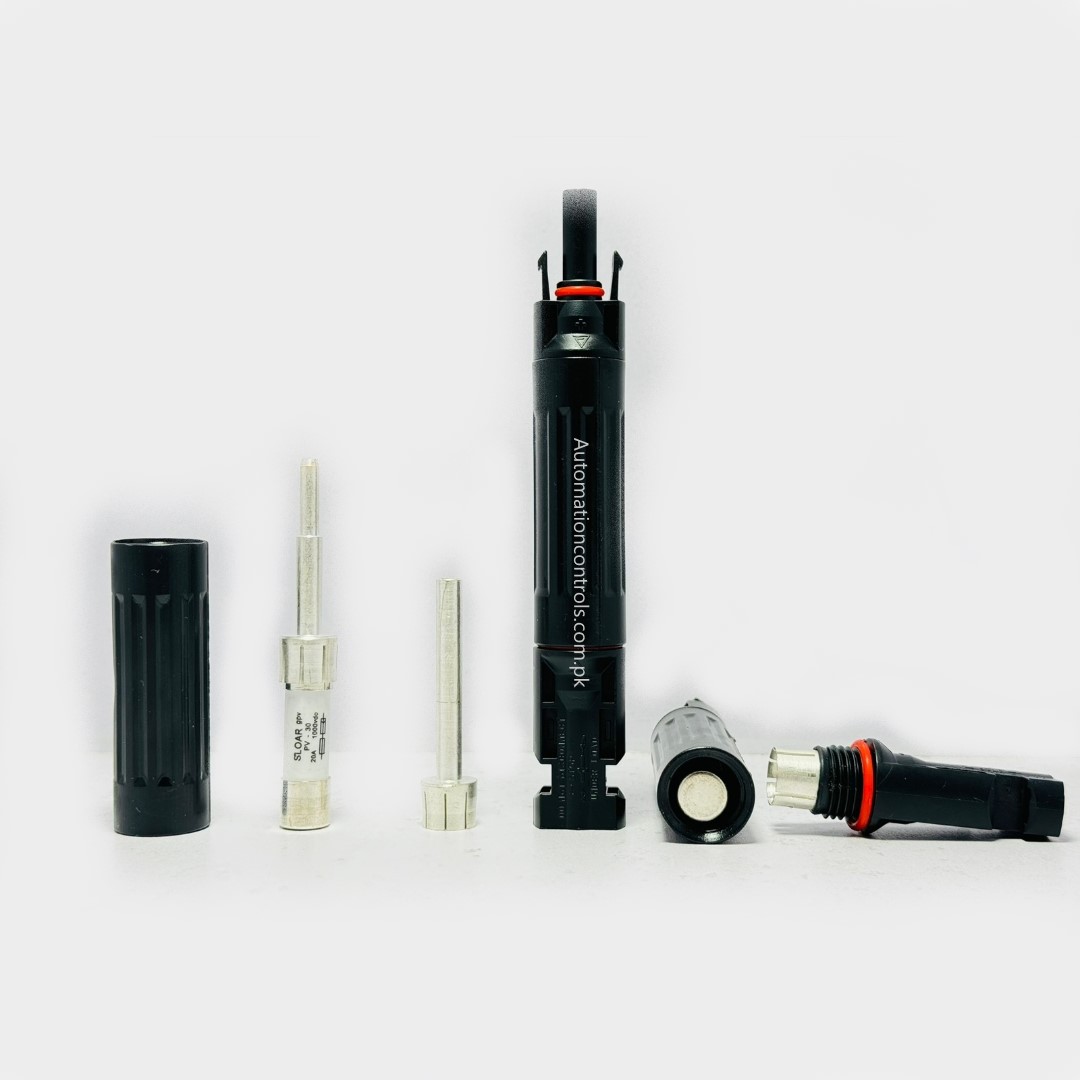

- The inline DC fuse with the solar connector on both ends is easily replaceable.
- Simply unplug the MC-4 connector, pull out the blown fuse & insert a new one.
- IP67 protection degree, these connectors are waterproof and dustproof.
- Furthermore, this inline solar fuse connector can be used in temperatures from -40℃ to +85℃.
- This is extremely reliable solar MC-4 inline connector is compatible with insulation diameter wires ranging from 2.5mm to 6mm, whether they are single or double PVC solar DC wires.
