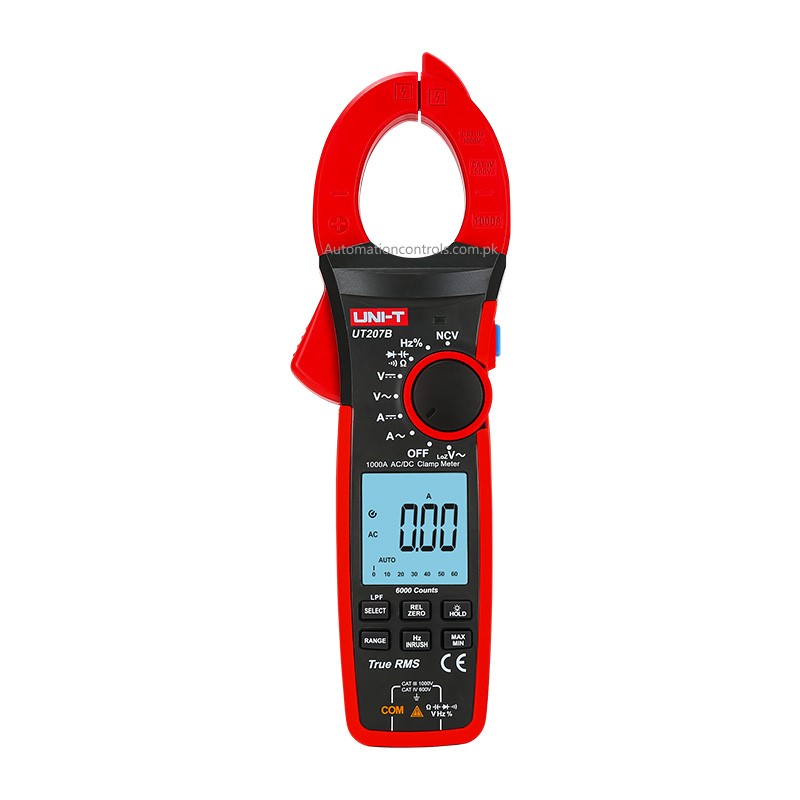

UNI-T UT207B Digital Clamp Meter
| AC current (A) | 1000A | ±(2%+5) | |||
| DC current (A) | 1000A | ±(2%+5) | |||
| AC current frequency response | 40Hz~400Hz | ||||
| Inrush current (A) | 1000A | ±(10%+10) | |||
| AC voltage (V) | 1000V | ±(1.2%+3) | |||
| DC voltage (V) | 1000V | ±(0.5%+5) | |||
| Low pas filter (LPF ACV) | 1000V | ±(2%+5) | |||
| AC voltage frequency response | 40Hz~400Hz | ||||
| LoZ ACV | 1000V | ±(2%+5) | |||
| Resistance (Ω) | 60MΩ | ±(1%+2) | |||
| Capacitance (F) | 60mF | ±(4%+5) | |||
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) | |||
| Duty cycle (%) | 10%~90% | ±(2.6%+7) | |||
| Analog bar | 31 | ||||
| Zero mode | √ | ||||
| Display count | 6000 | ||||
| Jaw opening | 42mm | ||||
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 43mm x 45mm | ||||
| Product net weight | UT207B: 420g | ||||
| Product size | 272mm x 81mm x 43.5mm | ||||
| Standard accessories | Test leads, batteries, English manual | ||||
| Standard individual packing | Gift box, carrying bag | ||||
Description
- UNI-T UT207B Digital Clamp Meter
- UT200 series are 6000-count digital clamp meters with auto range, large LCD, true RMS, autoscale memory, and NCV functions.
- They conform to CAT III 1000V/CAT IV 600V safety rating andcertified by CE/ETL.
- The UT207B come with LoZ mode for eliminating ‘ghost ’voltage, LPF ACV function for measuring INV and VFD voltage, and inrush current modefor capturing transient current.
