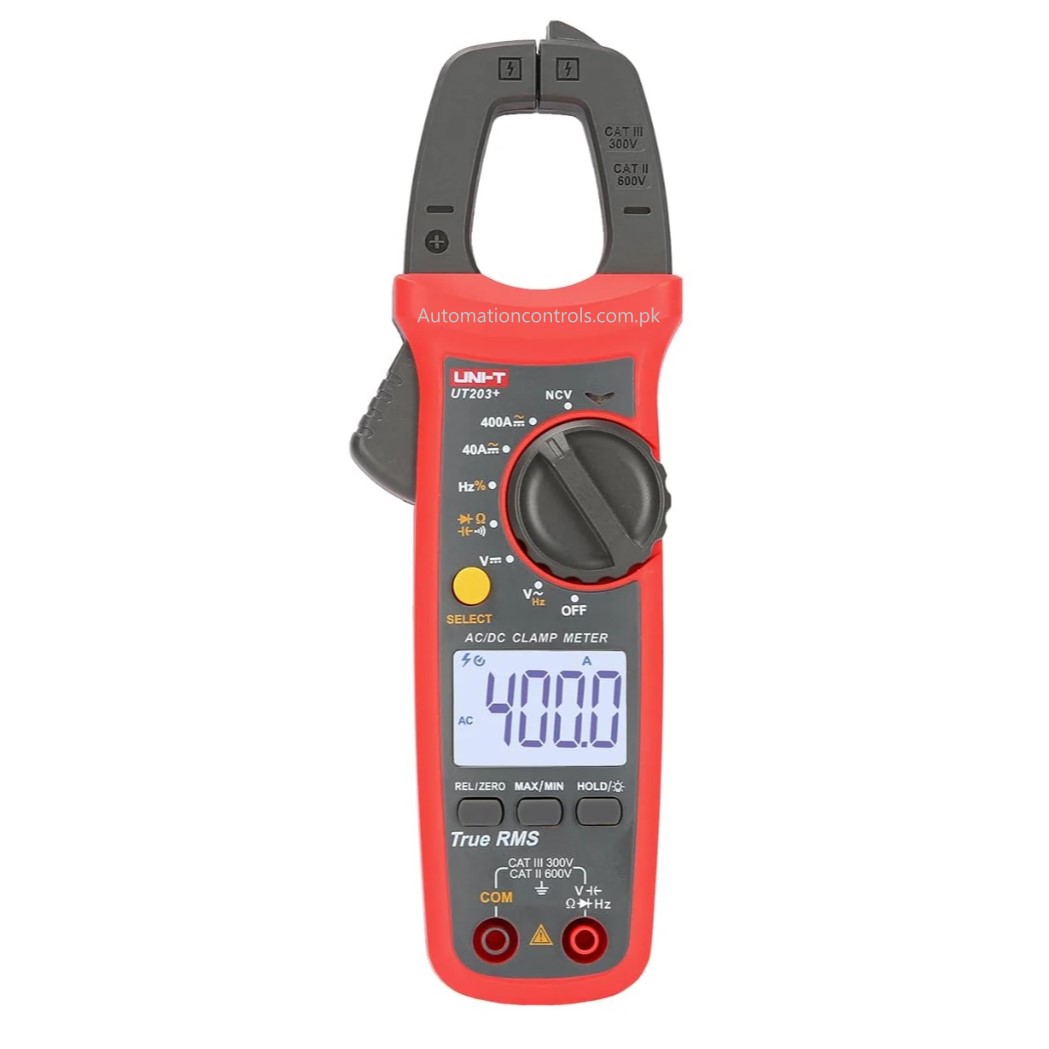

UNI-T UT-203+ Digital AC/DC Clamp Meter
| Model | Range | UT203+ |
| AC current (A) | 400A | ±(2.5%+5) |
| DC current (A) | 400A | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(4%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Display count | 4000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Power | 1.5V battery | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |
| Standard individual packing | Gift box, Carring bag, English manual | |
Description
- large LCD display screen and fast ADC / ADC converter, data display is clear and intuitive, and easy to observe.
- Supports full-function with error detection protection, with over-current, over-voltage alarm prompts, you can rest assured that use.
- This meter supports true RMS with high efficiency and real-time measure the RMS of various voltage waveforms.
- It has a maximum 600V voltage measurement and a high voltage frequency measurement function.
- Widely used in commercial, industrial, and residential circuit maintenance. It is a great tool for circuit repairmen.
