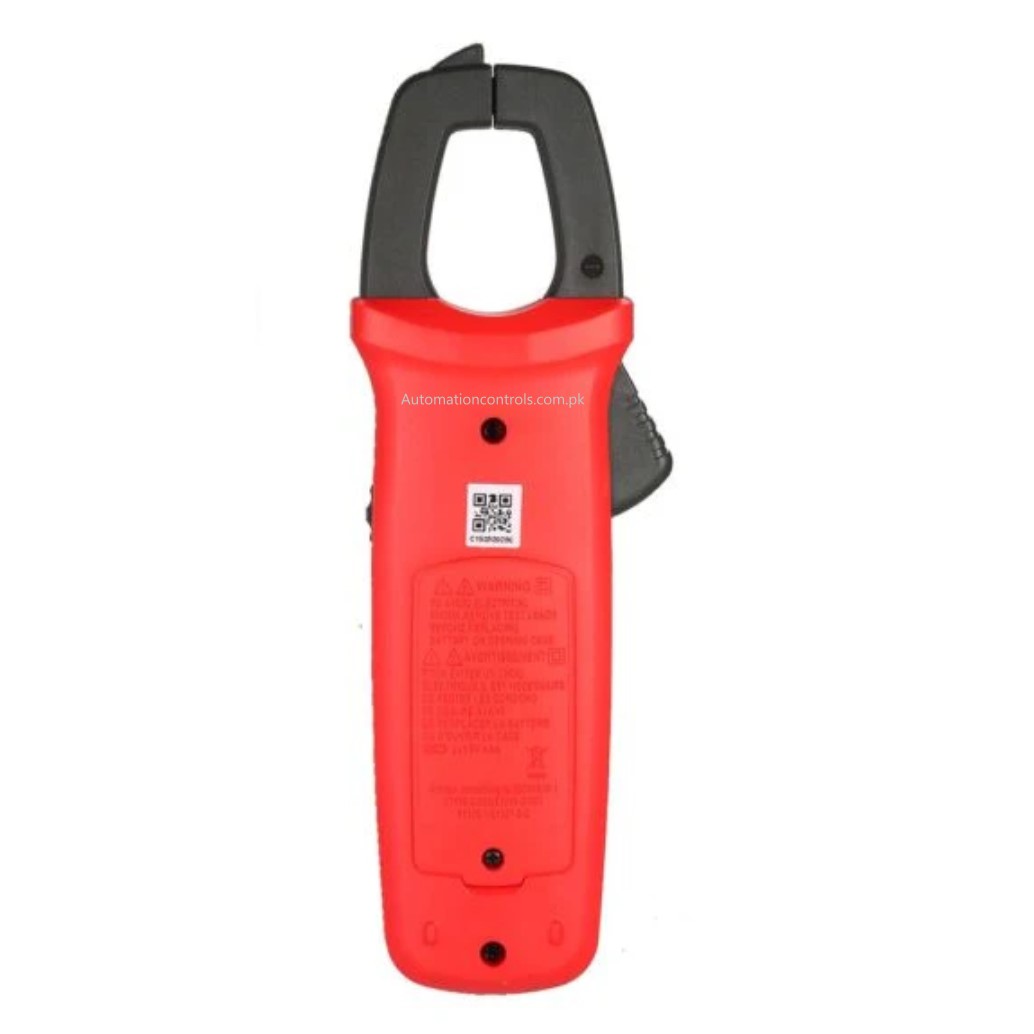

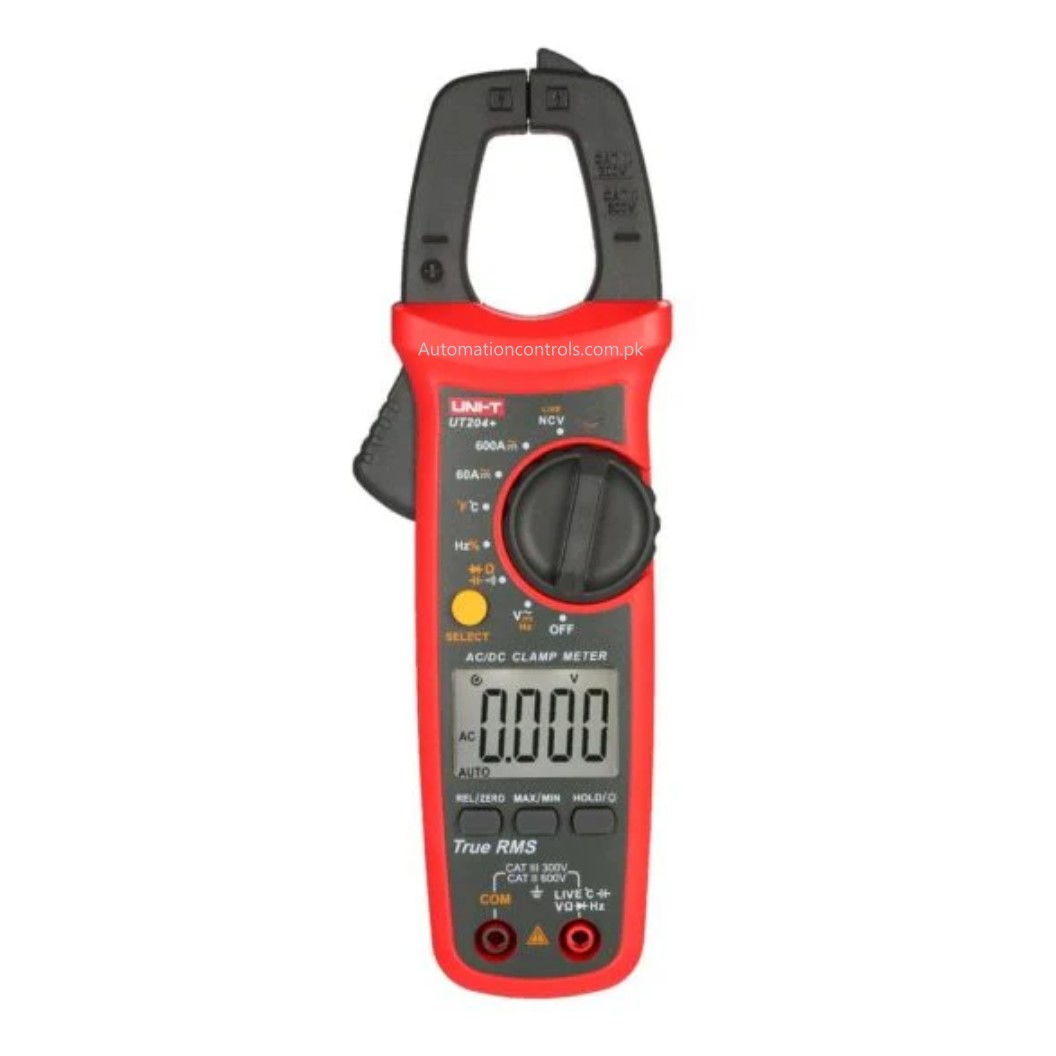

UNI-T UT-204+ Digital Clamp Meter
₨12,000.00
Product : UNI-T UT-204+ Digital Clamp Meter
| AC current (A) | 600A | ±(2.5%+5) |
| DC current (A) | 600A | ±(2.5%+5) |
| AC voltage (V) | 600V | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~60kHz | ±(0.5%+2) |
| DC voltage (A) | 600V | ±(0.5%+2) |
| Resistance (Ω) | 60MΩ | ±(0.8%+2) |
| Capacitance (F) | 60mF | ±(4%+5) |
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) |
| Display count | 6000 | |
| Auto range | √ | |
| Jaw opening | 28mm | |
| True RMS | √ | |
| NCV | √ | |
| Live wire test | √ | |
| Continuity test | √ | |
| Diode | √ | |
| MAX/MIN | √ | |
| Relative mode | √ | |
| Zero mode | √ | |
| Data hold | √ | |
| Low battery indication | √ | |
| Auto power off | √ | |
| Power | 1.5V battery (R03) x 2 | |
| Display | 37mm x 25mm | |
| Product color | Red and grey | |
| Product net weight | 235g | |
| Product size | 215mm x 63mm x 36mm | |

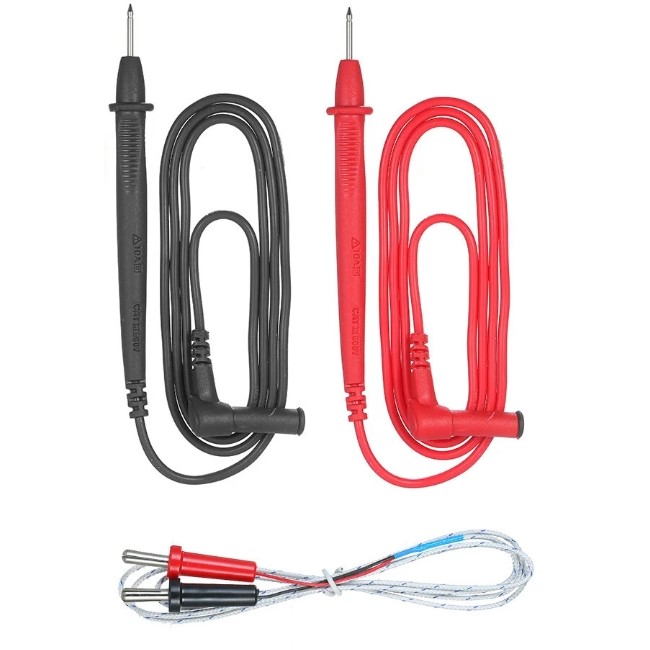

| Standard accessories | Batteries, test leads, Themocouple | |
| Standard individual packing | Gift box, Carring bag, English manual | |
Description
- UNI-T UT-204+ Digital Clamp Meter
- Multifunctional Clamp Meter: can be used to measure AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, relative value, Max/Min value, temperature, LIVE test, continuity test, and diode test.
- Measuring Range: 600A AC/DC current, 600V AC/DC voltage, 60MΩ resistance, 60mF capacitance, 10Hz~10MHz frequency, 0.1%~99% duty cycle, and -40~1000℃ temperature.
- Data Hold: hold the measured data for conveniently checking or observing data.
- Backlight Function: 1.6-inch LCD screen with backlight ON/OFF switchable for display data clearly.
28mm Jaw Opening: jaw opening of 28mm to measure current without touching or interrupting the circuit. - Accessories: comes with a pair of test probes for convenient measurement, and a black zipper pouch for storing the clamp meter.
- Power Supply: powered by 2*1.5V AAA battery convenient to operate.
Reliable & Functional: with good reliability and high precision, really practical for electrical equipment testing and maintenance.
