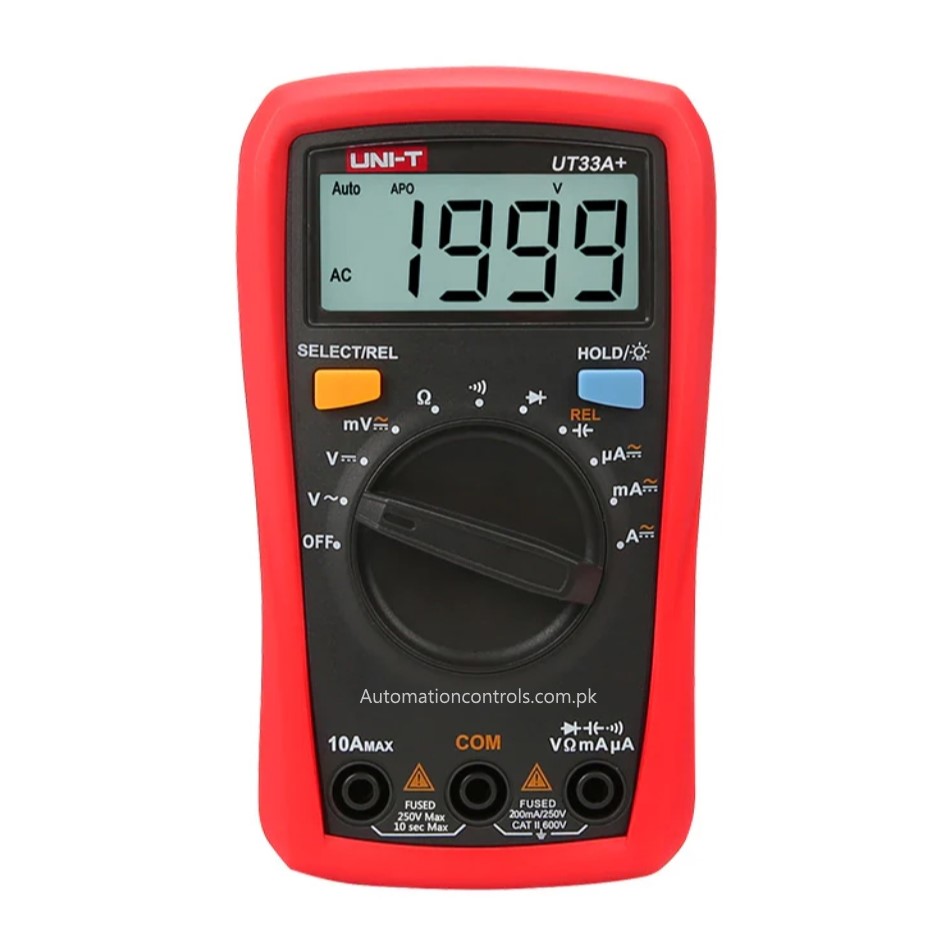

UNI-T UT-33a+ Digital Multi Meter
₨4,500.00
Product : UNI-T UT-33a+ Digital Multi Meter
| DC voltage (V) | 200mV/2V/20V/200V/600V | ±(0.5%＋2) | |||
| AC voltage (V) | 600V | ±(0.7%+3) | |||
| DC current (A) | 10A | ±(1%+2) | |||
| AC current (A) | 10A | ±(1.2%+3) | |||
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ /2MΩ/20MΩ/200MΩ |
±(0.8%+2) | |||
| Capacitance (F) | 2mF | ±(4%+8) | |||
| Display count | 2000 | ||||
| Auto power off/Auto backlight off | √ | ||||
| Diode test/Continuity buzzer | √ | ||||
| 2m drop test/ Test probe holder | √ | ||||
| Range selection | Auto | ||||
| Power | 1.5V battery (R03) x 2 | ||||
| Display | 66mm x 51mm | ||||
| Product net weight | Red and grey | ||||
| Product color | 206g (batteries included) | ||||
| Product size | 134mm x 77mm x 47mm | ||||
| Standard accessories | Batteries, test leads | ||||
| Standard individual packing | Gift box, English manual | ||||
Description
- UNI-T UT-33a+ Digital Multi Meter
- large LCD display screen and fast ADC / ADC converter, data display is clear and intuitive, and easy to observe.
- Supports full-function with error detection protection, with over-current, over-voltage alarm prompts, you can rest assured that use.
- This meter supports true RMS with high efficiency and real-time measure the RMS of various voltage waveforms.
- It has a maximum 600V voltage measurement and a high voltage frequency measurement function.
- Widely used in commercial, industrial, and residential circuit maintenance. It is a great tool for circuit repairmen.
