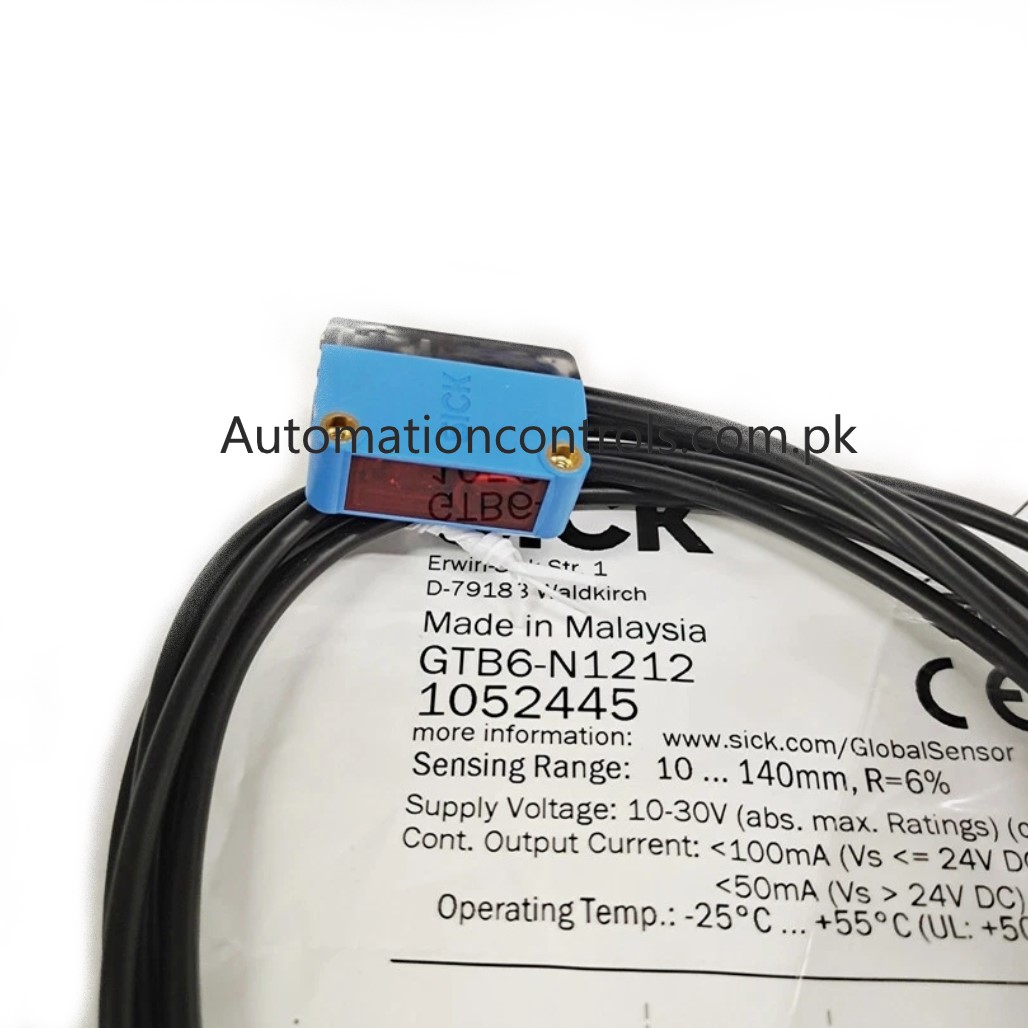

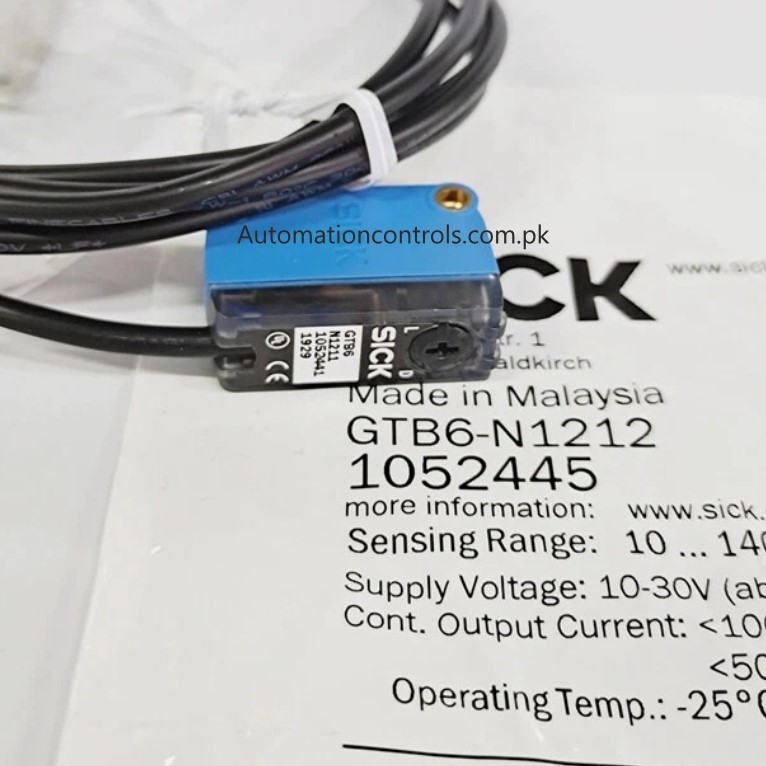

Sick GTB6-N1212 Photo-electric Sensor
₨25,000.00
Sick GTB6-N1212 Photo-electric Sensor
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm – 250 mm |
| Sensing range | 35 mm – 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC – 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage NPN HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Circuit protection | A 8)
B 9) D 10) |
| Protection class | III |
| Weight | 60 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |

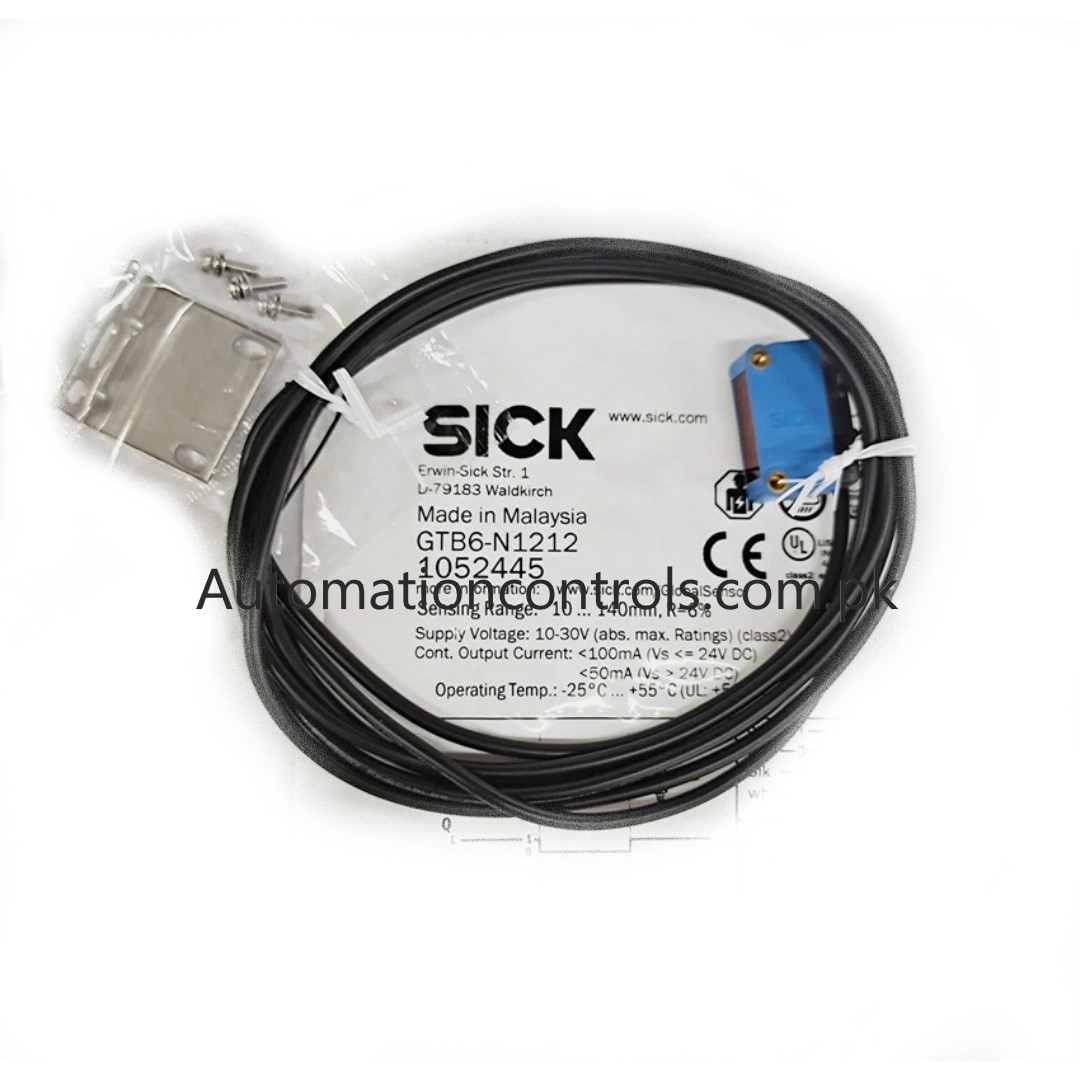

| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
Sick GTB6-N1212 Photo-electric Sensor
- PinPoint LED and primary laser models
- Specialized integrated circuits are the culmination of SICK’s decades of experience in the fields of optoelectronic sensors and gratings
- Photoelectric sensors with background suppression function, energy type photoelectric sensors, and reflective and counter reflective photoelectric sensors
- ABS plastic shell and V4A stainless steel shell 1.4404 (316L)
- Shell protection level IP67 and IP69K
- The multi-beam safety grating deTem4 LT Muting A/P can provide safety protection for the entry of the crane loading station. To distinguish between personnel and paper rolls, the pre adjusted micro photoelectric sensor G6 is used as a shielding sensor. The reset button, emergency stop button ES21, and any other safety components used to reset the protective device are connected to the safety controller Flexi Soft.
