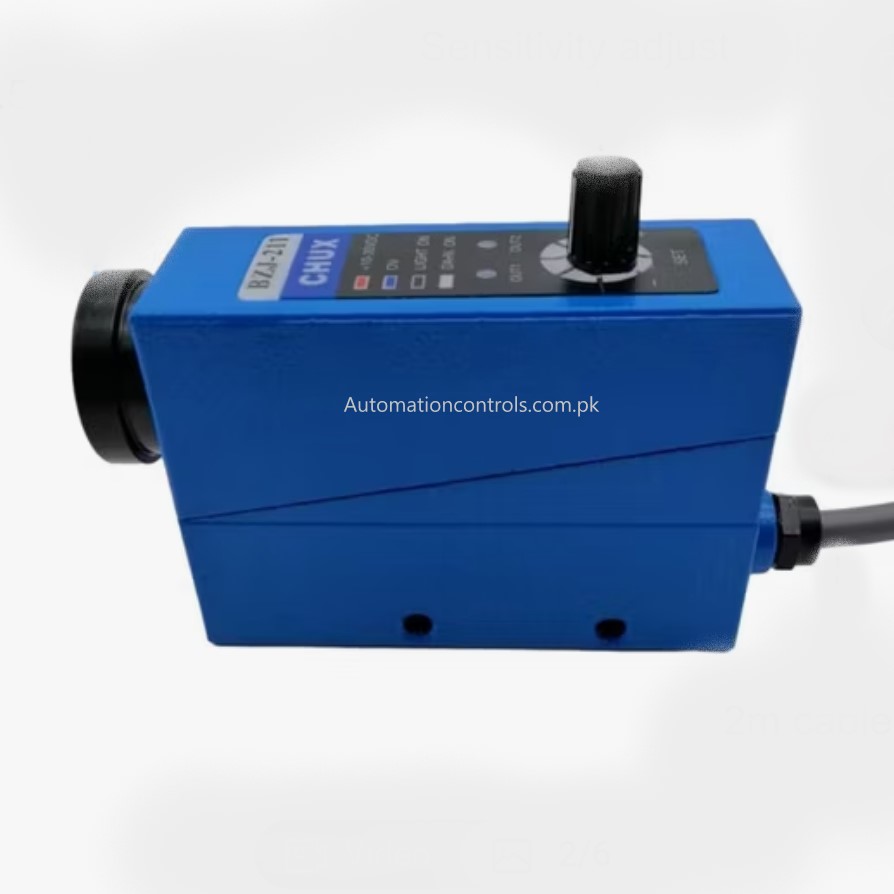

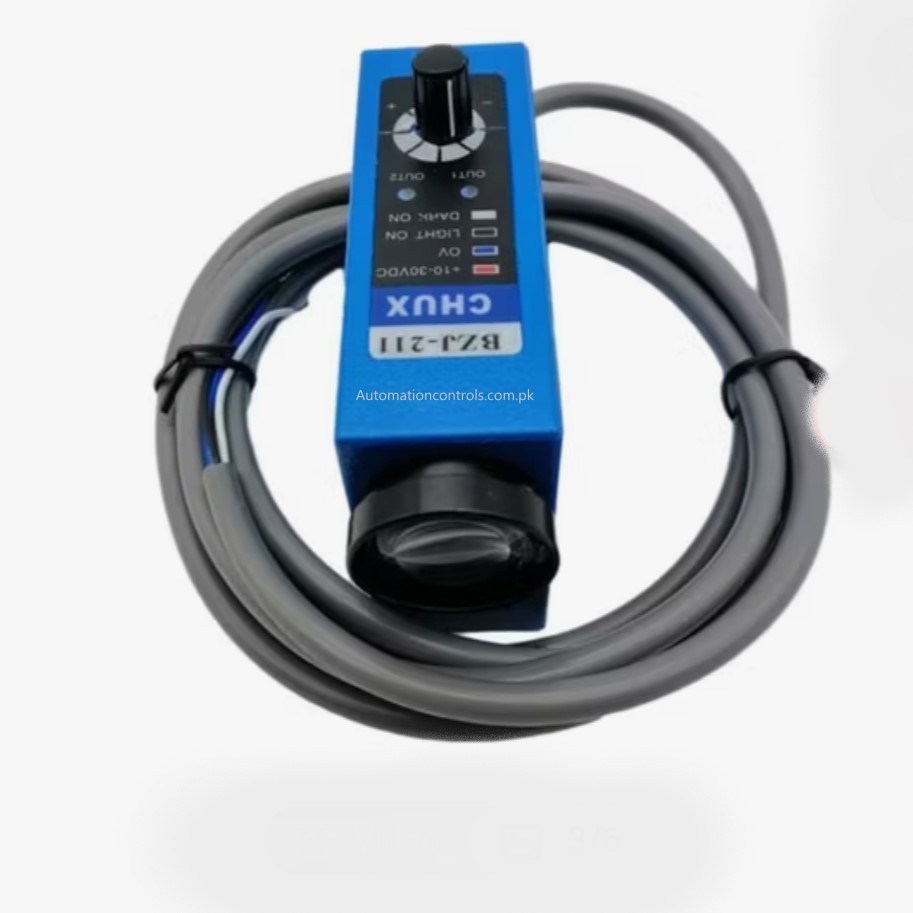

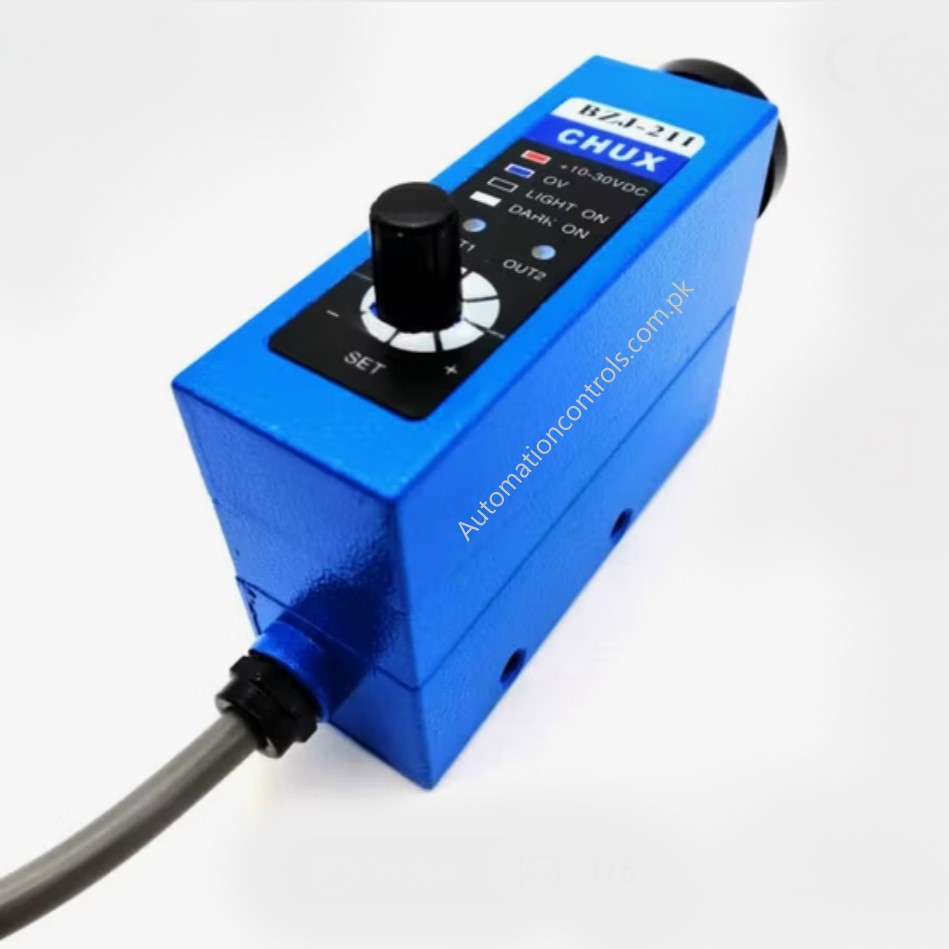

BZJ-211 Color Mark Eye Sensor
₨6,500.00
- BZJ-211 Color Mark Eye Sensor is high-precision detection device specially designed for automatic tracking in packing and packaging machines.
- Which accurately detects color marks, registration marks, and printed patterns to ensure precise cutting, sealing, and positioning during packaging operations.
- It is widely used in horizontal and vertical packing machines, labeling machines, printing systems, and automatic production lines.
- This sensor improves packaging accuracy by detecting contrast between colors and backgrounds, reducing material waste and production errors.
- And with its fast response time and stable performance, ensures smooth machine operation even at high speeds.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products
KS-C2 Color Mark Photoelectric Sensor
|
Detection |
coaxial reflective type |
||||
|
Detection distance |
10mm±2mm |
||||
|
Cast bare point |
1.0mm |
||||
|
supply voltage |
DC10-30V |
||||
|
Power consumption |
40mA |
||||
|
response time |
1mS following |
||||
|
Output |
NPN type lights moving / dark dynamic dual output |
||||
|
Model |
KS-C2 |
||||
|
Operation instruction |
red LED, bright Activity directions |
||||
|
Operating ambient |
temperature: -5 ° C -50 ° C |
||||
|
Lead |
four-core cable (brown, yellow, white, blue) standard length 2m |
||||
|
Product |
KS-C2 Color Mark Photoelectric Sensor |
||||
PL-05N Inductive Proximity Sensor
PL-05P Inductive Proximity Sensor
PS-400S Photronic Edge Sensor
| checking method | edge tracking |
| power input | DC10-30V |
| output signal | two way analogue0-5V two way NPN on-off signal |
| detecting range | 8mm(±4mm) |
| detecting precisiion | ±0.02mm |
| output mode | digital type/ analog type |
| detecting method | photoelectric opposite beam |
| carrier frequency | 100KHz/1KHz |
| enclosure rating | IP54 |
| environment temperature | -10°-80°C below RH90% |
| shell material | aluminum alloy |
Sick GTB6-N1212 Photo-electric Sensor
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12 mm x 31.5 mm x 21 mm |
| Housing design (light emission) | Rectangular |
| Sensing range max. | 5 mm - 250 mm |
| Sensing range | 35 mm - 140 mm |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | Ø 6 mm (100 mm) |
| Wave length | 650 nm |
| Adjustment | Mechanical spindle, 5 turns |
| Supply voltage | 10 V DC - 30 V DC |
| Ripple | ± 10 % |
| Current consumption | 30 mA |
| Switching output | NPN |
| Switching mode | Light/dark switching |
| Switching mode selector | Selectable via light/dark selector |
| Signal voltage NPN HIGH/LOW | Approx. VS / ≤ 3 V |
| Output current Imax. | ≤ 100 mA |
| Response time | < 625 µs |
| Switching frequency | 1,000 Hz |
| Connection type | Cable, 3-wire, 2 m |
| Cable material | PVC |
| Conductor cross-section | 0.14 mm² |
| Circuit protection | A 8) B 9) D 10) |
| Protection class | III |
| Weight | 60 g |
| Housing material | Plastic, ABS/PC |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP67 |
| Items supplied | Stainless steel mounting bracket (1.4301/304) BEF-W100-A |
| Ambient operating temperature | –25 °C … +55 °C |
| Ambient storage temperature | –40 °C … +70 °C |
