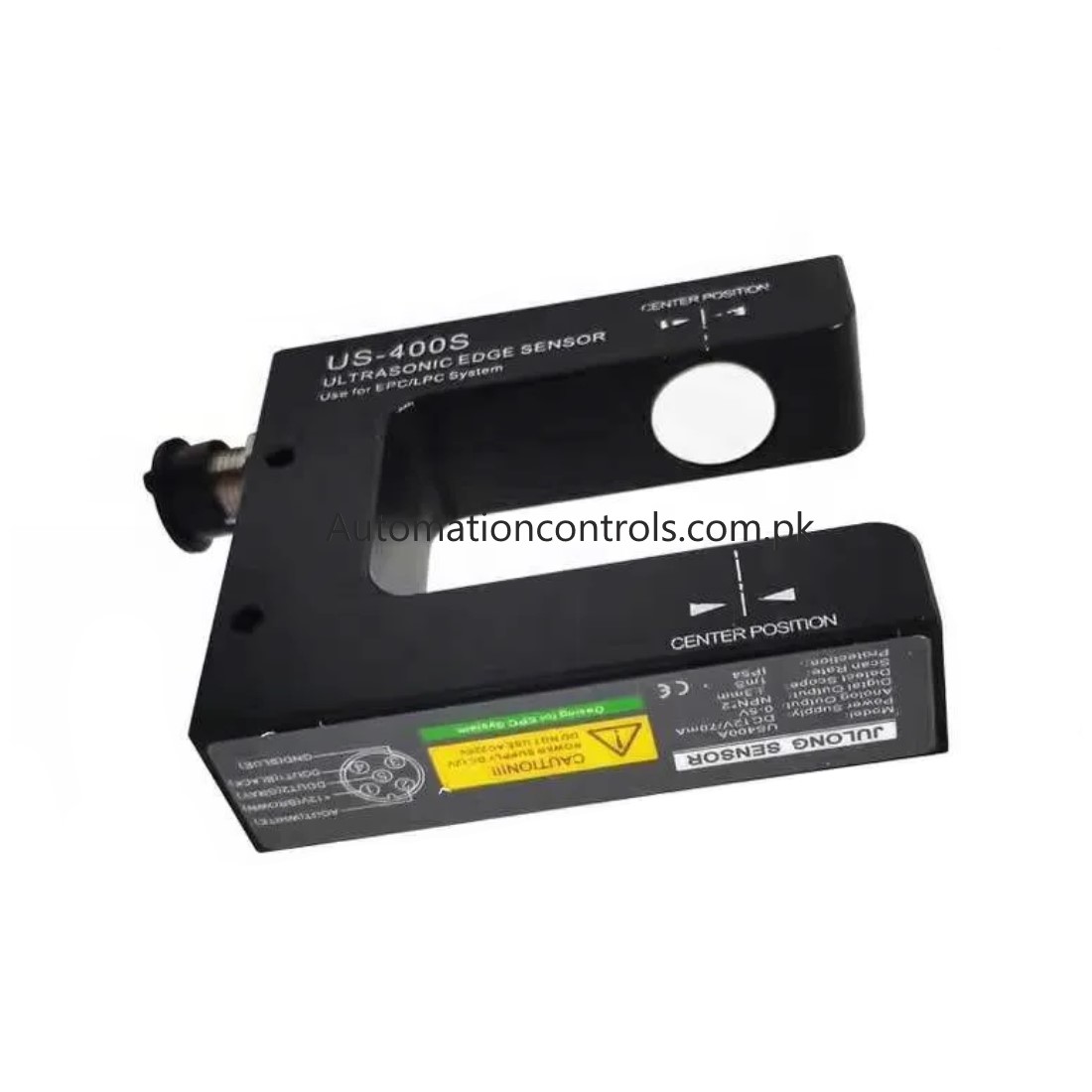

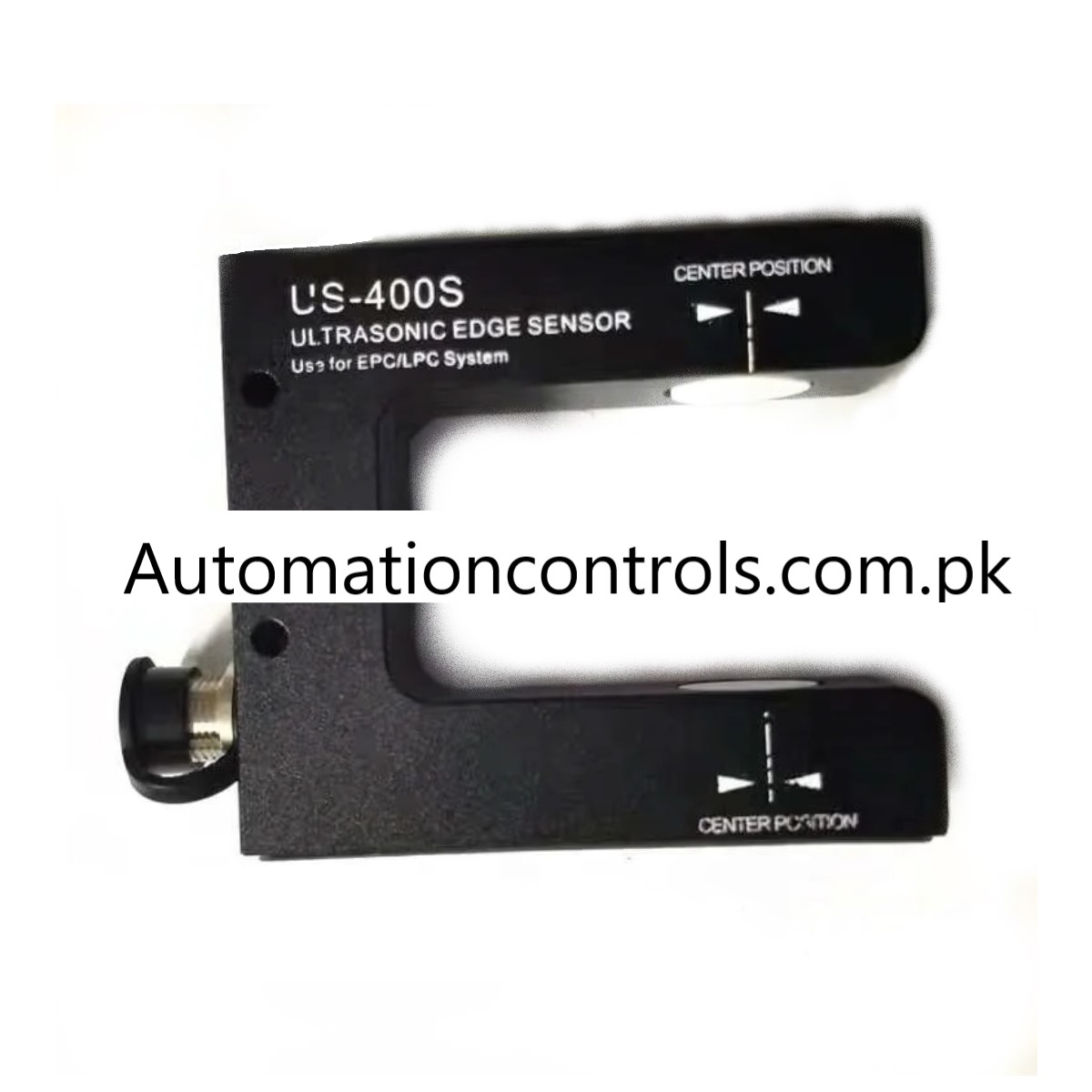

US-400S Ultrasonic Edge Sensor
| checking method | edge tracking |
| power input | DC10-30V |
| output signal | 0-5V two way switch signal |
| detecting range | 6mm(±3mm) |
| detecting precisiion | 0.05mm |
| output mode | digital type/ analog type |
| shell material | aluminum alloy |
Description
US-400S Ultrasonic Edge Sensor
- Ultrasonic rectifying sensor applies the principle of high frequency ultrasonic straight line propagation to detect the edge of the coil.
- Compared with the photoelectric sensor, it will not be affected by the material transparency, so there is no need to adjust when using, which is very convenient.
- It is suitable for rectifying deviation of impermeable materials (such as plastic film, paper, etc.) (impermeable materials such as mesh cloth, non-woven cloth are not applicable)
- Detection Accuracy 0.05mm : With a detection accuracy of 0.05mm, this sensor ensures precise edge tracking and correction, enhancing the overall performance of the system.
- support the output of analog quantity/switch value, can match with EPC-A10 and EPC-D12 Deviation Rectification Controller
- applicable for the edge-following of non-transparent materials, transparent materials, ultra-transparent thin film
- no need to perform the manual adjustment
- 200K ultrasonic exposure
- 1ms responding time
- detective range: 5mm, detective accuracy :0.1mm
- offset display attached
- Material Transparency Insensitive: Detects edges of transparent materials like film and cloth without interference.
- Adjustable Accuracy Modes: Three status options (0.5mm, 1.0mm, 2.0mm) selectable via SET button.
- Fast Response Time: 0.05m/s response time ensures efficient operation in high-speed applications.
- Versatile Output Options: Supports one-way analog (0-5V) and two-way switch signal outputs.
