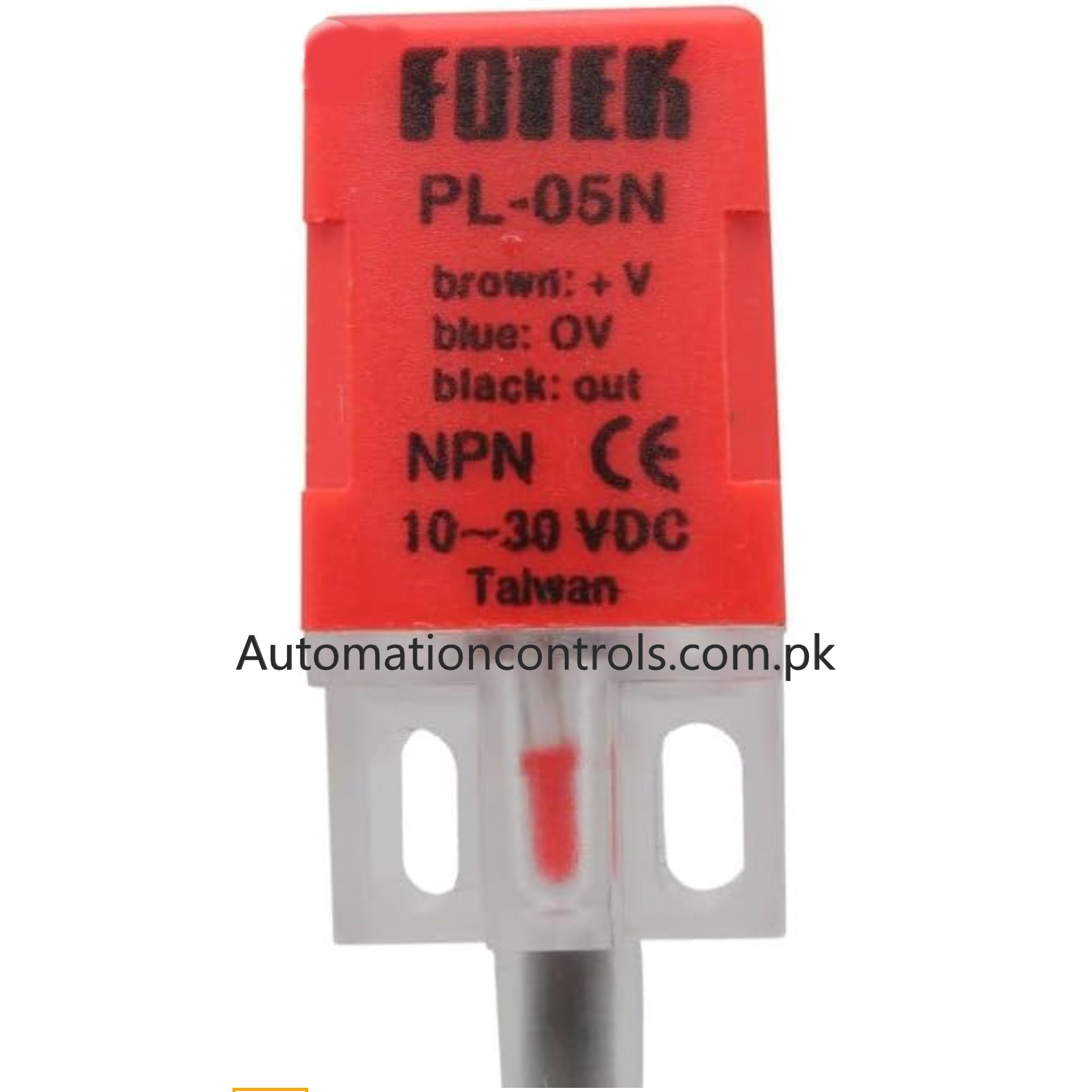

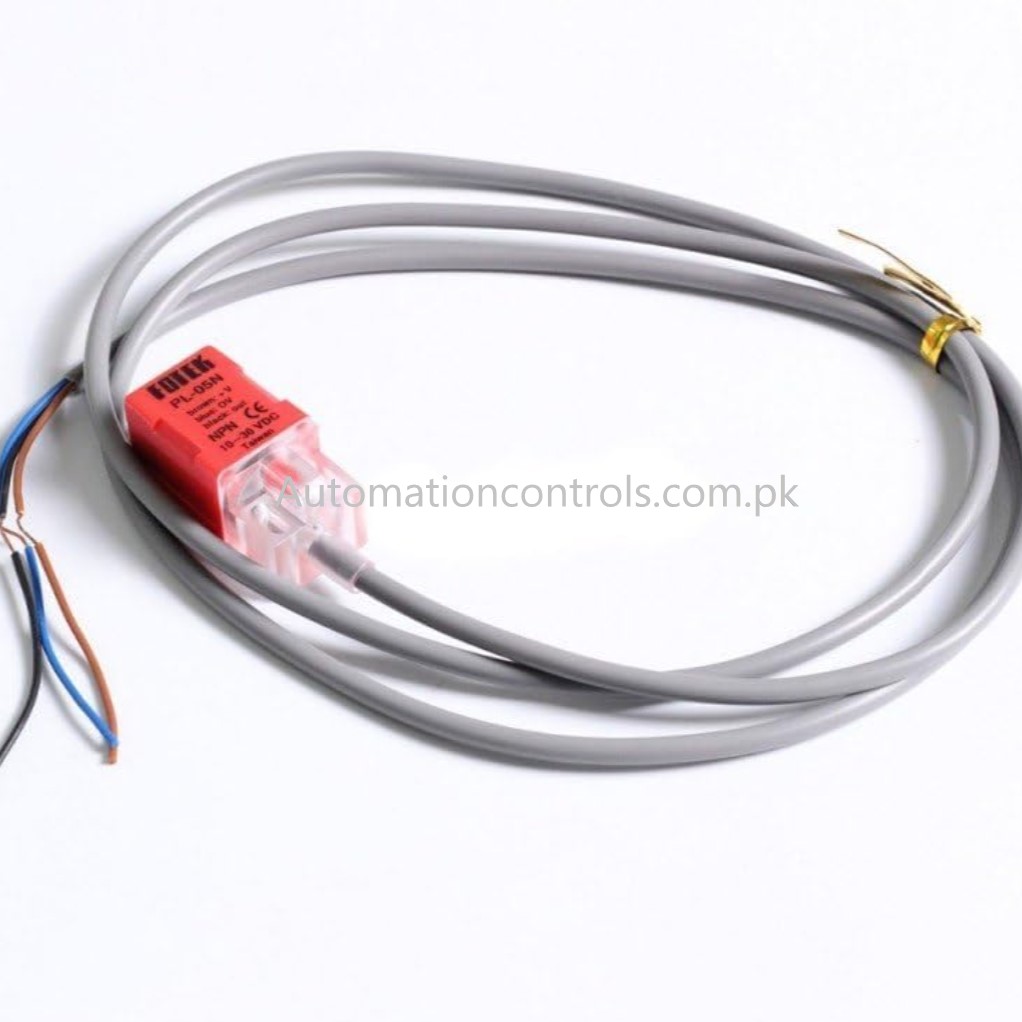

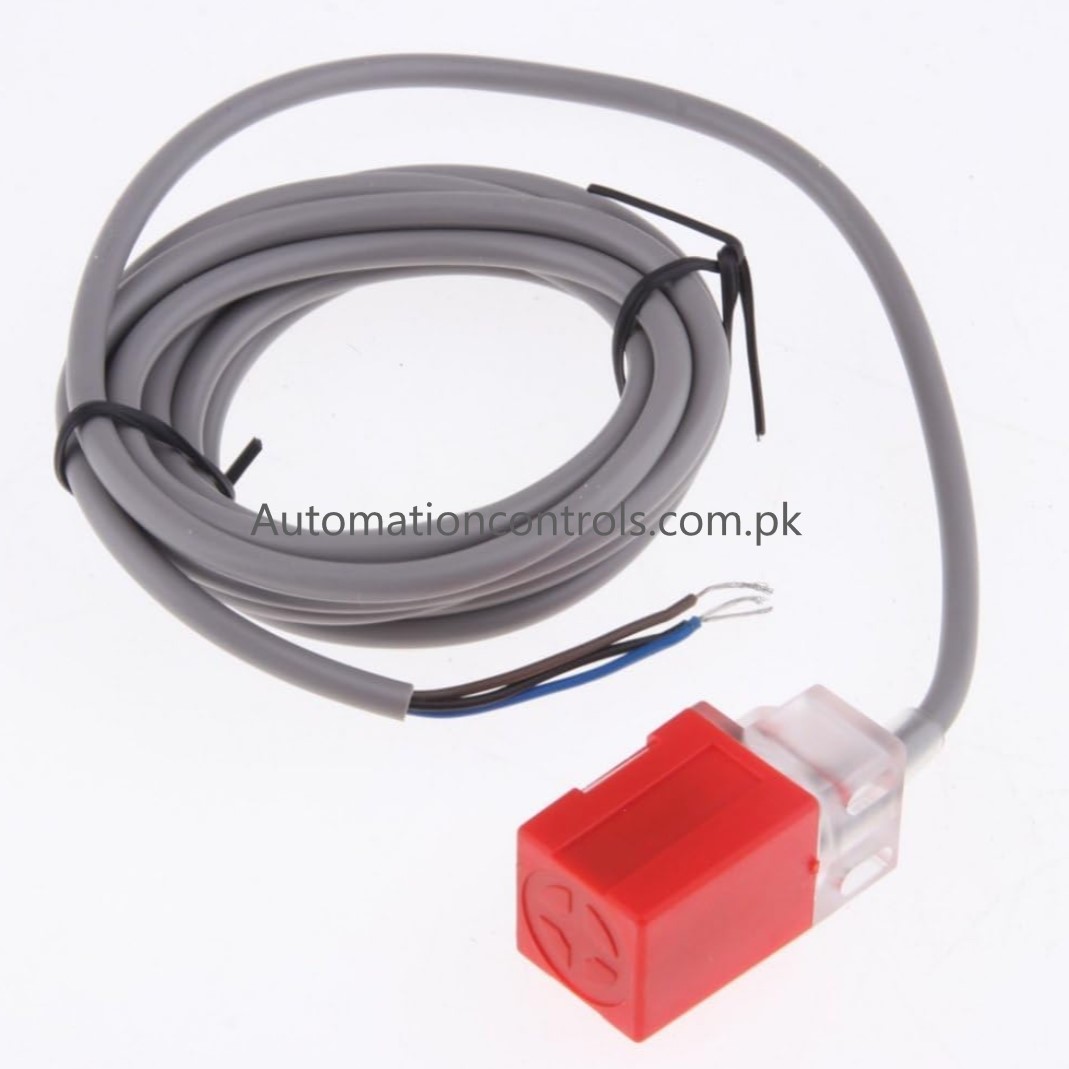

PL-05N Inductive Proximity Sensor
₨900.00
Product : PL-05N Inductive Proximity Sensor
Model : PL-05N
Supply voltage : 10-3ov DC
Wires : 3 DC wire (Brown, Black, Blue)
Output current : 150 mA
Output type : NPN NO(normally open)
Sensing range : 5mm
Response frequency : 800Hz
Working temperature : -20 ~+80C
Humidity : 35%~90%RH
Screw hole : 3.2mm
Wire length : 1 meter
Material : High-impact plastic
Shape : square
- PL-05N Inductive Proximity Sensor is an electro-mechanical device that consists of an actuator mechanically linked to a set of contacts.
- When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
- Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed.
- These are used in a variety of applications and environments because of their ruggedness, ease of installation, and reliability of operation.
- It can determine the presence or absence, passing, positioning, and end of travel of an object.
Only logged in customers who have purchased this product may leave a review.
MAECENAS IACULIS
Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.
ADIPISCING CONVALLIS BULUM
- Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
- Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
- Diam parturient dictumst parturient scelerisque nibh lectus.
Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.
Related products

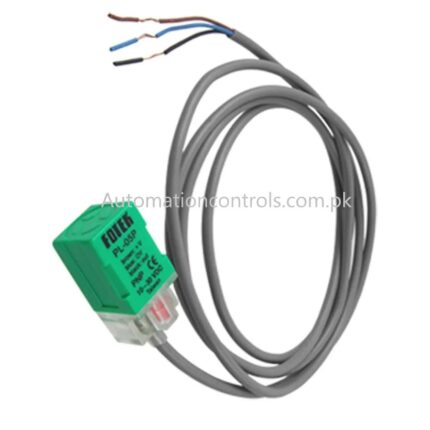

PL-05P Inductive Proximity Sensor
