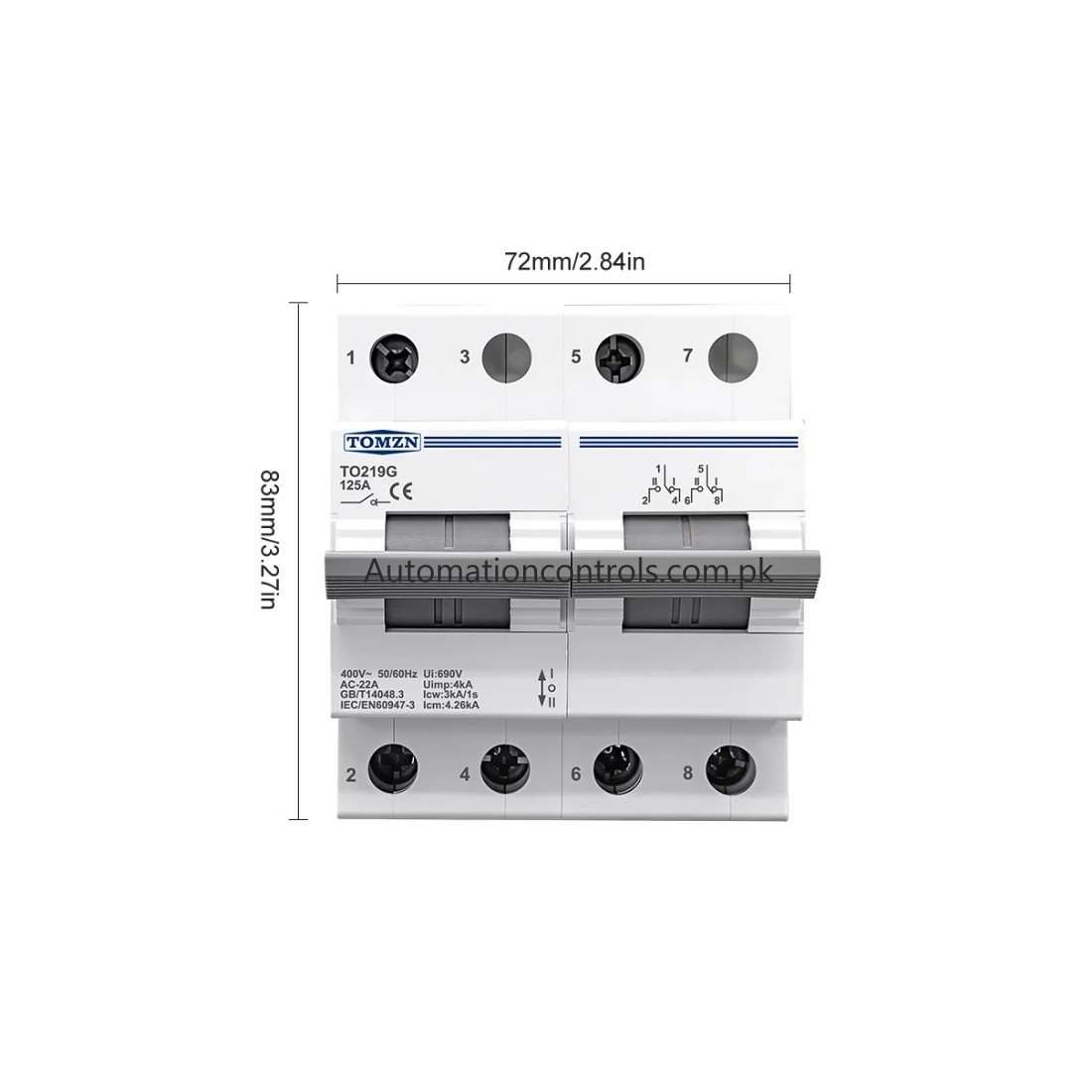

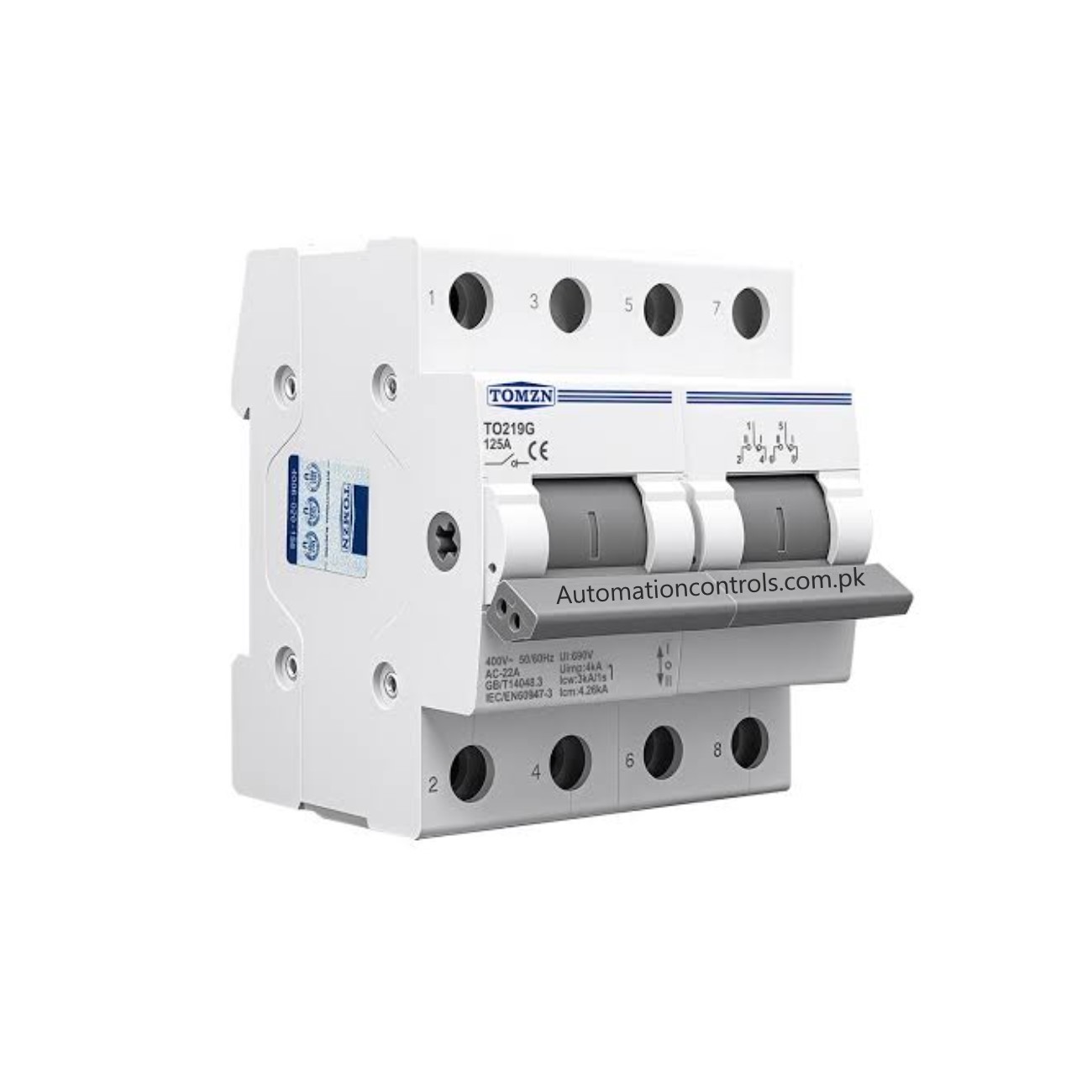

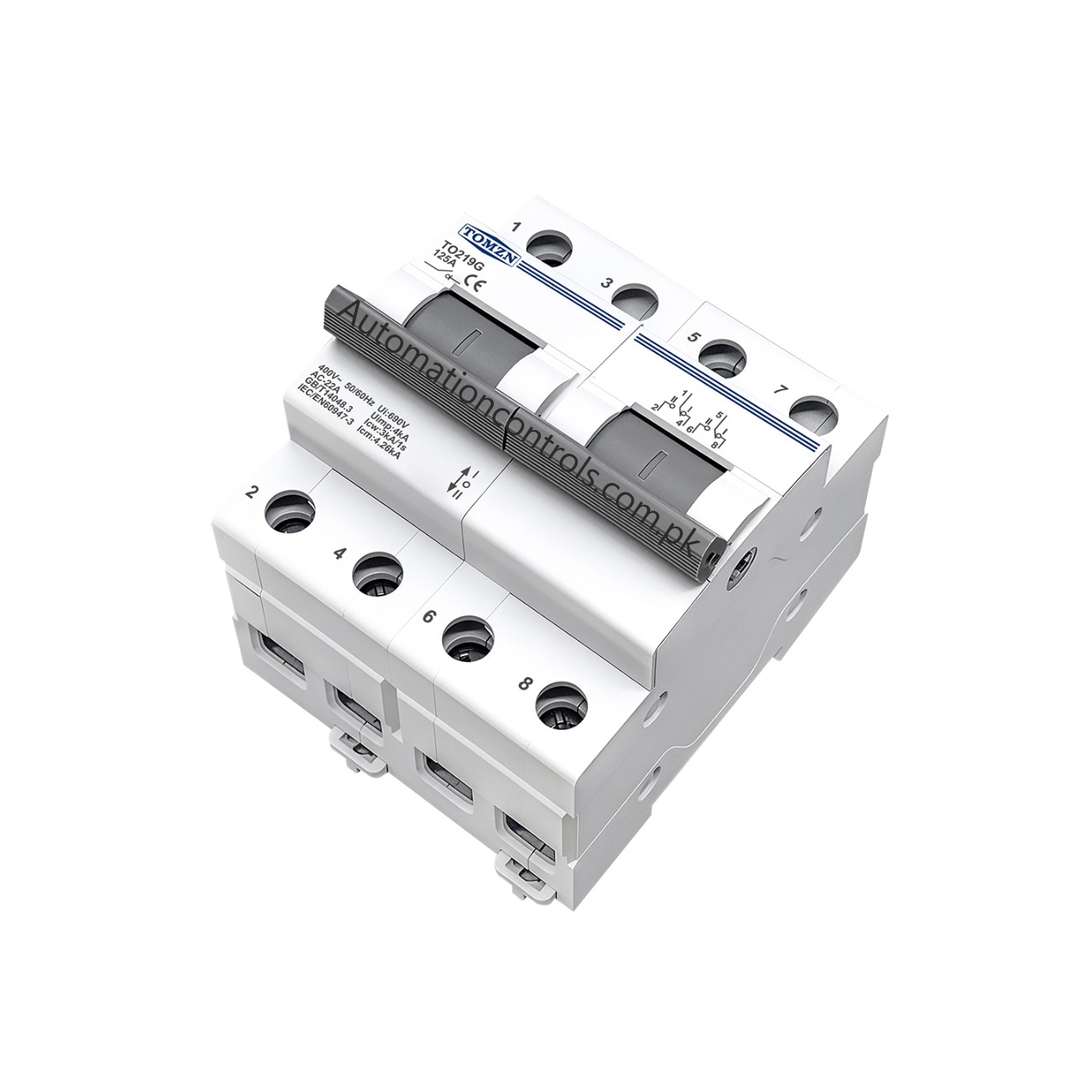

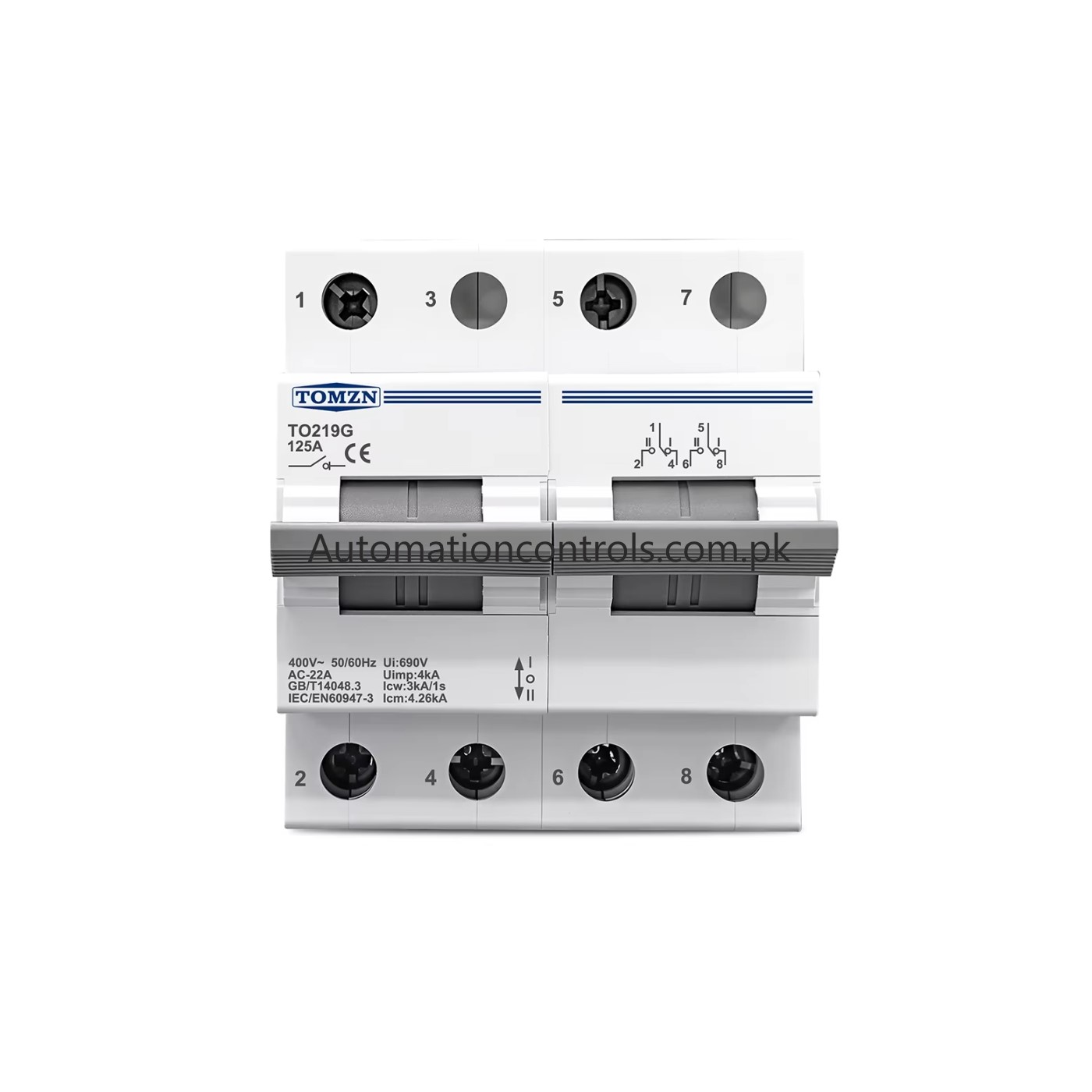

TOMZN TO219G 2pole 125A MTS Breaker type Change over
₨3,300.00
TOMZN TO219G 2pole 125A MTS Breaker type Change over
Model : TO219G
Number of poles : 2Pole
Rated voltage : 400VAC 50/60Hz
Rated current : 125A
Ui : 690V
Way to install : 35mm DIN Rail
TOMZN TO219G 2pole 125A MTS Breaker type Change over
- This is a versatile manual isolation switch integrating four core functions: On, Off, Transfer, and Isolation.
- It enables safe switching or isolation between two loads on a single line or between two independent power sources.
- Constructed with a high-flame-retardant PA66 housing for durability, it is designed for easy DIN rail mounting.
- Rated for 125A, it provides a reliable and safe solution for power switching and isolation in industrial equipment and circuits.
- Residential power backup systems
- Industrial power control systems
- Commercial setups requiring dual power source management
