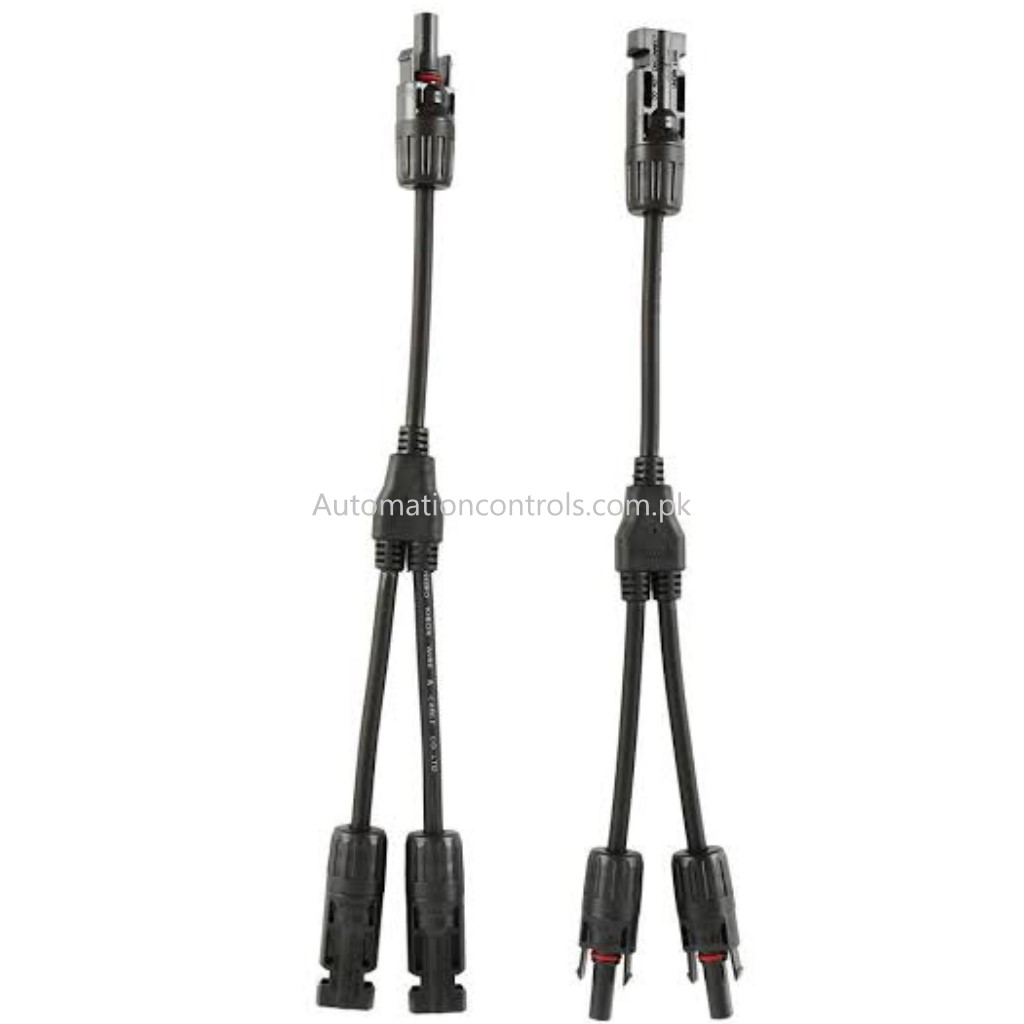

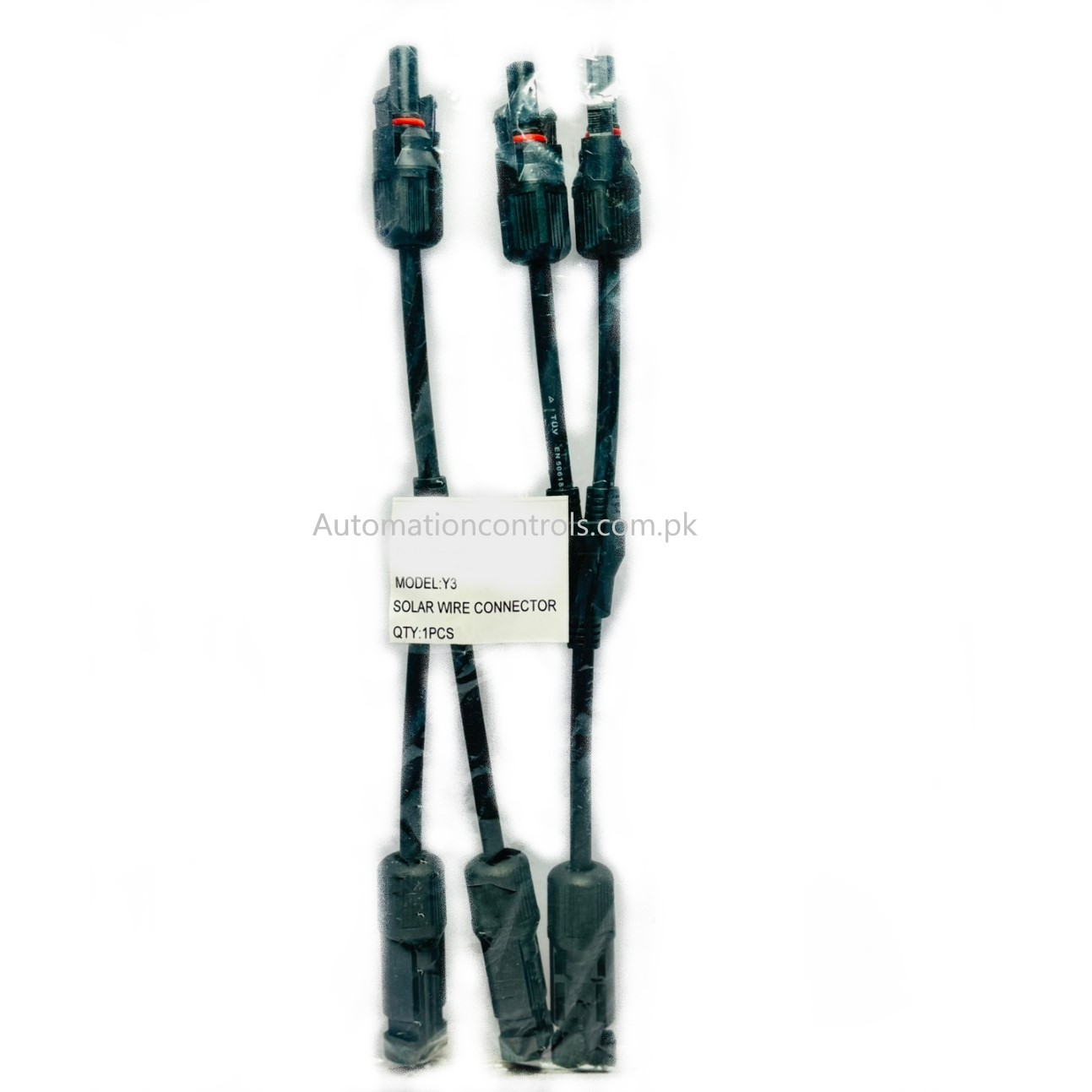

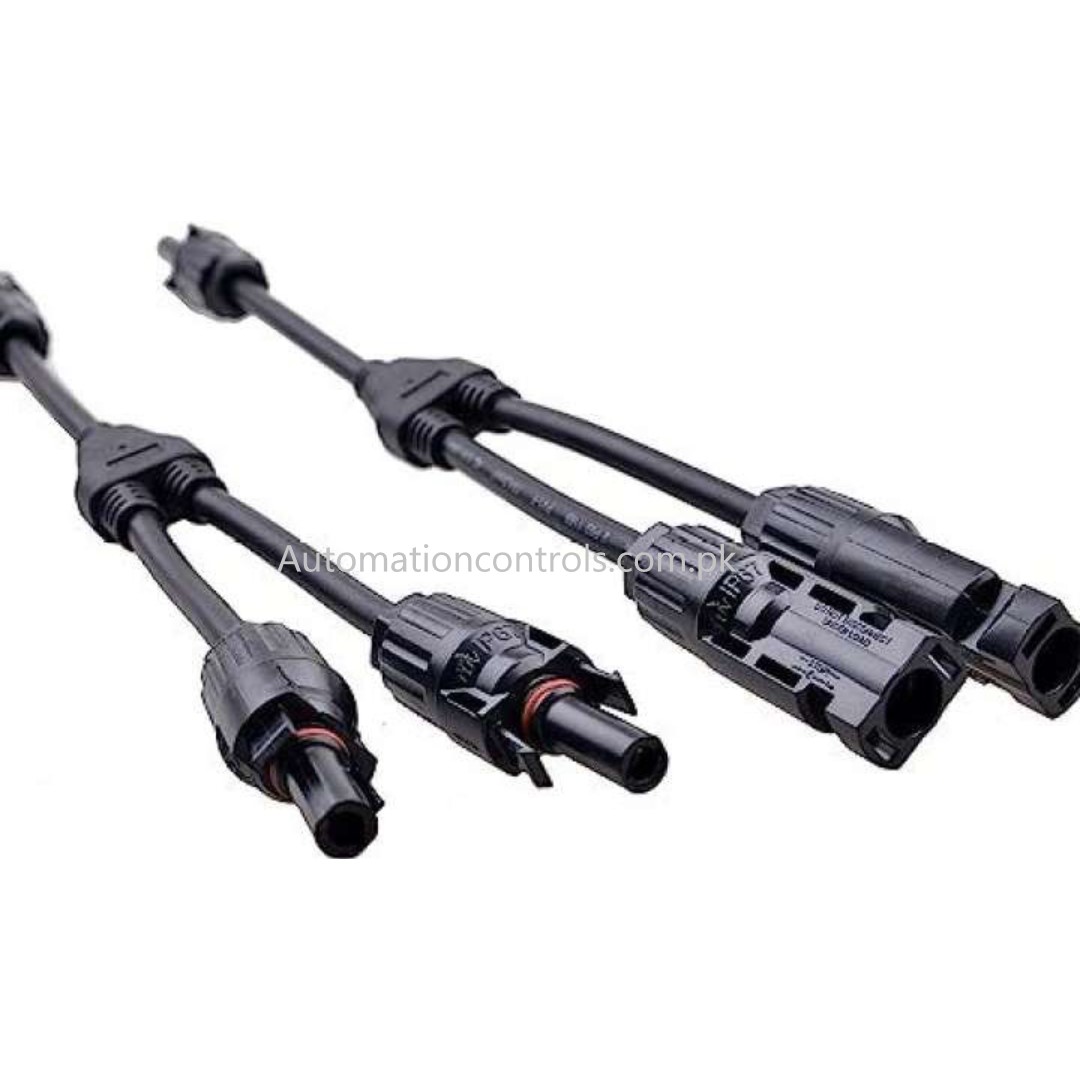

MC4 Y-type Connector for Solar Panel 1000vDC
₨900.00
MC4 Y-type Connector for Solar Panel 1000vDC
| Rated Voltage | 1000VDC |
| Rated Current | 30A |
| Test Voltage | 6kV (50Hz, 1min) |
| Ambient Temperature Range | -40°C~+90°C (IEC) |
| -40°C~+75°C (UL) | |
| Upper Limiting Temperature | +105°C (IEC) |
| Protection Degree | IP67 |
| Touch Protection Level, Unmated | IP2X |
| Contact Resistance of Plug Connectors | 0.5mΩ |
| Safety Class | II |
| Contact Material | Messing, Alloy, tin plated |
| Insulation Material | PC/PA |
| Locking System | Snap-in |
| Flame Class | UL-94-V0 |
Description
MC4 Y-type Connector for Solar Panel 1000vDC
- Lower contact resistance.
- Created seal, design of waterproof and dustproof.
- Eligible plastic material has marvellous performances of high low temperature and fireproof.
- Rated current: 30A (6mm2).
- Rated voltage: 1000V DC.
- Flame class: UL94-V0.
- Temperature range: -40~+110 C
- Insulation material: PPO.
- Y-Type MC4 Connectors are designed with durable materials to ensure long-lasting and reliable performance in photovoltaic systems
- These connectors operate in a wide temperature range from -10°C to +75°C, ensuring they can withstand various environmental conditions.
- Capable of enduring temperatures up to +105°C, they are perfect for extreme conditions, providing continuous, stable performance.
- Operates between -10°C and +75°C, with a peak rating of +105°C.
- Made from copper and reinforced PC/PA for corrosion resistance and durability.Constructed from high-grade copper and PC/PA materials, these connectors resist corrosion and ensure efficient power transfer.
- Compatible with high-voltage photovoltaic systems.
- Designed for higher current ratings to meet the demands of solar applications.
- This Connector is ideal for photovoltaic systems, ensuring reliable connections for solar panels and DC power systems.
- It offers easy installation and is built to provide safe, stable performance in various outdoor conditions
