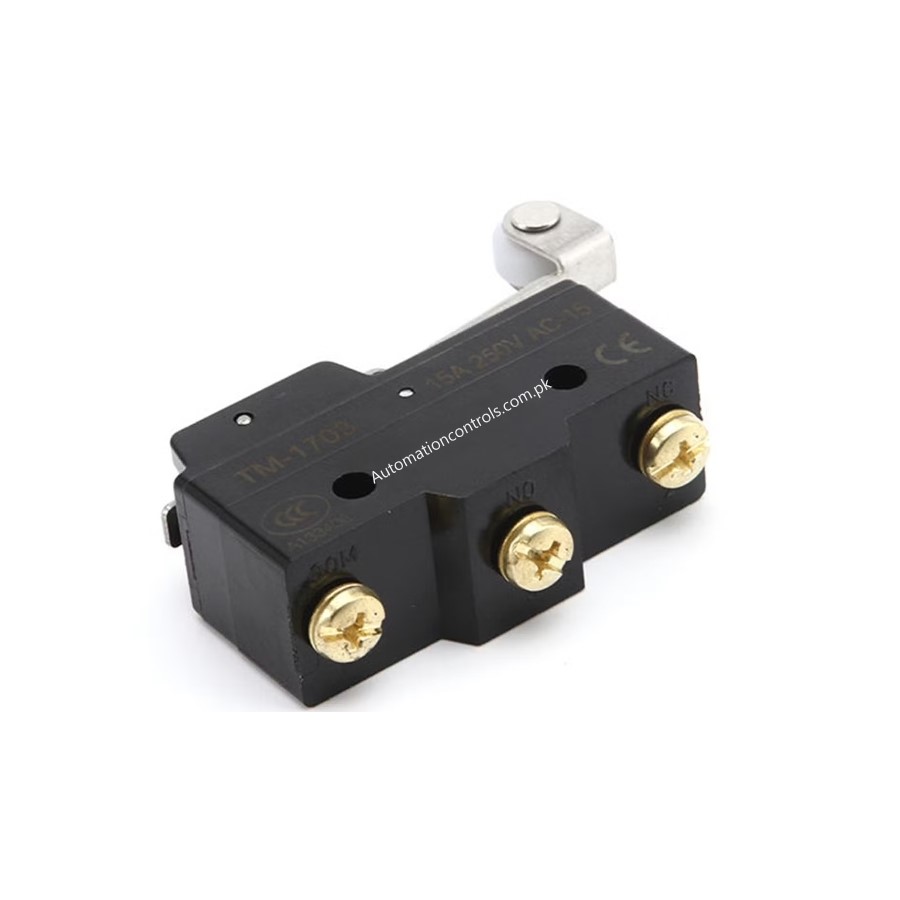

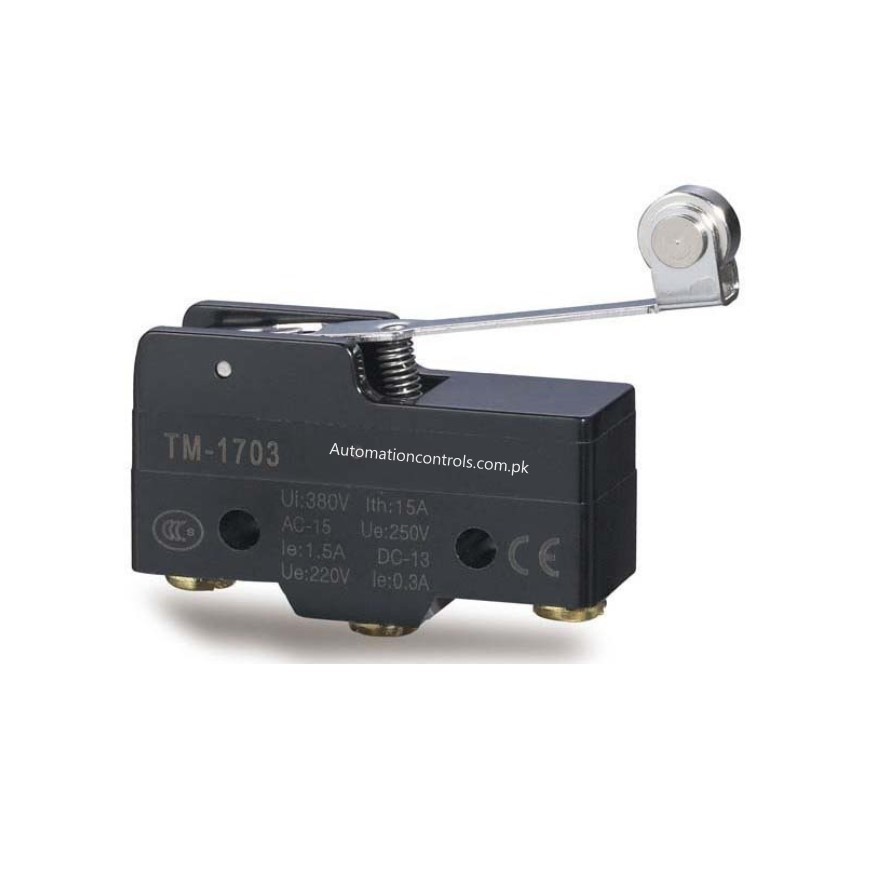

TM-1703 Micro Limit Switch Long Lever Wheel
₨500.00
Product : TM-1703 Micro Limit Switch Long Lever Wheel
Model : TM-1703
Function : long lever wheel
Body : plastic
Wheel material : metal
Contact : 1NO,1NC
Maximum Voltage : 250VAC
Maximum Current : 10A
Termination Style : Screw Terminal
Terminal Number : 3
- TM-1703 Micro Limit Switch Long Lever Wheel
- Delivery available all over Pakistan
- Discount available on bulk order
- Economical, high utility enclosed switch
- Enclosed switches with built-in basic switches.
- Various of actuators, the operation position is adjustable
- Outer shell covered with intensive plastic, water-proof and oil-proof.
- They are used for controlling machinery as part of a control system, as a safety interlocks, or to count objects passing a point. It is an electromechanical device that consists of an actuator mechanically linked to a set of contacts. When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
- TM-1703 Micro Limit Switch is an electric switch that is actuated by very little physical force, through the use of a tipping point mechanism, sometimes called an over-center mechanism.
- It is very common due to its low cost but high durability, greater than 1 million cycles and up to 10 million cycles for heavy duty models. This durability is a natural consequence of the design.
- The defining feature of it is that a relatively small movement at the actuator button produces a relatively large movement at the electrical contacts, which occurs at high speed
