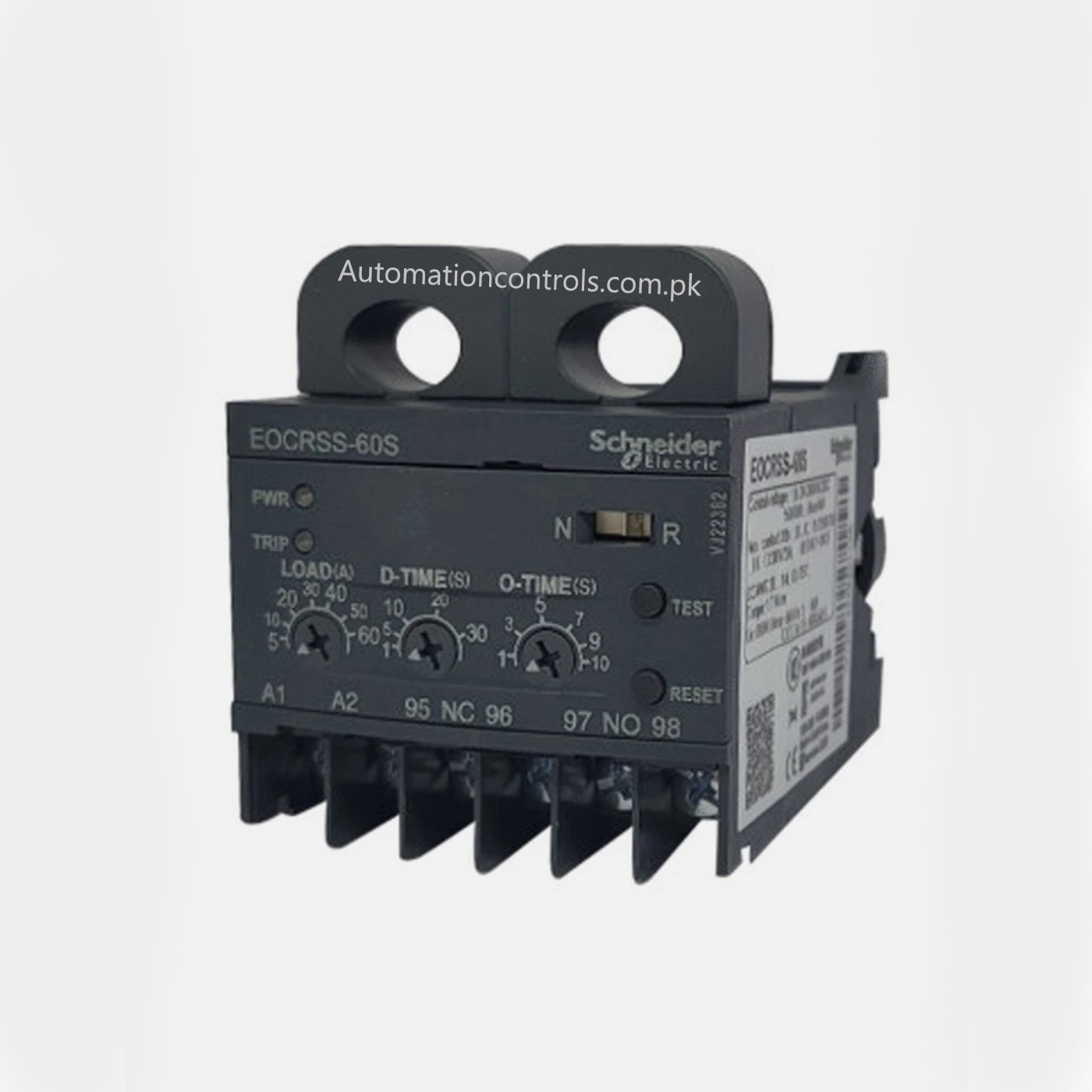

Schneider EOCRSS-60S Electronic Over Load Relay 5-60A
₨4,500.00
Product : Schneider EOCRSS-60S Electronic Over Load Relay 5-60A
Relays / Phase Monitoring Relays
Power Source : AC
Theory : Electronic Relay
Protect Feature : Sealed
Model Number : EOCRSS
Voltage : 220VAC
Operating Voltage(Un) : 24-260VAC
Current Range(A) : 5-60A
Main Circuit Wiring : Through Core
Relay Output : 1a1b
Protected Object : motor
Description
- Schneider EOCRSS-60S Electronic Over Load Relay 5-60A
- The Schneider EOCRSS-60S is electronic overcurrent relay (EOCR) with a built-in ammeter display, designed to protect motors from electrical faults such as overload, phase loss, and phase unbalance.
- With an adjustable current range up to 60A, this relay provides real-time current monitoring through a digital display, enhancing operational safety and system diagnostics. Its compact DIN rail design ensures quick installation in a wide range of industrial applications.
- Model EOCRSS
- Brand Schneider
- Voltage 220 V AC
- Usage/Application Overcurrent Protection
- Type Electronic Overcurrent Relay
- The ambient air temperature for operation is 60 Degree Celsius
- The ambient air temperature for storage is 80 Degree Celsius
