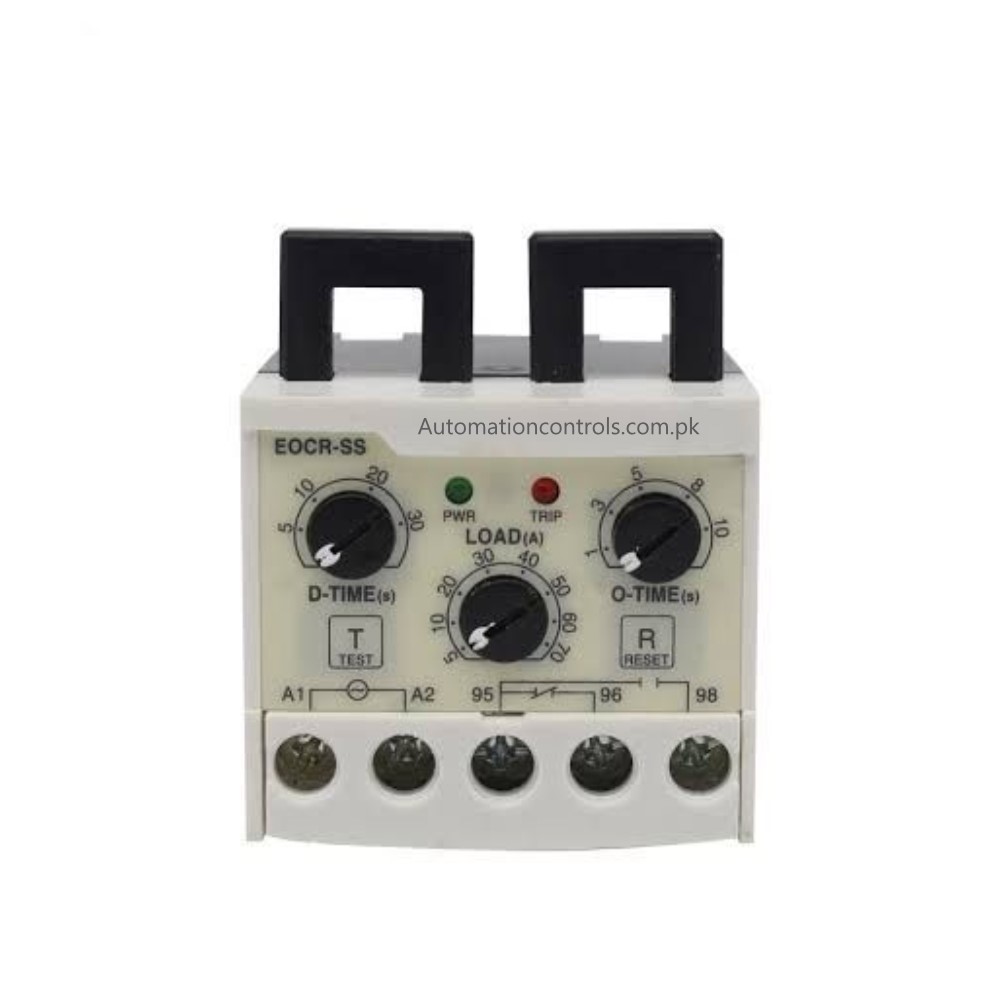

Schneider EOCR-SS Electronic Over Load Relay 5-70A - Image 1

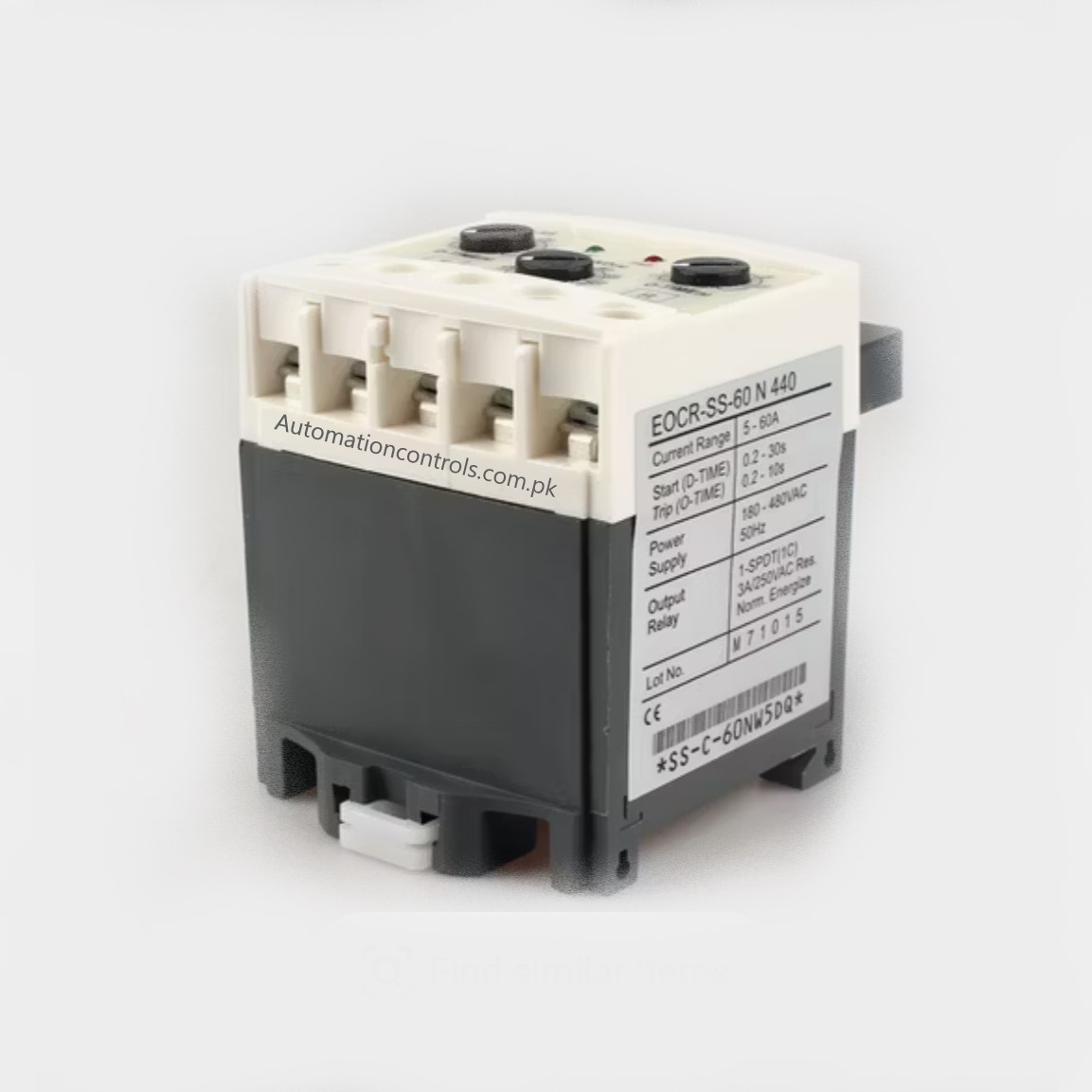

Schneider EOCR-SS Electronic Over Load Relay 5-70A - Image 2

Click to enlarge

Schneider EOCR-SS Electronic Over Load Relay 5-70A

Schneider EOCR-SS Electronic Over Load Relay 5-70A

Name: Schneider EOCR-SS Electronic Over Load Relay 5-70A - Automation Controls
Price: 1800.00 PKR
Availability: InStock

₨1,800.00

Product : Schneider EOCR-SS Electronic Over Load Relay 5-70A

Adjustable current range : 5-70A (built‑in CT)

Protects against overload, phase loss, unbalance

Adjustable trip time & start delay; auto/manual reset

Relay C/O output to trip contactor; status LEDs

DIN‑rail/panel mount; quick pass‑through wiring

Measurement : 3‑phase pass‑through up to 70A

Supply : 110/220 VAC, 50/60 Hz

Output Contact : 1 C/O, up to 5A @ 250 VAC

Settings : current 5-70A

trip delay ~0.5–30 s; start delay adjustable

Indication/Reset: RUN/TRIP LEDs; manual/auto reset selectable

Compare

Add to wishlist

Categories: Protection devices, Overloads

Description

Schneider EOCR-SS Electronic Over Load Relay 5-70A
The EOCR‑SS offers accurate electronic protection with adjustable trip time, start delay, and selectable auto/manual reset.
It typically detects phase loss and unbalance to guard against wiring faults and supply issues.
Clear LEDs show RUN/TRIP status, and front dials make setup fast and repeatable.
Use the relay output (C/O) to interrupt the contactor coil for safe, reliable shutdowns.
