COB-65 Push Button Switch Rain Proof
COB-65 Push Button Switch Rain Proof
Model : COB-65
Material : plastic
Waterproof : yes
Colour : Orange.
Ambient operating temperature : -20 ~ + 131 F.
Contact structure : composite button.
Contact resistance : 50 (Ω)
Insulation resistance : 50 (MΩ).
Push buttons : 10 ways
Type of contact : momentary.
Easy to use and easy to install.
Small size and easy to carry.
D4C-1202 Omron Limit Switch Roller Plunger type
D4C-1202 Omron Limit Switch Roller Plunger type
Model : D4c-1202
| Product Type | Limit Switch |
| Actuator Type | Roller Plunger |
| IP Rating | IP67 |
| Contact Configuration | 1 NO/1 NC |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Series | D4C | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -10°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C |

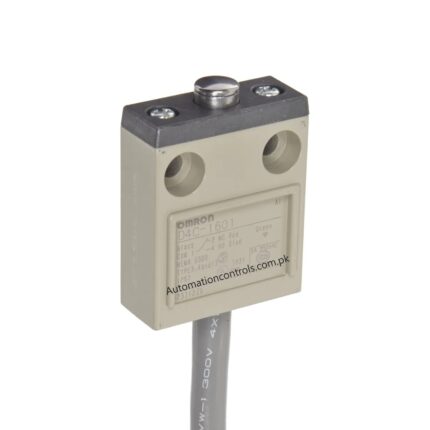

D4C-1601 Omron Limit Switch Plunger type
D4C-1601 Omron Limit Switch Plunger type
Delivery available all over Pakistan
| Product Type | Limit Switch | |
| Actuator Type | Push Plunger | |
| IP Rating | IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Series | D4C | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -10°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C |

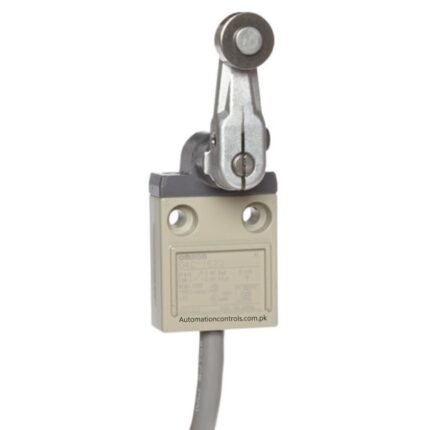

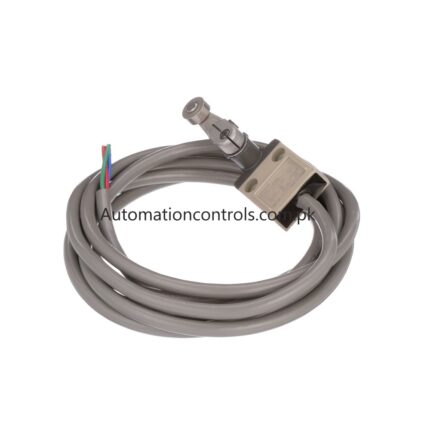

D4C-1620 Omron Limit Switch Roller Lever Actuator
D4C-1620 Omron Limit Switch Roller Lever Actuator
Delivery available all over Pakistan
| Product Type | Limit Switch | |
| Actuator Type | Roller plunger actuator | |
| IP Rating | IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Series | D4C | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -10°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C |

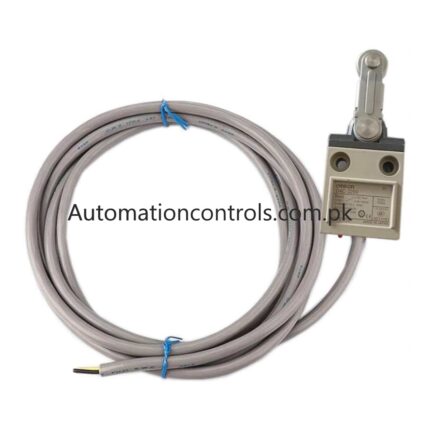

D4C-3260 Omron Limit Switch Roller Plunger
D4C-3260 Omron Limit Switch Roller Plunger
Delivery available all over Pakistan
| Product Type | Limit Switch | |
| Actuator Type | Roller plunger | |
| IP Rating | IP67 | |
| Contact Configuration | 1 NO/1 NC | |
| Housing Material | Metal | |
| Contact Type | Snap Action | |
| Terminal Type | Cable | |
| Series | D4C | |
| Switching DC Voltage | 30V dc | |
| Minimum Operating Temperature | -10°C | |
| Switching AC Voltage | 250V ac | |
| Maximum Operating Temperature | 70°C |
D4MC-1000 Long Lever Limit Switch
D4MC-1000 Small Lever Limit Switch
D4MC-2000 Long Lever Wheel Limit Switch
D4MC-2020 Small Lever Wheel Limit Switch
D4MC-5000 Straight Dot Push Limit Switch
D4MC-5020 Straight Wheel Limit Switch
DHC-100 + Humidity Controller
Product: DHC-100 + Humidity Controller
| Model number | DHC-100+ |
| Supply voltage | 220Vac |
| Humidity measuring range | 0%-99%RH |
| Humidity control range | 10%-99%RH |
| Resolution | 1%RH |
| Humidity accuracy | 25℃: ±(5%RH+0.5digit) 10-40℃ 0%-59%RH: ±(6%RH+0.5digit) 10-40℃ 59%-99%RH: ±(8%RH+0.5digit) |
| Input types | HTG3515CH temperature humidity sensor, length is 2m (include the probe) |
| Sensor Stability | ±0.5%RH/year |
| Output types | One SPDT electromagnetic relay |
| Relay contact rating | 10A at 250VAC, Max.single phase load is 0.5HP/220VAC |
| Power consumption | Less than 3W |
| Front panel IP rating | IP54 |
| Insulation resistance | 500M ohm min |
| Withstand voltage | 2KV 50Hz for 1min, no breakdown and flashover phenomenon |
| Vibration resistance | (10-5-10) Hz, 2G, 3min vibration, work normal |
| Operating temperature | 0 to 60 ℃ |
| Operating humidity | 20-85% RH max, non-condensing |
| Storage temperature | -30 to 75 ℃ |
| Product features | 1. Humidification, dehumidification mode optional. 2. Adopt integrated circuit humidity sensor, with high sensitivity, fast response, good consistency and so on. 3. Keypad lock function. 4. After the humidity sensor fails, the controller can periodically turn on or off the control output according to the set time. |
