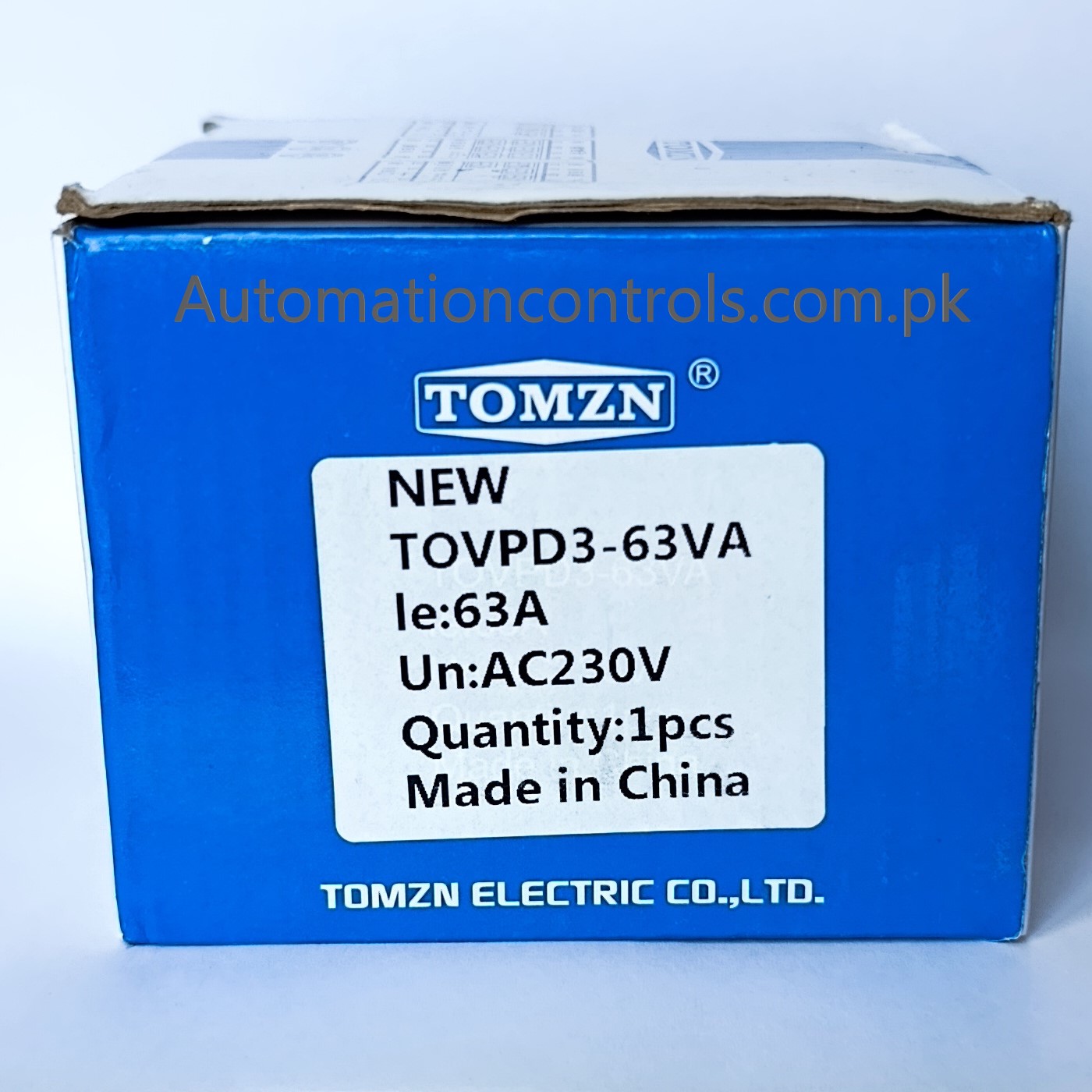

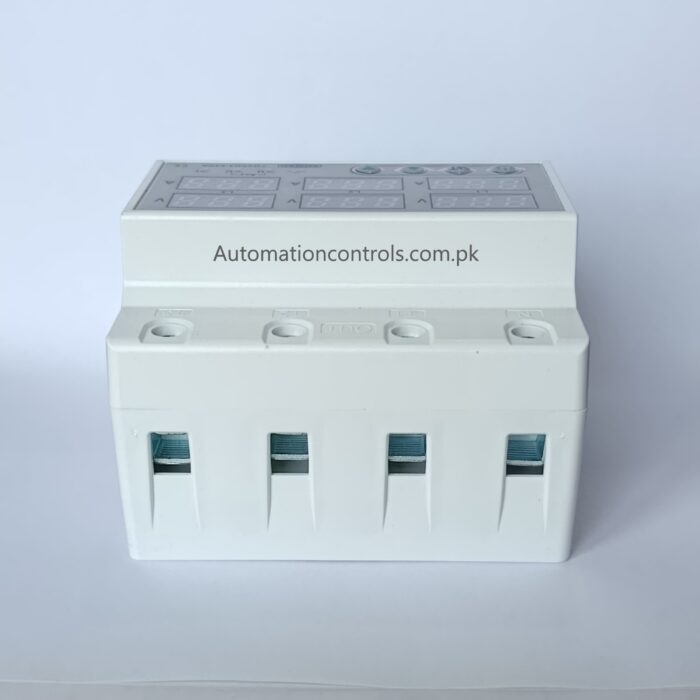

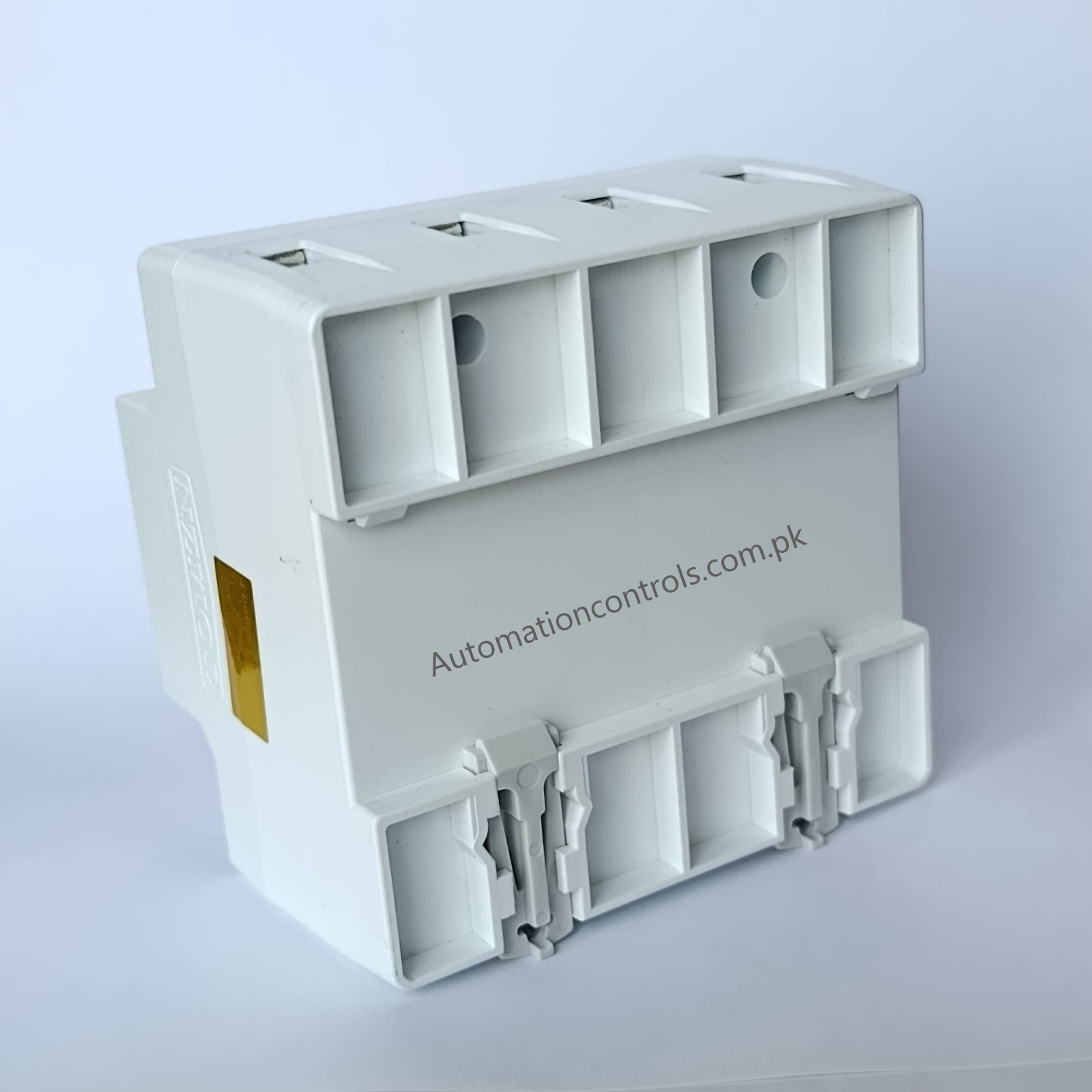

Tomzn TOVPD3-63VA 3phase 4pole Voltage and Ampere Protection Device
₨6,500.00
Model Number : TOVPD3-63VA
Type : Voltage protector
Poles Number : 4
Rated Voltage : 380V
Reset/Start Delay : 1-500s
Current rating : 63A
Mounting : DIN rail
Delivery available all over Pakistan
Description
- It has over-voltage protection which is adjustable
- Adjustable Under-voltage protection
- Adjustable Over-Current protection
- Asymmetry protection
- Phase sequence protection
- Active time and reconnect time adjustable
- Voltage and current can be manually calibrate
- Three Phase Voltage Current Protector 63A 3P Over Under Voltage Relay Current Limiter Adjustable Unbalance Voltage Protection Phase Sequence Protection device
- Overvoltage protection value 230-300V(395-520V)
- Overvoltage recovery value 220-295V(390-515V)
- Overvoltage recovery delay time 1-500S
- Over-voltage protection action time 0.1-30S
- Undervoltage protection value 140-210V(240-365V)
- Undervoltage recovery Voltage 145-215V(245-370V)
- Undervoltage recovery dalay time 1-500S
- Under-voltage protection action time 0.1-30S
- Phase sequence protection ON/OFF
- Overcurrent protection value 1-63A
- Over-current recovery delay time 1-500S
- Over-current protention action time 0.1-30S
