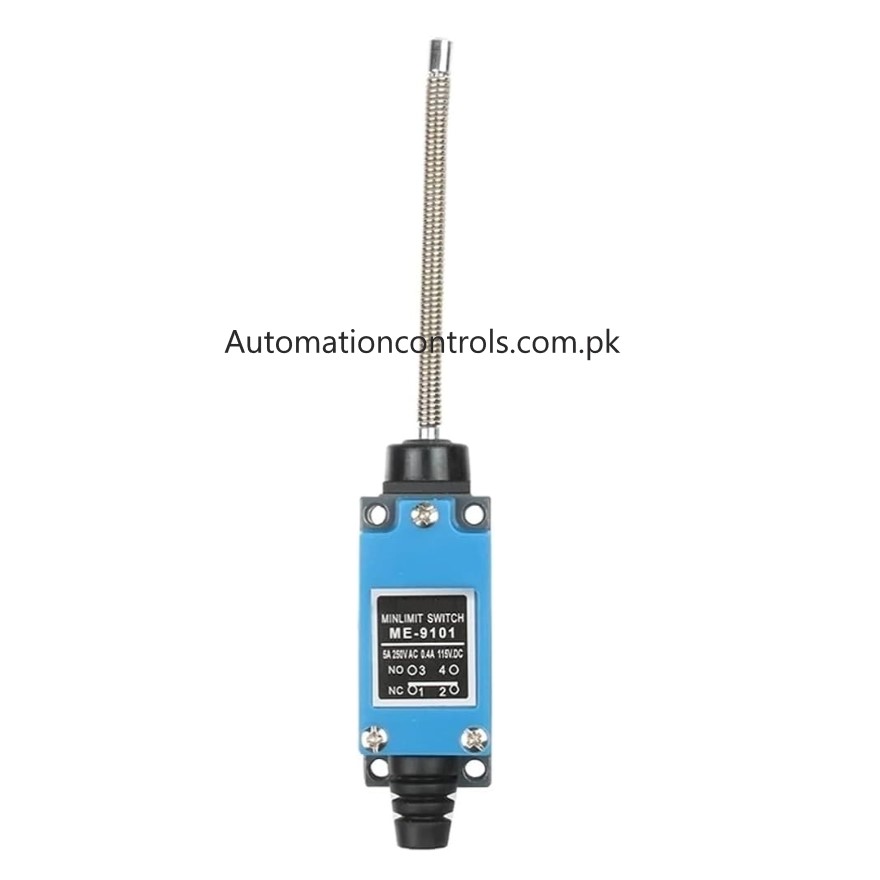

ME-9101 Limit Switch (Spring lever)

ME-9101 Limit Switch (Spring lever)

• It has compact design, long mechanical life.
• Very easy wiring with full open terminals.
• Great high precision, high reliability.
• Dustproof, water proof, oil-proof construction.
• Double circuit type.
• Also strong body with a combination of reinforced plastic and aluminum Die Casting component.
• Build-in basic switch with the double spring mechanism.

• It utilizes a precise and reliable switching mechanism that accurately detects the presence or absence of an object, providing reliable and consistent performance.
• Allows for adjustable actuation force, enabling users to customize the switch’s sensitivity to suit their specific application requirements.
• It offers flexible mounting options, allowing for easy integration into a wide range of machinery and equipment.
• Medium to Large 9101 boasts a compact and space-saving design, making it an ideal choice for applications with limited installation space.

• Product Name: Limit Switch
• Model: ME-9101
• Actuator Type: Flexible Spring Rod Type
• Rated Voltage: 5A 250V AC / 0.4A 115V DC
• Contact Configuration: 1NC+1NO
• Mounting Hole Size: M5 Mounting
• Hole Distance: 56 x 21mm / 2.2inch x 0.83inch (LxW)
• The coil spring can be operated in any direction except the axis direction.
• The use of the coil spring is ideal for that are not uniform in size or direction.
• Description: Double circuit limit switch with build-in double reed mechanism. Zine alloy and intensive plastic shell, strong and highly rigid construction.
• Smooth operation with higher OT.
• Brass contacts with 30% silver contained.
• Easy-to-wire design.
• This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
