RKC REX-C100 Temperature Controller 48x48mm
- Model : REX-C100
- Dimensions : 48mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 400 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH

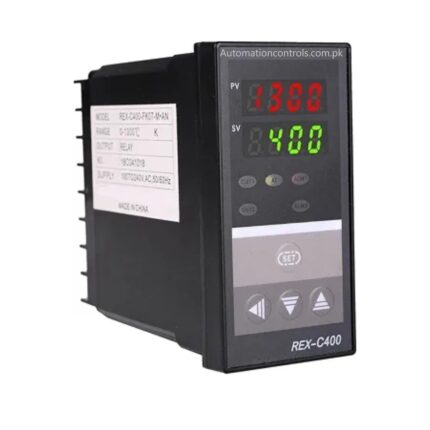

RKC REX-C400 Temperature Controller 48x96mm
- Model : REX-C400
- Dimensions : 48mm96mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH

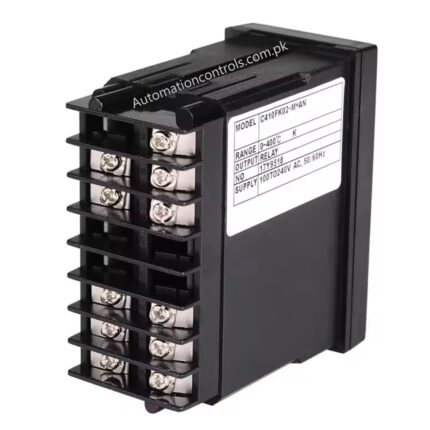

RKC REX-C410 Temperature Controller 96x48mm
- Model : REX-C410
- Dimensions : 96mm48mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH

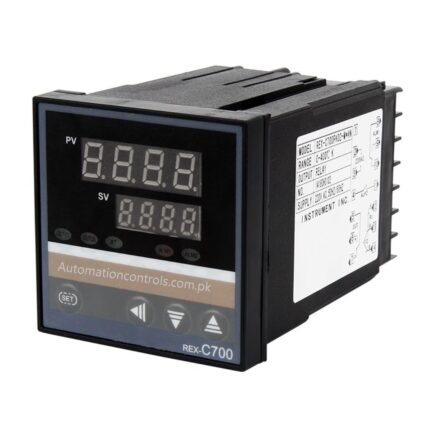

RKC REX-C700 Temperature Controller 72x72mm
- Model : REX-C700
- Dimensions : 72mm72mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
RKC REX-C900 Temperature Controller 96x96mm
- Model : REX-C900
- Dimensions : 96mm96mm110mm(APP)
- Measuring accuracy : 0.5%FS
- Cold-end compensation tolerance : 2 Celsius (can be modified by software in 0~50 Celsius )
- Resolution : 14 bit
- Sampling cycle : 0.5 Sec
- Process value (PV), Setting value (SV)
- Output, alarm and self-tuning can be indicated by : LED
- PIN control (including ON/OFF, step-type PID and continuous PID)
- Self-tuning control
- Relay output : contact capacity 250V AC 3A (resistive load)
- Alarm function output : 2 way
- Contact capacity of output : 250V AC 3A (resistive load)
- Setting value (SV) : identical to measuring range (PV)
- Proportional band (P) : 0~full range (ON/OFF control when set to 0)
- Detective temperature range : 0 to 999 Celsius
- Insulation resistance : >50M ohm(500V DC)
- Insulation resistance : 1500V AC/min
- Power Consumption : 10 VA
- Service environment : 0~50 Celsius ,
- environment with no corrosive gas 30~85% RH
