Chint NXM-250S 4P 225A MCCB in Pakistan
- Model : NXM-250S
- Product : MCCB moulded case circuit breaker
- Rated Current: 225A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

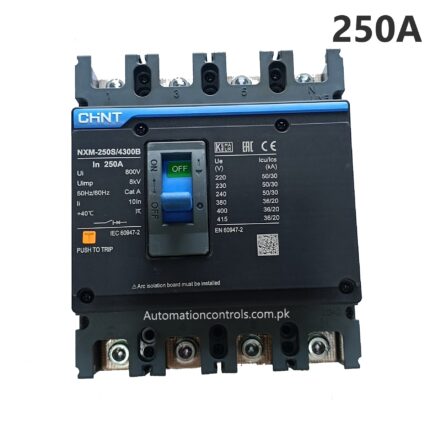

Chint NXM-250S 4P 250A MCCB in Pakistan
- Model : NXM-250S
- Product : MCCB moulded case circuit breaker
- Rated Current: 250A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Chint NXM-400S 4P 320A MCCB in Pakistan
- Model : NXM-400S
- Product : MCCB moulded case circuit breaker
- Rated Current: 320A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

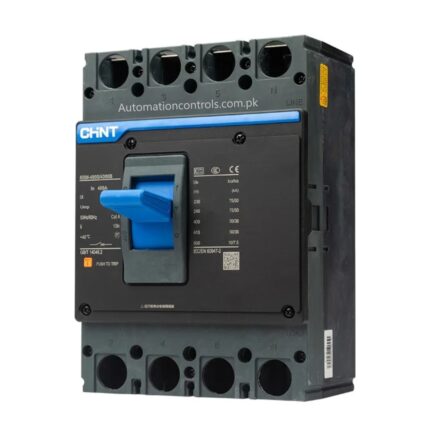

Chint NXM-400S 4P 400A MCCB Molded Case Circuit Breaker in Pakistan
- Model : NXM-400S
- Product : MCCB moulded case circuit breaker
- Rated Current: 400A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Chint NXM-630S 3P 500A MCCB in Pakistan
-
Model: NXM-630S
-
Product Type: Moulded Case Circuit Breaker (MCCB)
-
Poles: 3 Poles (3P)
-
Rated Current ($I_n$): 500A
-
Frame Rating: 630A Frame
-
Breaking Capacity Level: S (Standard - 50kA at 400V/415V AC)
-
Rated Operational Voltage Ue : Up to 690V AC (50/60Hz)
-
Rated Insulation Voltage Ui : 800V
-
Trip Unit Type: Thermal-magnetic fixed release
-
Mounting Options: Vertical and horizontal installation supported
-
Standard Compliance: IEC/EN 60947-2
Chint NXM-630S 3P 630A MCCB in Pakistan
- Model : NXM-630S
- Product : MCCB moulded case circuit breaker
- Rated Current: 630A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 3P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Chint NXM-630S 4P 500A MCCB Molded Case Circuit Breaker in Pakistan
- Model : NXM-630S
- Product : MCCB moulded case circuit breaker
- Rated Current: 500A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

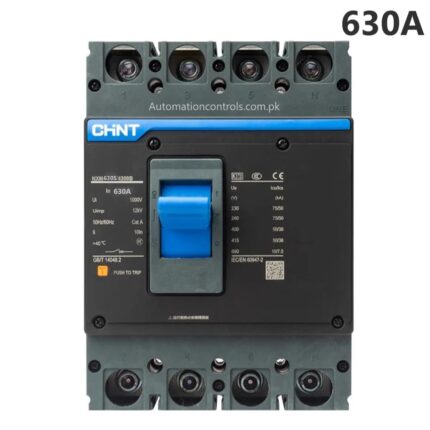

Chint NXM-630S 4P 630A MCCB Molded Case Circuit Breaker in
- Model : NXM-630S
- Product : MCCB moulded case circuit breaker
- Rated Current: 630A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Chint NXM-800S 3P 800A MCCB in Pakistan
- Model : NXM-800S
- Product : Chint NXM-800S 3P 800A MCCB
- Rated Current: 800A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 3P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude

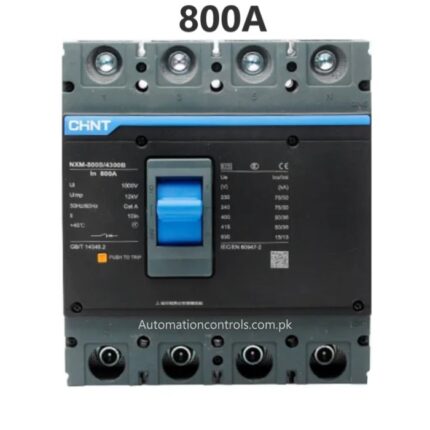

Chint NXM-800S 4P 800A MCCB in Pakistan
- Model : NXM-800S
- Product : MCCB moulded case circuit breaker
- Rated Current: 800A
- Rated Insulation Voltage: 800V; operational voltage up to AC 690V, 50/60Hz
- Breaking Capacity Levels: C (basic), S (standard), H (high), R (current limiting)
- Poles: 4P
- Operation Modes: Direct handle
- Protection Functions: Overload, short-circuit
- Mounting: Vertical and horizontal installation supported
- IP Rating: IP30 (up to IP40 with terminal covers)
- Environmental Limits: −5°C to +40°C operation, ≤2000m altitude
Schneider 1000VDC 1P 63A MCB Breaker
