Description

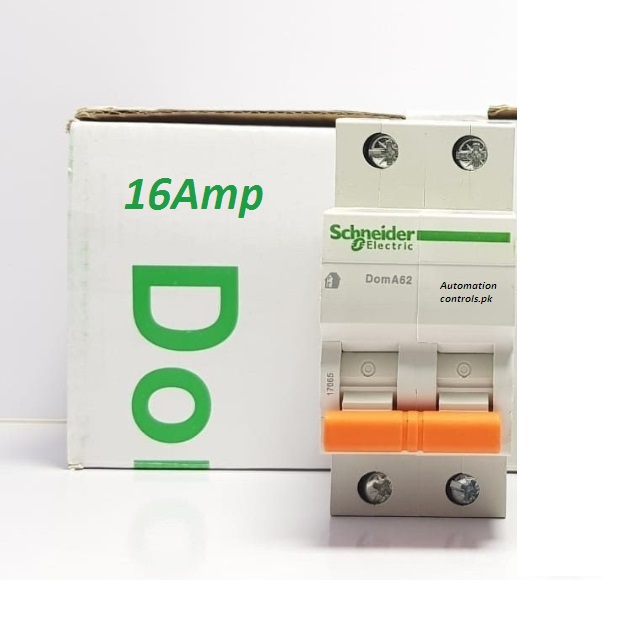

• This is the model Domae low voltage miniature circuit breaker (MCB).
• This is a 2Pole circuit breaker and 16Amp In rated current and C tripping curve.
• It’s Icn rated short circuit breaking capacity goes up to 4500A at 230VAC.
• These MCB miniature circuit breaker protects circuit against short circuit and overload current.
• Fault tripping is indicated on the front panel by the position of the handle (O-I engraved).
• This product has an electrical endurance up to 10000 cycles and a mechanical endurance up to 20000 cycles.
• Ue operational voltage is 230VAC.
• And the operating frequency is 50Hz or 60Hz.
• It can be easily clipped on a DIN rail.
