Description

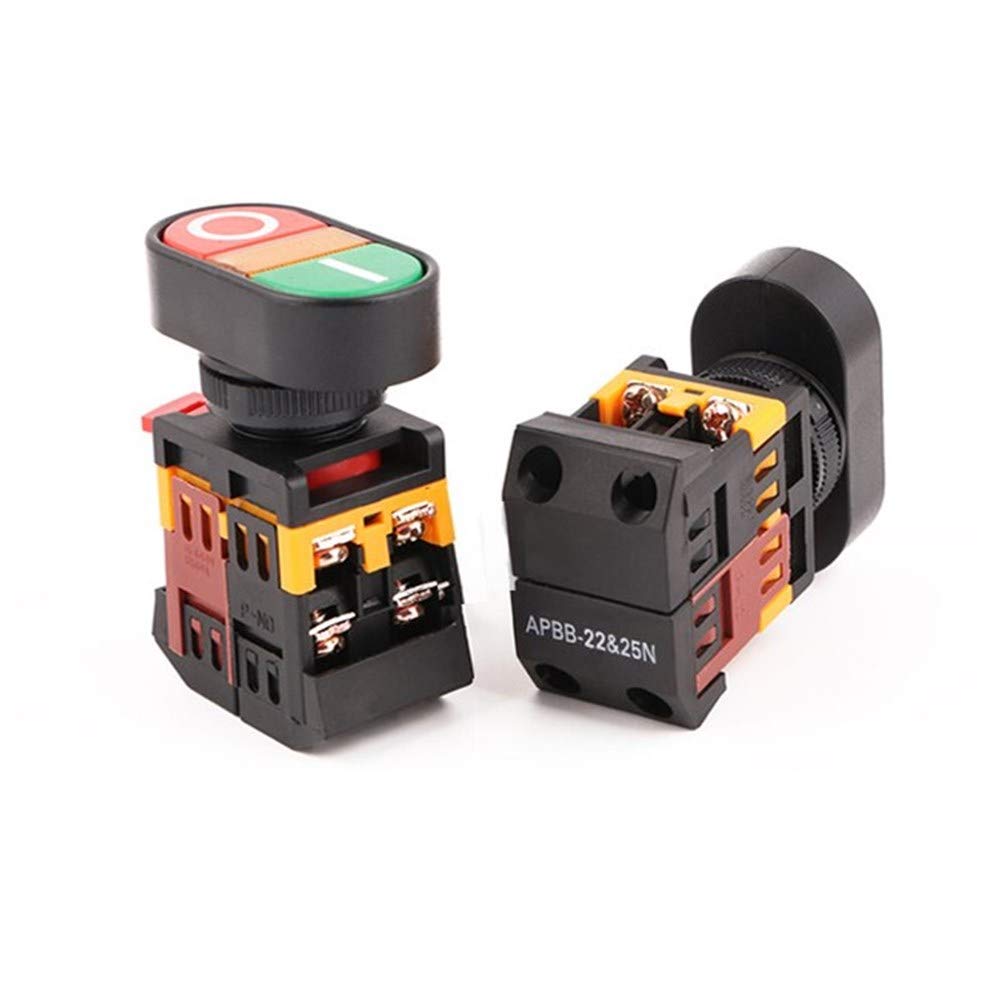

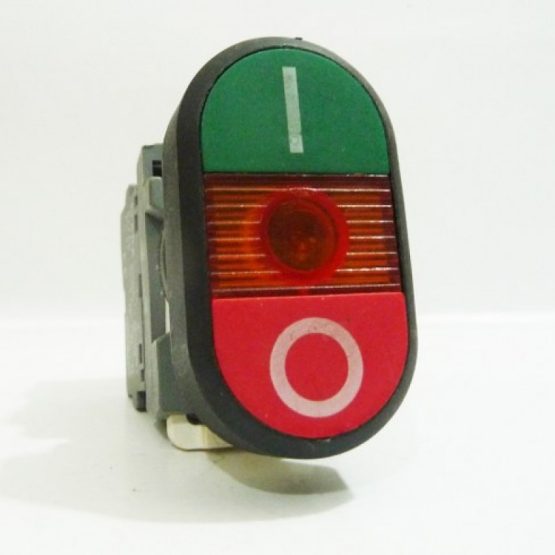

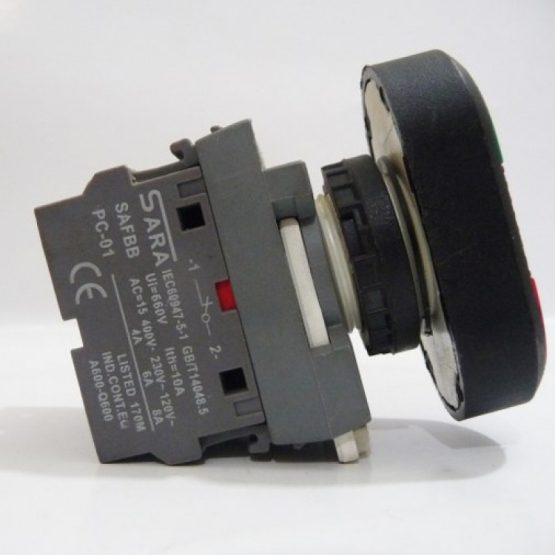

• Model No. : APBB-22&25N.

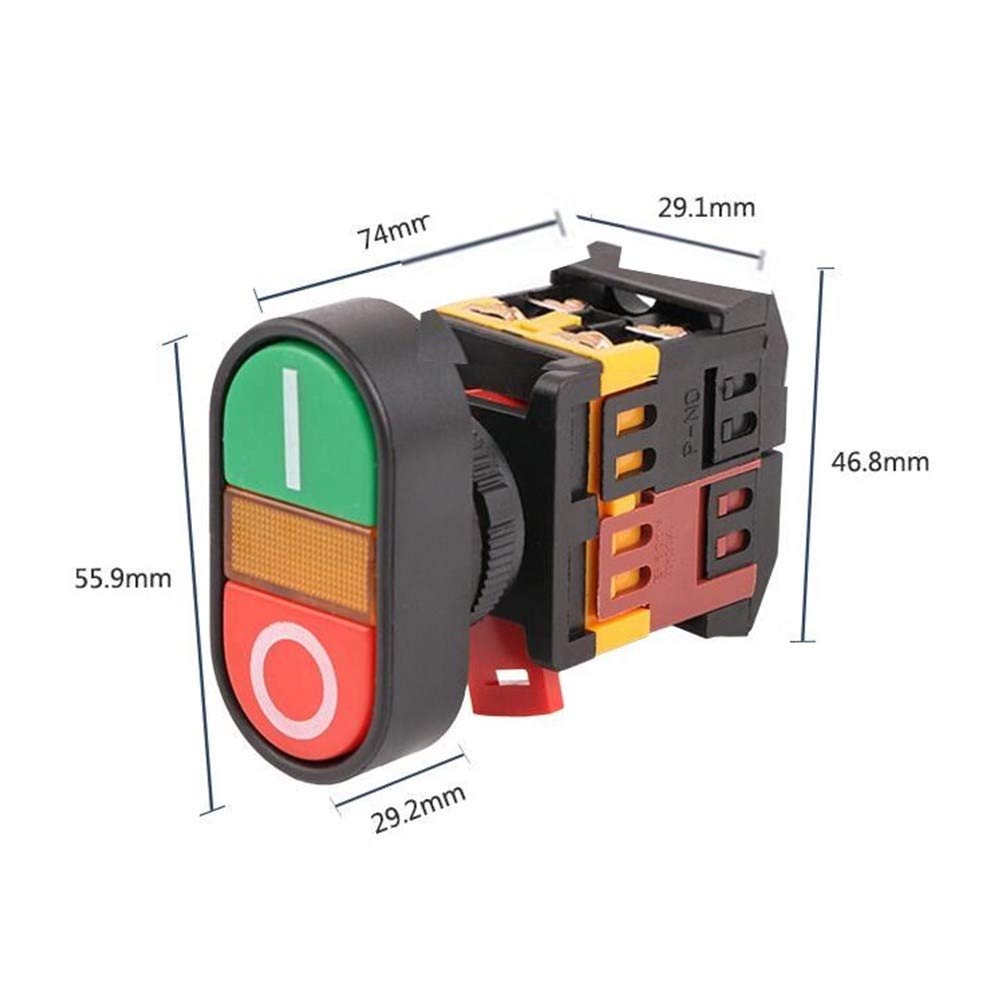

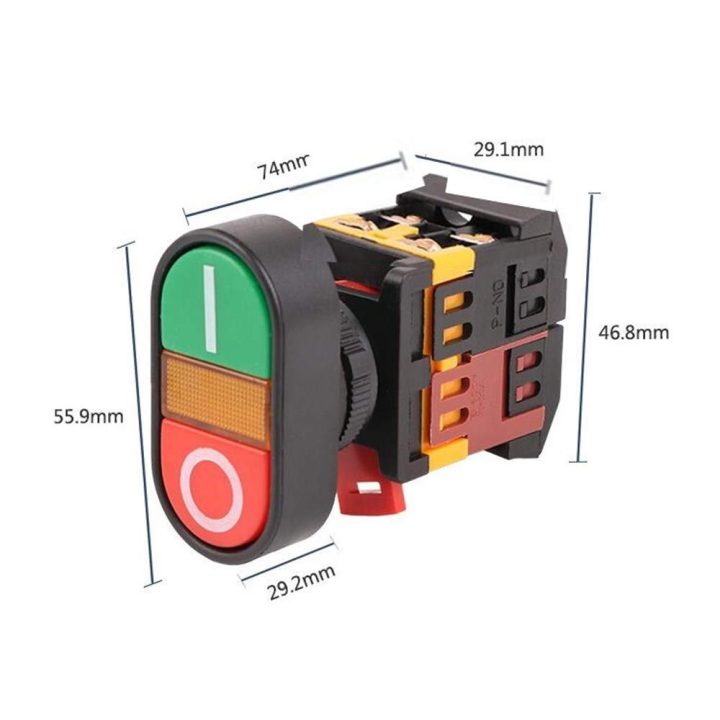

• Total Size (Approx.) : 74 x 56 x 30 mm / 2.9″ x 2.1″ x 1.1″ (L * W * H)

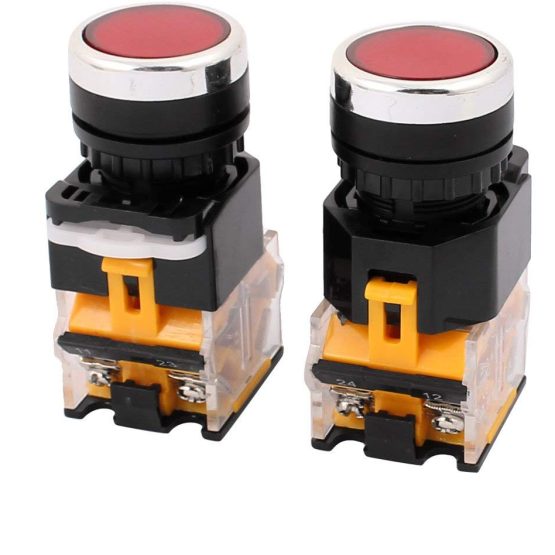

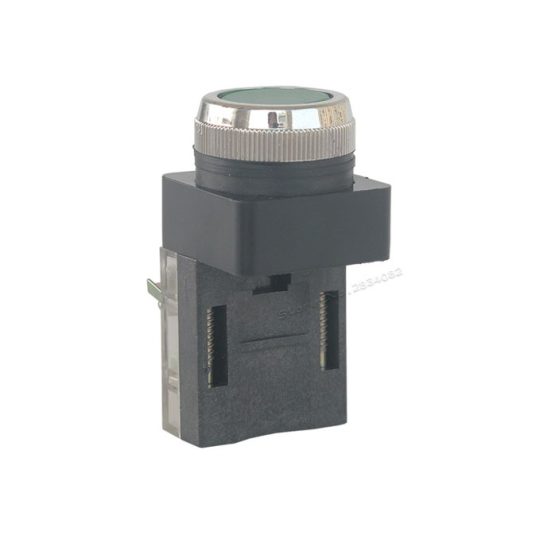

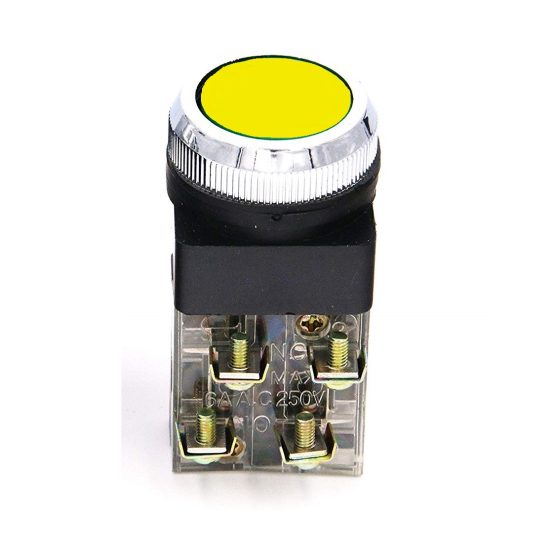

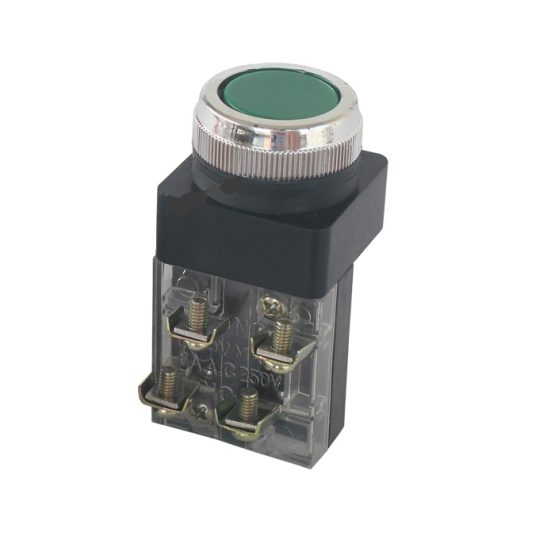

• The momentary double push buttons switch with lamp is widely used in the industrial field.
• Use for controlling in electromagnetic starter, contactor, relay and other electric circuits.
• The buttons with indicator light can be used in the fields where is indicated by signal light.
• Ei: 600V; ith: 10A.

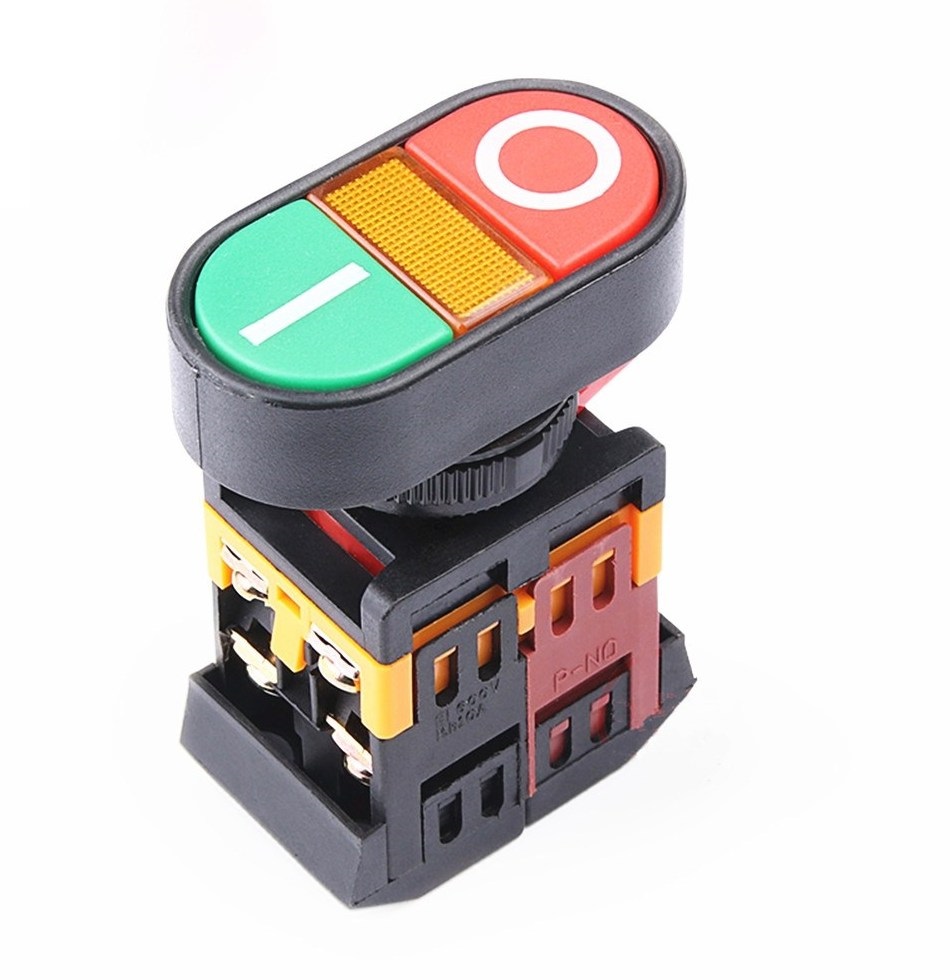

• 1 flush green pushbutton 1 flush red pushbutton with yellow lens 220/250V BA9S, 130V bulb included marked IP40 22&25.
• N/O+N/C 400V.
• Conventional heating current: 10A
• Rated insulation Voltage: AC600V(50Hz-60Hz)
• Operational temperation: -25~70Centigrade
• Operational humidity: ≤ 85%
