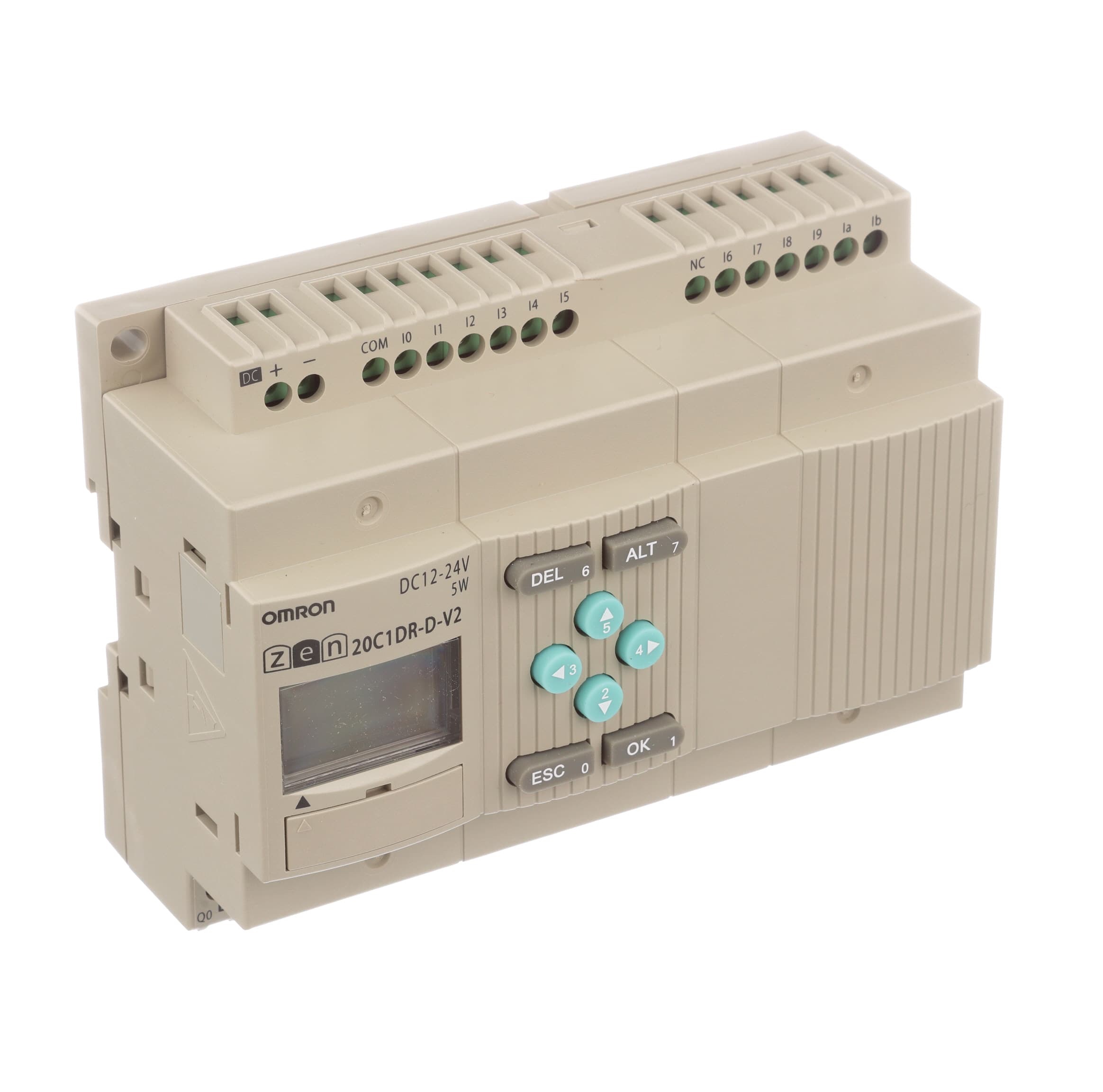

Omron (ZEN-20C1DR-D-V2) Programmable Relay DC12-24V (Contact for price)

Model: ZEN-20C1DR-D-V2

Rated supply voltage 12 to 24 VDC (DC ripple rate: 5% max.)
Operating
voltage range
10.8 to 28.8 VDC
Power
consumption
CPU Units without Expansion I/O Units
ZEN-10C[]DR-D-V2
12/24 V DC: 3 W max.
(ZEN-10C3DR-D-V2: 2.8 W max.)
ZEN-10C[]DT-D-V2
12/24 V DC: 2 W max.
ZEN-20C[]DR-D-V2
12/24 V DC: 4 W max.
ZEN-20C[]DT-D-V2
12/24 V DC: 2 W max.
CPU Units with three Expansion I/O Units
ZEN-10C[]DR-D-V2
12/24 V DC: 4 W max.
ZEN-10C[]DT-D-V2
12/24 V DC: 3 W max.
ZEN-20C[]DR-D-V2
12/24 V DC: 5 W max.
ZEN-20C[]DT-D-V2
12/24 V DC: 3 W max.
Expansion I/O Units
ZEN-8E1DR
12/24 V DC: 2 W max.
Inrush current ZEN-10C[]D[]-D-V2: 30 A max.
ZEN-20C[]D[]-D-V2: 30 A max.
ZEN-8E1DR: 15 A max.
Ambient temperature 0 to 55C (-25 to 55C for ZEN-[]C2[][]-[]-V2 models)
Ambient storage
temperature
-20 to 75C (-40 to 75C for ZEN-[]C2[][]-[]-V2 models)
Ambient humidity 10% to 90% (with no condensation)
Ambient conditions No corrosive gases
Mounting method Surface mounting, DIN track mounting (standard (vertical) installation and horizontal installation)
(See notes 1 and 2.)
Terminal block Solid-line terminal block (use solid wire or fine-stranded wire)
Terminal screw
tightening torque
0.565 to 0.6 Nm (5 to 5.3 in-lb)
Degree of protection IP20 (Mounted inside a control panel)
Category:

Description

  • Increased eased functionality in a compact body (70 mm wide 90 mm high).
  • Easy programming is available using the LCD and operation buttons.
  • This single Unit easily provides relay, timer, counter, and time switch functions.
  • Expansion is easy with Expansion I/O Units, allowing up to 44 I/O points.
  • Economy-type and Communications-type CPU Units have been added to series.
  • Improved Weekly Timers.
  • Increased timing accuracy with a monthly deviation of 15 s max. Multiple-day operation and pulse output operation have
    been added.
