Description

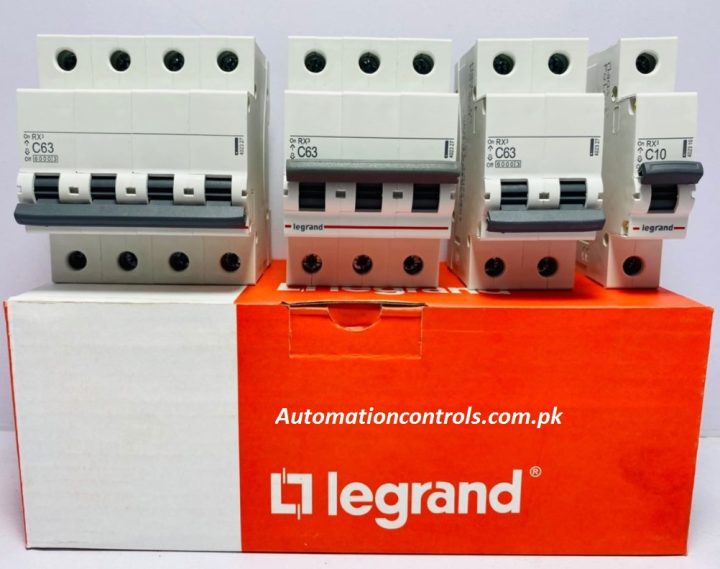

• Model: RX3
• Current rating: optional (write in order notes)

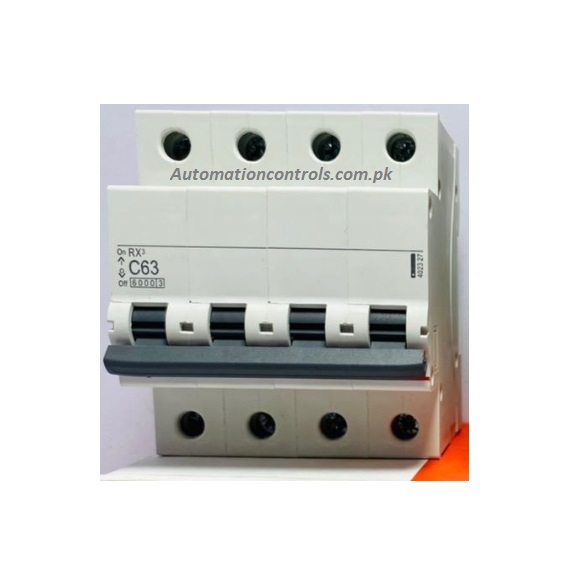

• Number of pole: 4pole
• Breaking capacity: 6000 A in accordance with standard EN/IEC 60898-1
• Ambient temperature on operation: – 25 ℃ to + 70 ℃
• Mounting DIN Rail

Product details:

• This is thermal-magnetic circuit breaker (MCB) with positive contact indication for control, protection against short-circuits and overloads, and isolation of electrical circuits.
• Inputs and outputs via screw terminals, cage terminals, with release and captive screws.
• Icn1 = 6 kA at 230 V, where Icn1 is the breaking capacity of one pole for multi-pole MCB’s in case of short-circuit to earth.
