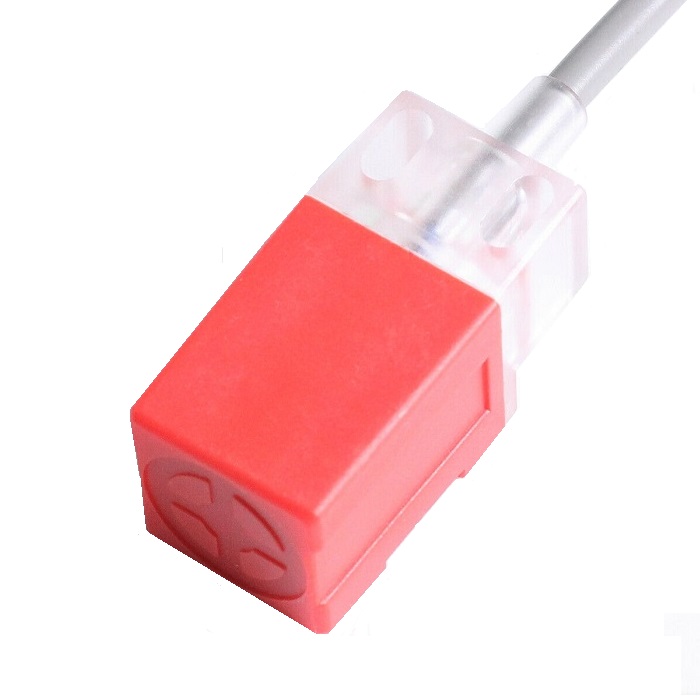

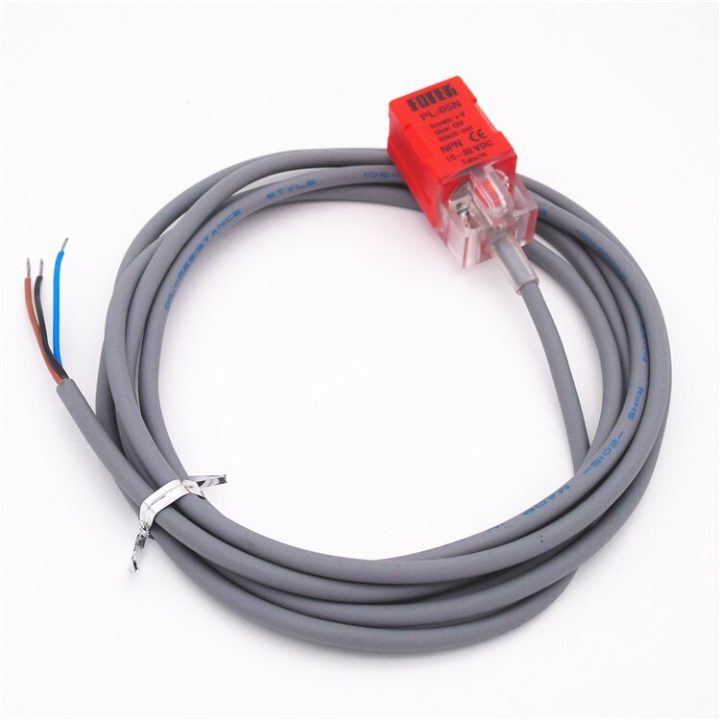

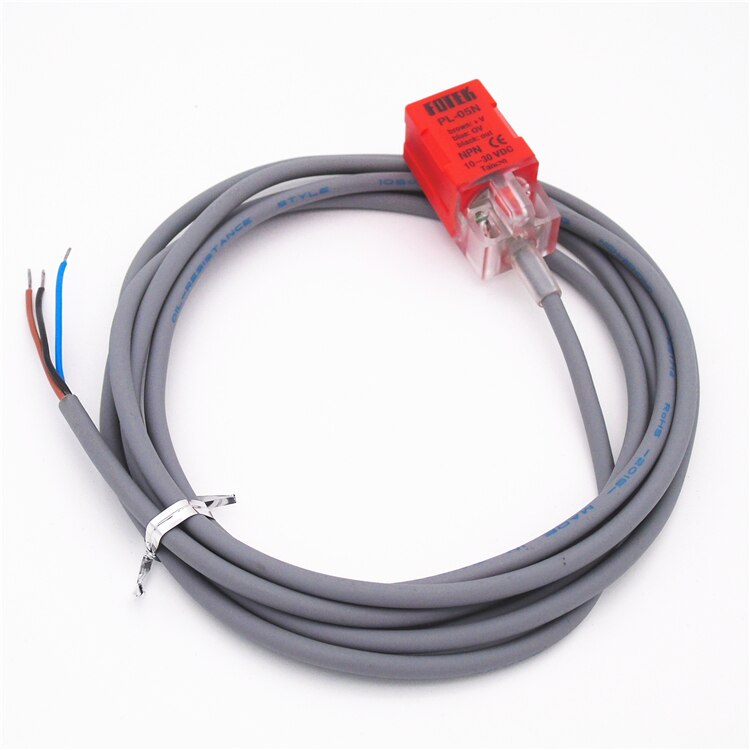

FOTEK Inductive Proximity Sensor (PL-05N) 10-30v DC NPN NO(normally open)
Rs 900.00
Product: Inductive Proximity Sensor
Model: PL-05N
Brand: FOTEK
Supply voltage: 10-3ov DC

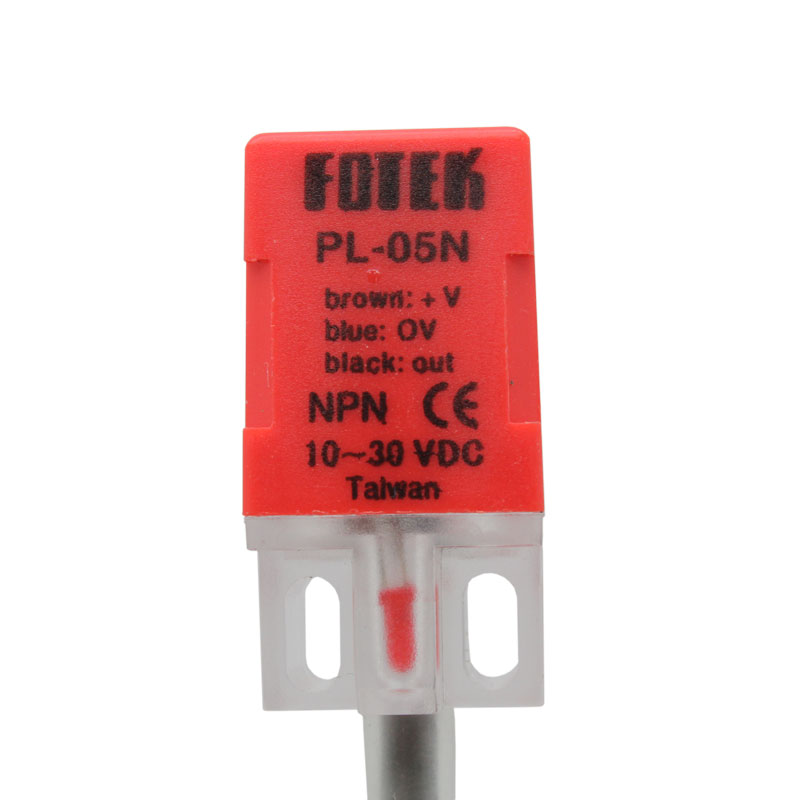

Wires: 3 DC wire (Brown, Black, Blue)
Output current: 150 mA
Output type: NPN NO(normally open)
Sensing range: 5mm
Protection degree: IP67
Response frequency: 800Hz
Working temperature: -20 ~+80C
Humidty: 35%~90%RH
Body dimension: 29.3 x 18.6 x 18.0mm, LxWxH
Screw hole: 3.2mm
Wire length: 1 meter/100 cm
Material: High-impact plastic
Shape: square
- Description
- Reviews (2)
Description
- Inductive Proximity Sensor PL-05N NPN NO(normally open) Switch is used for controlling machinery as part of a control system, as a safety interlock, or to count objects passing a point.
- This is a type of switch which is an electro-mechanical device that consists of an actuator mechanically linked to a set of contacts.
- When an object comes into contact with the actuator, the device operates the contacts to make or break an electrical connection.
- Being an inductive switch, no physical contact is required between the switch and the metallic surface being sensed.
- These sensor switches are used in a variety of applications and environments because of their ruggedness, ease of installation, and reliability of operation.
- They can determine the presence or absence, passing, positioning, and end of travel of an object.
