Description

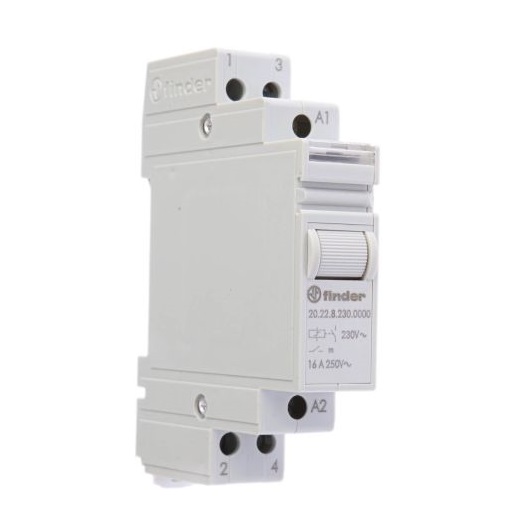

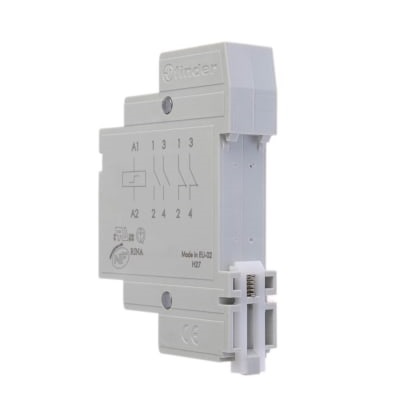

• Finder step relay is an AC powered double phase modular latching device with two NO contacts and switching current 16A.
• On each successive energization of the relay coil, this contacts change state thus providing a step or “flip flop” sequence of operation.
• It has the advantage of an override test button, it allows manual advancement of the step sequence and individual mechanical flags provide a visual indication of contact status.
• For mounting on 35mm rail
• Cadmium-free contact material
• It has the choice of 7 switching sequences
• Its contact material is silver alloy
• DPST contact configuration
• Maximum peak current is 30A
• Screw type termination
• Test button with mechanical indicators
• Width is 17.4mm
