Autonics (LE8N-BN) 8-Digit Digital Timer (Contact for price)

Model:LE8N-BN

Display method 8-digit 7-segment LCD
Operation method Count up
Time operation POWER ON START
Terminal Terminal block
Power supply Built-in battery(over 10 years)
Setting range 0.01 sec to 9999 hour 59 min 59 sec, 0.1 min to 99999 hour 59.9 min, 1 min to 999999 hour 59 min, 1 min to 9999 day 23 hour 59 min, 0.1 hour to 9999 day 23.9 hour, 1 sec to 99999999 sec, 0.1 min to 9999 hour 59.9 min, 1 min to 99999 hour 59 min, 0.1 hour
Input Method_Signal No-voltage input(NPN)
Input Method_Reset No-voltage input(NPN)
Control output Indicator
Protection structure IP66(front panel)
Dimension 48 x 24 mm
Min. signal Width SIGNAL, RESET input: Approx. 20ms
External set switch SW1, SW2, SW3
Accessories Mounting bracket, Rubber waterproof ring
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH
Weight Approx. 96g (approx. 50g)



Categories: ,

Description

  • SW1 is the front panel RESET key enable/disable set switch.
  • SW2 is the time range set switch.
  • SW3 is available to select time specification TS1, TS2, or TS3.
  • No-voltage input, voltage input: between terminals and the case,
  • Free voltage input: between the free voltage input terminal and the RESET input terminal, between terminals and the case
  • The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.

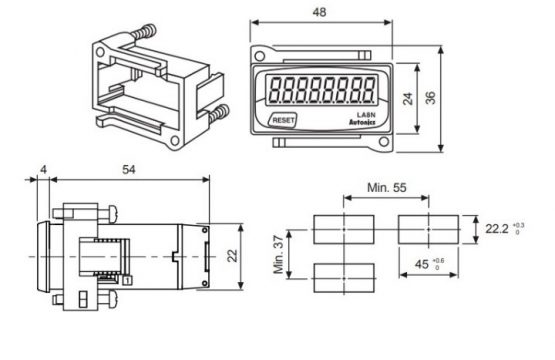

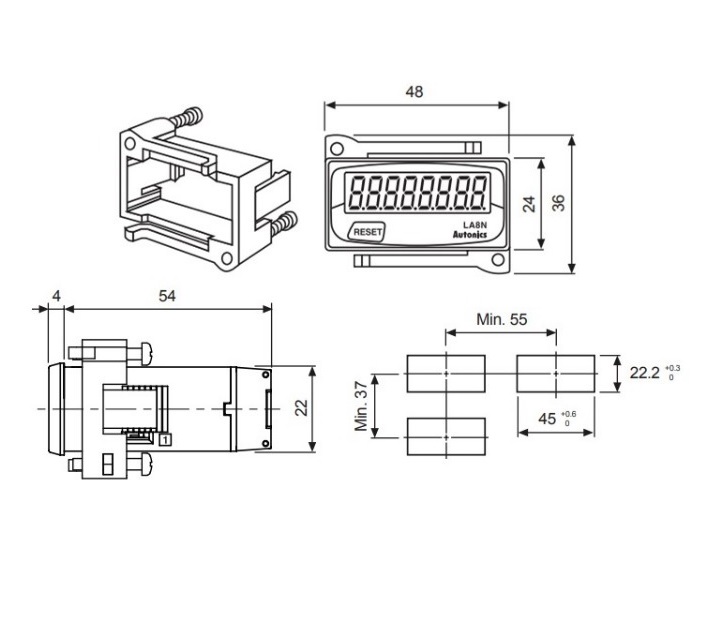

Dimensions
