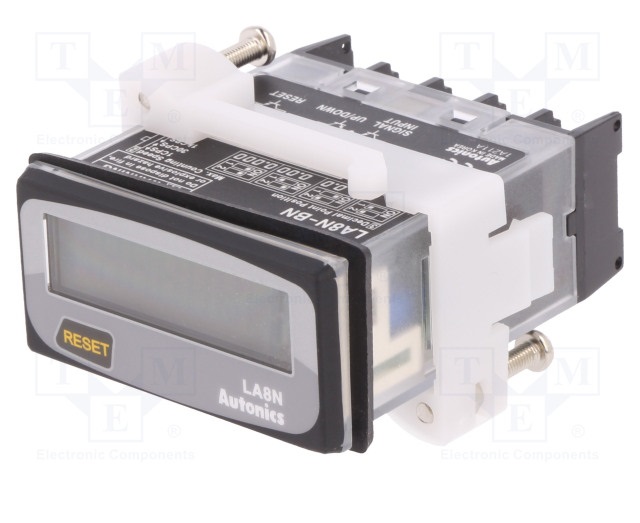

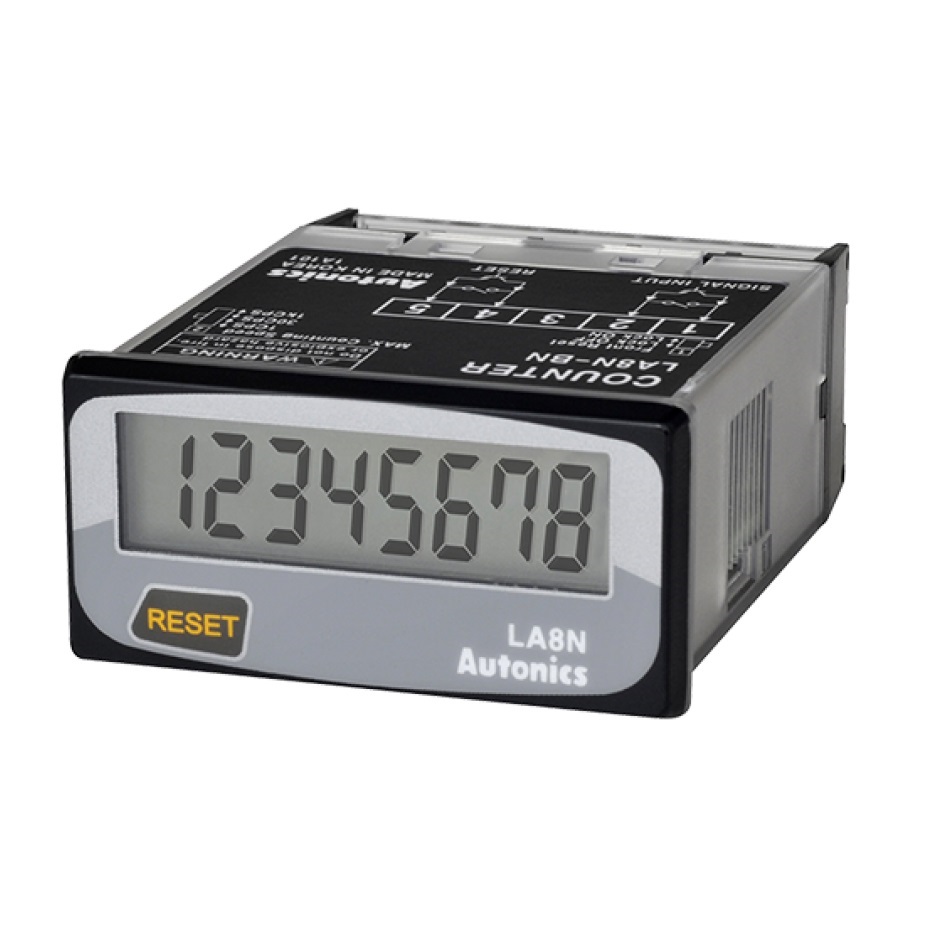

Autonics (LA8N-BN) 8-Digit LCD Digital Counter Built-in-Battery (Contact for price)

Model: LA8N-BN

Display method 8-digit 7-segment LCD
Operation method Count up, Count down, Count up/down
Terminal Terminal block
Power supply Built-in battery(over 7 years)
Input Method_Signal No-voltage input(NPN)
Input Method_Reset No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k [cps]
Min. signal Width 20ms
Control output Indicator
Protection structure IP66(front panel)

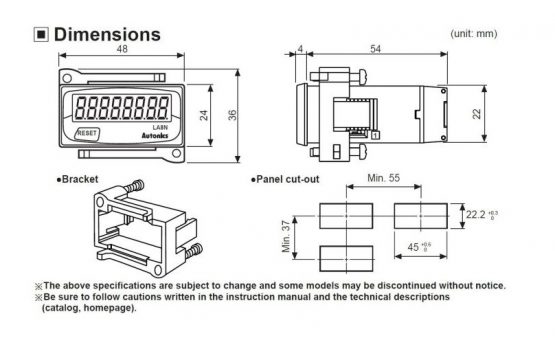

Dimension 48mm *24 mm
Accessories Mounting bracket, Rubber waterproof ring
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 96g (approx. 50g)
