Autonics (FX4H-1P4) Counter, Timer (Contact for price)

0 out of 5

Model: FX4H-1P4

Display method	4-digit 7-segment LED
Operation method	Counter: Count up, Count down, Count up/down Timer: Count up, Count down
Terminal	Terminal block
Output Operation	POWER ON DELAY, FLICKER
Power supply	100-240VAC~ 50/60Hz
Time operation	POWER ON START
External Power Supply	Max. 12VDC 10% 50mA
Signal Input Method	Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed	1, 30, 2k, 5k [cps]
Min. signal Width	20ms
Memory Protection	Approx. 10 years
Setting range	0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 99 hour 59 min, 0.1 hour to 999.9 hour, 1 hour to 9999 hour
Control output_Type	1-stage preset
Control output_Relay	SPDT (1c): 1
Control output_NPN open collector	1
Protection structure	IP20(front panel)

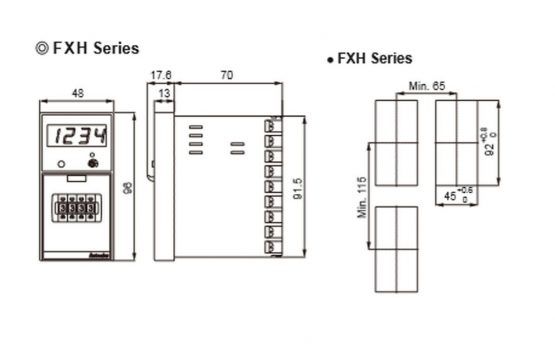

Dimension	48 x 96 mm
Environment_Ambient temperature	-10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity	35 to 85% RH, storage: 35 to 85% RH
Weight	Approx. 245g (approx. 180g)

Categories: Counters, Digital, Timer
