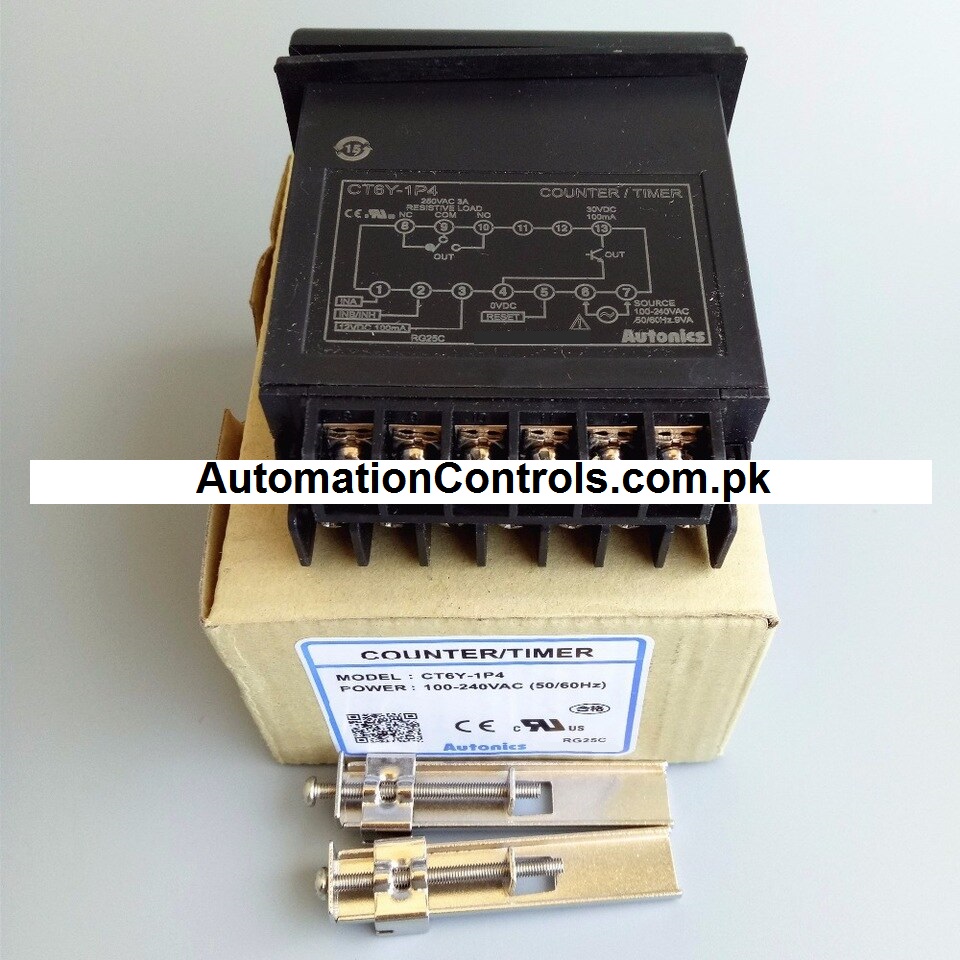

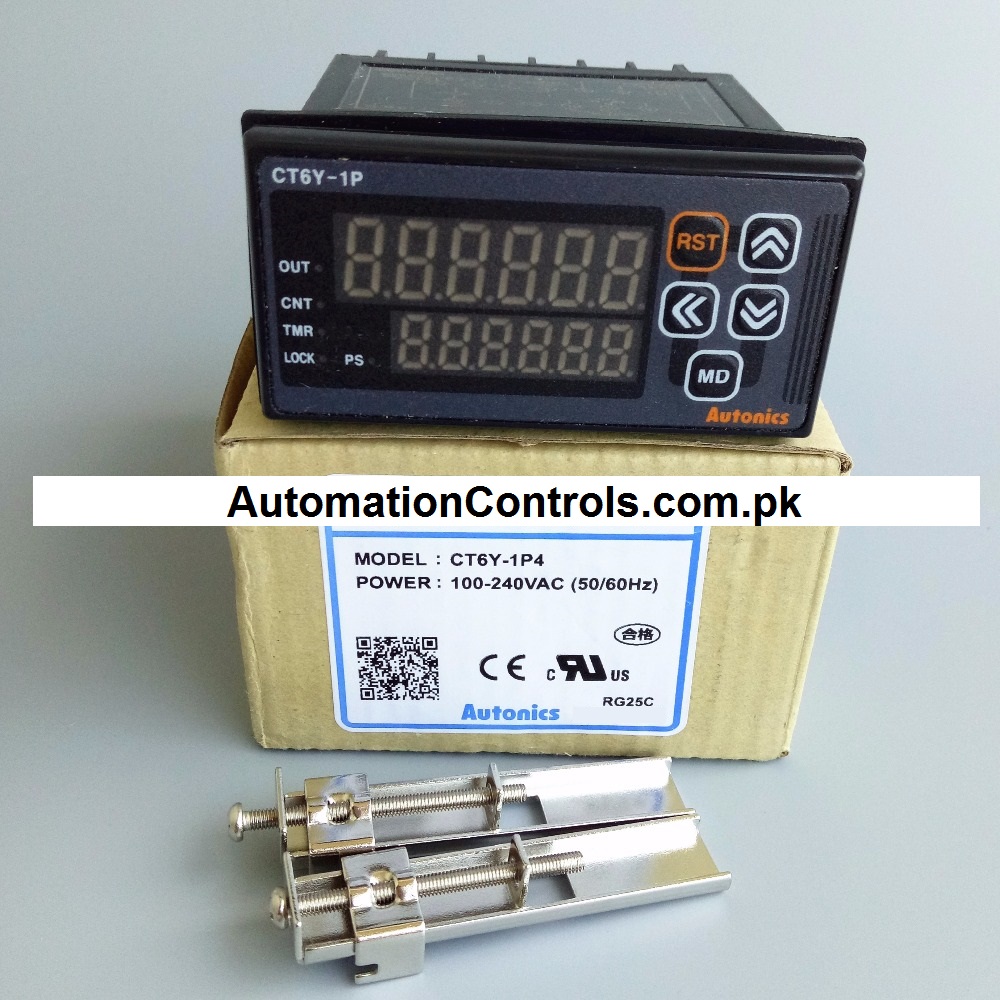

Autonics (CT6Y-1P4) 6-Digit Counter/Timer (Contact for price)



Model CT6Y-1P4
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Display method 6-digit 7-segment
Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply 100-240VAC~ 50/60Hz
Time operation POWER ON START
SIGNAL ON START
External Power Supply Max. 12VDC @(=) 10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type 1-stage preset
Control output_Relay SPDT (1c): 1
Control output_NPN open collector 1
Protection structure IP65(front panel)
Approval @(CE) @(CULUS)
Counter_Counting range -99999 to 999999
Counter_Scale Decimal point up to fifth digit
Counter_Min. input signal width RESET: Selectable 1ms/20ms
Timer_Min. input signal width INA, INH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Terminal terminal blocks



Category:

Description



  • Brand: Autonics
  • Available to set 6 digits(0.00001 to 999999) prescale value(4digit : 0.001 to 9999)
  • Built-in Modbus communication function(Communication model)
  • Available to set the One-Shot output time in 10ms.(0.01sec. to 99.99sec.)
  • Increase contact capacity to 5A(CTS, CTM Series)
  • Available to set Count Start Point.(Initial value)
  • Improved to select memory protection function in the indicator
  • Added BATCH counter function(CTM Series)
  • Added Counter Up-1 / Up-2 / Down-1 / Down-2 input modes
  • Added Counter TOTAL / HOLD operation modes in the indicator
  • Added Timer TOTAL / HOLD / On Time Display operation modes in the indicator
  • Added Timer INT2 / NFD / NFD.1 / INTG output modes
  • Added Timer range 999.999s / 9999m59 / 99999.9h
  • Supply voltage: 100-240 VAC

Pdf

https://www.autonicsonline.com/image/pdf/CT.pdf
