Autonics (CT6M-1P4) 6-Digit Programmable Digital Counter (Contact for price)



Model CT6M-1P4
Operation method Counter: Count up, Count down, Count up/down
Timer: Count up, Count down
Display method 6-digit 7-segment LED
Output Operation SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
Power supply 100-240VAC~ 50/60Hz
Time operation POWER ON START
SIGNAL ON START
External Power Supply Max. 12VDC @(=) 10%, 100mA
Signal Input Method Voltage input(PNP), No-voltage input(NPN)
Max. Counting Speed 1, 30, 1k, 5k, 10k [cps]
Min. signal Width 1ms/20ms
Memory Protection Approx. 10 years
Setting range 0.001 sec to 9.999 sec, 0.01 sec to 99.99 sec, 0.1 sec to 999.9 sec, 1 sec to 9999 sec, 1 sec to 99 min 59 sec, 0.1 min to 999.9 min, 1 min to 9999 min, 1 min to 99 hour 59 min, 1 hour to 9999 hour
Control output_Type 1-stage preset
Control output_Relay SPDT (1c): 1
Control output_NPN open collector 2
Protection structure IP65(front panel)
Approval @(CE) @(CULUS)
Counter_Counting range -99999 to 999999
Counter_Scale Decimal point up to fifth digit
Counter_Min. input signal width RESET: Selectable 1ms/20ms
Timer_Min. input signal width INA, RESET, INHIBIT, BATCH, RESET: Selectable 1ms/20ms
Environment_Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environment_Ambient humidity 35 to 85% RH, storage: 35 to 85% RH
Weight Approx. 322g (approx. 252g)
Category:

Description

  • The units feature various input / output modes of operation and load contact capacity up to 5A for flexible application in various industries.

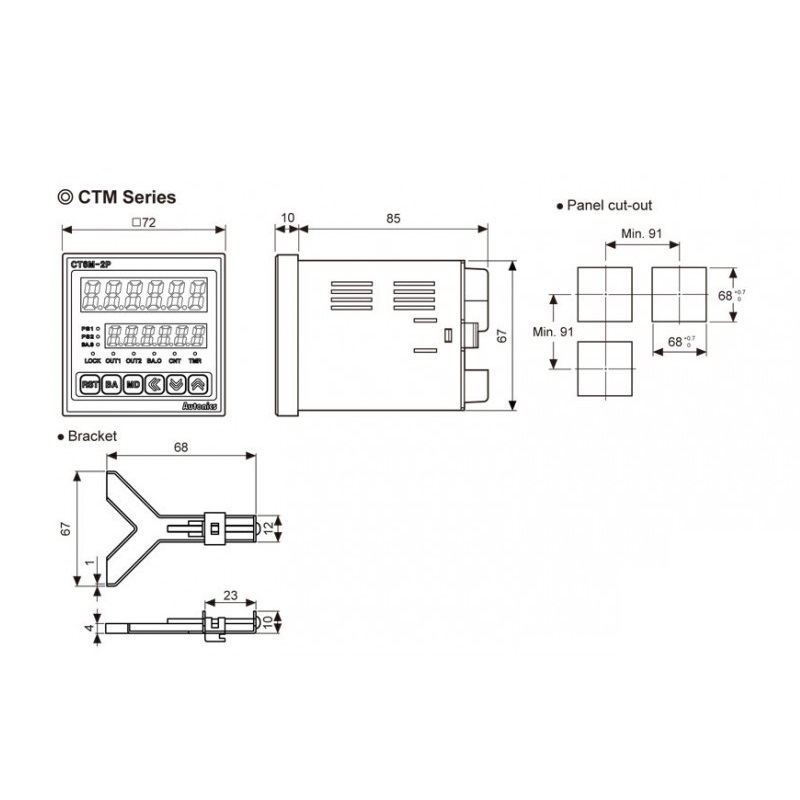

  • This is the 6-digit model in 72mm 72mm size.
  • Display method: 6-digit, 7-segment LED.
  • Operation method: counter: count up, count down, count up / down.
  • Timer: countdown, countdown.
  • Output operation: SIGNAL ON DELAY, POWER ON DELAY, FLICKER, INTERVAL, SIGNAL OFF DELAY, ON-OFF DELAY, INTEGRATION TIME
  • Power supply: AC 100 – 240 V ~ 50 – 60 Hz.
